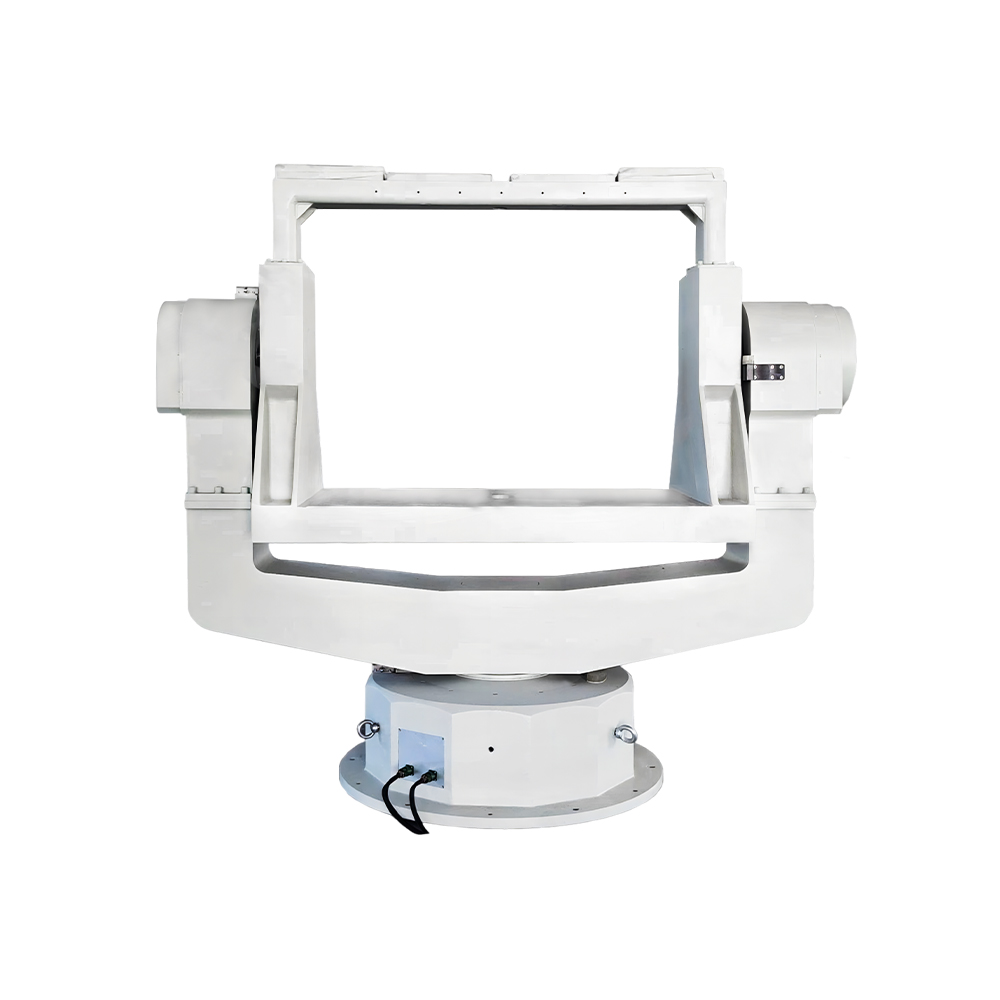

When payloads are heavy and tolerances are tight, this rate table delivers.
◆ Accuracy That Defines Excellence
1 arc-second angle measurement resolution with degrees-minutes-seconds display ensures precise, readable positioning. Rate accuracy better than 1% at low speeds and 0.2% at higher speeds, with stability better than 2% and 0.5% respectively—delivering clean, repeatable motion across the entire operating range.
◆ Speed and Acceleration for Demanding Profiles
Angular velocity spans 0.01°/s to 60°/s with 0.01°/s resolution. Acceleration range extends from 0°/s² to 60°/s² with 0.1°/s² control accuracy—enabling realistic simulation of complex dynamic scenarios for high-performance systems.
◆ Wide Angular Coverage for Comprehensive Testing
Azimuth rotates ±120°, pitch tilts ±70°—providing ample angular range for diverse attitude simulation, sensor characterization, and dynamic maneuver testing across multiple axes.
◆ Substantial Payload Capacity
Supporting 200 kg measurable product mass (excluding fixtures and counterweights), the system accommodates complete aerospace assemblies, defense systems, vehicle components, and heavy test articles without compromise.
◆ Robust Design for Demanding Environments
Pitch axis inner frame width of 1400 mm provides exceptional structural stability. Advanced sensors and control systems ensure reliable performance under various dynamic conditions—from gradual sweeps to aggressive maneuvers.
◆ Multi-Axis Linkage for Complex Testing
Coordinated two-axis motion enables realistic simulation of coupled dynamics, supporting comprehensive evaluation of navigation systems, guidance components, and stabilization platforms.
◆ Built for High-Dynamic Applications
Engineered for aerospace, defense, vehicle, shipbuilding, automation, robotics, and scientific research—the system delivers consistent, accurate results across diverse testing scenarios.
◆ Applications
Aerospace system validation. Defense equipment testing. Vehicle dynamic performance evaluation. Shipboard navigation system calibration. Robotics motion control verification. Scientific research and development.
◆ The Heavy-Duty Precision Testing Solution
This motion simulation rate table is purpose-built for engineers who demand both high load capacity and uncompromising precision. By delivering exceptional accuracy, wide dynamic range, and robust construction, it provides the confidence to validate performance—from component characterization to full system integration.
