Precision, stability, and versatility—unified in a U-T configuration built for demanding test environments.
◆ Accuracy That Anchors Your Data
±5 arc-second repeated positioning accuracy ensures every test run produces consistent, trustworthy results. For industrial quality assurance and scientific research, this level of repeatability is non-negotiable.
◆ Speed That Balances Efficiency and Precision
Maximum uniform motion at 20°/s on both axes for rapid positioning, with rate resolution below 0.001°/s and minimum stable rate under 0.005°/s for ultra-fine control. One platform handles both high-throughput screening and delicate calibration sequences.
◆ Wide Angular Range for Diverse Testing
Pitch spans -60° to +60°, azimuth covers 0° to ±170°—providing comprehensive angular coverage for sensor characterization, optical alignment, and component validation across multiple test scenarios.
◆ Precision Alignment You Can Trust
Two-axis non-perpendicularity maintained within ±15 arc-seconds—ensuring uncompromised multi-axis coordination for applications where alignment precision underpins every measurement.
◆ Zero-Position Locking for Secure Setup
Load plate features zero-position positioning pins, pin holes, and mechanical locking devices—enabling reliable reference positioning and secure sample mounting for consistent test conditions across repeated runs.
◆ Generous Payload and Work Surface
Supporting 40 kg loads on a Φ400 mm load plate, the system accommodates industrial components, scientific instruments, optical assemblies, and test fixtures without custom fixturing.
◆ U-T Structure for Rigid Stability
The U-T structural configuration delivers exceptional mechanical stiffness, minimizing deflection and vibration for stable performance across extended test campaigns—even under heavy loads.
◆ Certified Quality You Can Rely On
ISO and Bureau Veritas certifications back every component, ensuring consistent performance and long-term reliability for industrial and scientific research testing demands.
◆ Applications
Industrial component validation. Scientific research and development. Optical system alignment. Sensor characterization. Quality assurance and inspection. Precision instrument calibration.
◆ The Certified Precision Testing Solution

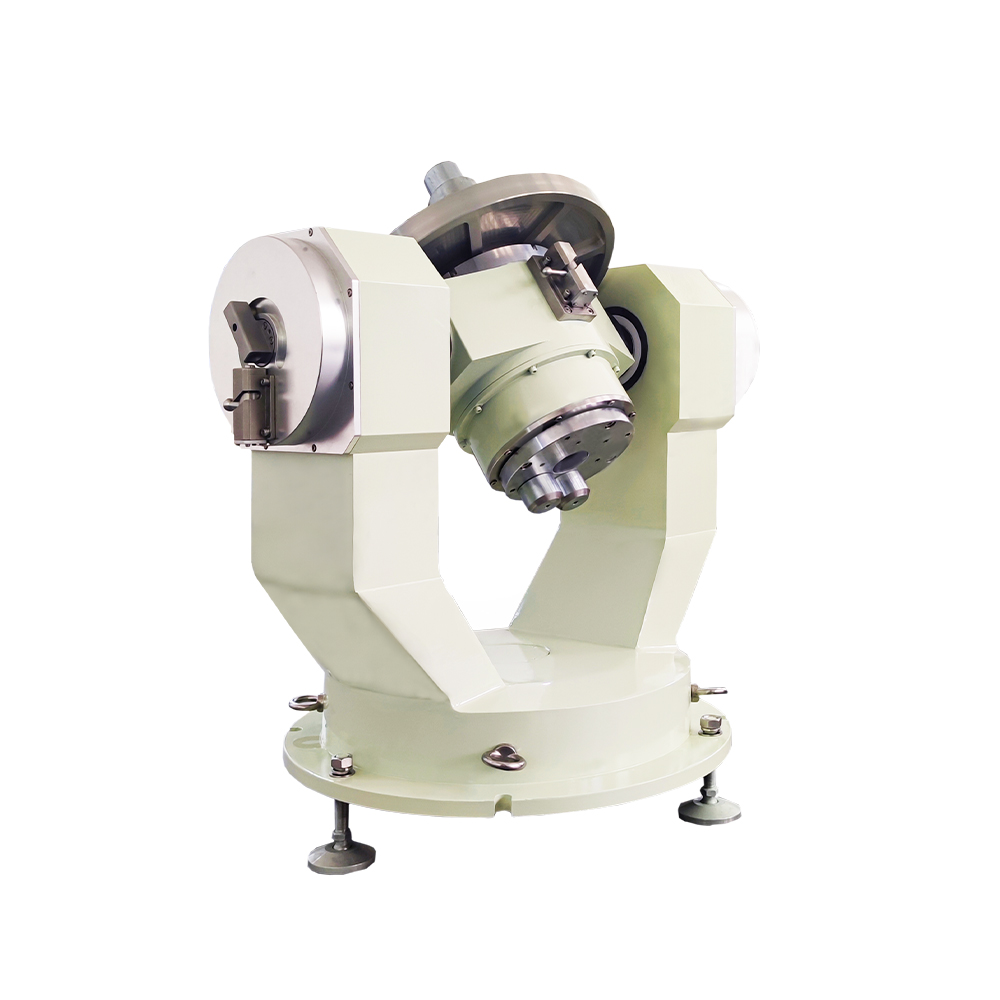

This U-T type rotary test table is purpose-built for professionals who demand uncompromising accuracy and reliability. By delivering exceptional repeatability, flexible angular coverage, and robust construction with international certification, it provides the confidence to validate performance—from R&D through production.
