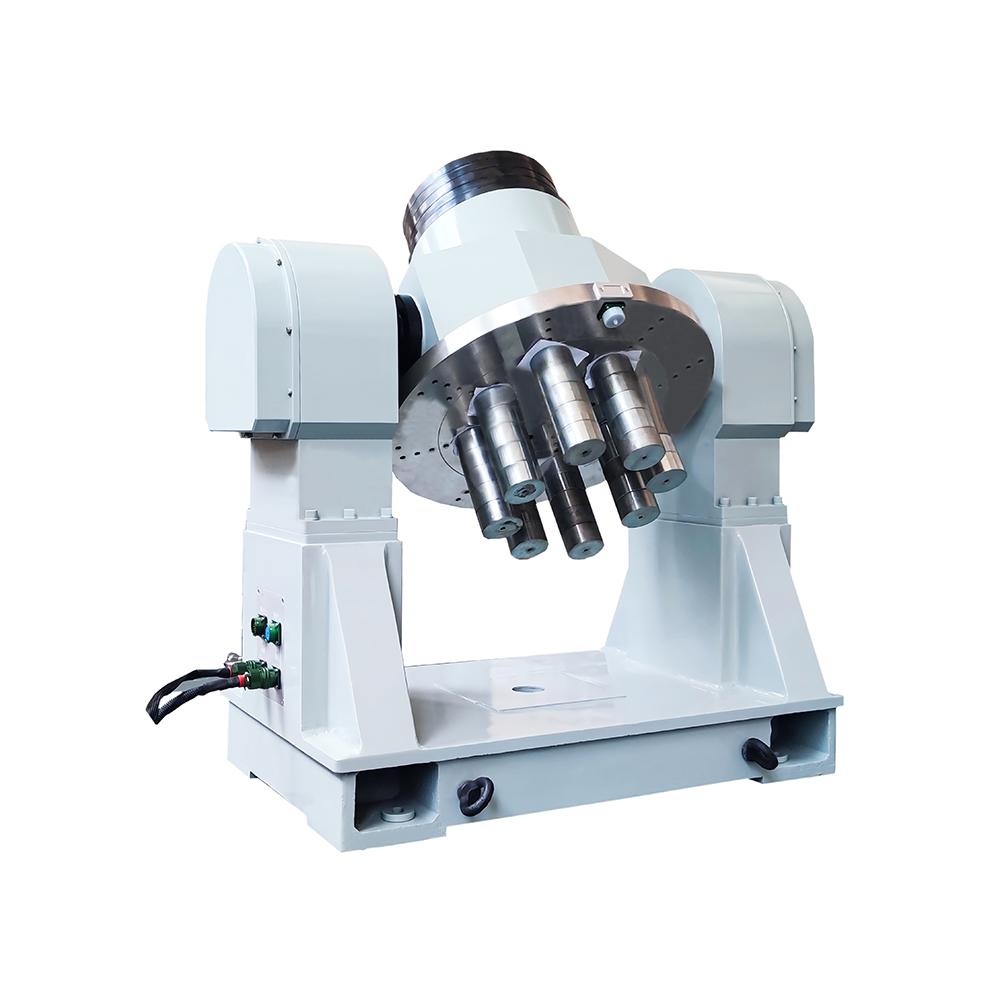

Precision motion control meets dynamic testing versatility. This dual-axis turntable is built for the most demanding inertial navigation and equipment validation scenarios.
◆ Accuracy That Anchors Every Measurement
±5 arc-second positioning accuracy with ±2 arc-second repeatability and 0.36 arc-second resolution ensures your test data reflects true device performance. For aerospace navigation and optical system calibration, this level of fidelity is non-negotiable.
◆ Speed That Spans the Spectrum
Spindle reaches 500°/s, pitch axis delivers 300°/s, with rate resolution down to 0.0001°/s. Stability scales intelligently: 3e-003 over 1° average, 3e-004 over 10° average, and 3e-005 over 360° average—clean, artifact-free motion across the entire envelope.
◆ Acceleration That Mirrors Real-World Dynamics
Both spindle and pitch axis deliver 300°/s² maximum angular acceleration—enough to simulate rapid attitude corrections, target acquisition maneuvers, and dynamic disturbances without exceeding payload limits.
◆ Dual-Mode Testing: Rotation and Swing
Beyond 360° continuous rotation, both axes support swing mode—spindle and pitch at 0°～±45° with 0.02Hz～10Hz frequency. This adds another dimension of testing for vibration-sensitive sensors and dynamic response characterization.
◆ Precision Construction for Stable Results
Φ580 mm table with robust 590 kg platform weight ensures minimal deflection and vibration. The high-precision electric drive, angle and speed measurement system, and closed-loop control deliver exceptional positioning and speed capabilities.
◆ Generous Payload Capacity
Supporting 40 kg loads, the system accommodates complete inertial navigation assemblies, optical payloads, satellite components, and vehicle dynamic test fixtures without compromise.
◆ Applications
Inertial navigation system testing. Aerospace sensor validation. Precision optics calibration. Satellite system verification. Vehicle dynamic performance testing. Military equipment qualification.
◆ The Comprehensive Dynamic Test Solution
By unifying high-precision positioning, wide-rate capability, and dual-mode rotation/swing functionality, this turntable delivers the performance engineers need for complex attitude adjustments and dynamic testing. For professionals who demand accuracy, versatility, and reliability across diverse equipment validation scenarios, it provides the confidence to test with precision—from development through qualification.
