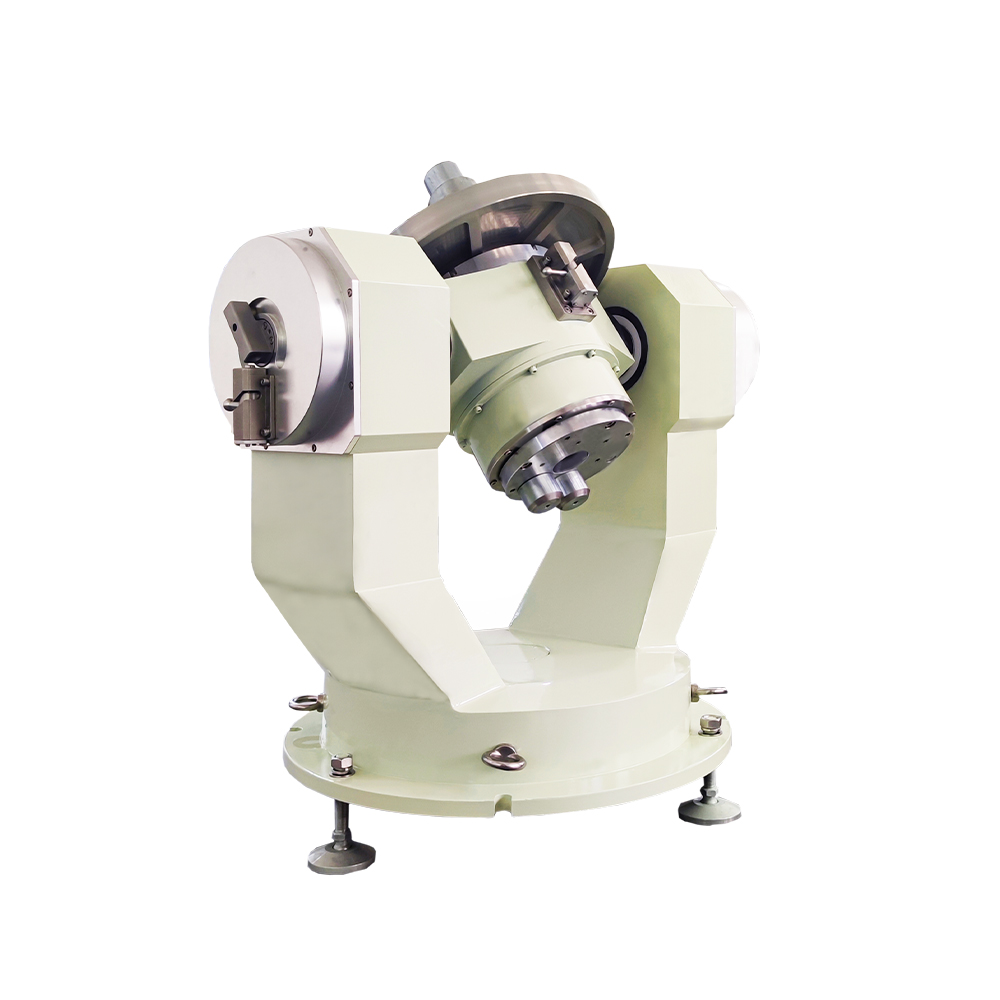

Precision calibration demands more than accuracy—it demands repeatability, stability, and versatility. This dual-axis turntable delivers all three.
◆ Accuracy That Anchors Your Measurements
±5 arc-second repeated positioning accuracy ensures every test run produces consistent, trustworthy results. For optical measurement, sensor calibration, and aerospace validation, this level of repeatability is non-negotiable.
◆ Speed and Resolution for Demanding Sequences
Maximum uniform motion at 20°/s on both axes, with rate resolution below 0.001°/s and minimum stable rate under 0.005°/s. This fine-grained control enables precise positioning sequences for even the most demanding calibration routines.
◆ Wide Angular Range for Diverse Testing
Pitch spans -60° to +60°, azimuth covers 0° to ±170°—ample range for comprehensive sensor characterization, optical alignment, and attitude simulation across diverse test scenarios.
◆ Precision Alignment You Can Trust
Two-axis non-perpendicularity maintained within ±15 arc-seconds—ensuring uncompromised multi-axis coordination for applications where alignment precision underpins every measurement.
◆ Generous Payload and Work Surface
Supporting 40 kg loads on a Φ400 mm load plate, the system accommodates optical assemblies, sensor suites, robotics components, and aerospace payloads without custom fixturing.
◆ Zero-Position Locking for Secure Setup
Load plate features zero-position positioning pins, pin holes, and mechanical locking devices—enabling reliable reference positioning and secure sample mounting for consistent test conditions.
◆ U-T Structure for Rigid Stability
The U-T structural configuration delivers exceptional mechanical stiffness, minimizing deflection and vibration for stable performance across extended test campaigns.
◆ Engineered for Harsh Testing Environments
Built with durable construction and user-friendly operation, the system maintains consistent performance in challenging laboratory and production conditions—reducing downtime and maintenance overhead.
◆ Applications
Optical measurement and alignment. Aerospace sensor calibration. Robotics system validation. Quality inspection and product development. Precision instrumentation testing.
◆ The Versatile Calibration Solution
This dual-axis turntable is purpose-built for engineers who demand accuracy across diverse testing scenarios. By delivering exceptional repeatability, flexible angular coverage, and robust construction, it provides the foundation for confident calibration—from R&D through production.
