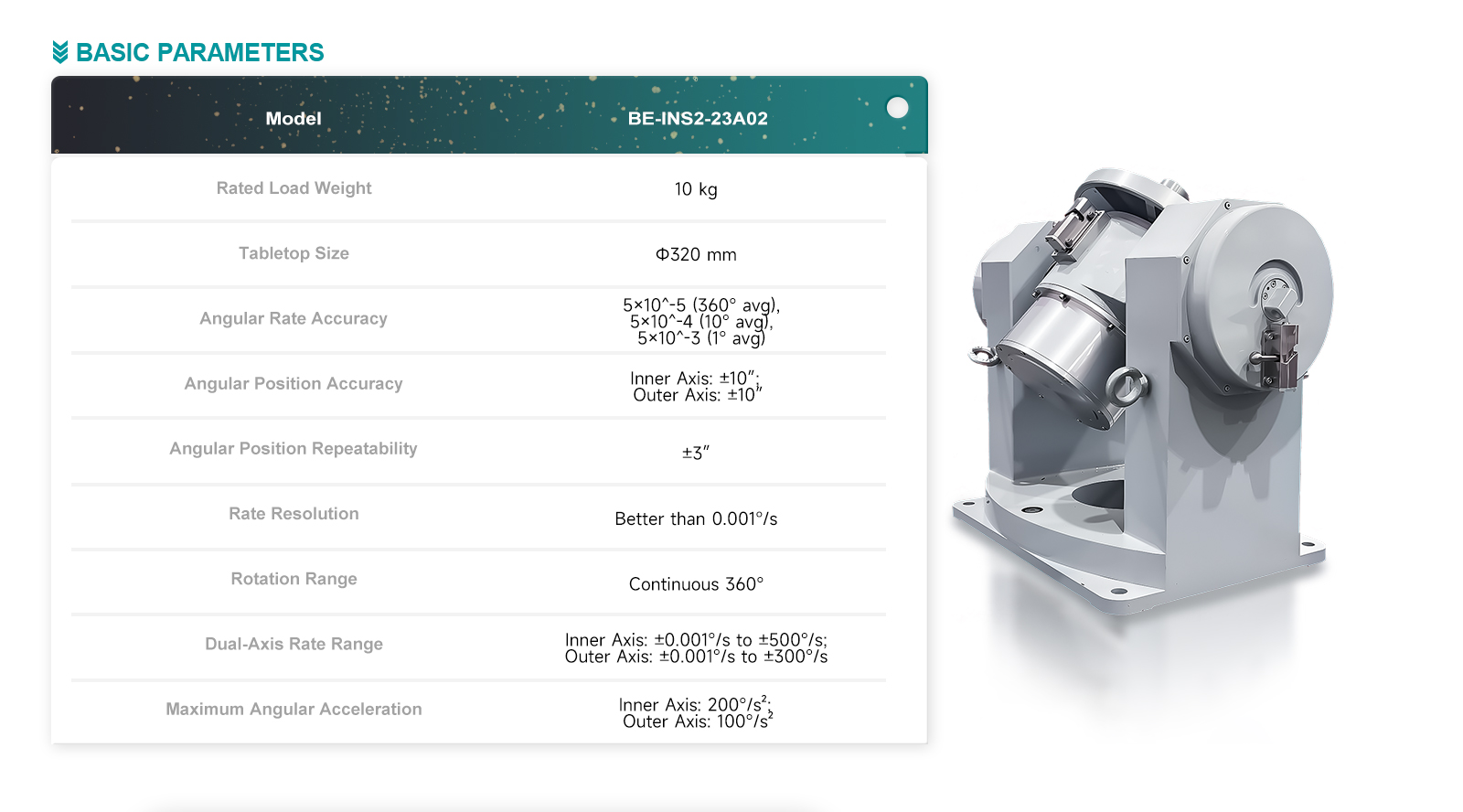

Indicator name |
Indicator parameters |
|
Rated load weight |
10kg |
|
Maximum load size |
Ф300mm×180mm |
|
Mesa material |
Aluminum alloy |
|
Countertop size |
Ф320mm |
|
Countertop flatness |
0.03mm |
|
Countertop end runout |
0.03mm |
|
Accuracy of dip turn |
Inner ring earth 5", outer ring earth 5" |
|
Axis perpendicularity of inner and outer ring |
±5" |
|
Angular rate accuracy |
5 x 10-5(360°average) |
|
Angular position positioning accuracy |
Inner ring ±10", outer ring ±10" |
|
Angular position repeat positioning accuracy |
±5" |
|
Rate resolution |
≥ 0.001°/s |
|
Angle range |
360° continuous rotation |
|
Two-axis rate range |
Inner ring ±0.001°/s~±500°/s, Outer ring Earth 0.001°/s~±300°/s |
|
Maximum angular acceleration |
Inner ring: 200°/S², Outer ring: 100°/S² |
|
Turntable weight |
≤110kg |
|

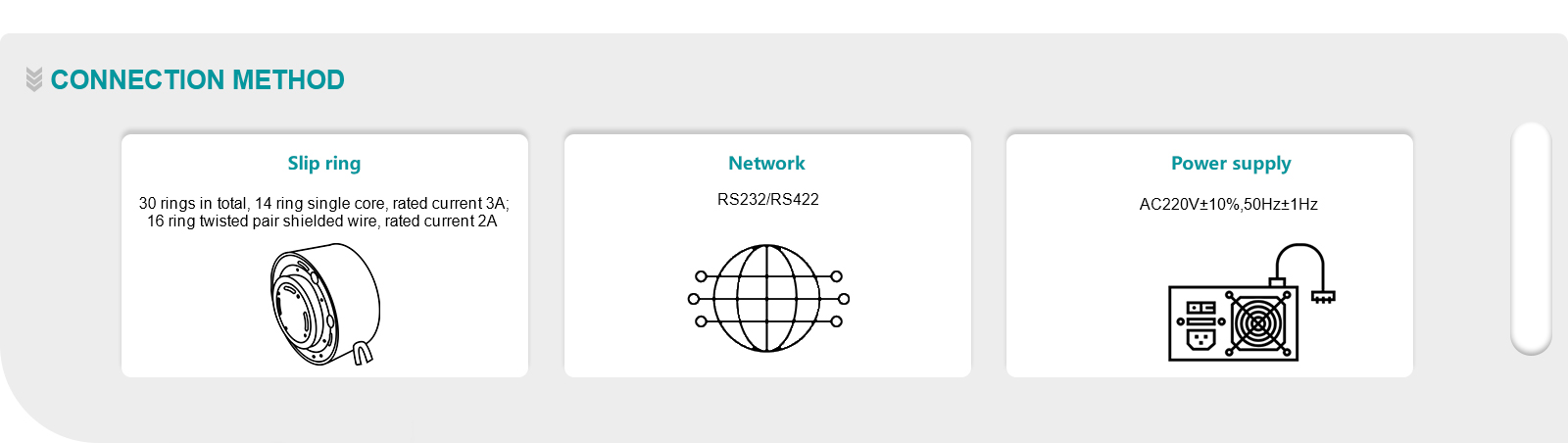

Conductive slip ring |
30 rings |
|

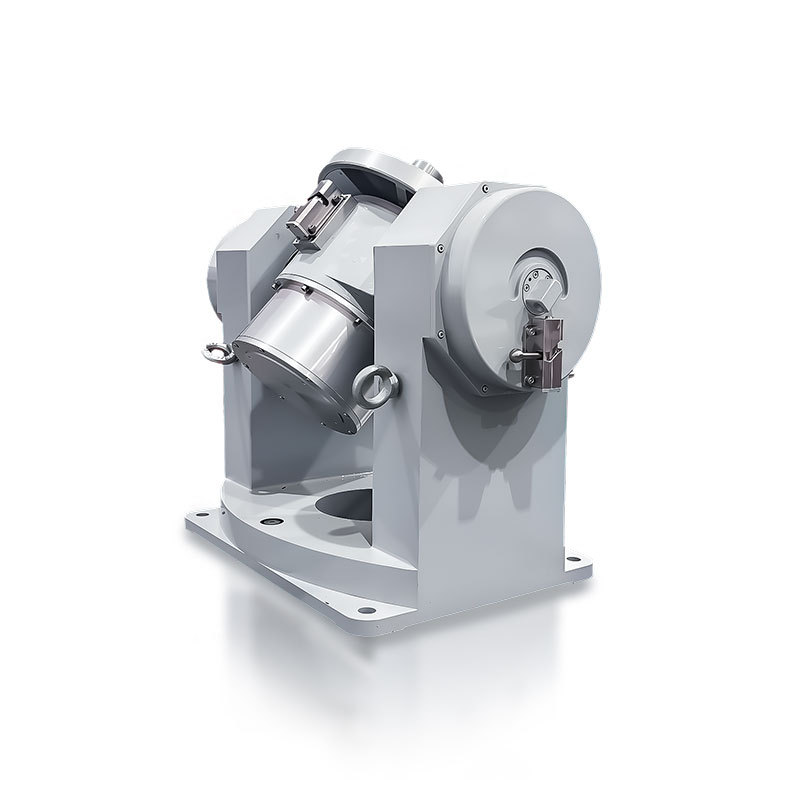

Table body dimensions |
686mm×520mm×600mm |
|
Control mode |
Touch screen, remote control RS232/RS422 |
