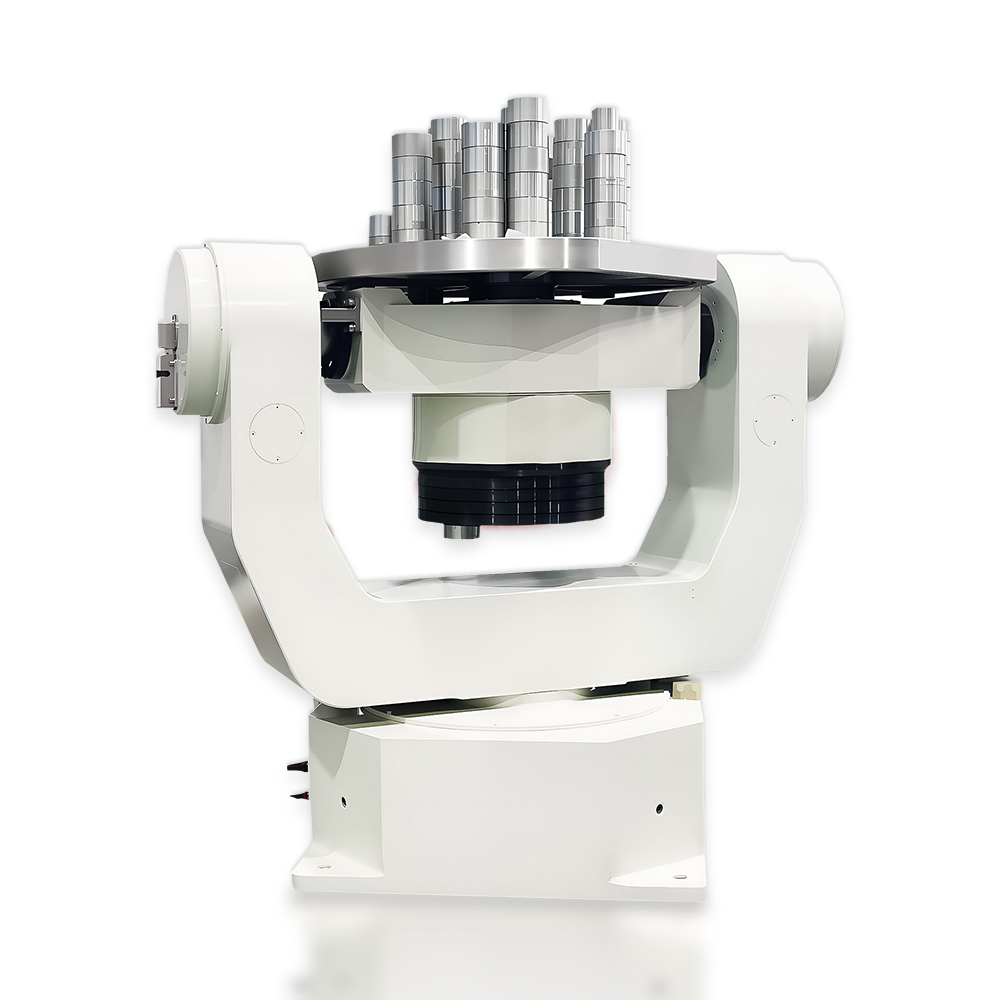

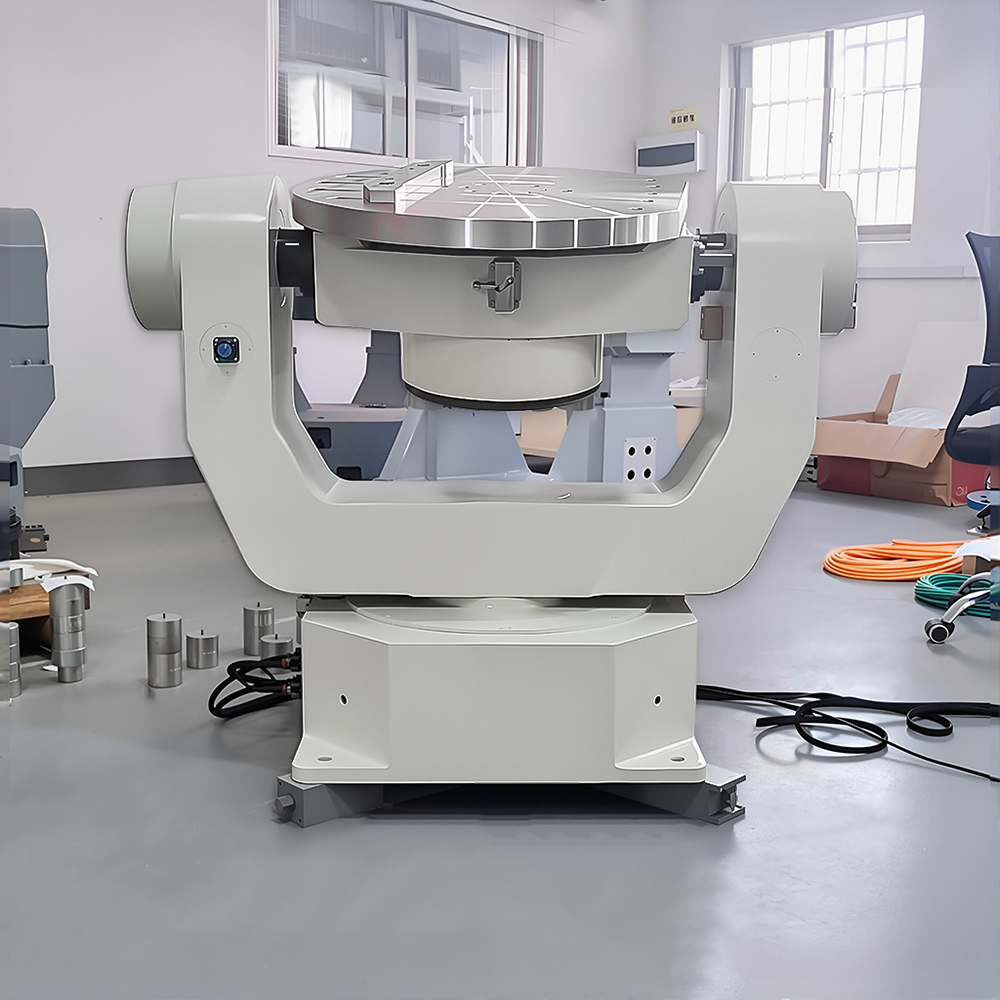

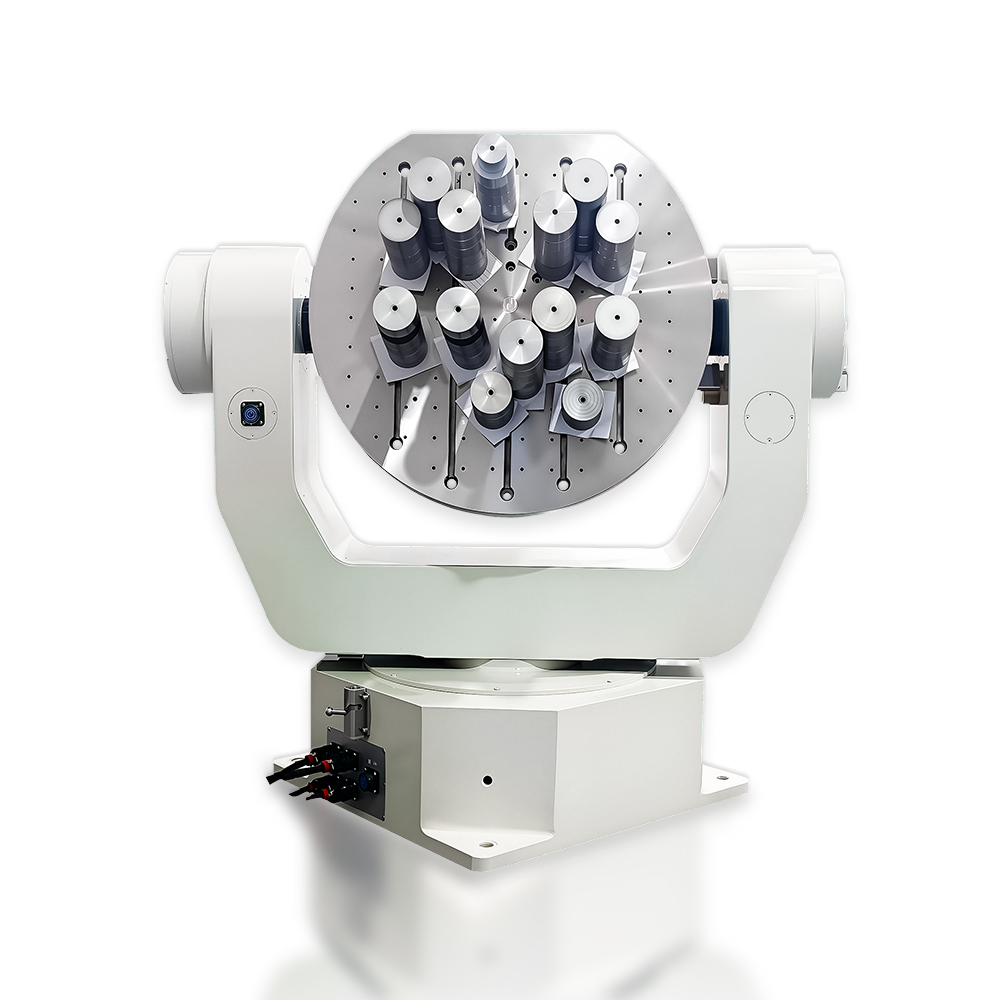

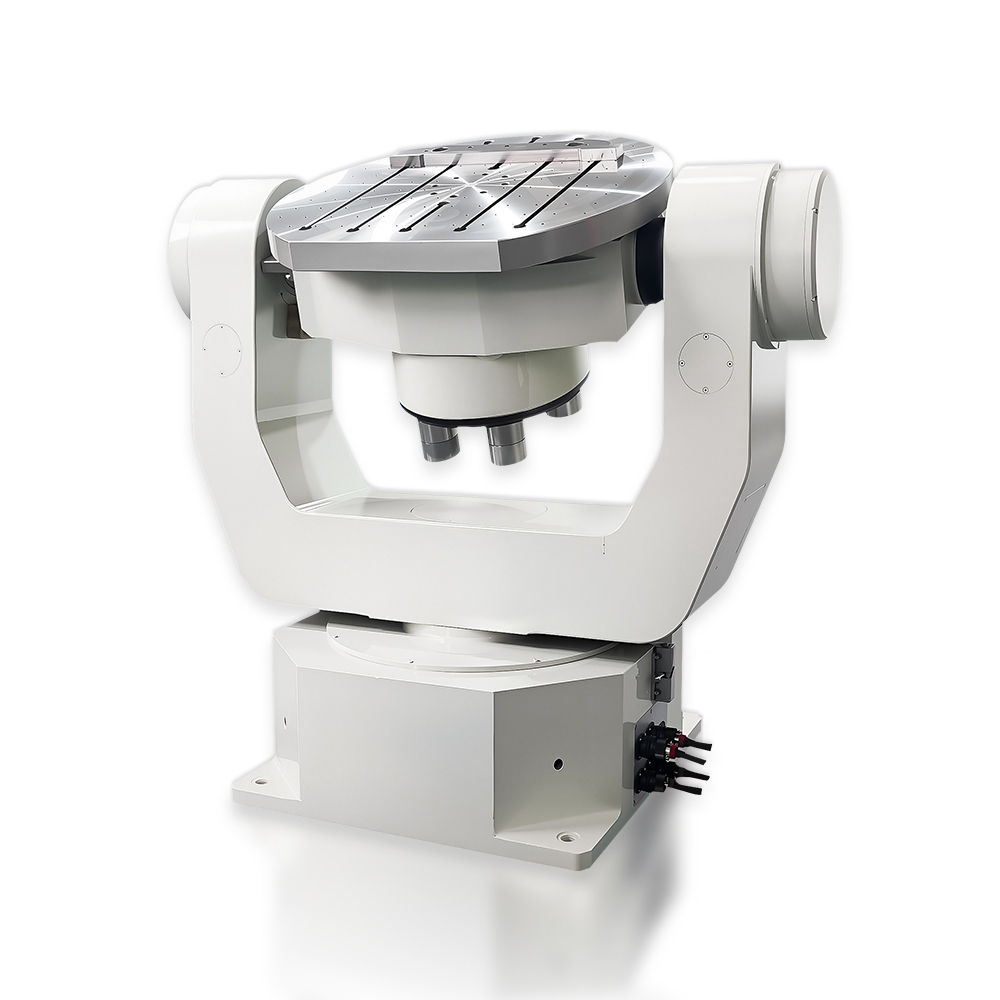

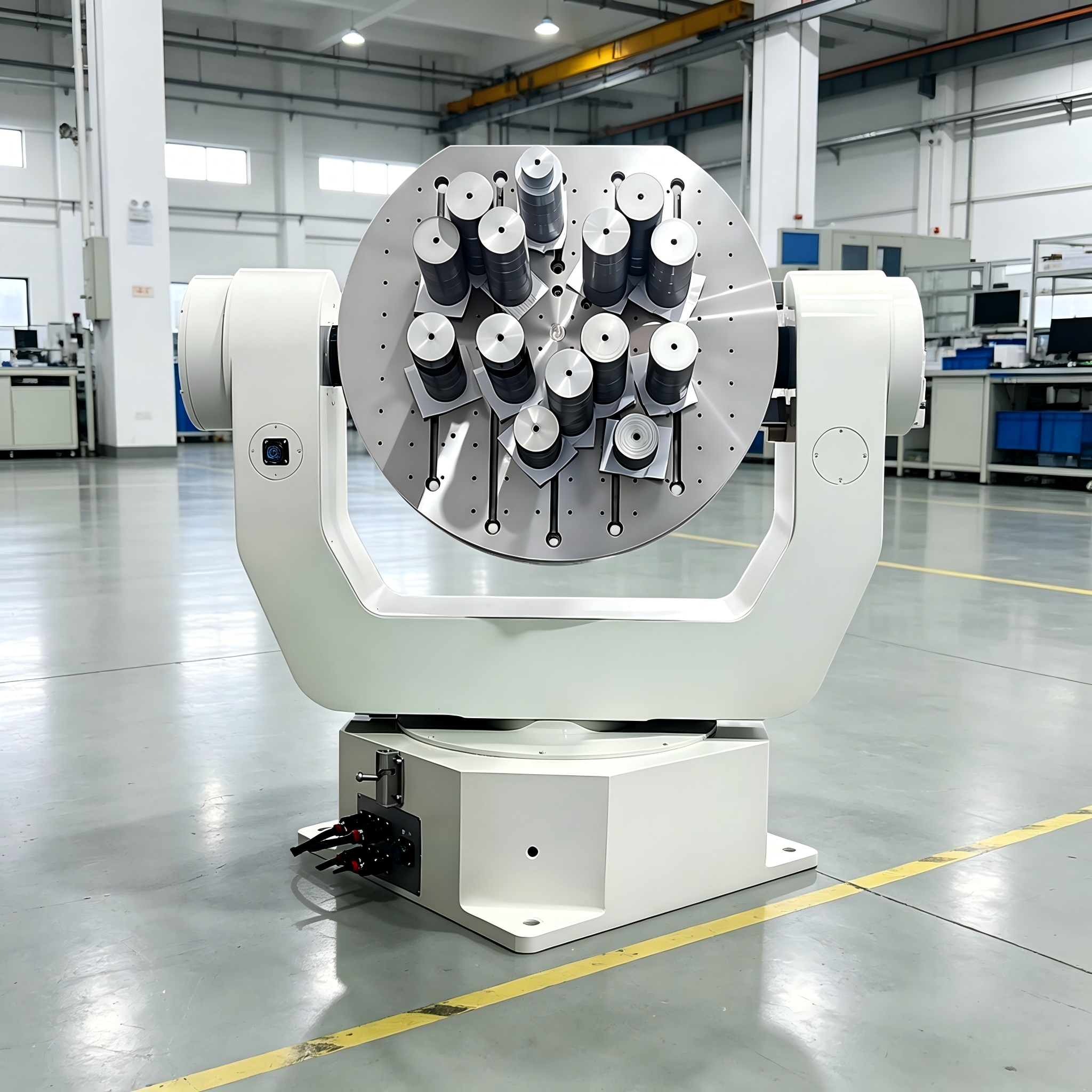

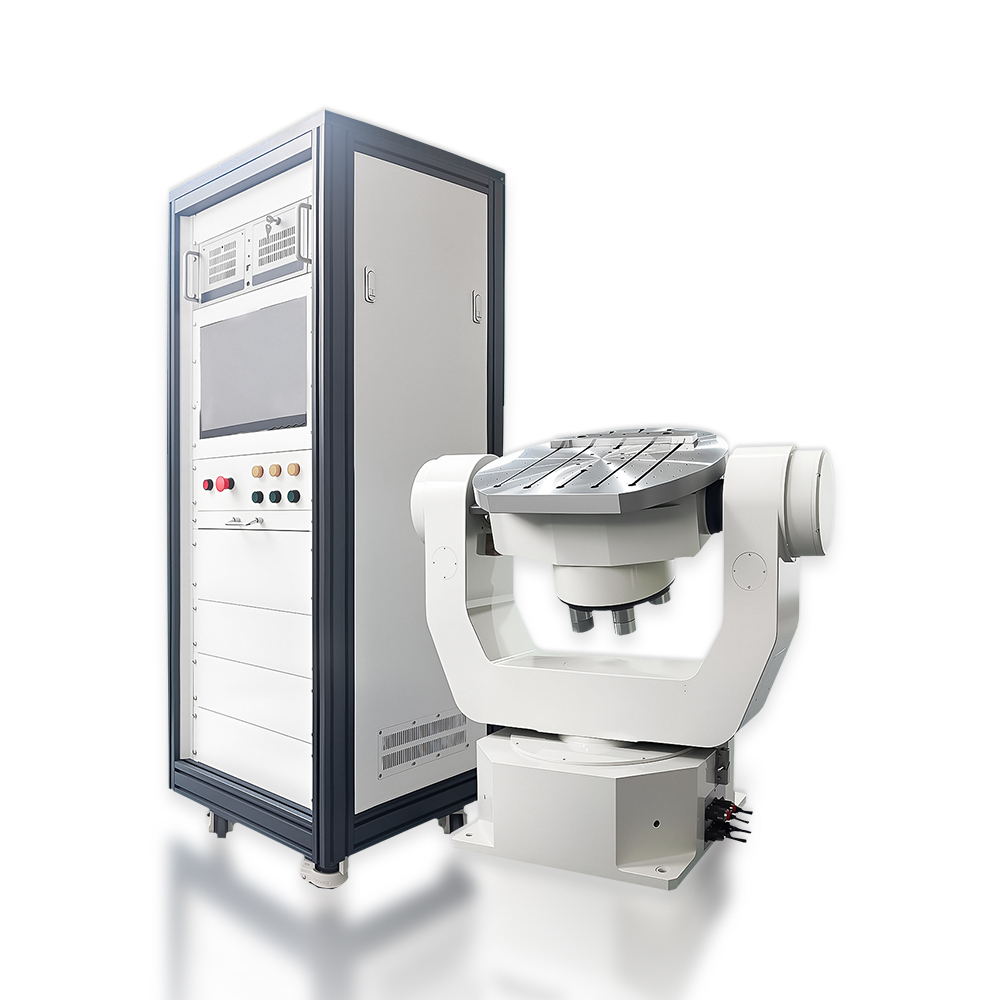

| Three-Axis Turntable |

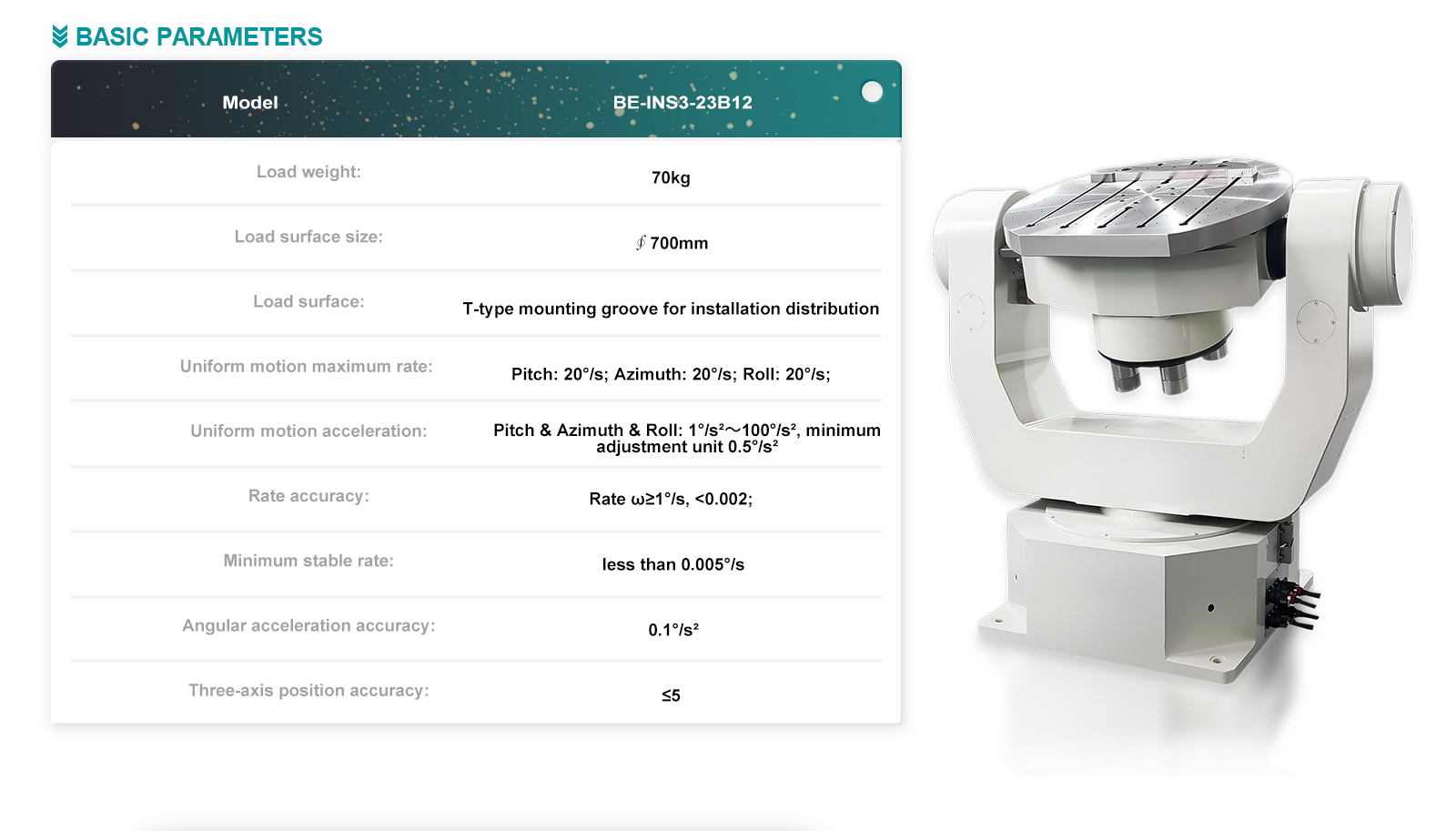

| Technical Specifications |
| Turntable Load |
Not less than 70 kg |
| Load Surface Size |
Not less than φ700 mm |
| Load Surface |
T-shaped mounting grooves for installation distribution |
| Maximum Rate of Uniform Motion |
|
|
|
|
|
| Uniform Motion Acceleration |
- Pitch: 1°/s² ~ 100°/s², min. adjustment unit 0.5°/s²
|
- Azimuth: 1°/s² ~ 100°/s², min. adjustment unit 0.5°/s²
|
- Roll: 1°/s² ~ 100°/s², min. adjustment unit 0.5°/s²
|
| Rate Accuracy |
When rate ω < 1°/s: less than 1 × 10⁻² |
| When rate ω ≥ 1°/s: less than 2 × 10⁻³ |
| Rate Stability |
When rate ω < 1°/s: less than 2 × 10⁻² |
| When rate ω ≥ 1°/s: less than 5 × 10⁻³ |
| Rate Resolution |
Less than 0.001°/s |
| Minimum Stable Rate |
Less than 0.005°/s |
| Angular Acceleration Accuracy |
0.1°/s² |
| Three-Axis Position Accuracy |
Not more than 5″ (arcseconds) |
