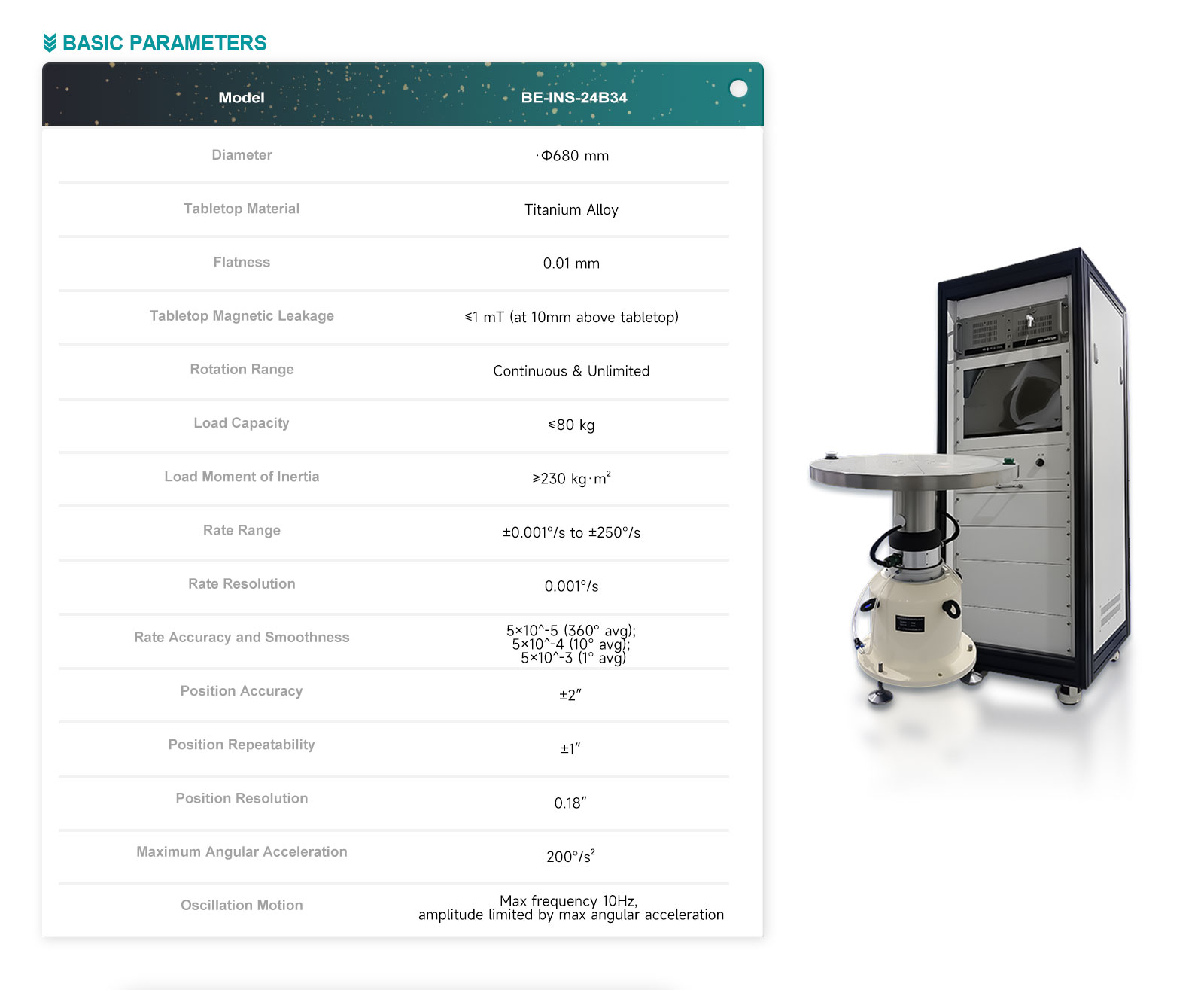

| Technical parameter | |

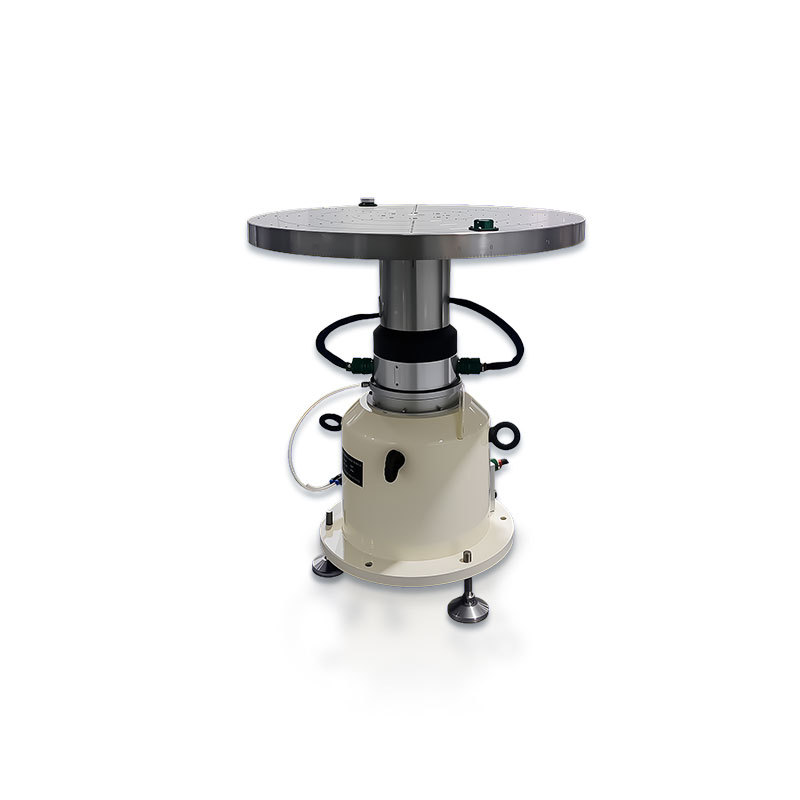

| Diameter: | Φ680mm |
| Table material: | titanium alloy |
| Flatness: | 0.01mm |
| Table leakage: | ≤1mT (10mm above the table) |
| Angle range: | continuous and unlimited |
| Load weight: | ≤80kg |
| Load moment of inertia: | ≥230kg·m² |
| Rate range: | ±0.001°/s ~ ±250°/s |
| Rate resolution: | 0.001°/s |
| Rate accuracy and rate stability: | 5×10⁻⁵ (360° average); |
| 5×10⁻⁴ (10° average); | |
| 5×10⁻³ (1° average); | |
| Position accuracy: | ±2″ |
| Position repeatability: | ±1″ |
| Position resolution: | 0.18″ |
| Maximum angular acceleration: | 200°/s² |
| Swinging motion: | Maximum swing frequency 10Hz, |
| amplitude is limited by maximum angular acceleration; | |

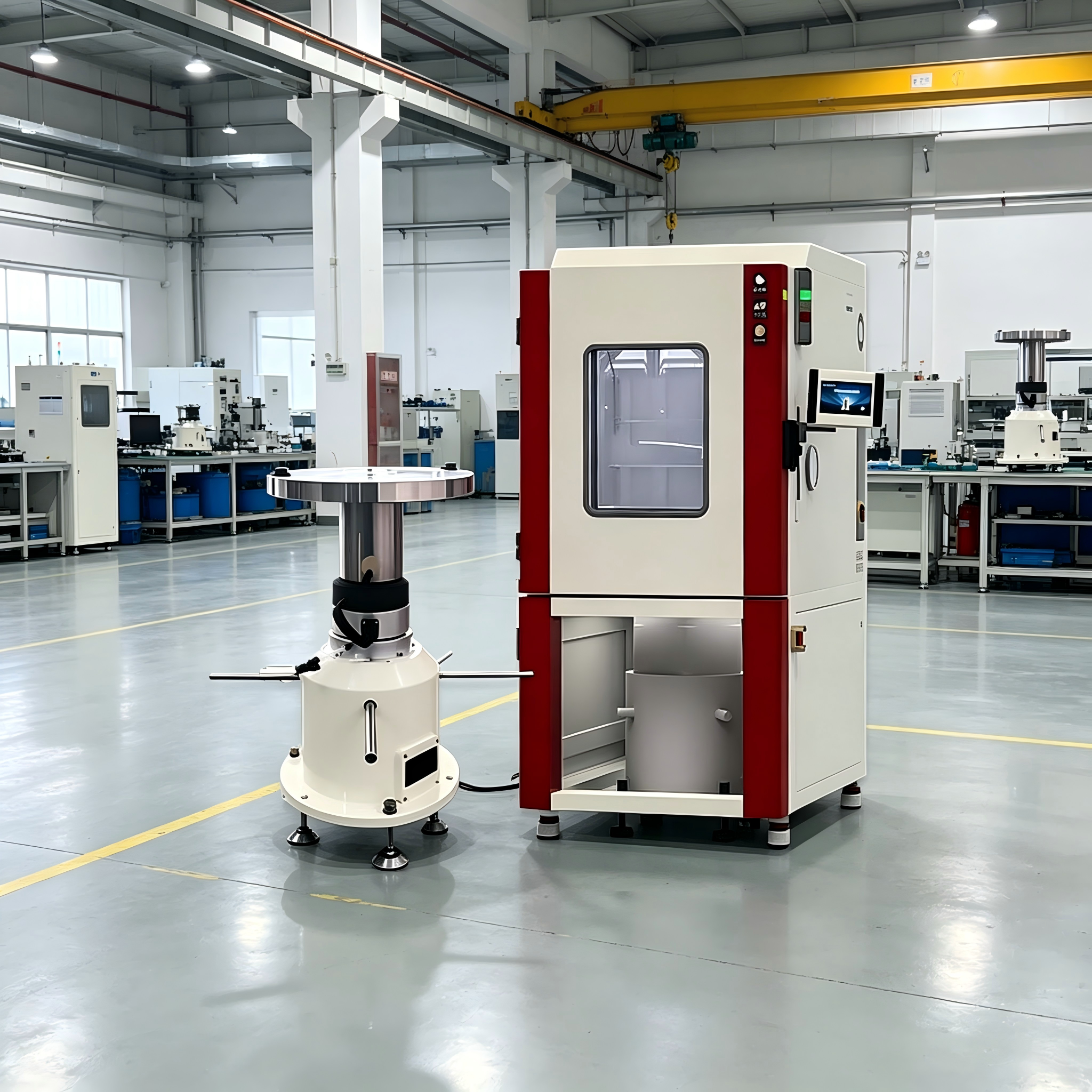

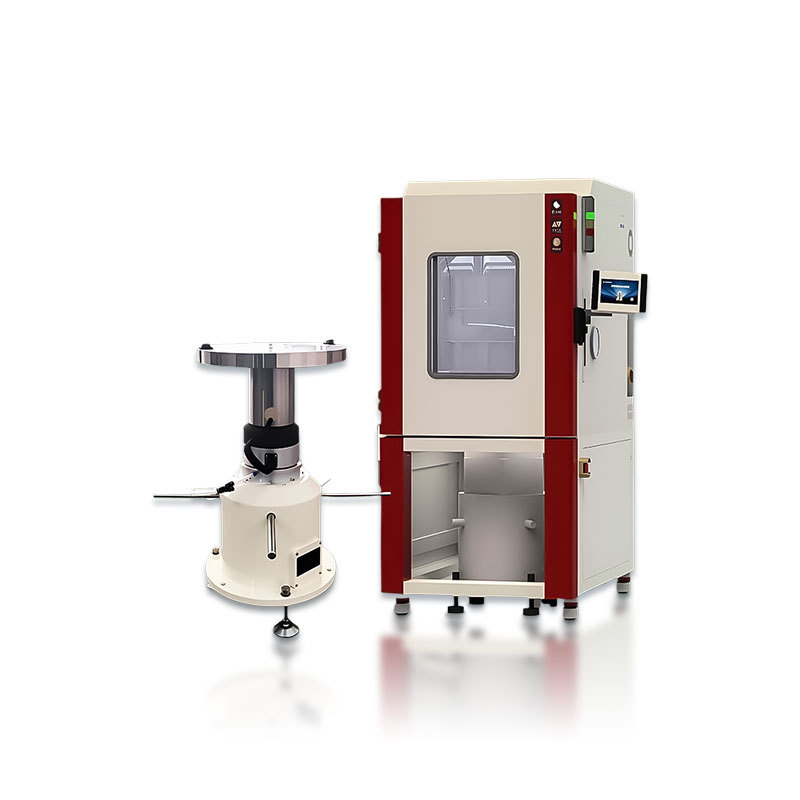

| Optional high and low temperature test chamber (reference index): | Inner dimensions of temperature chamber (width x depth x height): 700mm×700mm×700mm; |
| Temperature range: -60°C ~ +70°C; | |
| Temperature uniformity area: Φ 500mm×300mm; | |
| Temperature control accuracy: ±0.5°C (empty box); | |
| Temperature uniformity: ±1°C (empty box); | |
| The heating and cooling speed is controllable, and the maximum temperature change rate is: +1°C/min. | |
