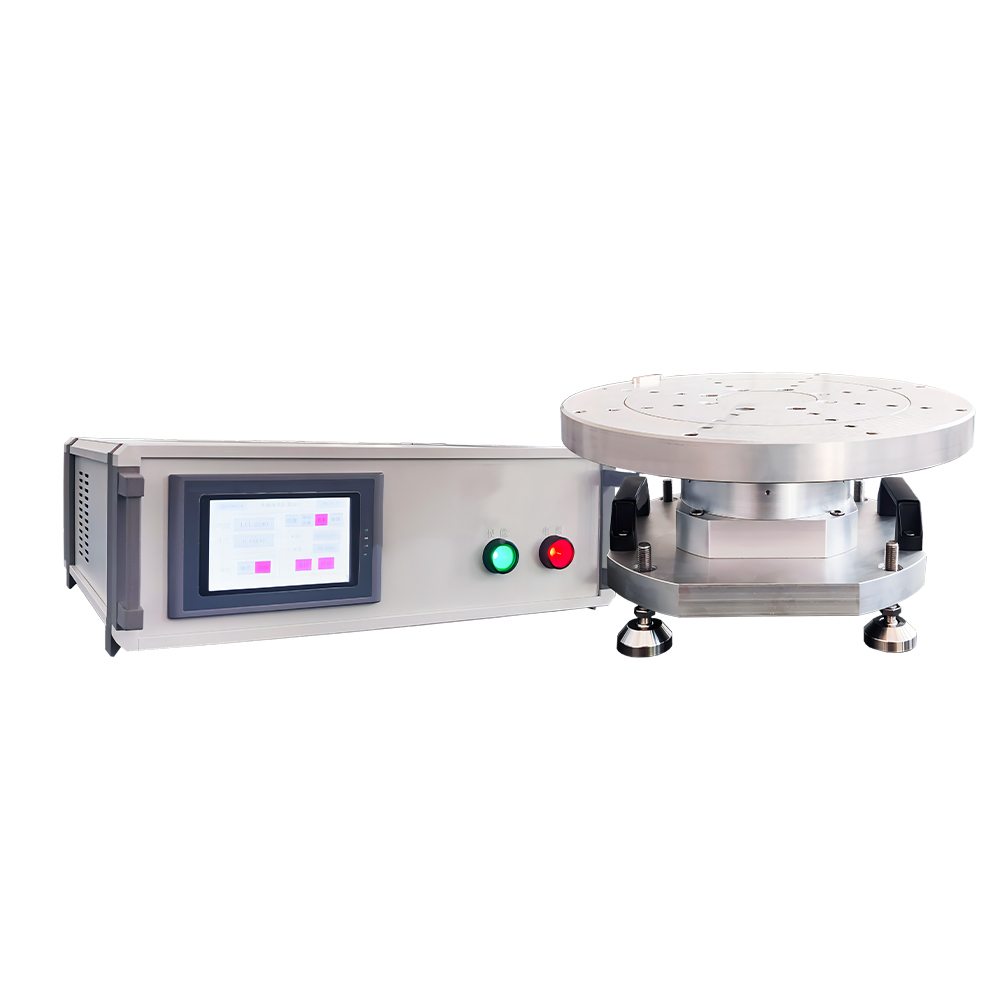

  • Motion simulator with Φ320mm platform and 3000 degree per second high rate capability
  • Close up of high speed drive system for 300 deg per second squared acceleration
  • Rate table performing 3000 degree per second high speed test for drone gyro validation

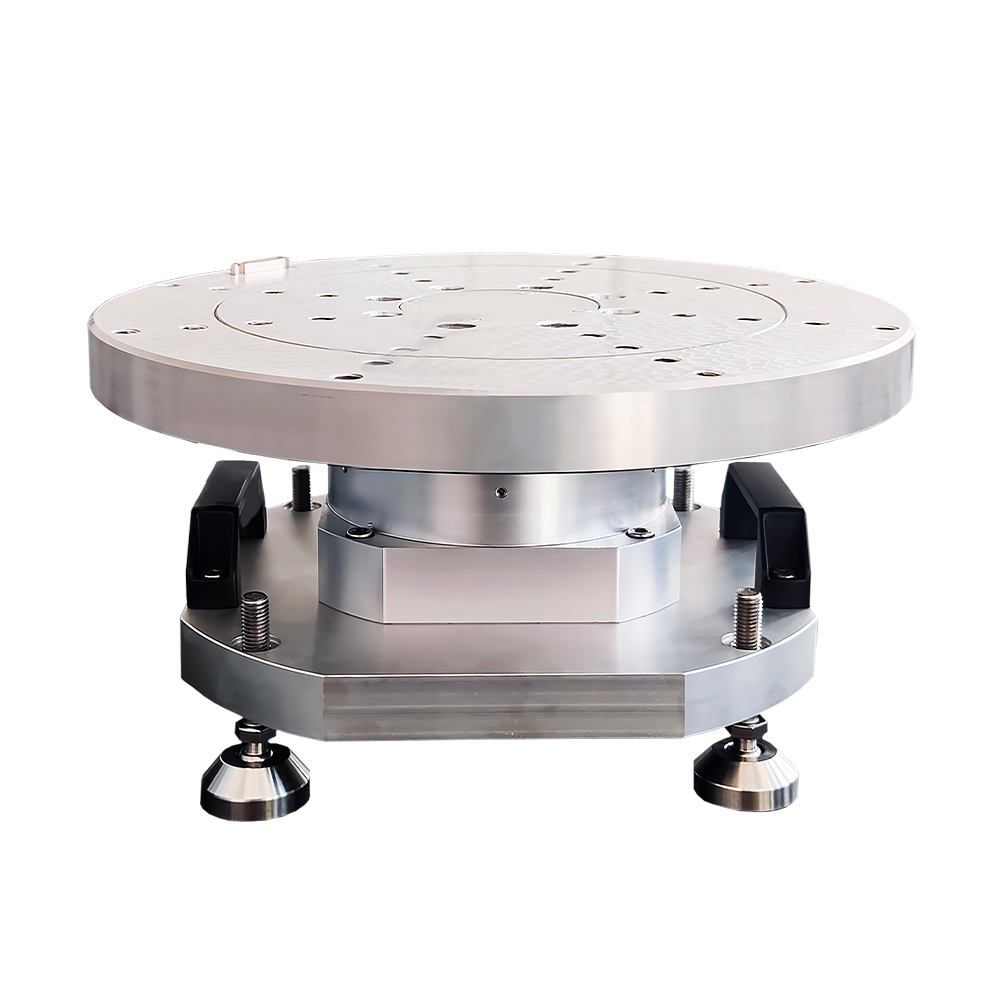

  • Test equipment dimensions with 10kg capacity on aerospace test workbench

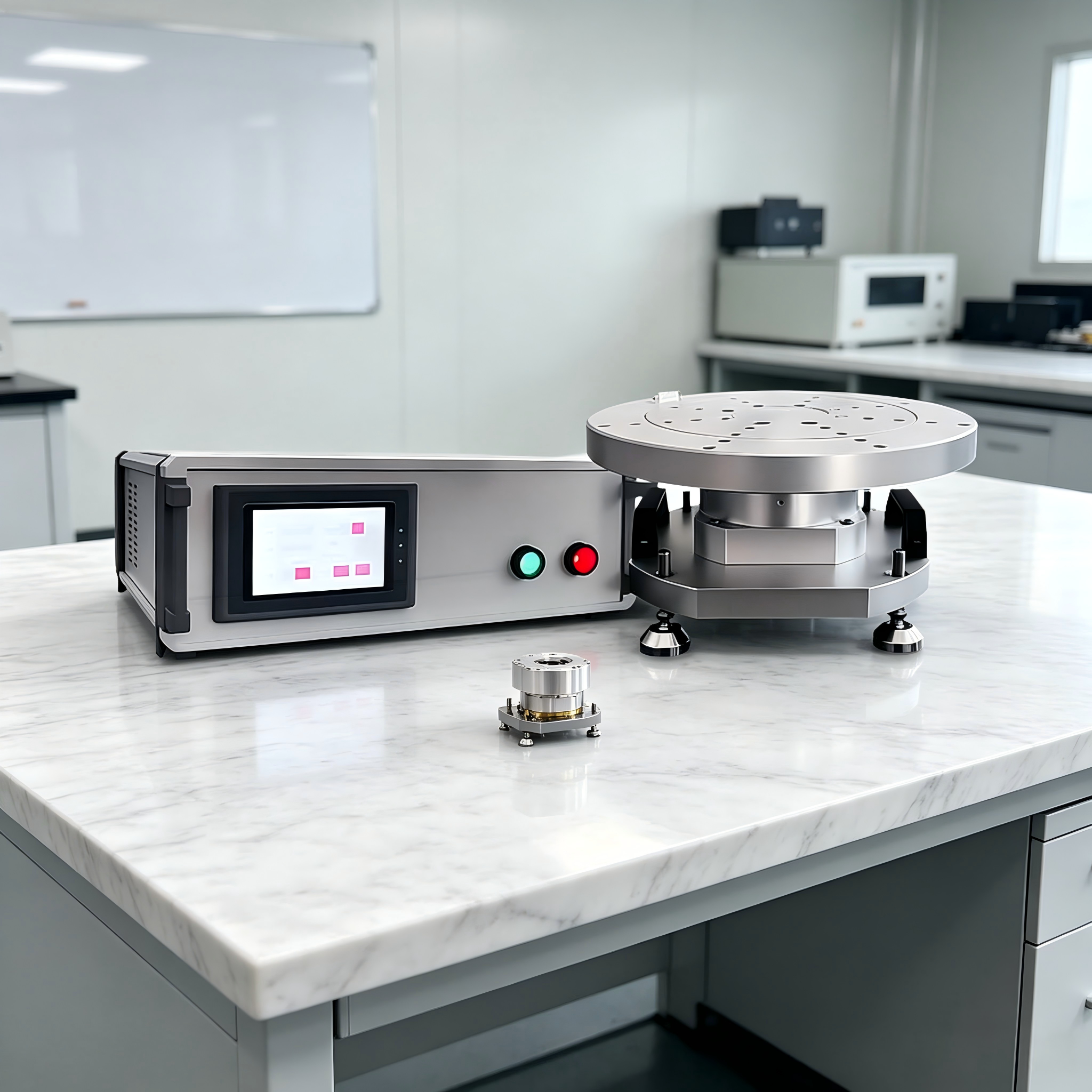

  • Automated control interface executing high dynamic sensor characterization sequence

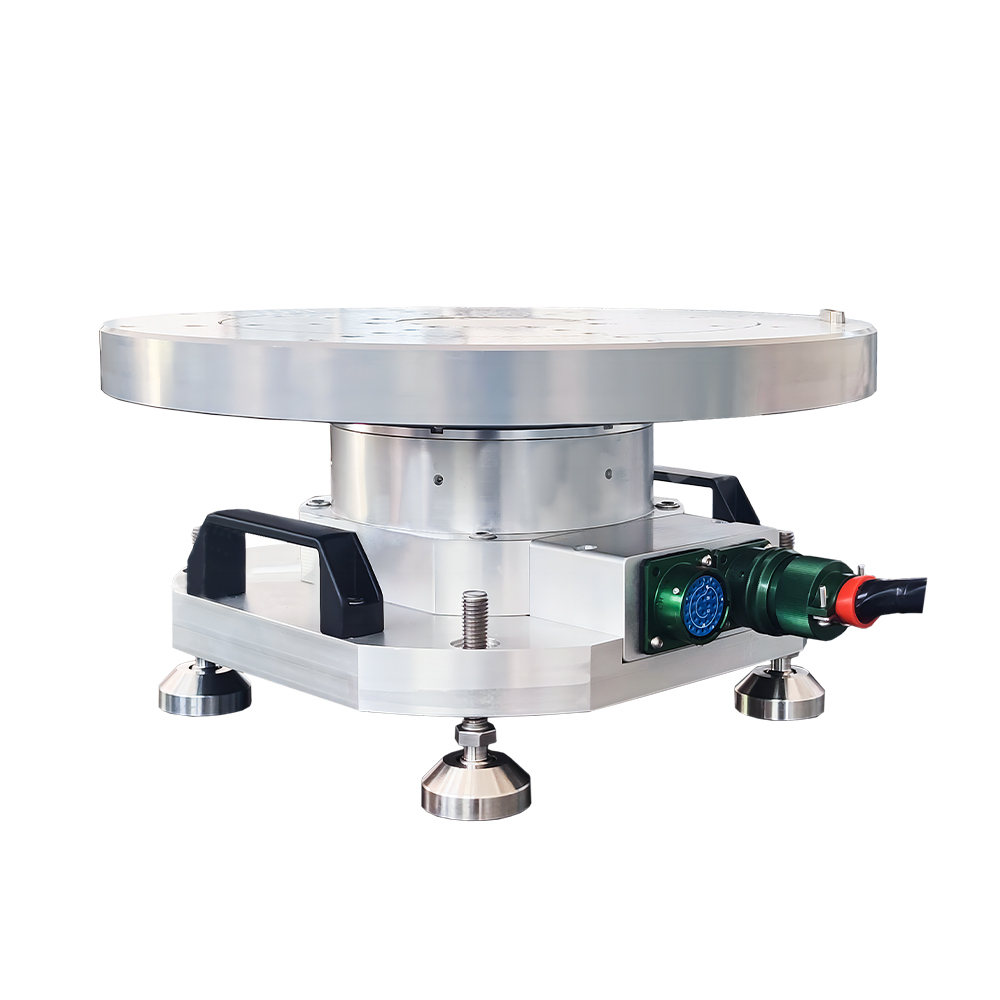

  • High speed single axis rate table for UAV gyro and high dynamic sensor test on bench
  • Motion simulator with Φ320mm platform and 3000 degree per second high rate capability

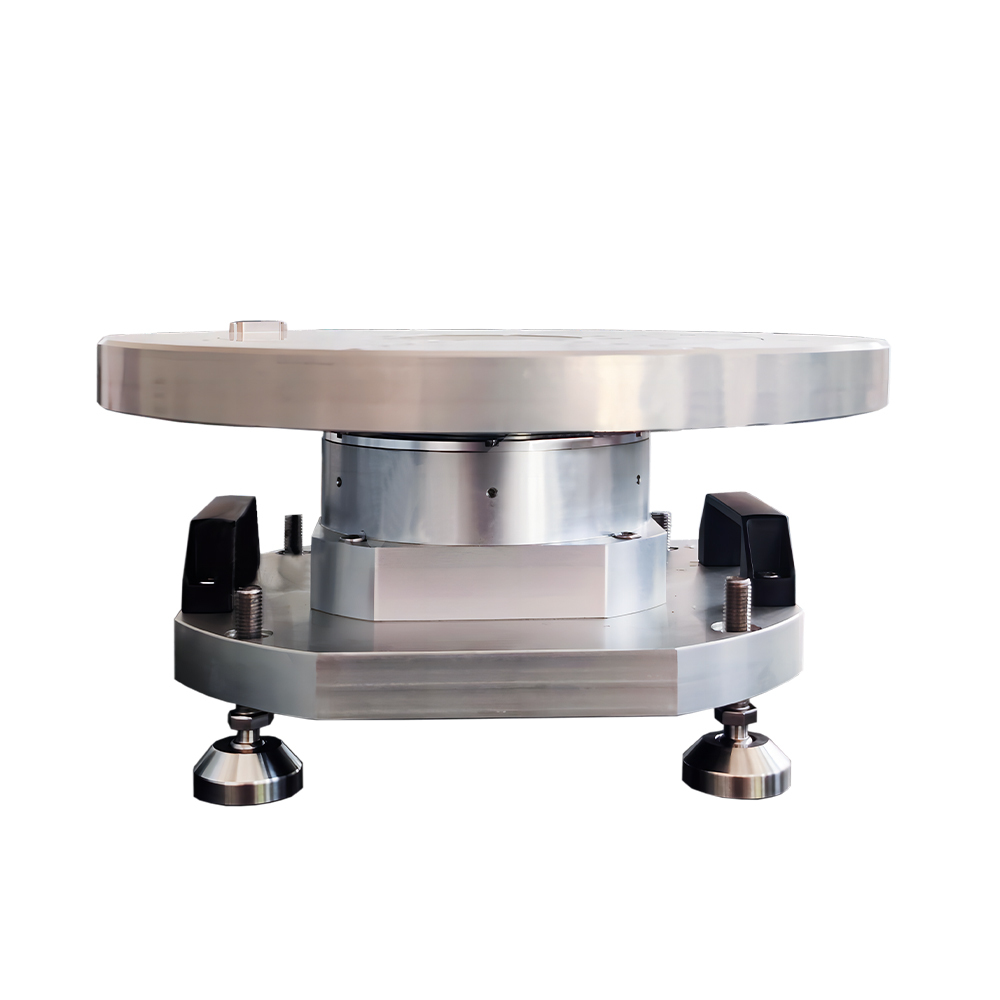

  • Close up of high speed drive system for 300 deg per second squared acceleration

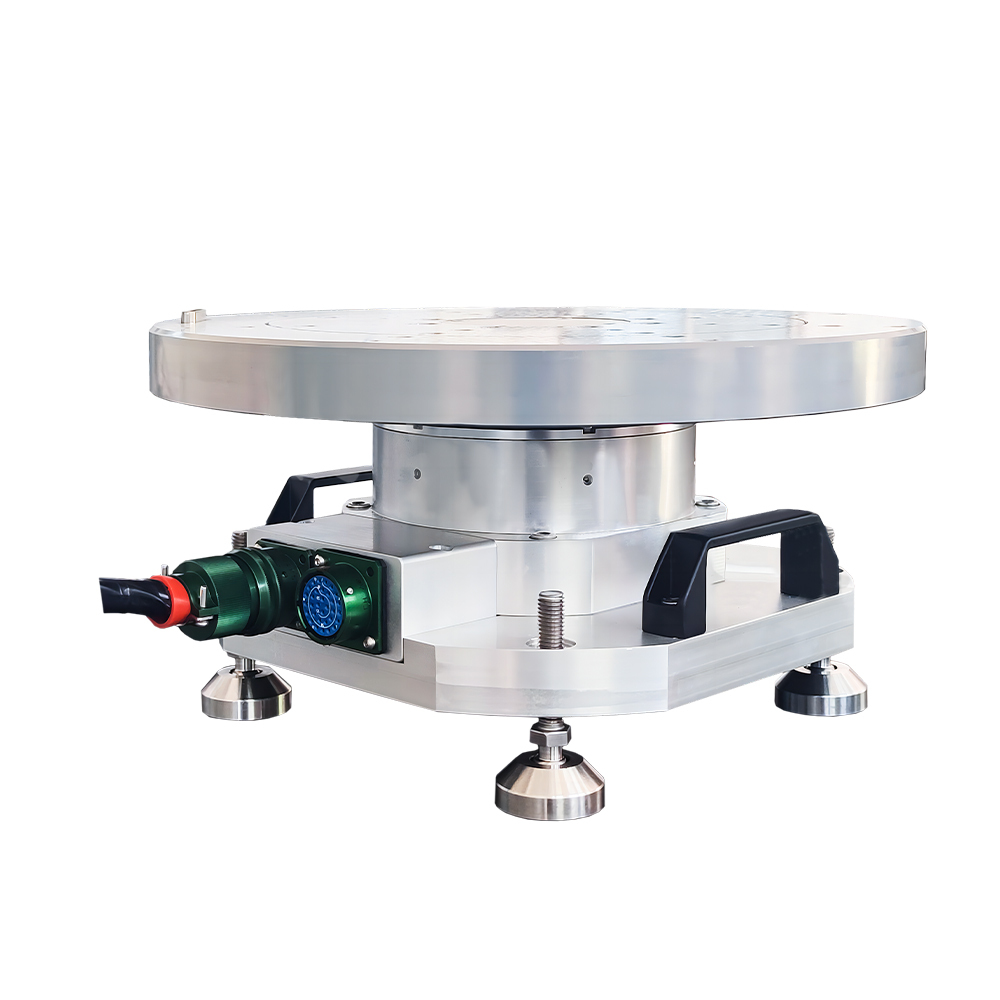

  • Rate table performing 3000 degree per second high speed test for drone gyro validation
  • Test equipment dimensions with 10kg capacity on aerospace test workbench
  • Automated control interface executing high dynamic sensor characterization sequence

High Speed Single Axis Rate Table for UAV Gyro and High Dynamic Sensor Test

No.BE-INS-23C21
This high speed single axis rate table serves as motion simulator and gyro test stand for UAV gyroscope and high dynamic sensor validation. 3000°/s maximum rate with 300°/s² acceleration captures extreme rotational performance for drone flight controllers and high-speed navigation components. Ideal for high-speed gyro limit testing, UAV sensor dynamic response validation, and aerospace high-rate inertial component evaluation.
Specifications
Rated load weight:
10kg
Table size:
Φ320mm
Angular position positioning accuracy:
≤±5″
Rate range:
±0.001°/s~±3000°/s
Download
View all downloads
  • High speed single axis rate table for UAV gyro and high dynamic sensor test on bench
  • Motion simulator with Φ320mm platform and 3000 degree per second high rate capability
  • Close up of high speed drive system for 300 deg per second squared acceleration
  • Rate table performing 3000 degree per second high speed test for drone gyro validation
  • Test equipment dimensions with 10kg capacity on aerospace test workbench
  • Automated control interface executing high dynamic sensor characterization sequence

Description

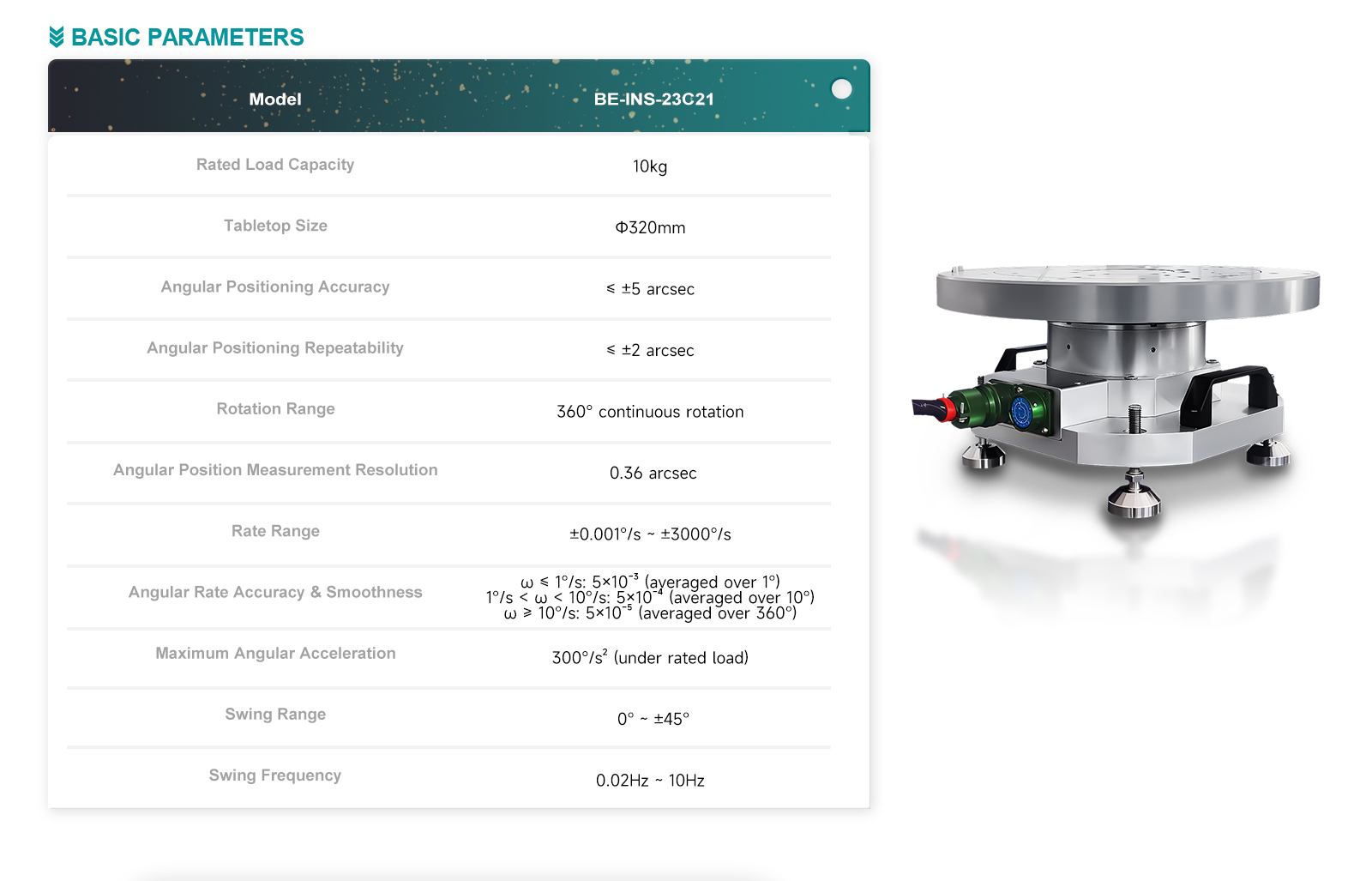

Technical parameter
Rated load weight 10kg
Table size Φ320mm
Angular position positioning accuracy ≤±5″
Angular position positioning repeatability ≤±2″
Rotation angle range 360° continuous rotation
Angular position measurement resolution 0.36″
Rate range ±0.001°/s ~ ±3000°/s
Angular rate accuracy and stability ω≤1°/s, 5×10⁻³ (1° average);
1°/s < ω < 10°/s, 5×10⁻⁴ (10° average);
10°/s≥ω, 5×10⁻⁵ (360° average)
Maximum angular acceleration 300°/s² (rated load)
Swing range 0° ~ ±45°
Swing frequency 0.02Hz ~ 10Hz
