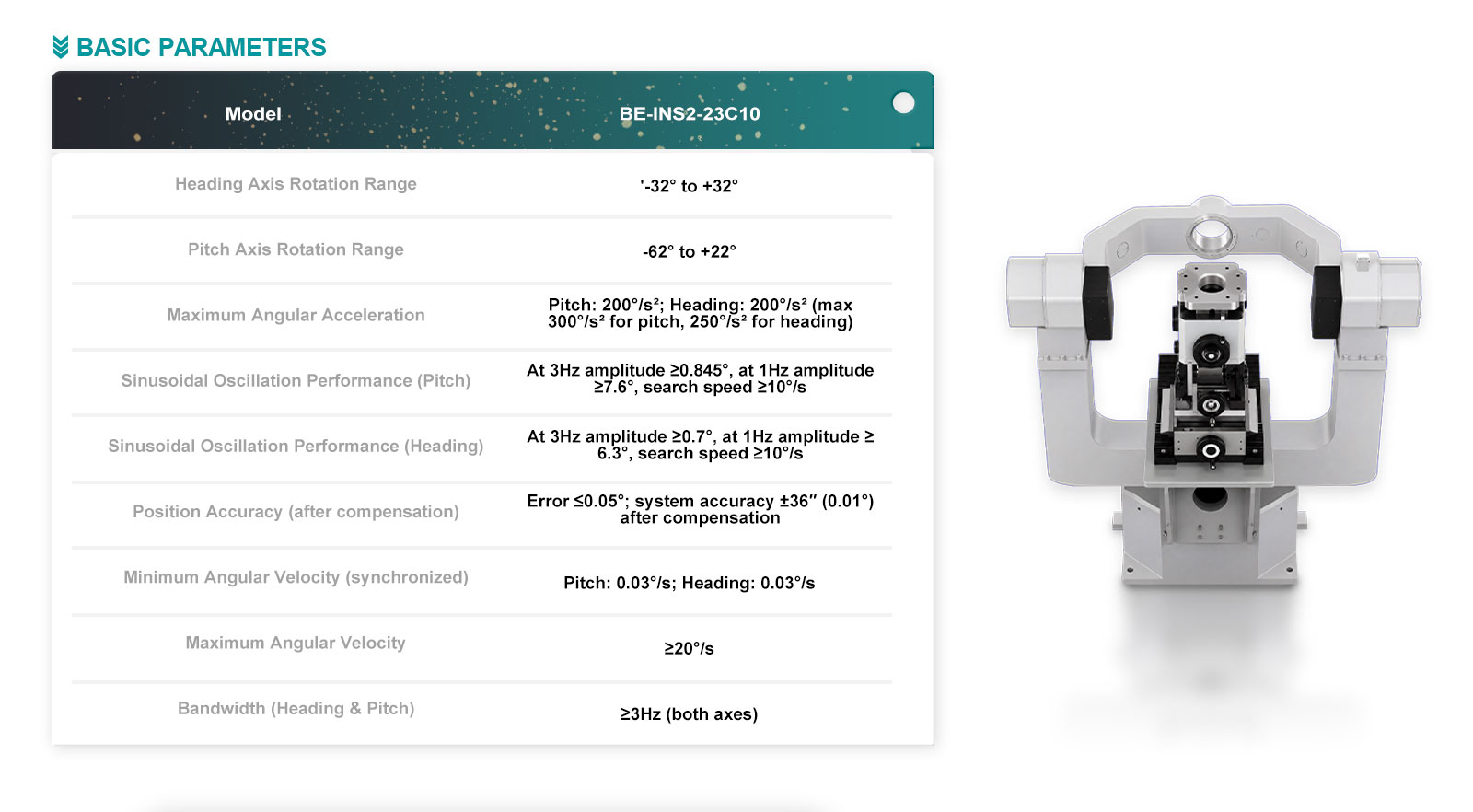

| Technical Parameters | Description |

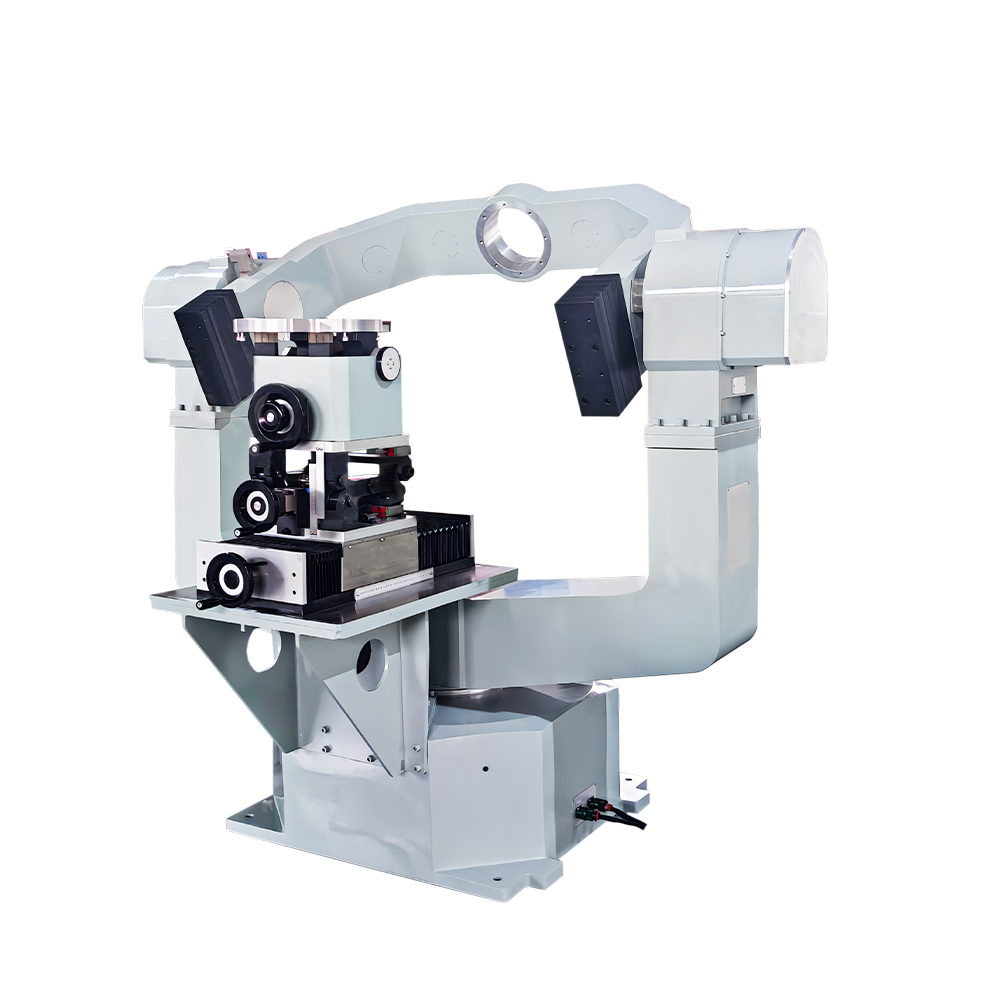

| Corner range | Heading movement range: -32°~32° |
| Pitch movement range: -62°~22° | |
| Maximum acceleration | Pitch 200°/s², heading 200°/s²; |

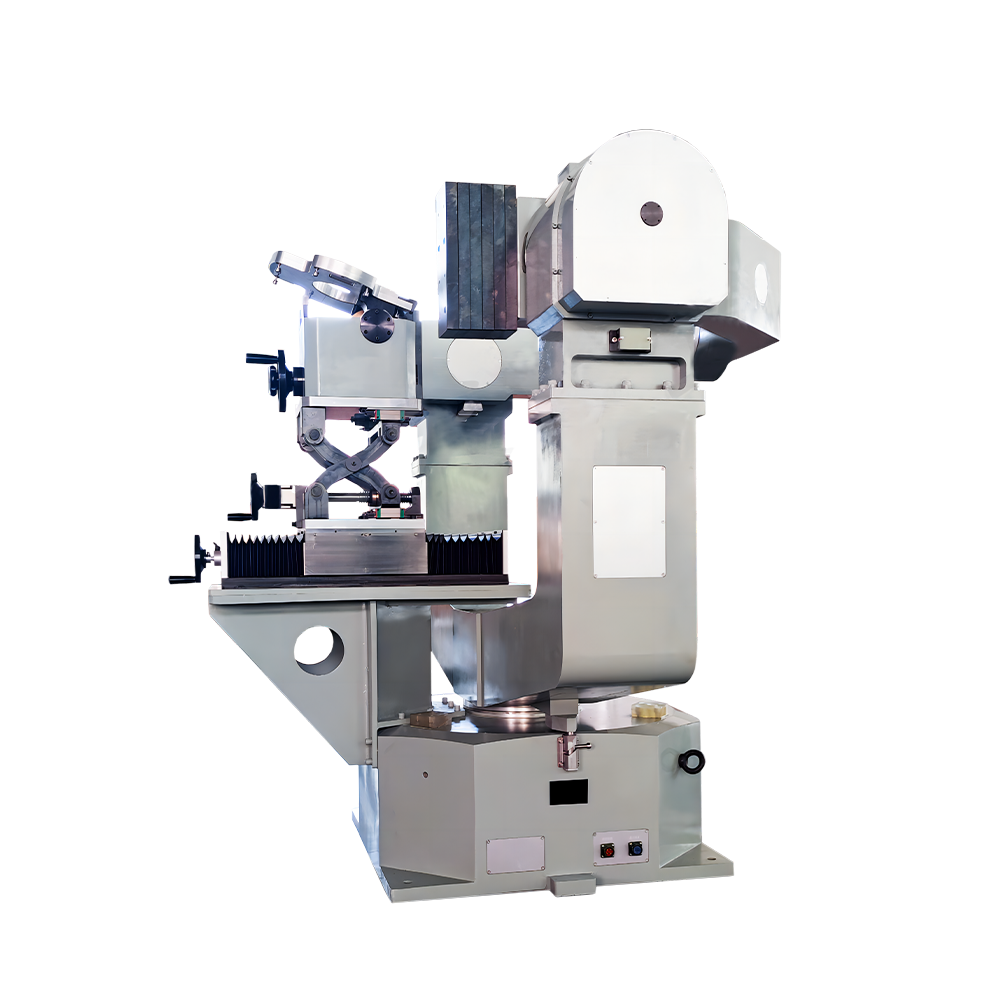

| The maximum angular acceleration of pitch is 300°/s² for sinusoidal swing function. At a swing frequency of 3Hz, the amplitude is not less than 0.845°, at a swing frequency of 1Hz, the amplitude is not less than 7.6°, and the search speed is >10°/s; |
|
| The maximum angular acceleration of the heading is 250°/s² for sinusoidal swing function. At a swing frequency of 3Hz, the amplitude is not less than 0.7°. | |
| At a swing frequency of 1Hz, the amplitude is not less than 6.3°, and the search speed is >10°/s; | |
| Position accuracy | The error is not greater than 0.05°, and the system accuracy after compensation is +36° (0.01°); Minimum angular velocity (linkage conditions): pitch 0.03°/s; heading 0.03°/s; |
| Maximum angular velocity | *20°/s |
| Bandwidth | Heading is not less than 3Hz; |
| The pitch is not less than 3Hz. |
