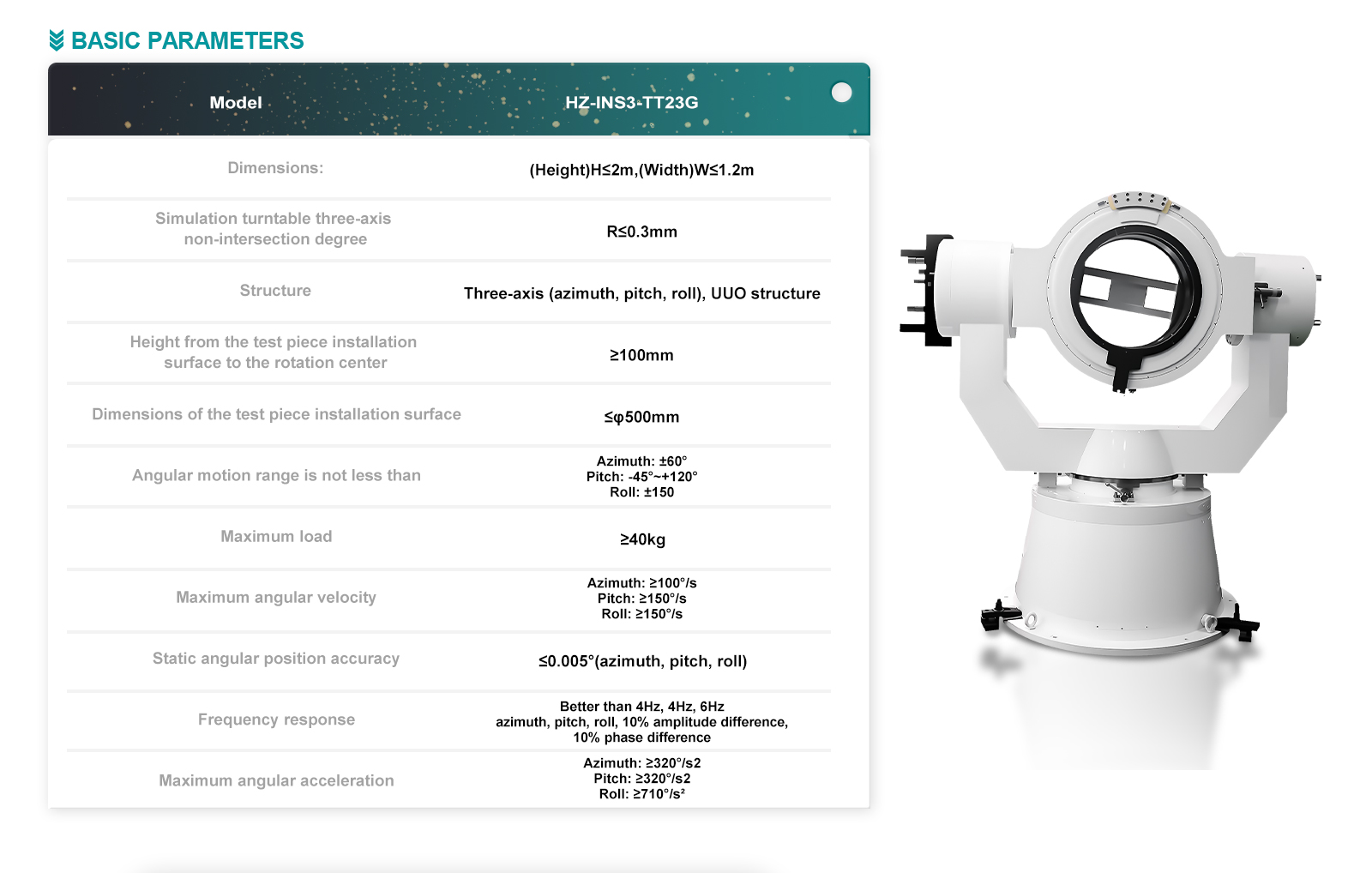

Technical Parameter
|
|
| Indicator | Technical Parameters |
| Dimensions | (Height)H≤2m,(Width)W≤1.2m |
| Simulation turntable three-axis non-intersection degree | R≤0.3mm |

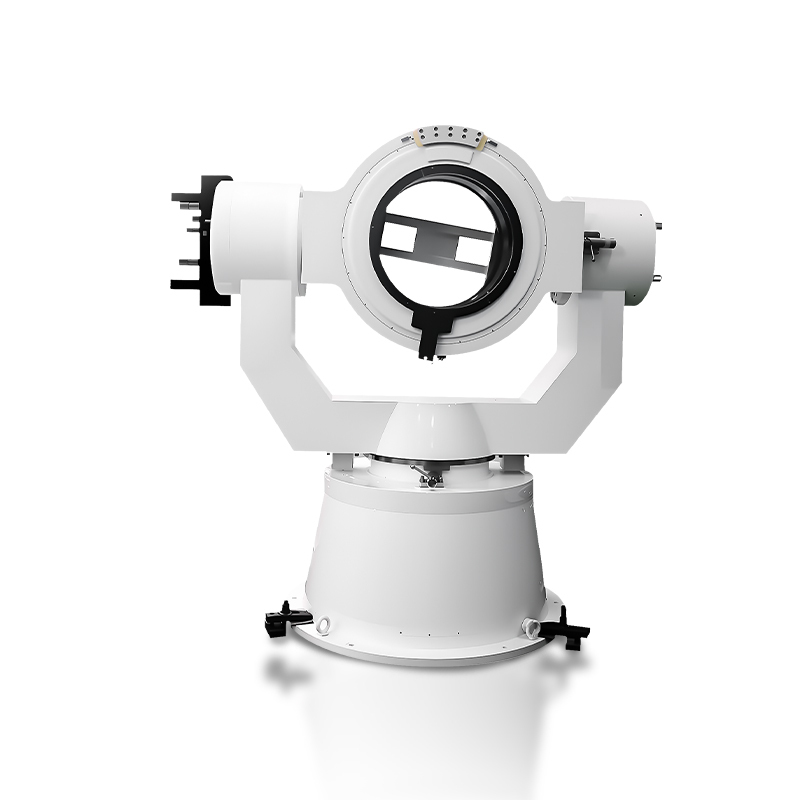

| Structure | Three-axis (azimuth, pitch, roll), UUO structure |
| Height from the test piece installation surface to the rotation center | ≥100mm |
| Dimensions of the test piece installation surface | ≤φ500mm |
| Angular motion range is not less than | Azimuth: ±60° |
| Pitch: -45°~+120° | |
| Roll: ±150° | |
| Maximum load | ≥40kg |
| Maximum angular velocity | Azimuth: ≥100°/s |
| Pitch: ≥150°/s | |
| Roll: ≥150°/s | |
| Static angular position accuracy | ≤0.005°(azimuth, pitch, roll) |
| Frequency response | Better than 4Hz, 4Hz, 6Hz azimuth, pitch, roll, 10% amplitude difference, 10% phase difference) |
| Maximum angular acceleration | Azimuth: ≥320°/s² |
| Pitch: ≥320°/s² | |
| Roll: ≥710°/s² | |
