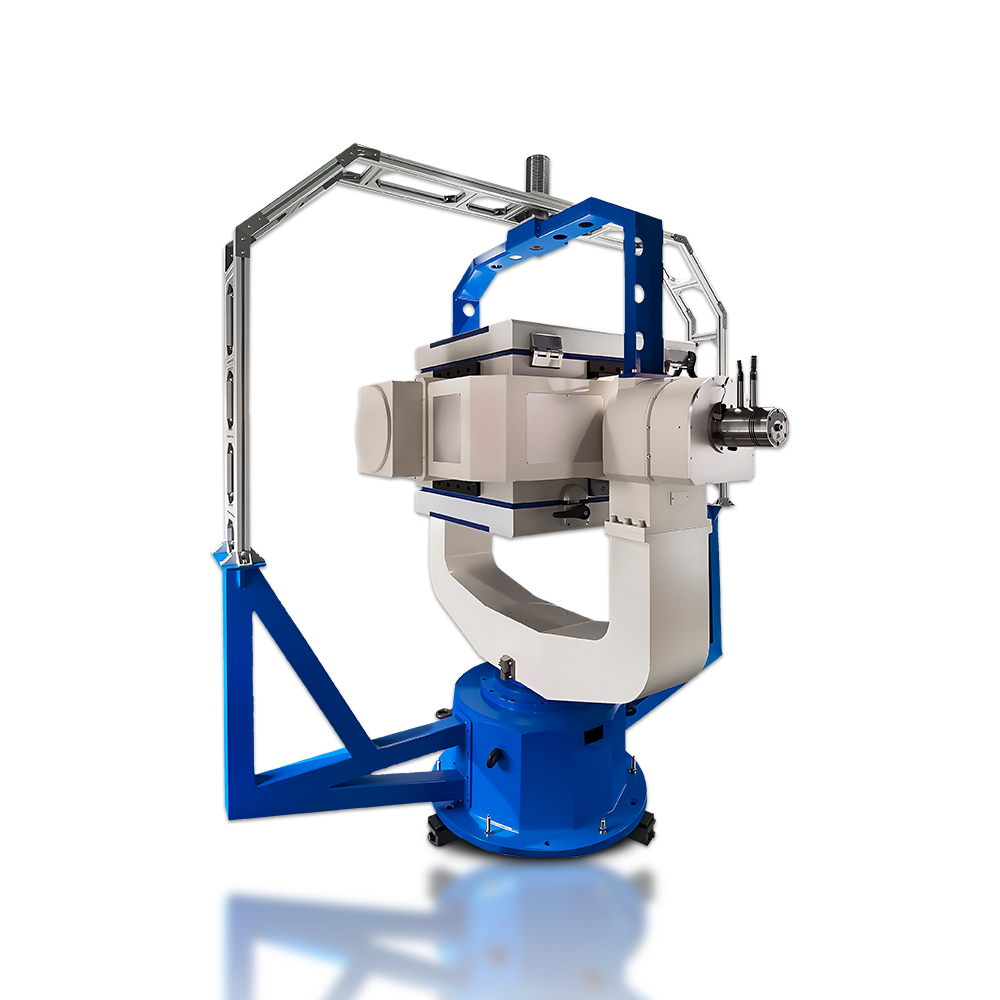

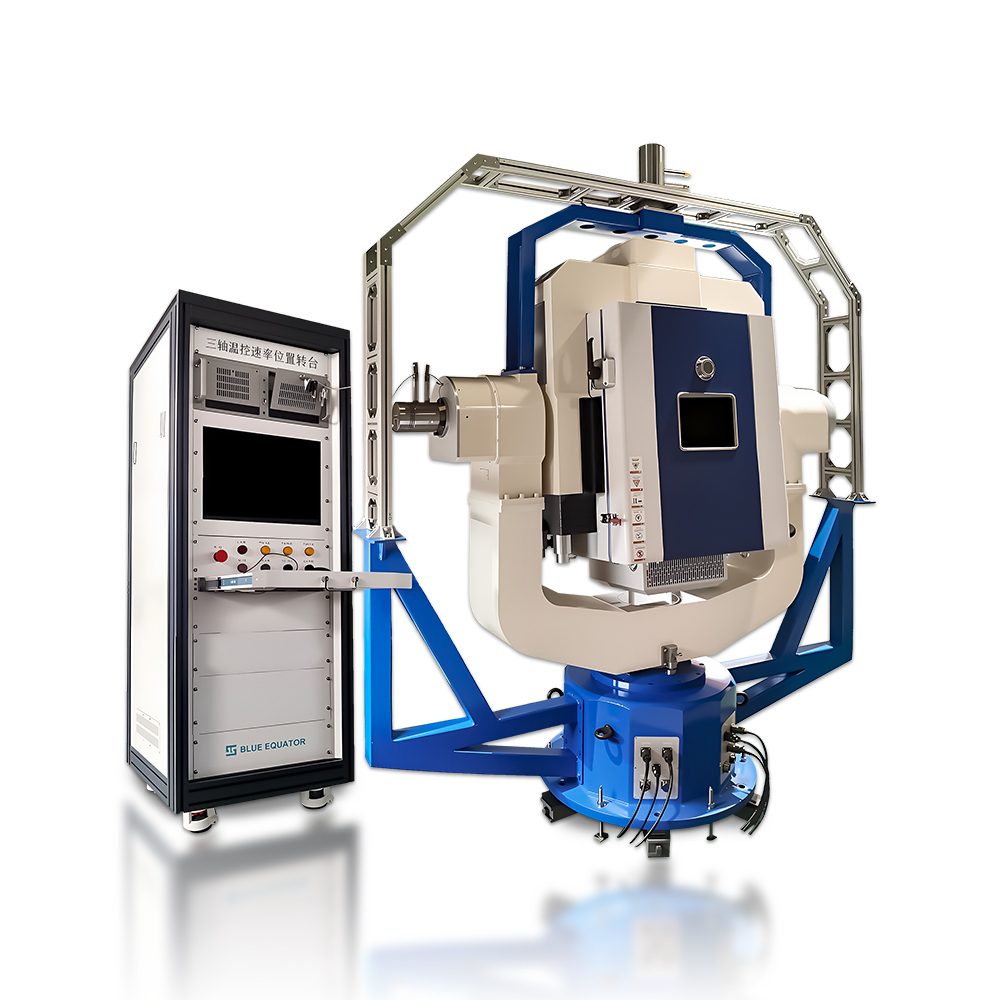

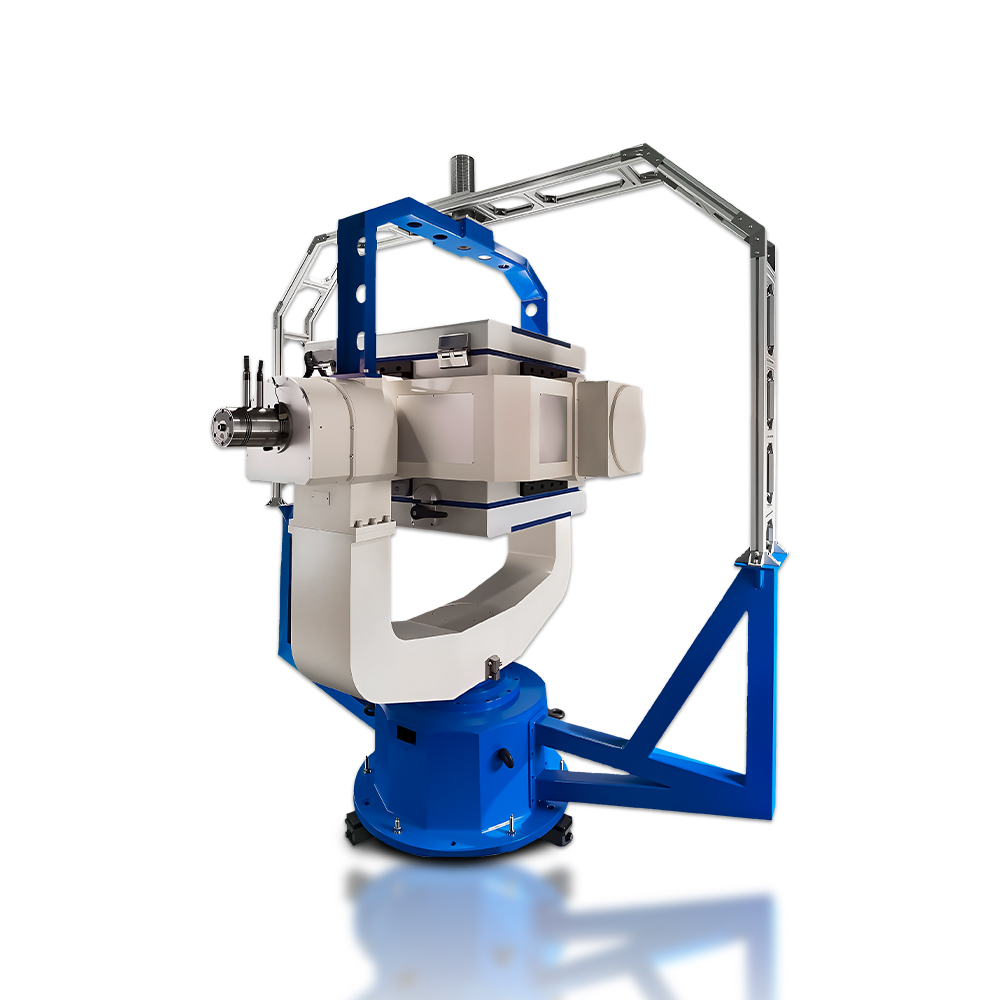

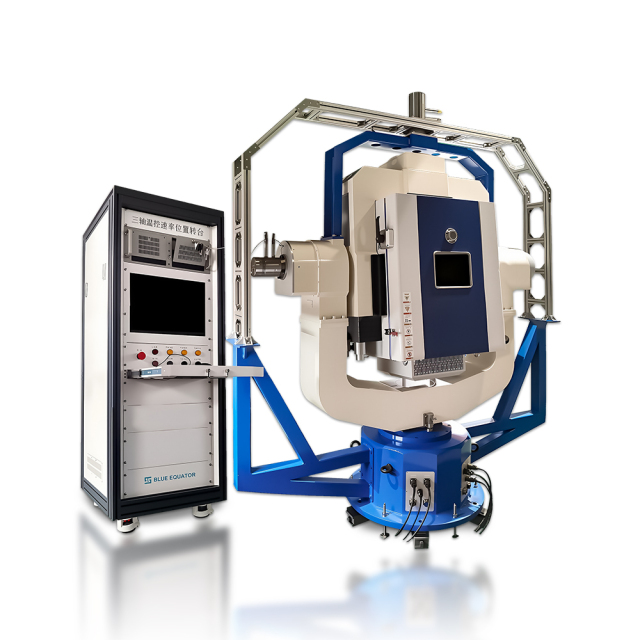

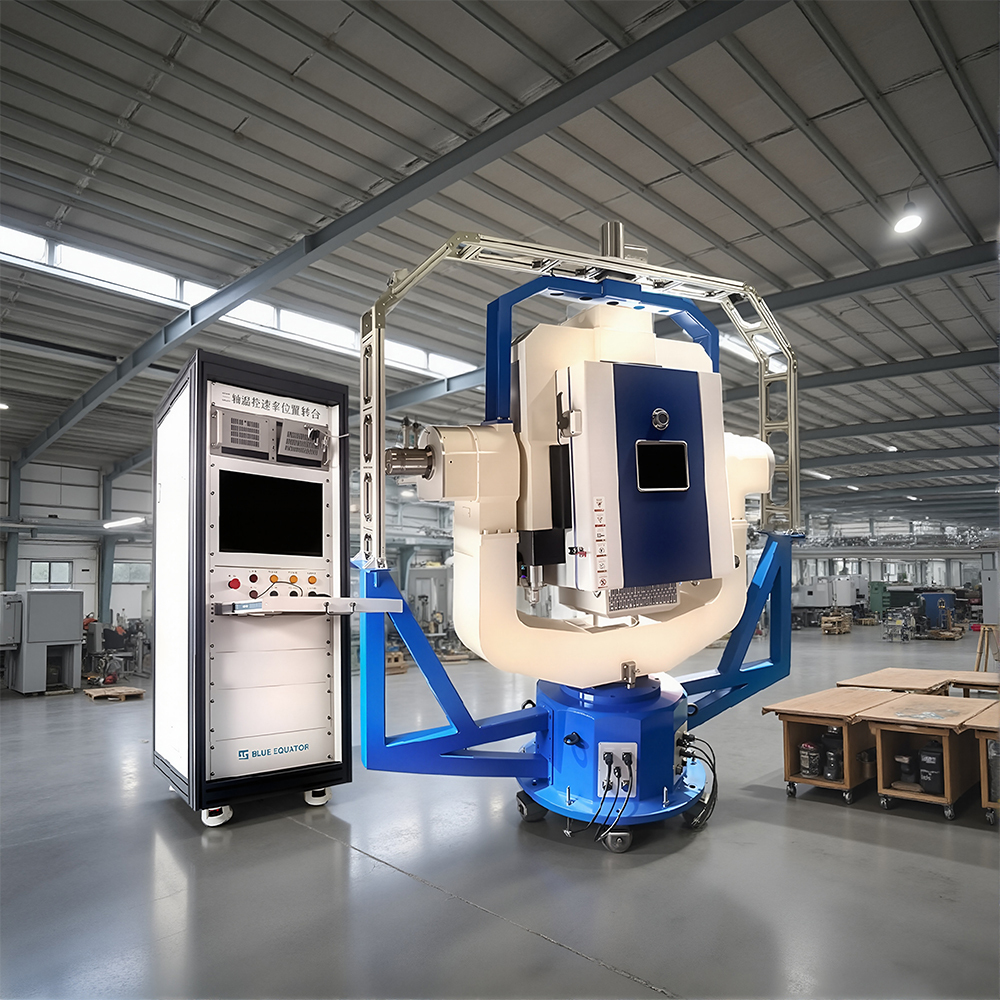

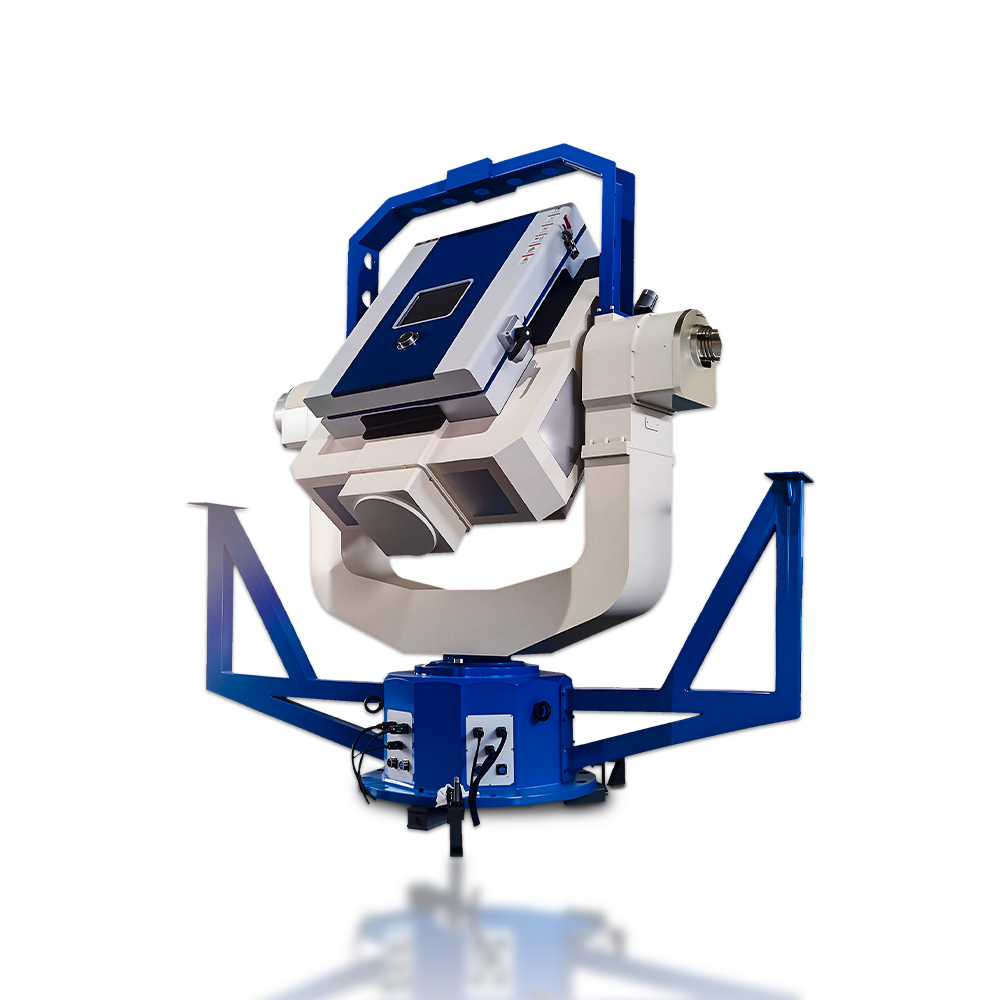

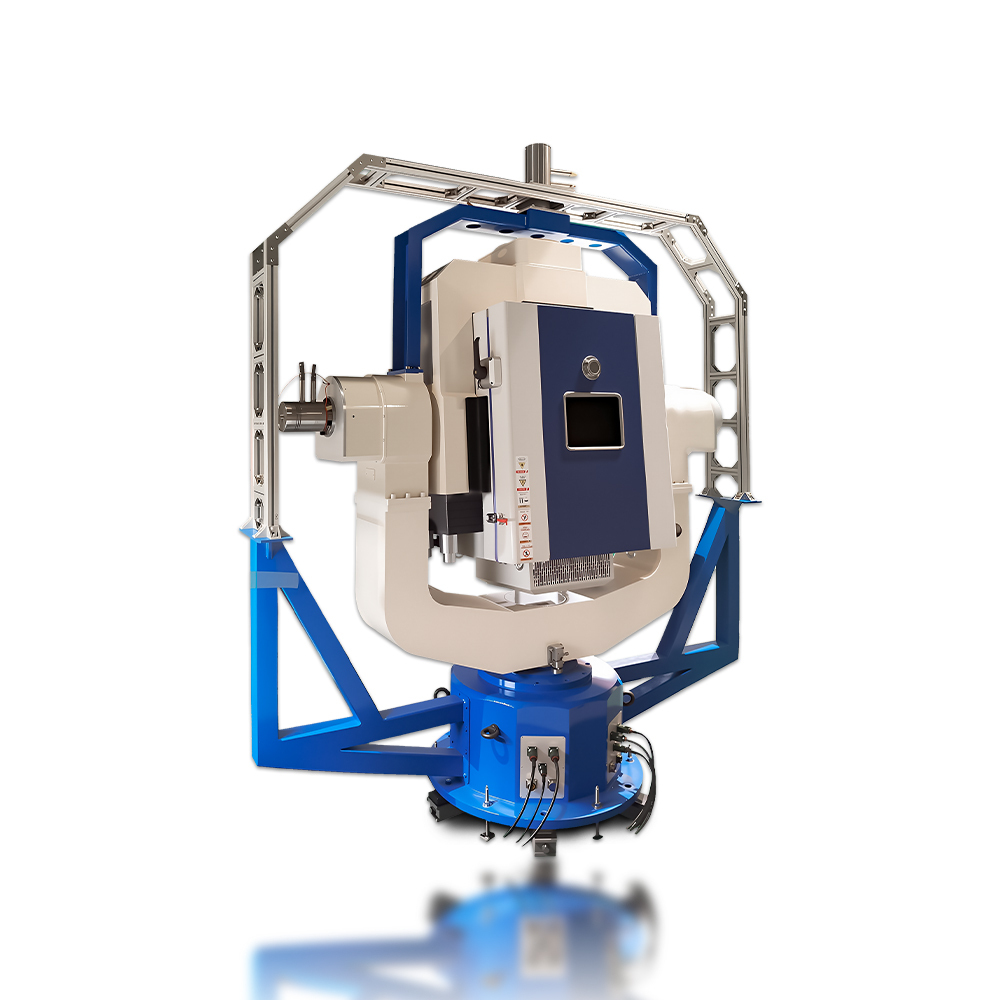

High Precision Three Axis Temperature Controlled Position and Rate Table for inertial navigation system calibration and gyroscope testing in aerospace, electronics, automotive, and precision instrument applications.

No.BE-INS3-24A32

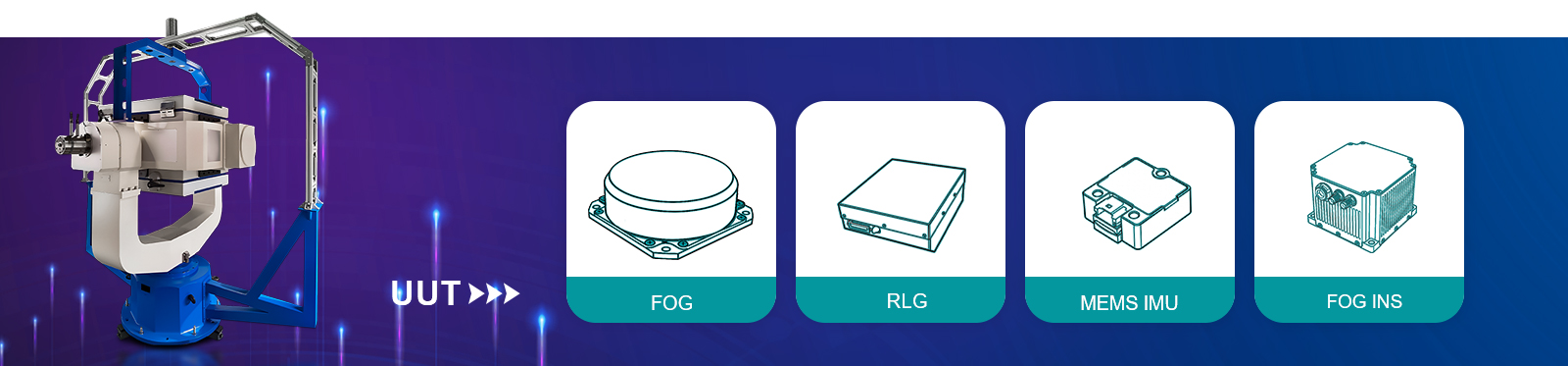

The High Precision Three Axis Temperature Controlled Position and Rate Table delivers ±0.001° Angular rate range, supports up to 20kg payload, and operates from -55°C to +80°C. Designed for inertial navigation system calibration, fiber optic gyroscope testing, and MEMS sensor validation, it ensures stable thermal performance, precise motion control, and high repeatability for aerospace, automotive, electronics, and precision instrument testing.

Specifications

Maximum load weight:

20 kg

Three-axis angular position accuracy:

≤±5 ″ (arcseconds)

Angular Velocity Range:

±0.001°/s ~ 400°/s

Angular Acceleration:

Inner Frame 300 °/s² Middle Frame 200 °/s² Outer Frame 100 °/s²

Temperature range:

-55°C ~ +80°C

GET A QUOTE

Download

View all downloads

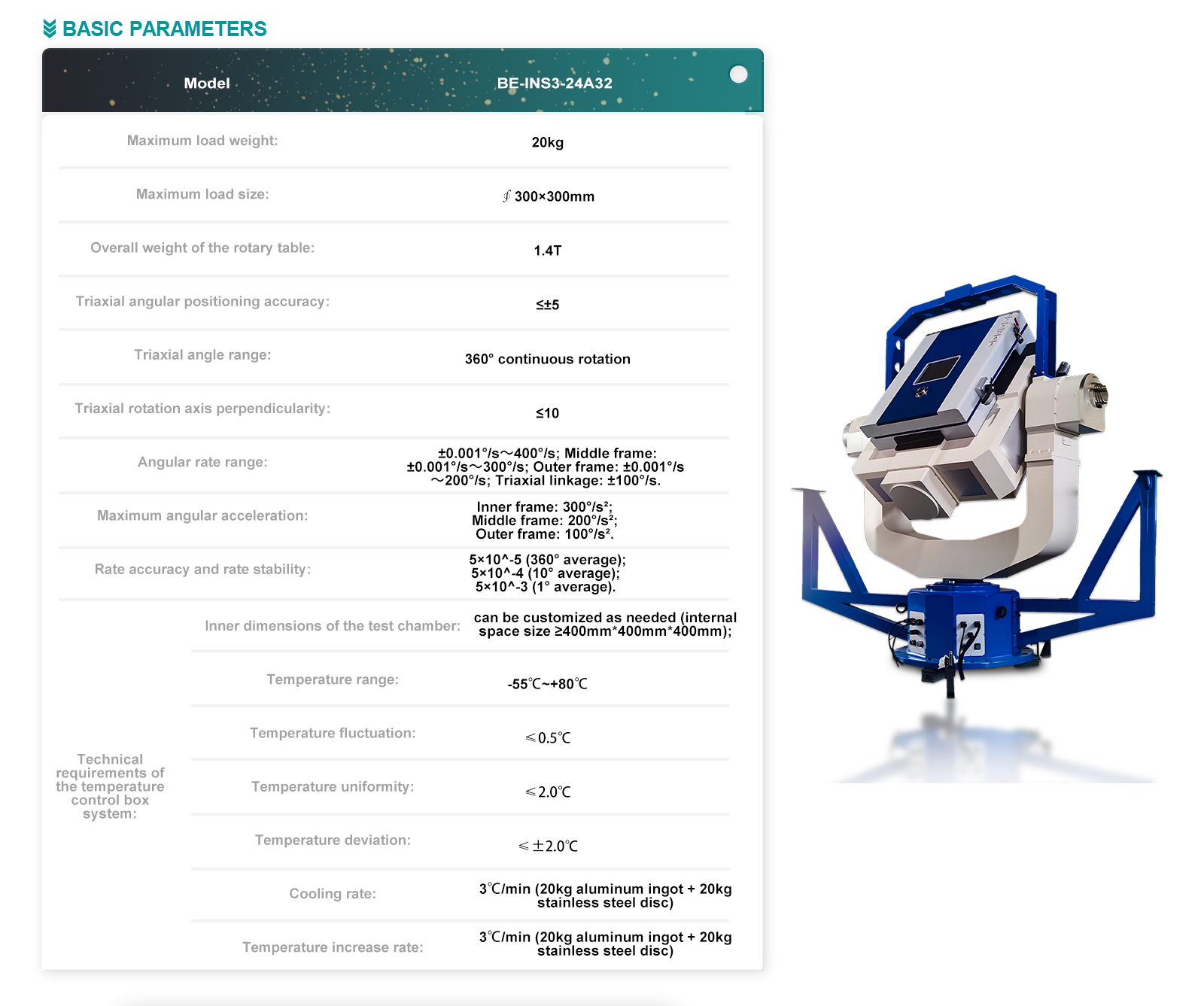

Three-Axis Turntable Technical Parameters
High-Precision Motion System with Temperature Control
Load Specifications
Parameter	Value
Maximum load weight	20 kg
Maximum load size	ϕ300 × 300 mm
Maximum load size	Overall weight of turntable: 1.4 T
Positioning & Rotation Parameters
Parameter	Value
Three-axis angular position positioning accuracy	≤±5 ″ (arcseconds)
Three-axis angular range	360° continuous rotation
Three-axis rotation axis verticality	≤10 ″ (arcseconds)
Angular Velocity Range
Frame	Angular Velocity Range
Inner Frame	±0.001°/s ~ 400°/s
Middle Frame	±0.001°/s ~ 300°/s
Outer Frame	±0.001°/s ~ 200°/s
Three-Axis Linkage	±100°/s
Angular Acceleration
Frame	Maximum Angular Acceleration
Inner Frame	300 °/s²
Middle Frame	200 °/s²
Outer Frame	100 °/s²
Rate Accuracy & Stability
Measurement Condition	Rate Accuracy & Stability
360° average	5×10⁻⁸ - 5
10° average	5×10⁻⁴ - 4
1° average	5×10⁻³ - 3
Temperature Control Box System
Technical Requirements for Temperature Control Box System
Inner dimensions of the test box can be customized as needed
(inner space dimensions ≥ 400mm × 400mm × 400mm)
Temperature range: -55°C ~ +80°C
Temperature fluctuation: ≤0.5°C
Temperature uniformity: ≤2.0°C
Temperature deviation: ≤±2.0°C
Cooling rate: 3°C/min throughout the process (20kg aluminum ingot + 20kg stainless steel disc)

High Precision Three Axis Temperature Controlled Position and Rate Table for inertial navigation system calibration and gyroscope testing in aerospace, electronics, automotive, and precision instrument applications.
