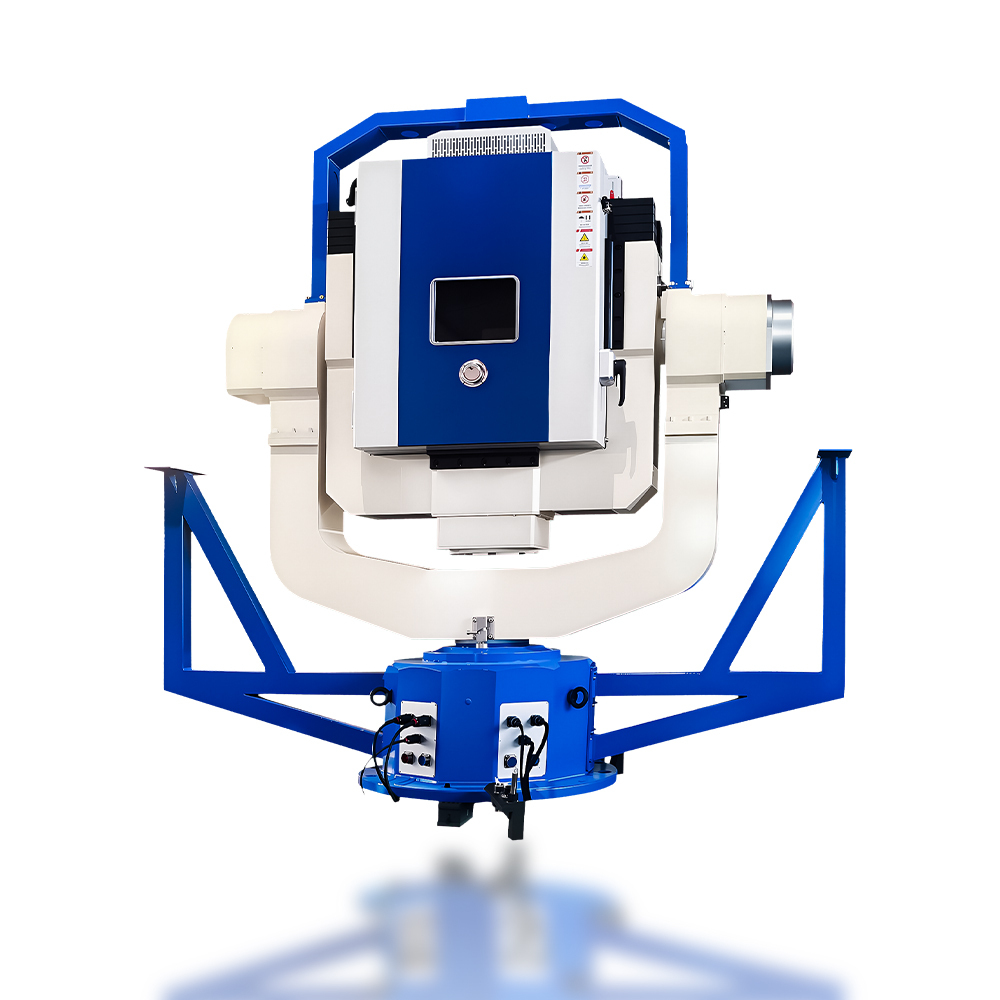

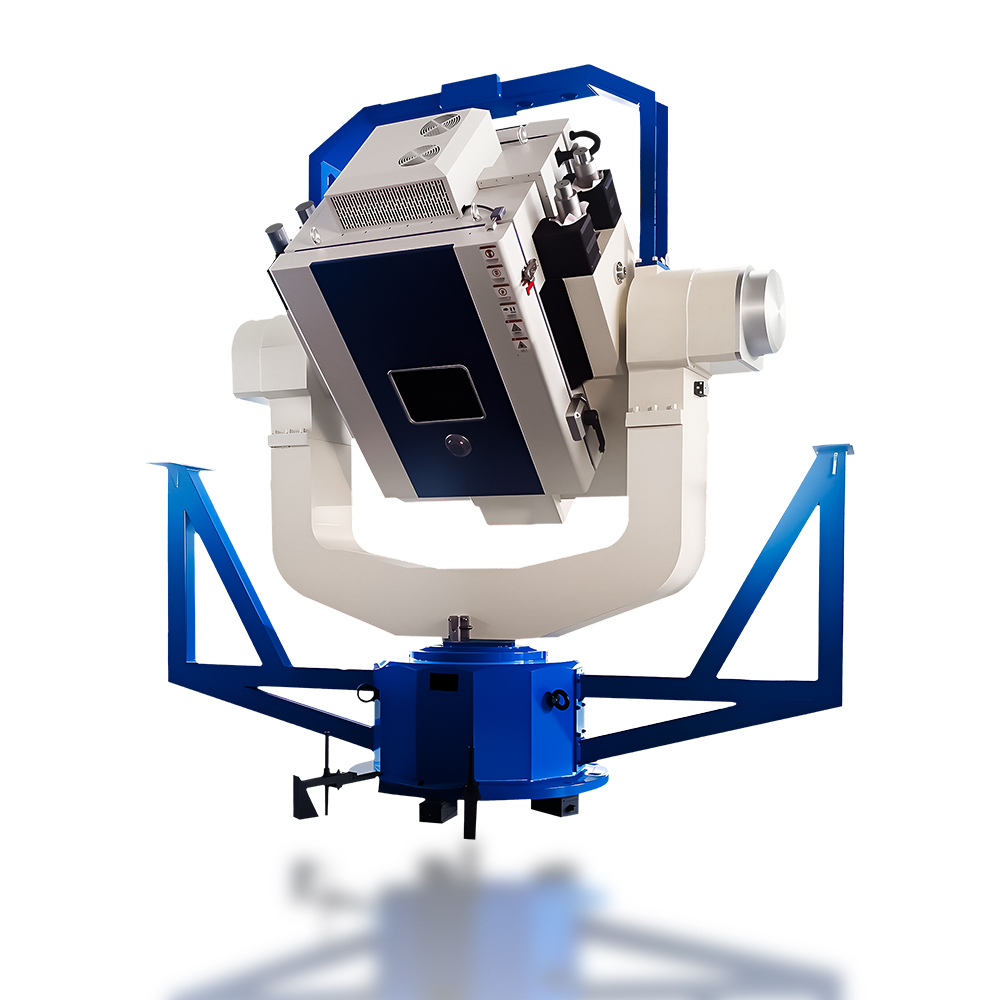

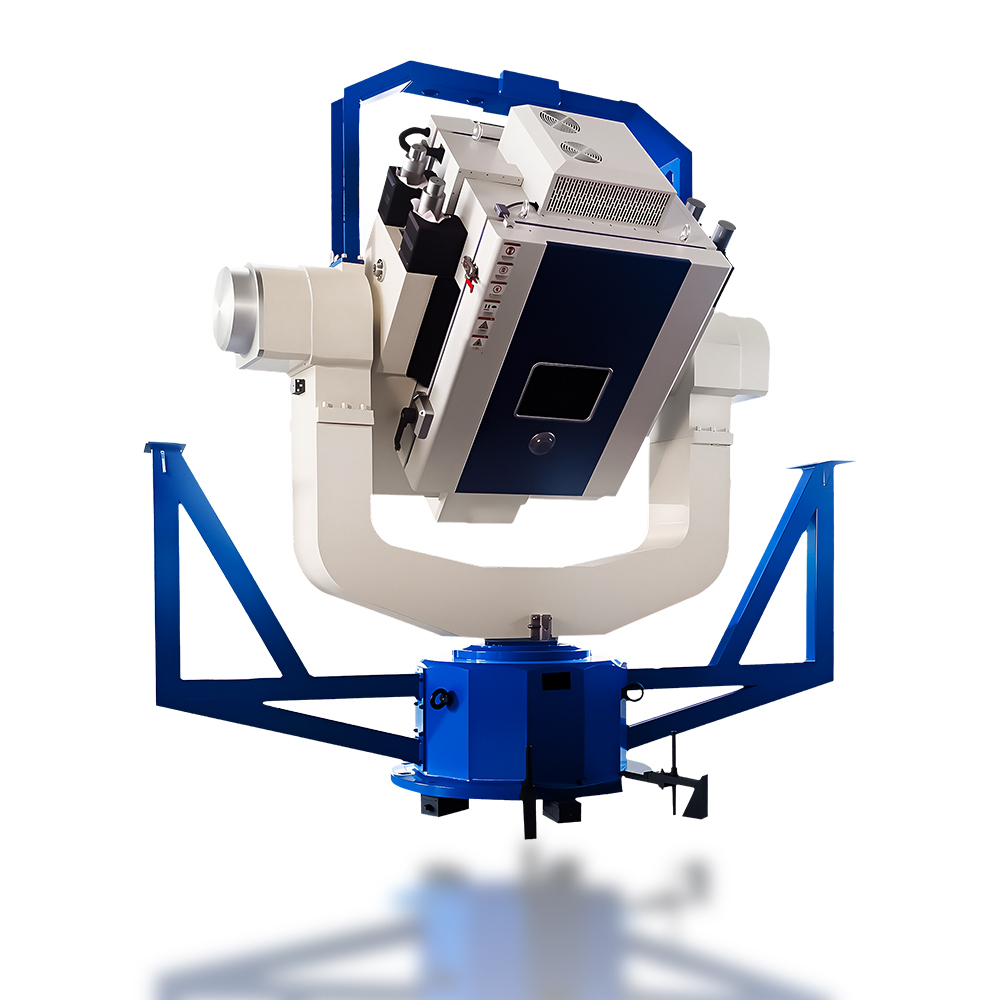

High Precision Three-Axis Motion Simulation Rate Table for Inertial Navigation System Gyroscope Fiber Optic Sensor Testing and Calibration

No.BE-INS3-23C36

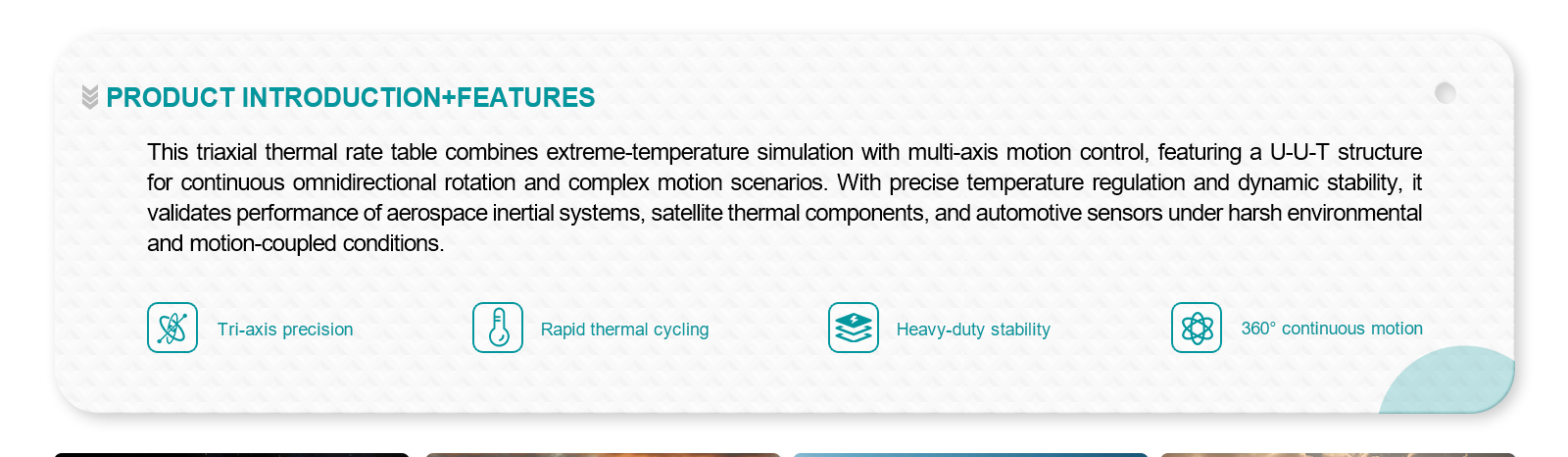

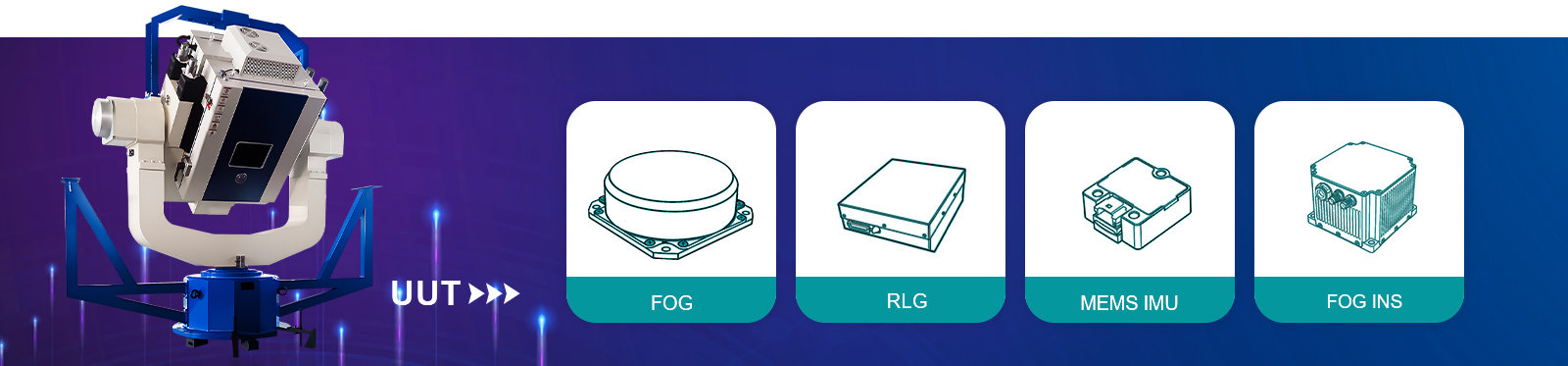

Blue Equator High Precision Three-Axis Motion Simulation Rate Table offers ±0.001°/s rate accuracy, 20kg payload, and -40°C to +85°C temperature control. Designed for inertial navigation system calibration, gyroscope testing, and MEMS sensor verification, it is widely applied in aerospace, autonomous vehicles, and industrial R&D to ensure stable and precise multi-axis motion performance.

Specifications

Maximum load weight:

20 kg

Angular velocity range:

±0.001°/s ~ 400°/s

Maximum angular acceleration:

300°/s²

Temperature range:

-55°C ~ +80°C

Rate accuracy and rate stability:

5×10⁻³ (1° average)

GET A QUOTE

Download

View all downloads

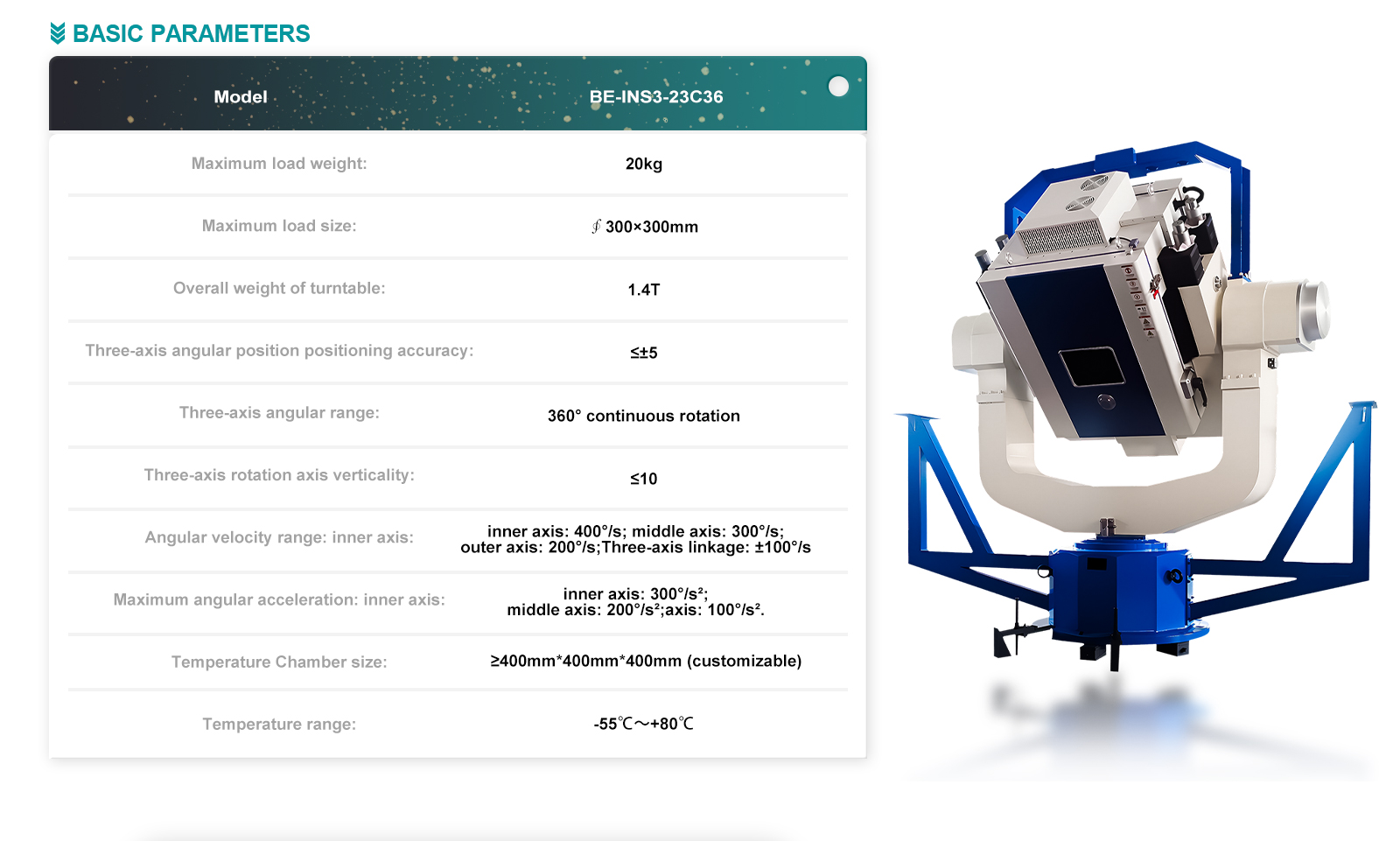

Parameter	Specification
Maximum load weight	20 kg
Maximum load size	300 × 300 mm
Overall weight of turntable	1.4 T
Three-axis angular position positioning	≤ ±5°
Three-axis angular range	360° continuous rotation
Three-axis rotation axis verticality	≤ 10°
Angular velocity range	Inner frame: ±0.001°/s ~ 400°/s
	Middle frame: ±0.001°/s ~ 300°/s
	Outer frame: ±0.001°/s ~ 200°/s
	Three-axis linkage: ±100°/s
Maximum angular acceleration	Inner frame: 300°/s²
	Middle frame: 200°/s²
	Outer frame: 100°/s²
Rotary table structure	U-U-T
Inner dimensions of the test box	Customized on demand (inner space dimensions)
Temperature range	-55°C ~ +80°C
Temperature fluctuation	≤ 0.5°C
Temperature uniformity	≤ 2.0°C
Temperature deviation	≤ ±2.0°C
Cooling rate	3°C/min throughout the process (20kg aluminum)
Heating rate	3°C/min throughout the process (20kg aluminum)
Rate accuracy and rate stability	5×10⁻⁵ (360° average)
	5×10⁻⁴ (10° average)
	5×10⁻³ (1° average)
