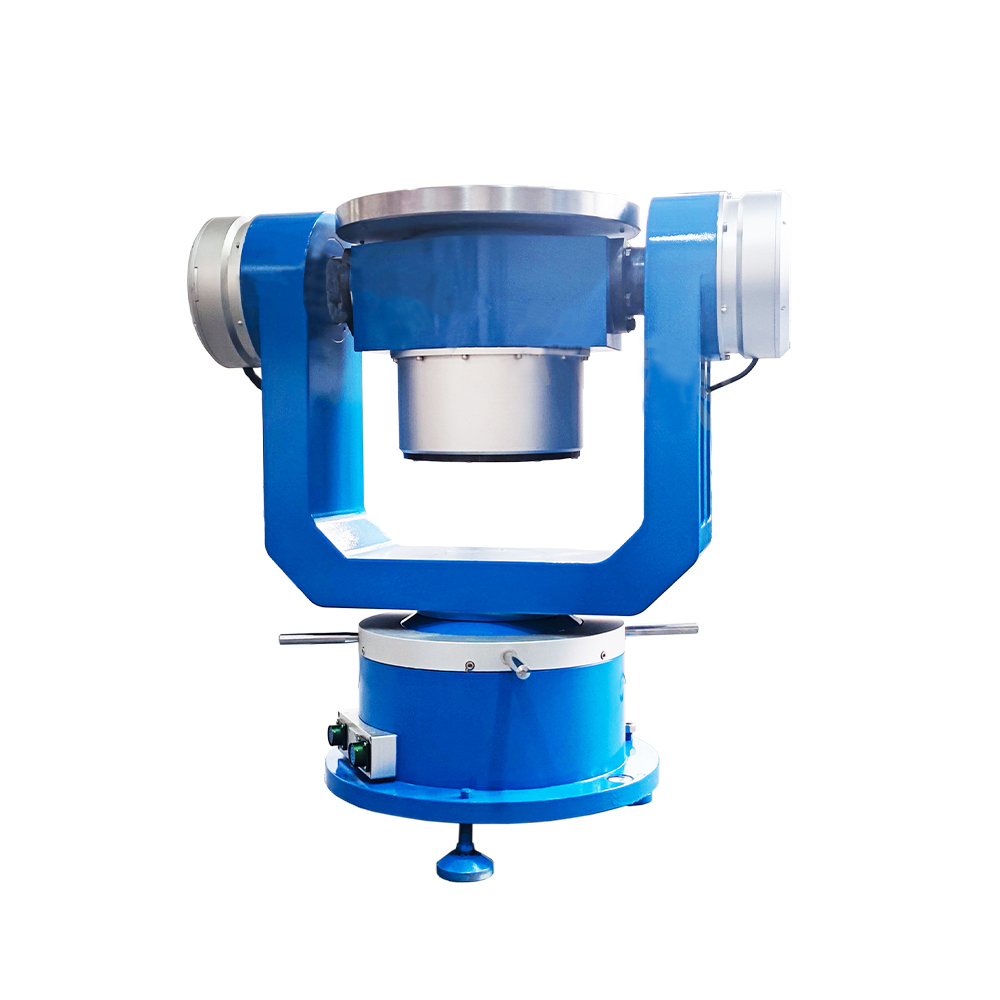

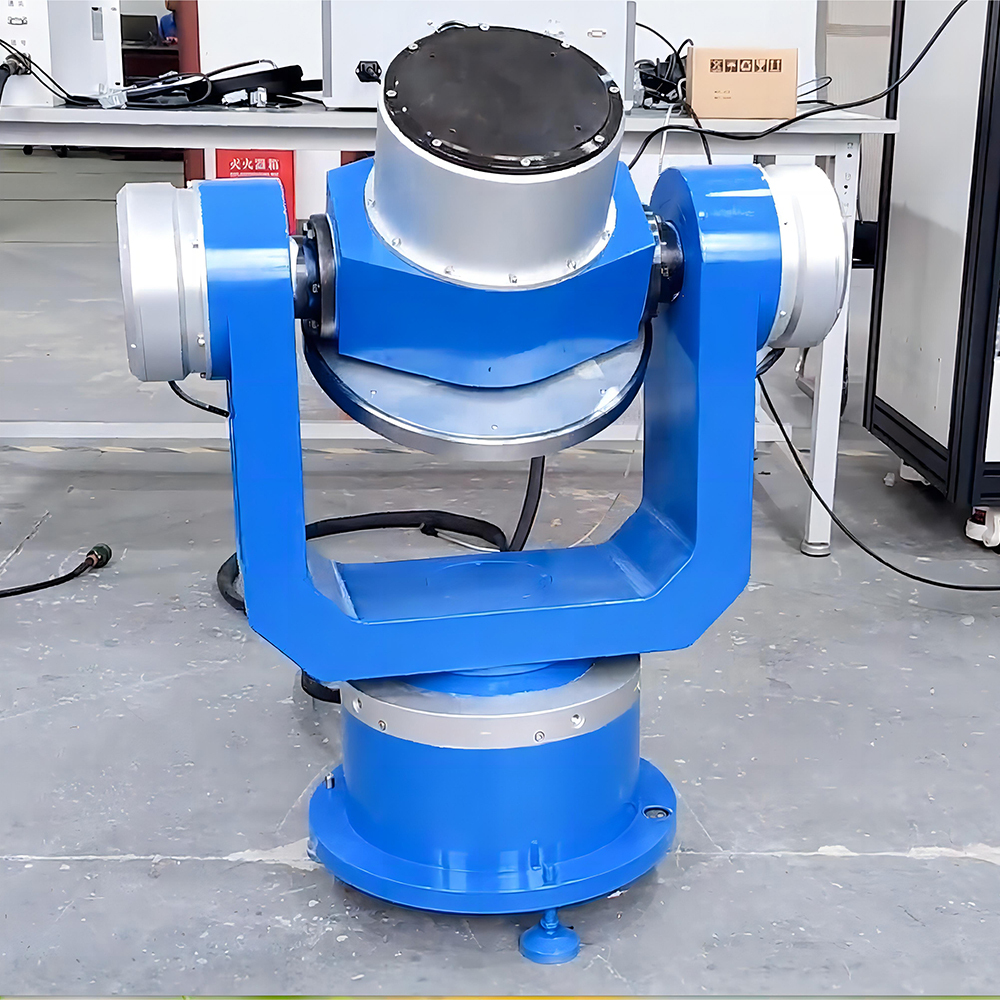

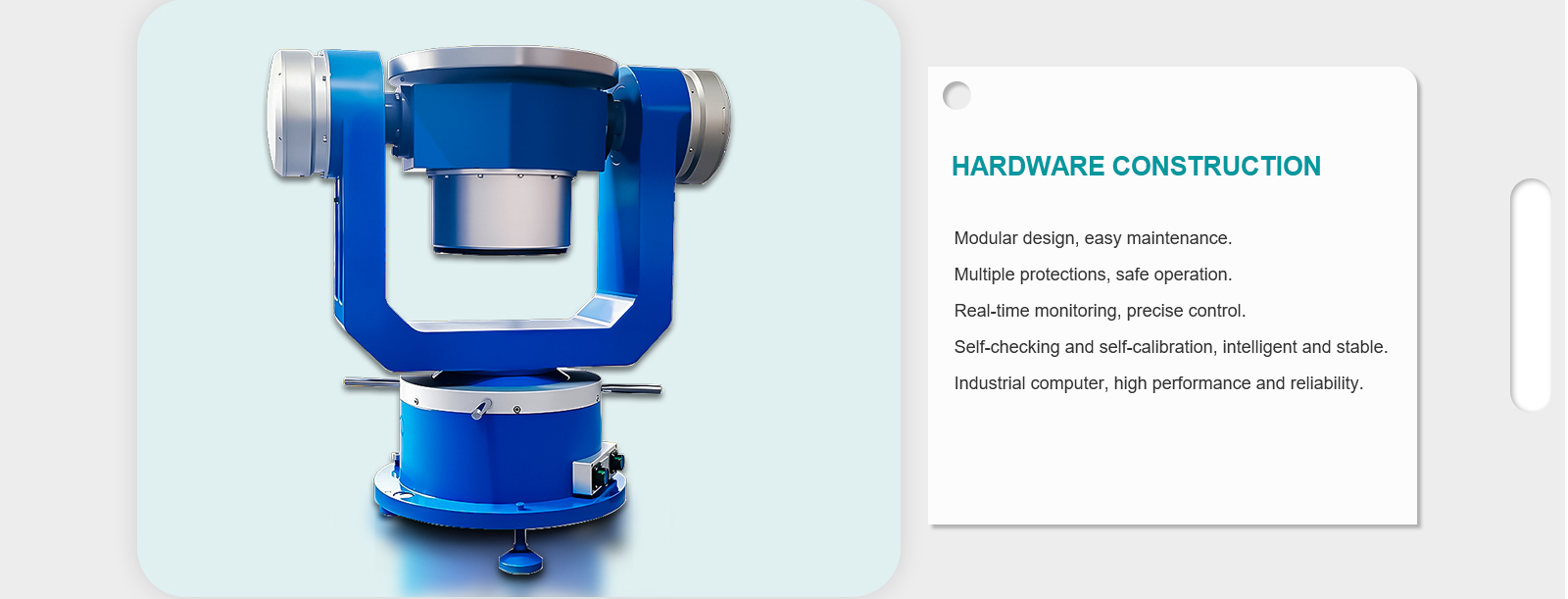

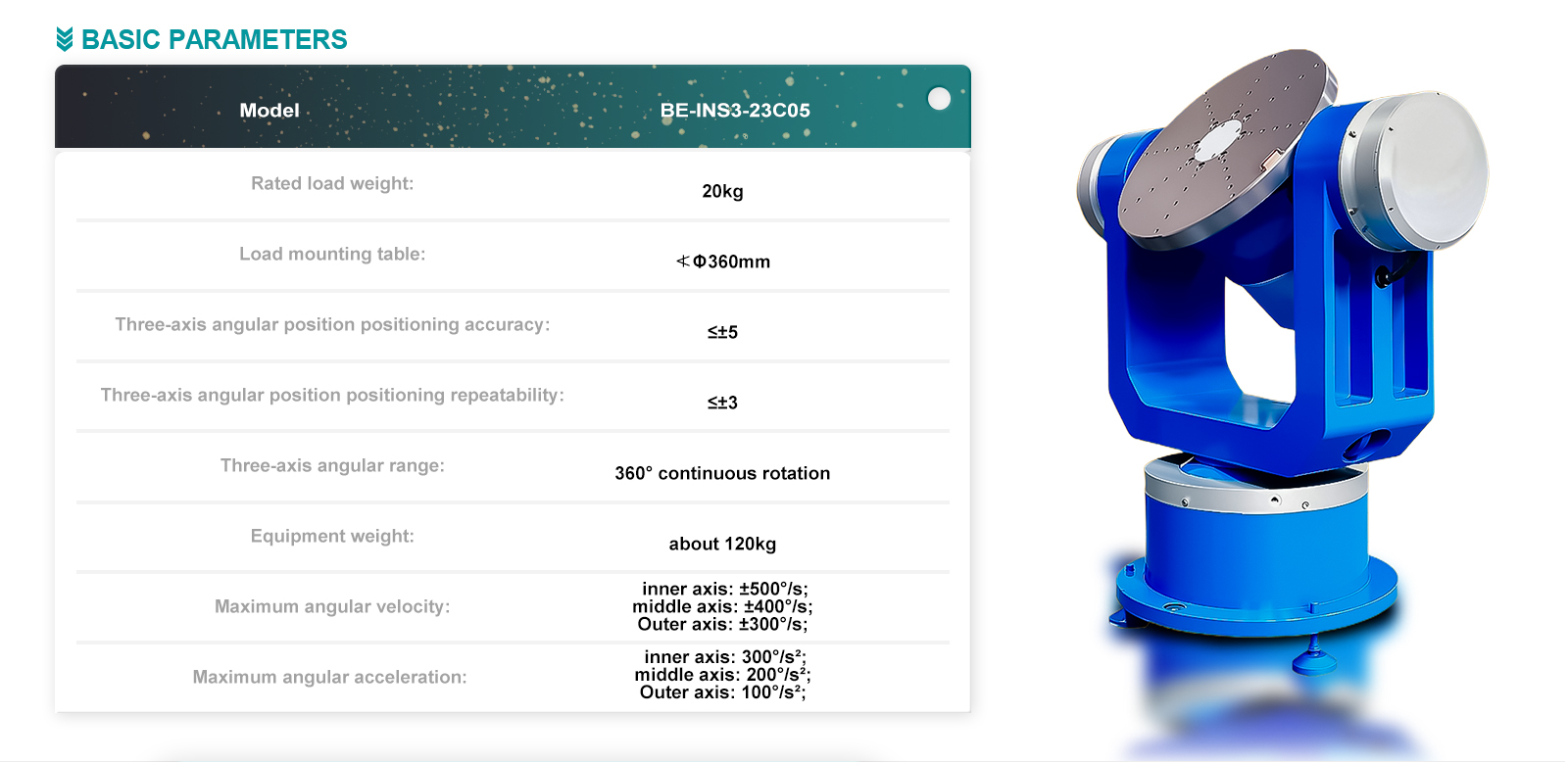

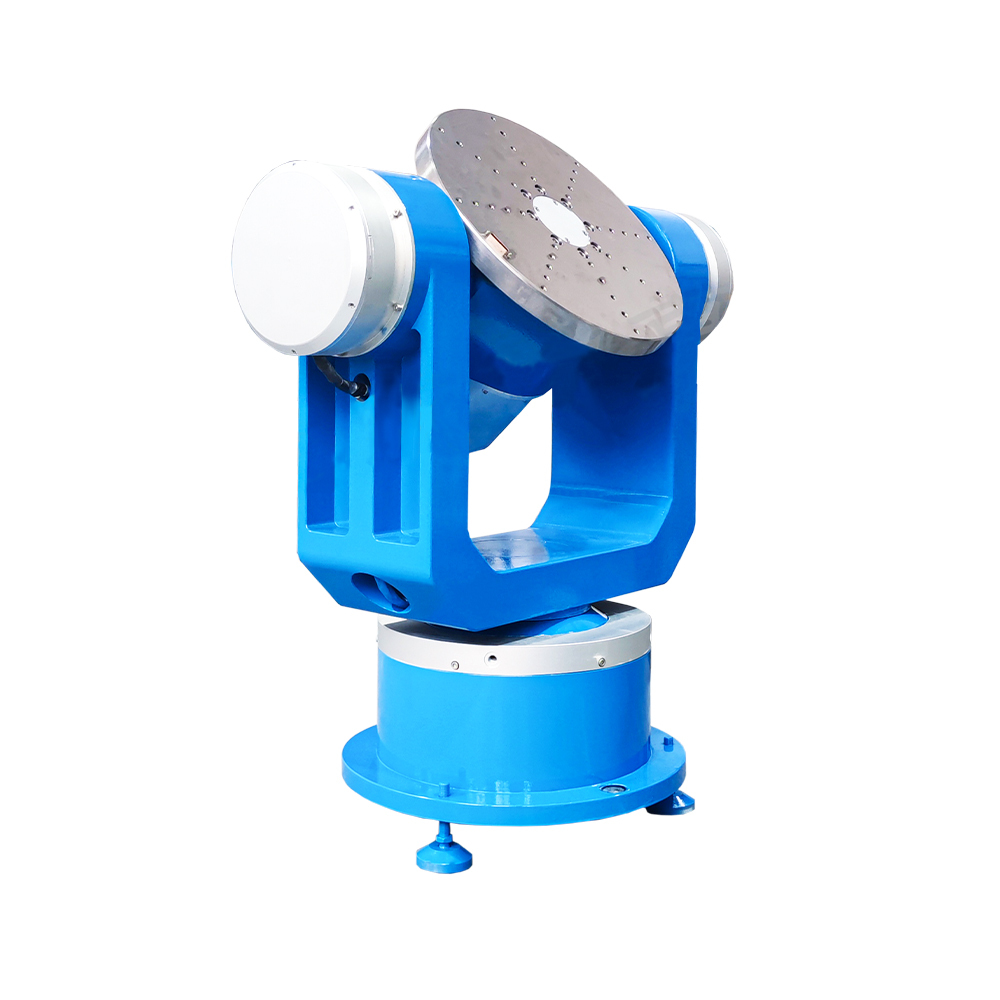

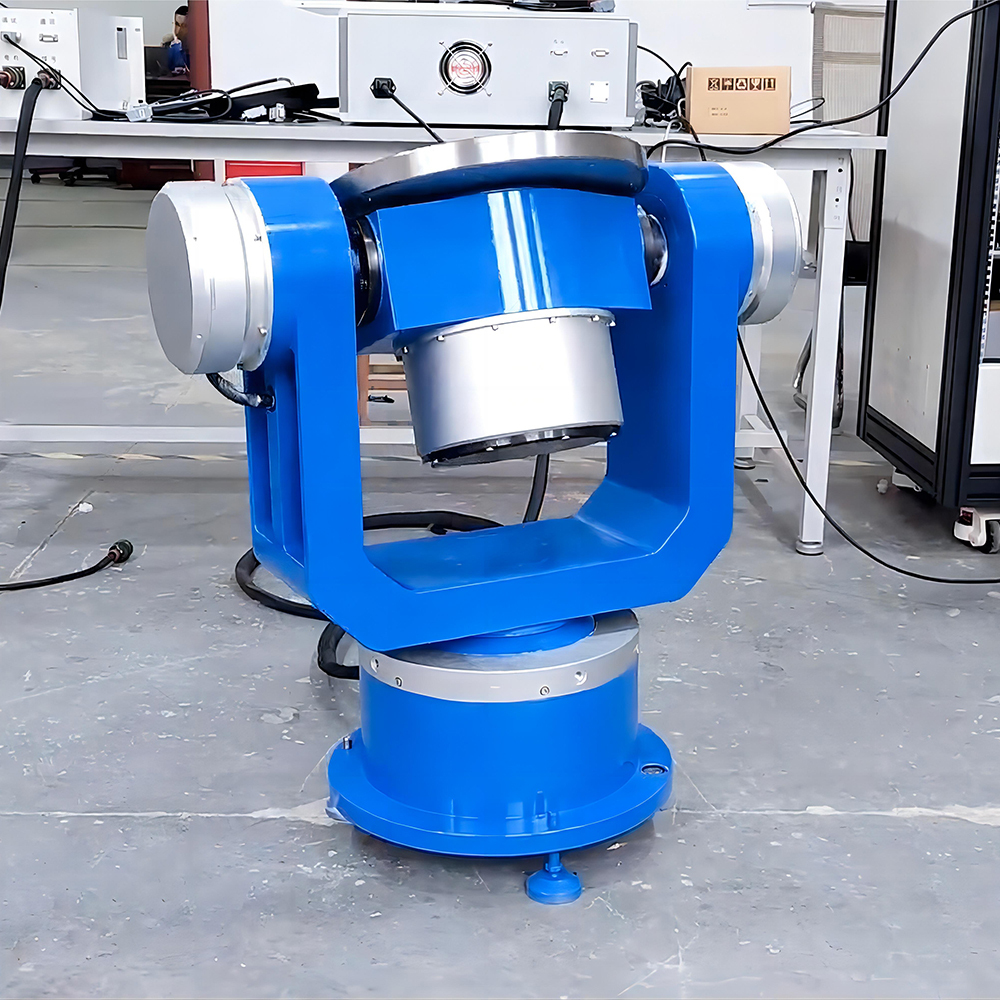

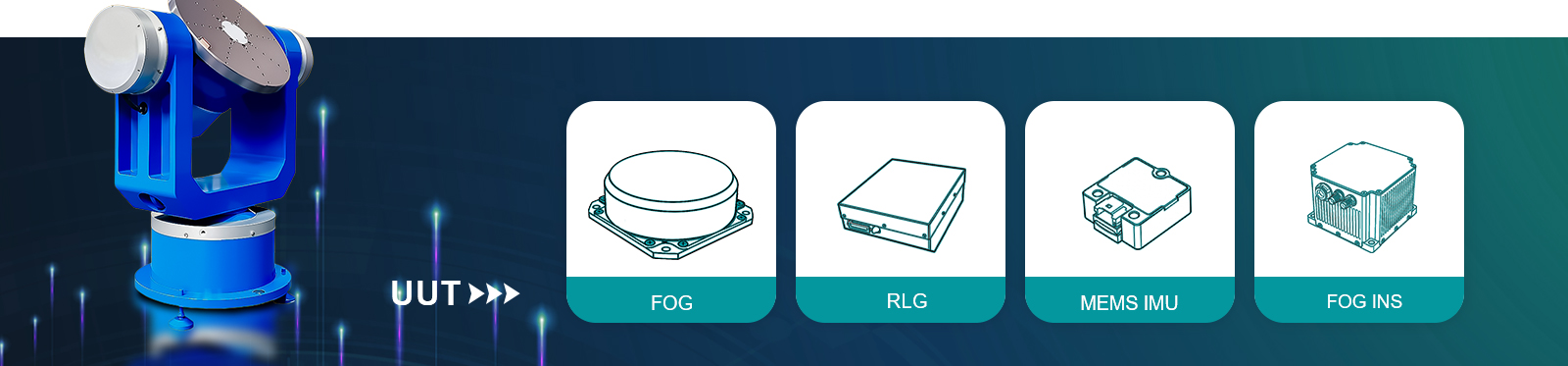

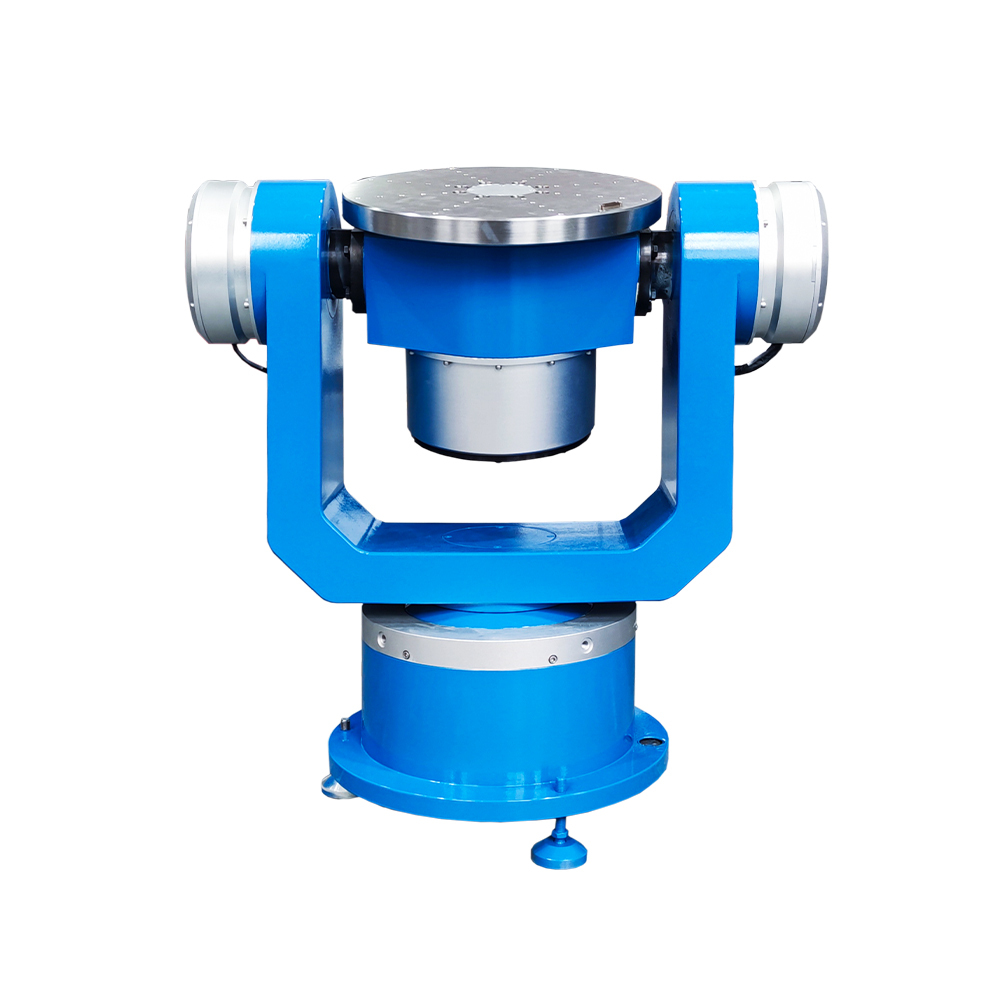

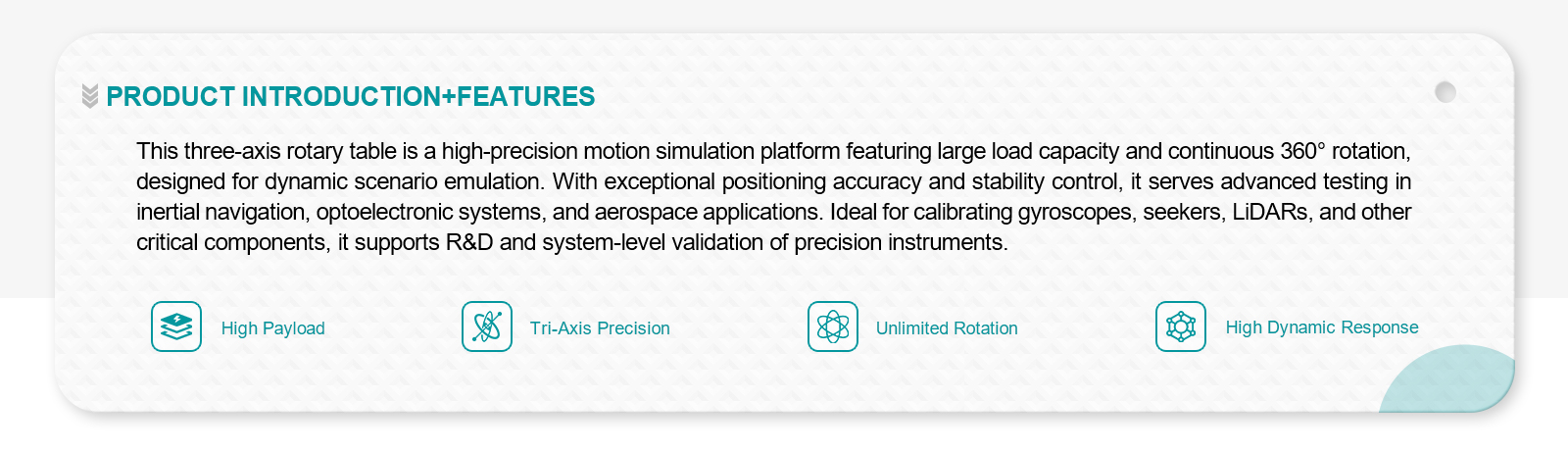

——Technical parameter——
|
Indicator name |
Indicator parameters |
|
Rated load weight |
20kg |
|
Maximum load size |
Ф300mm×200mm |
|
Load mounting table |
Φ360mm, Super hard aluminum alloy |
|
Countertop flatness |
≤0.02mm |
|
Countertop end runout |
≤0.02mm |
|
Three-axis angular position positioning accuracy |
≤5" |
|
Triaxial Angle position positioning repeatability |
≤3" |
|
Triaxial rotation axis perpendicularity |
≤ ±5" |
|
Three-axis corner range |
360°continuous rotation |
|
Degree of intersection of three axes of rotation |
Φ0.5mm small ball inside |
|
Equipment weight |
About 120kg |
|
Maximum angular rate |
Inside frame: ±500°/s; Middle frame: ±400°s, Outer frame: ±300°/s; Three-axis linkage: ±100°/s |
|
Maximum angular acceleration |
Inner frame: 300°/S²， Middle box: 200°/S², Outer frame: 100°/S² |
|
Rate accuracy and smoothness |
5e-005 (360° average); 5e-004 (10° average), 5e-003 (1° average) |
|
Slip ring |

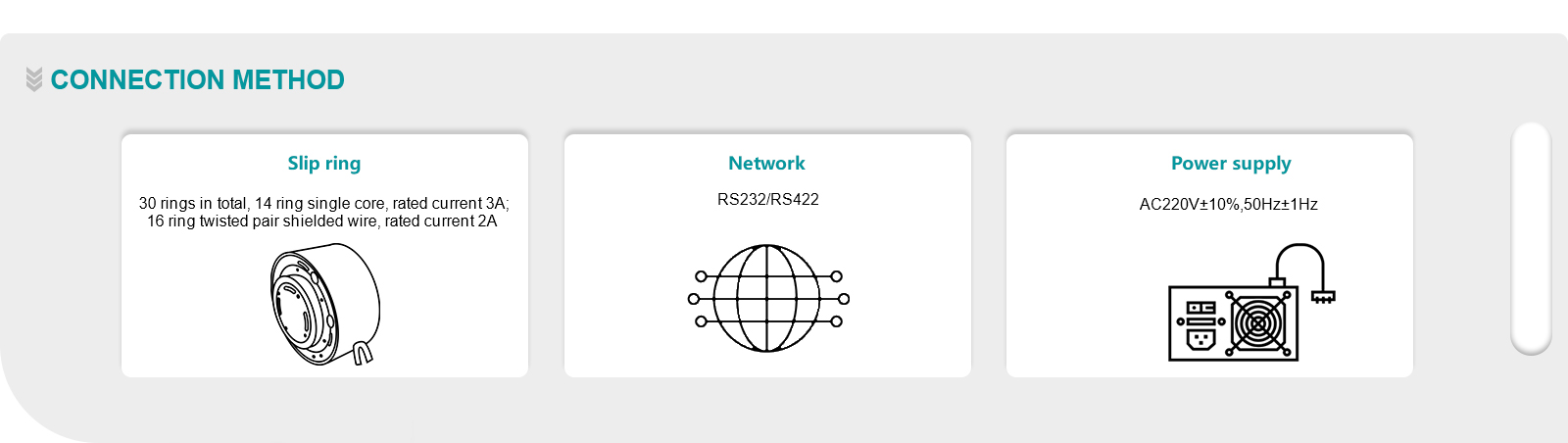

Number of rings 30 rings, of which 14 rings single-core shield, rated current 3A; 16 rings double core shield, rated current 2A |
|

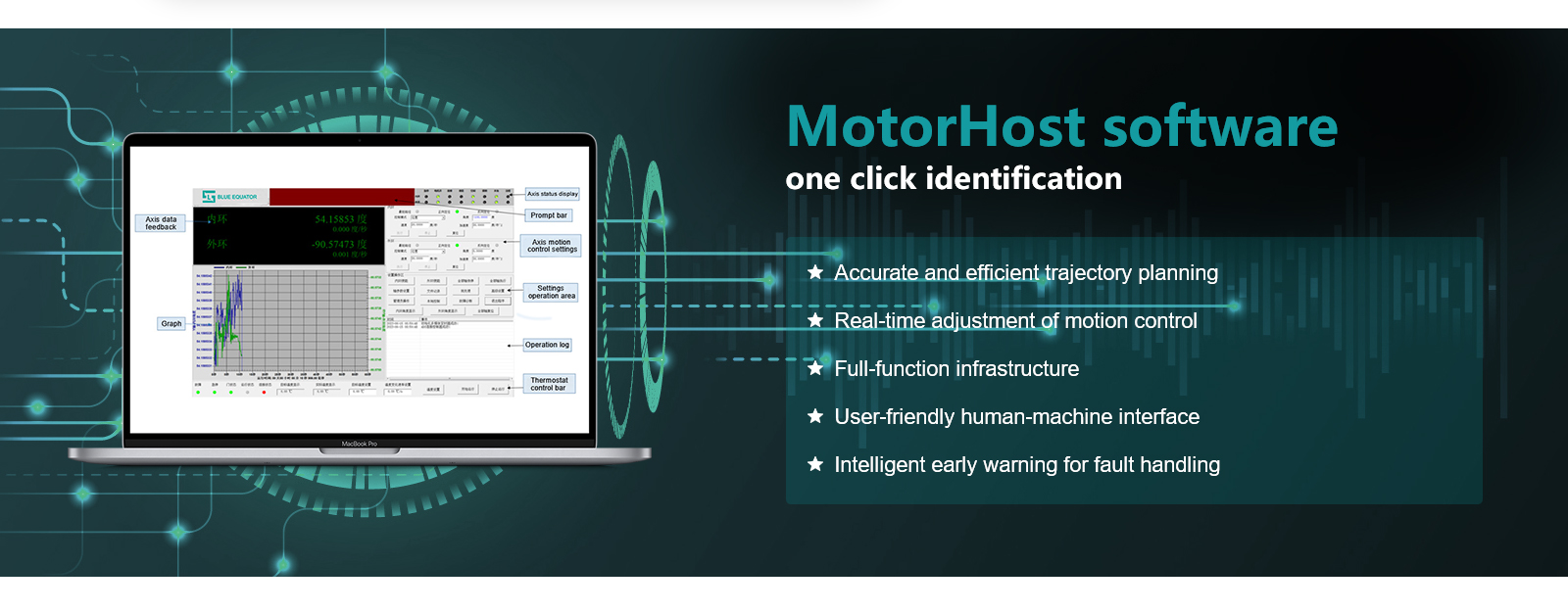

Control software
|
With computer automatic state control and data acquisition, processing and display functions |
|
Communication mode |
RS232/RS422 |
