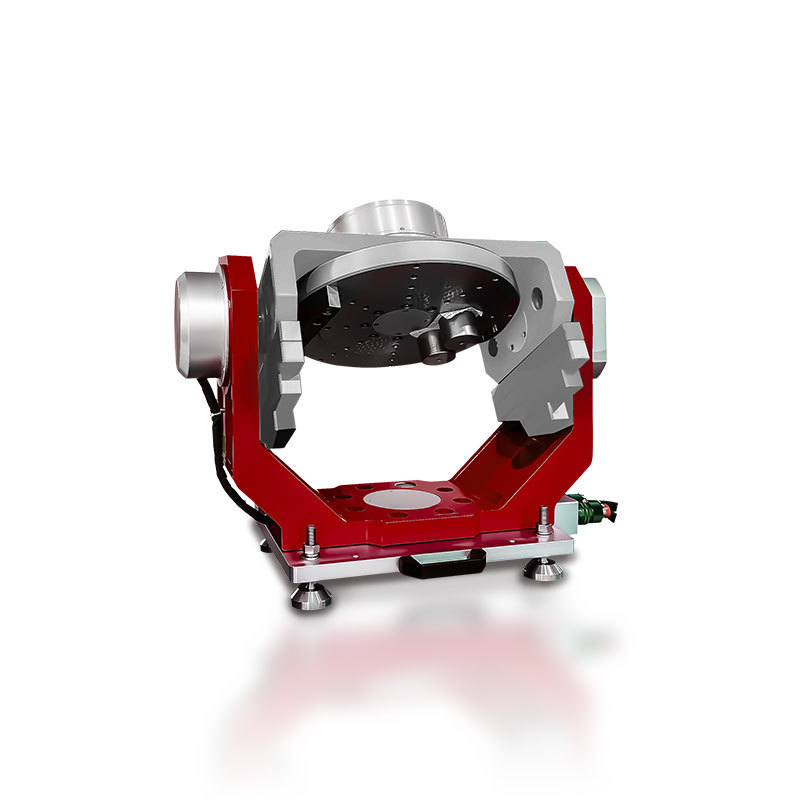

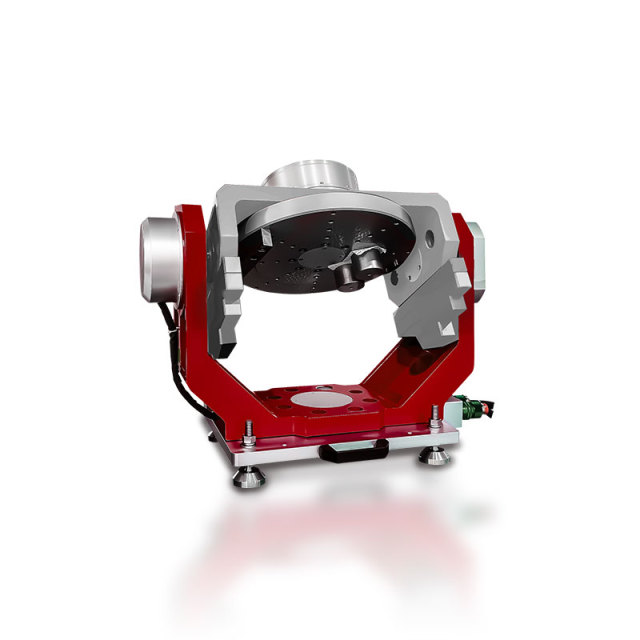

  • Lightweight motion rate table with superduralumin platform for drone sensor calibration
  • Close up of touch screen control interface for simplified on-site parameter adjustment
  • Motion simulator performing 360 degree rotation for UAV flight controller multi-turn error test
  • Test equipment dimensions with 10kg capacity on portable field deployment workbench

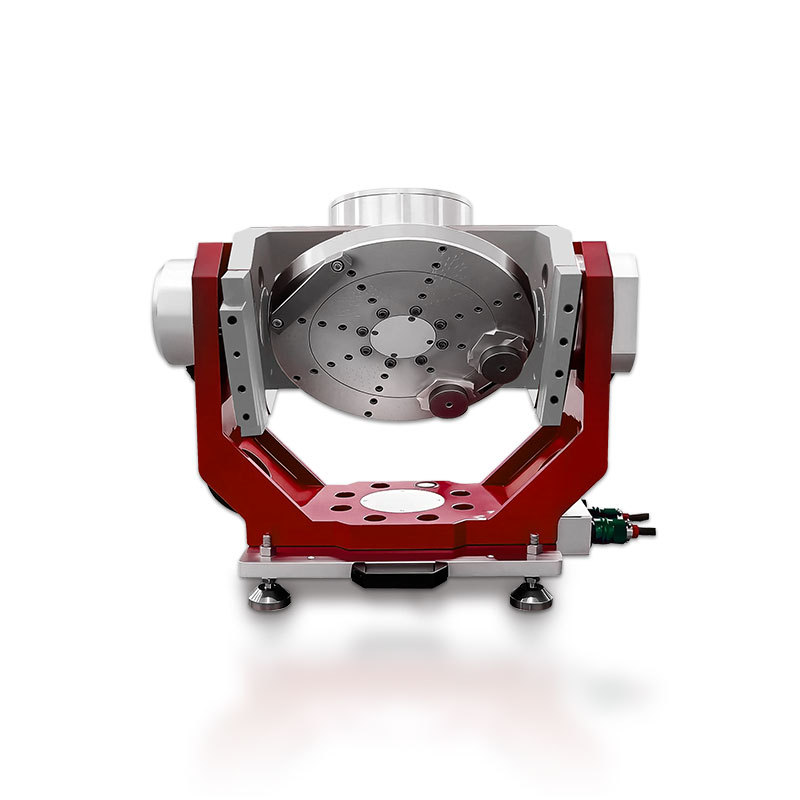

  • RS422 remote control interface executing IMU calibration sequence for autonomous vehicle test

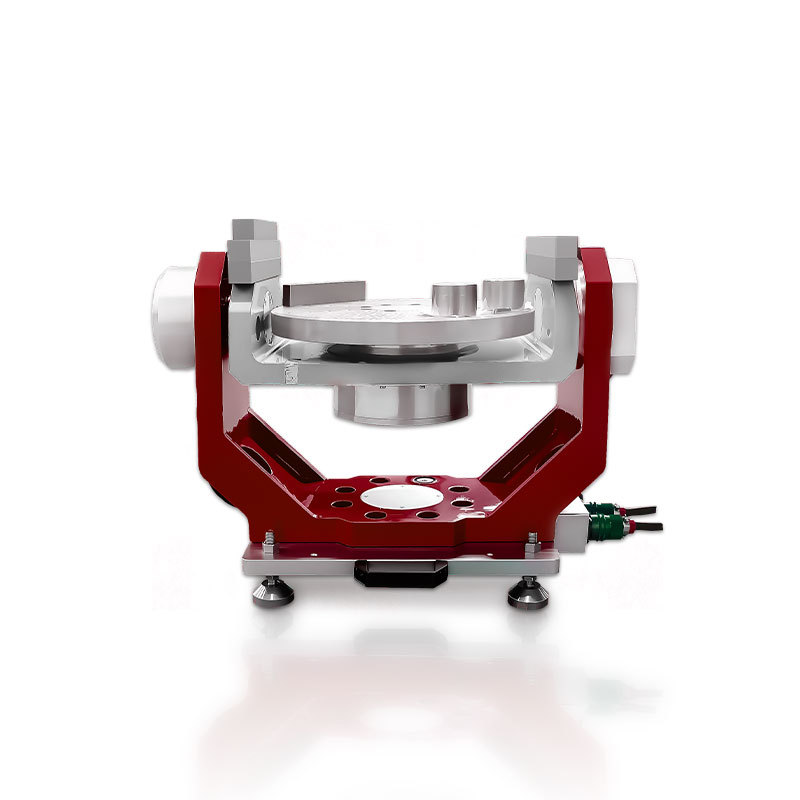

  • Portable dual axis motion simulator for UAV and autonomous vehicle field test on outdoor stand
  • Lightweight motion rate table with superduralumin platform for drone sensor calibration

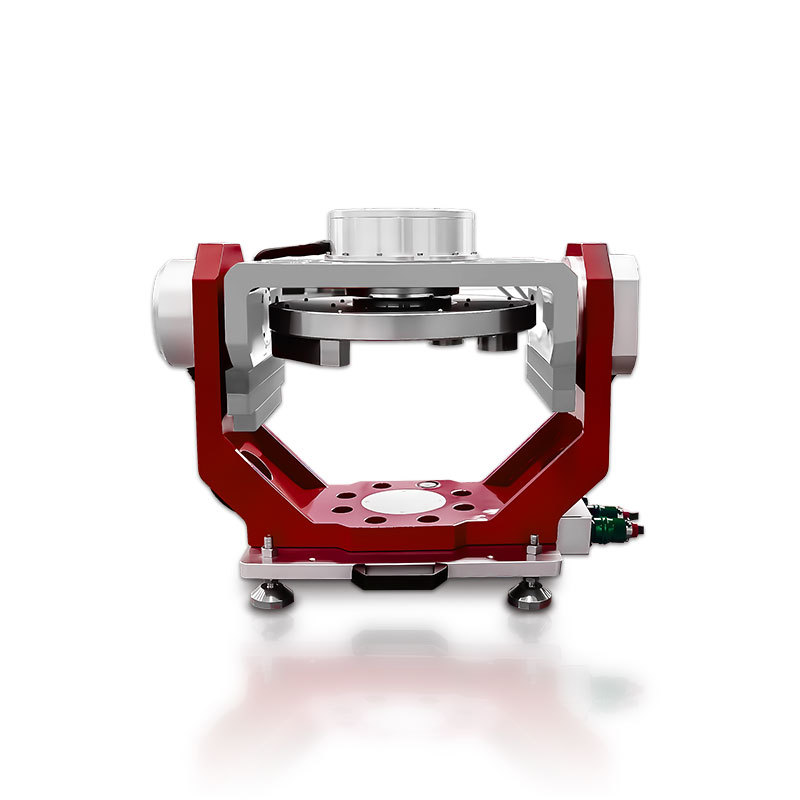

  • Close up of touch screen control interface for simplified on-site parameter adjustment

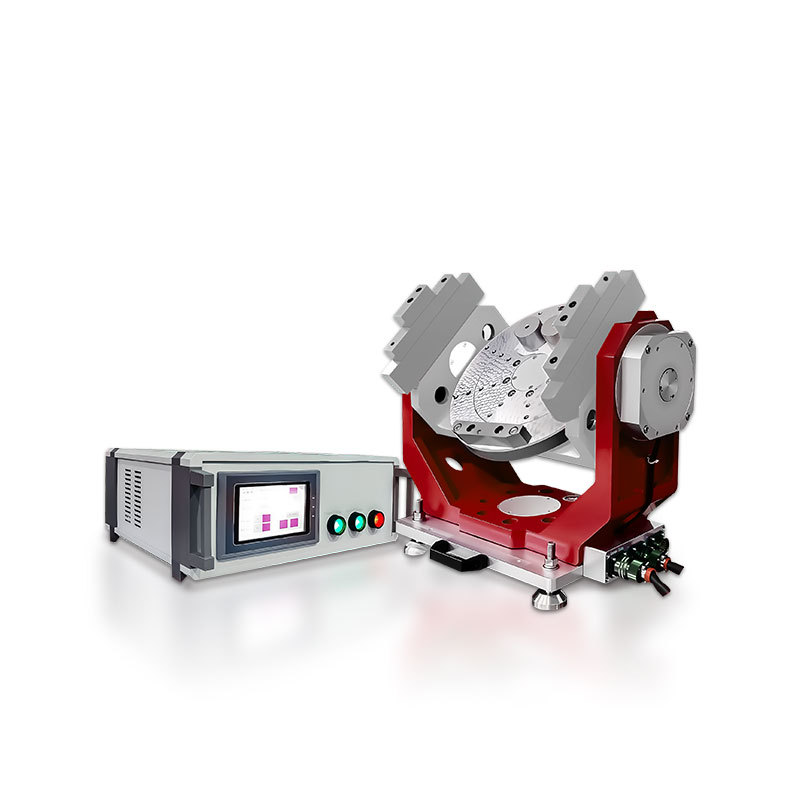

  • Motion simulator performing 360 degree rotation for UAV flight controller multi-turn error test

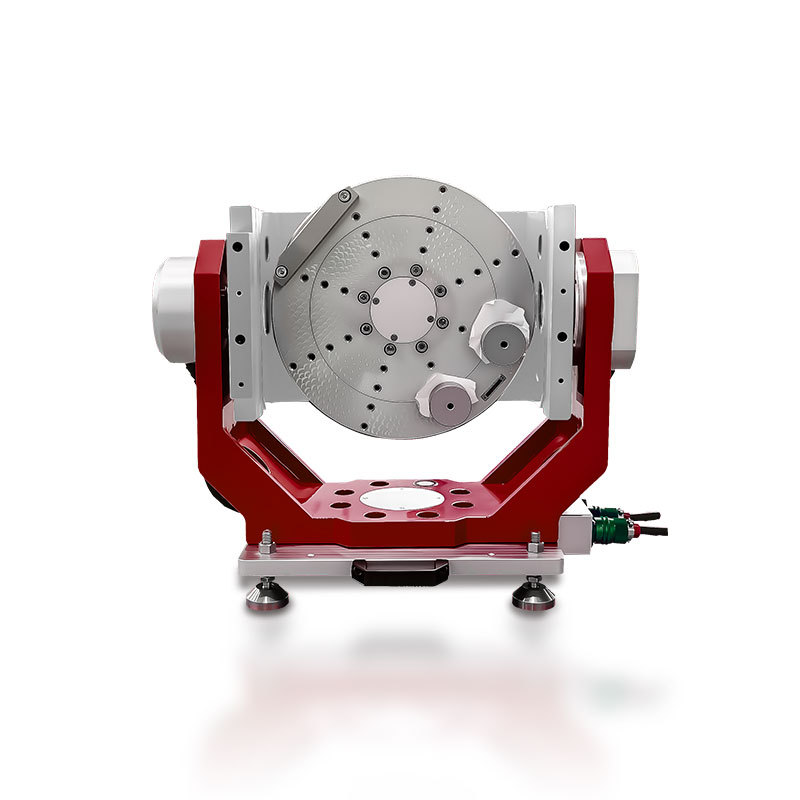

  • Test equipment dimensions with 10kg capacity on portable field deployment workbench
  • RS422 remote control interface executing IMU calibration sequence for autonomous vehicle test

Portable Dual Axis Motion Simulator for UAV and Autonomous Vehicle Field Test

No.BE-INS2-25B01
This portable dual axis motion simulator serves as gyroscope test stand and rate table for UAV and autonomous vehicle field calibration. 30% higher test efficiency with lightweight superduralumin construction enables easy transport to remote test sites. ±15″ angular accuracy with ±5″ repeatability ensures reliable IMU validation. Ideal for UAV sensor field calibration, autonomous vehicle IMU rapid validation, and industrial automation on-site debugging.
Specifications
Load weight:
≥10kg
Load mounting table:
≥ Φ300mm
Angular position accuracy:
≤±15"
Countertop flatness:
≤ 0.03mm
Face runout:
≤ 0.03mm
GET A QUOTE
Download
View all downloads
  • Portable dual axis motion simulator for UAV and autonomous vehicle field test on outdoor stand
  • Lightweight motion rate table with superduralumin platform for drone sensor calibration
  • Close up of touch screen control interface for simplified on-site parameter adjustment
  • Motion simulator performing 360 degree rotation for UAV flight controller multi-turn error test
  • Test equipment dimensions with 10kg capacity on portable field deployment workbench
  • RS422 remote control interface executing IMU calibration sequence for autonomous vehicle test

Description

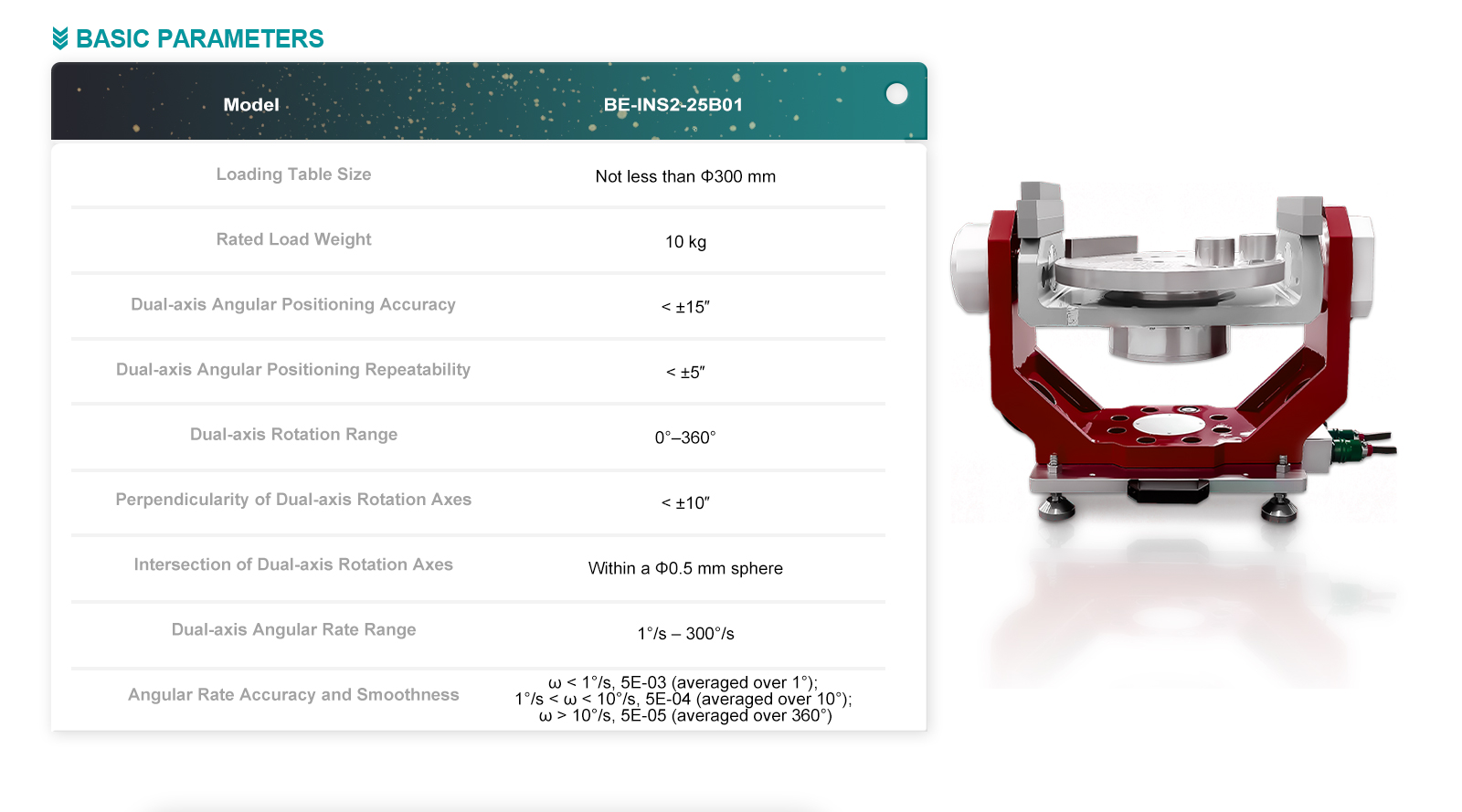

Indicator name Indicator parameters
Countertop material   Superduralumin
Load weight    ≥10kg
Load mounting table   ≥ Φ300mm
Countertop flatness   ≤ 0.03mm
Face runout   ≤ 0.03mm
Two axis angular position positioning accuracy    ≤±15"
Two-axis angular position positioning repeatability ≤±5"
Two axis Angle range 0°~360°
Perpendicularity of two axes of rotation ≤ ±10"
Rate range   1°/s ~ 300°/s

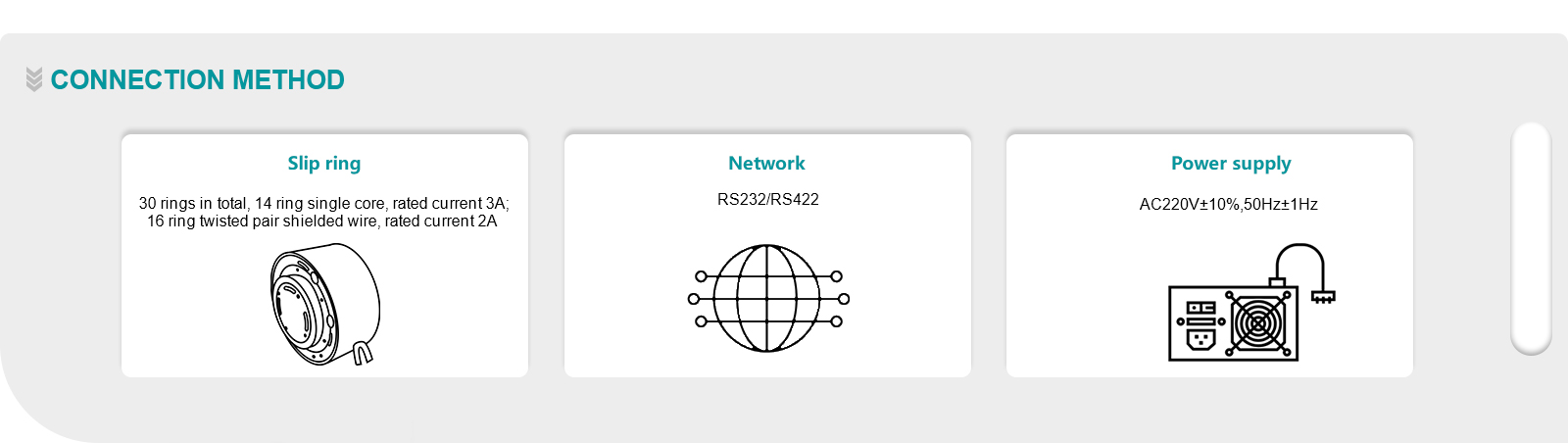

Slip    Ring loop number 32 rings
Control mode   Touch screen, remote control RS232/RS422
