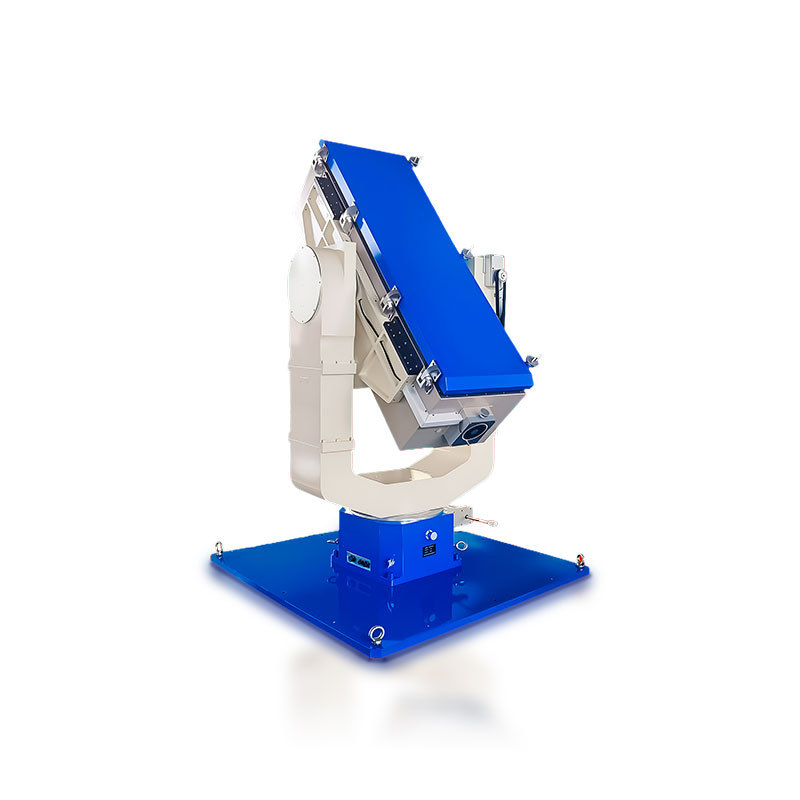

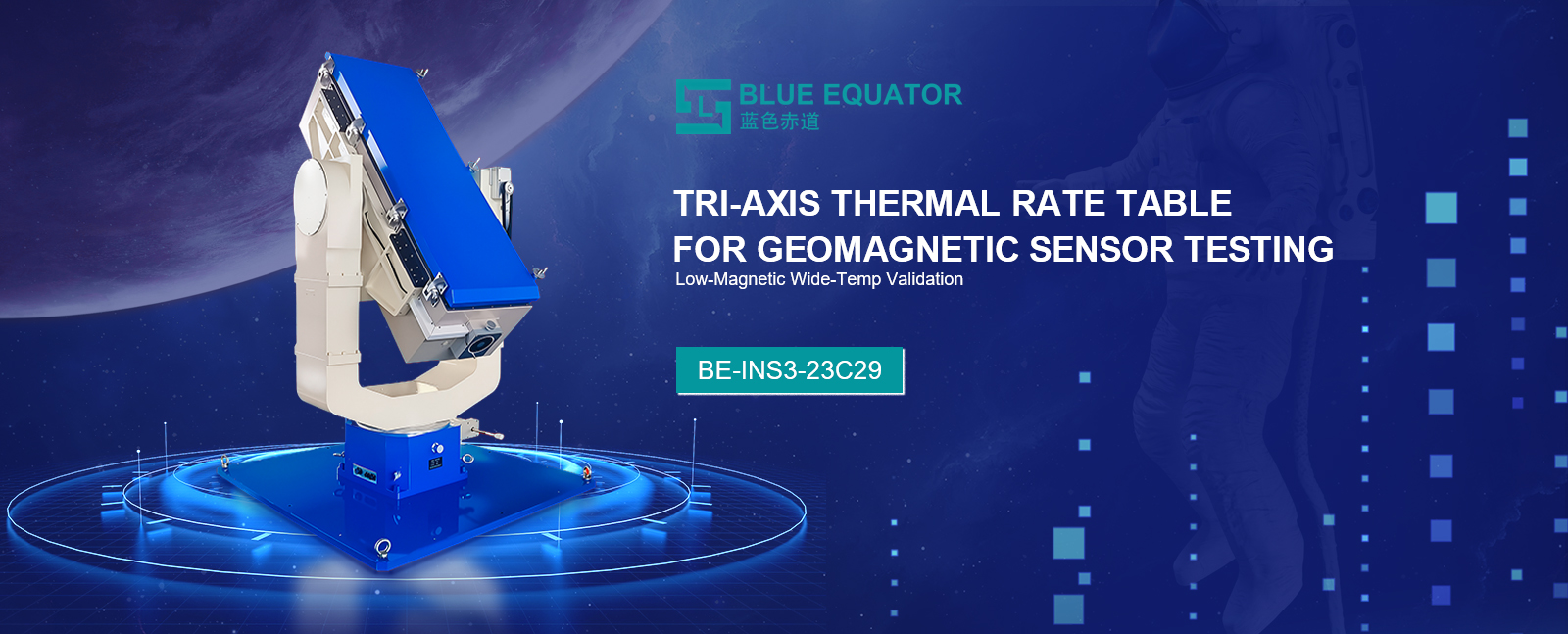

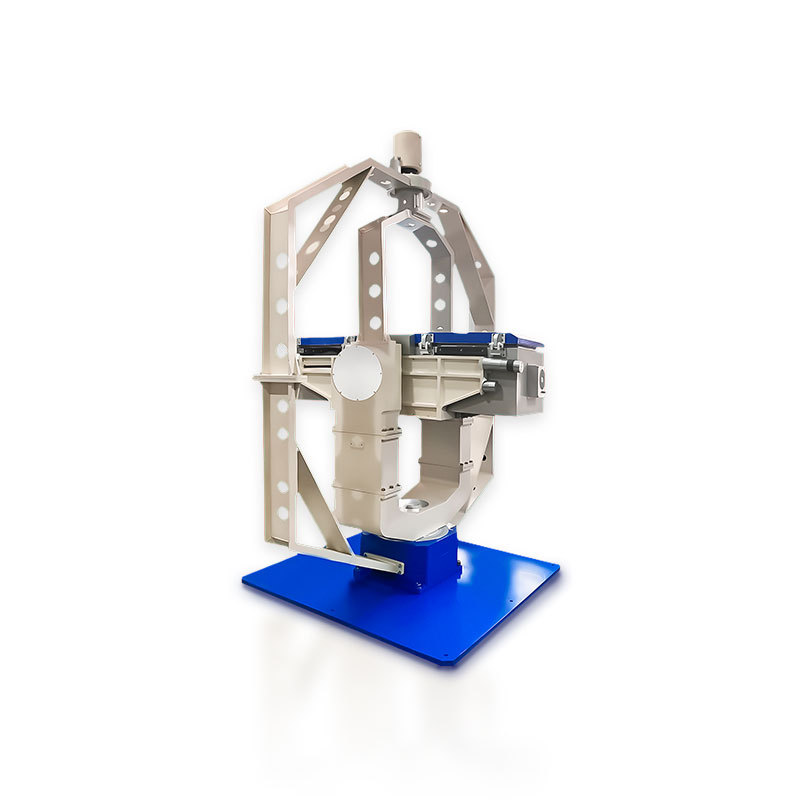

Non-Magnetic Temperature Controlled Turntable for inertial navigation system calibration and gyroscope testing in aerospace and marine applications

No.BE-INS3-23C29

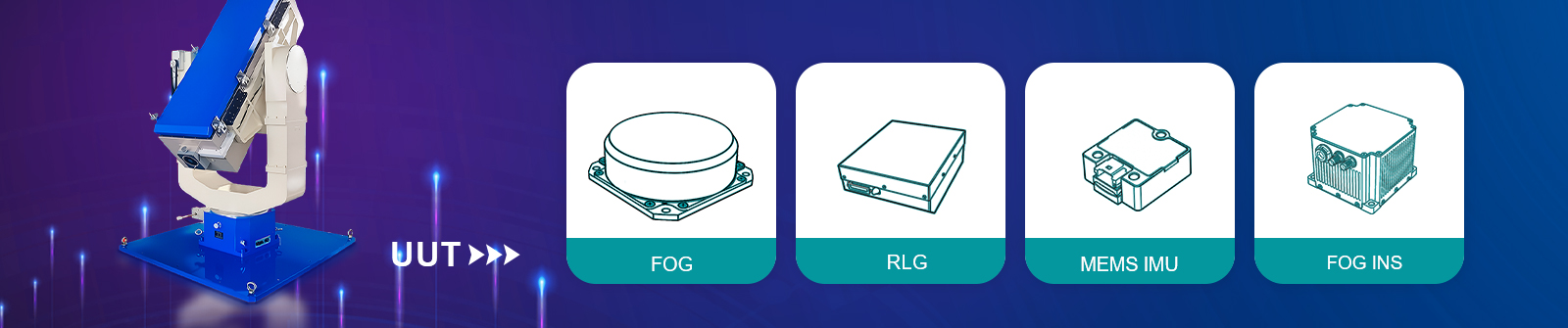

The Non-Magnetic Temperature Controlled Turntable delivers ±0.001° positioning accuracy, supports up to 40kg payload, and operates in temperatures from -40°C to +85°C without magnetic interference. Designed for inertial navigation system calibration, fiber optic gyroscope testing, and MEMS sensor validation, it ensures stable non-magnetic performance, precise motion control, and reliable thermal stability for sensitive defense, aerospace, and marine testing environments.

Specifications

Load Weight:

20 kg

Angular position resolution::

0.5′

Magnetic field distortion in the working area:

≤ 7 nT

Heating and cooling rate::

≥ 2 °C/min

Temperature fluctuation::

< 1 °C/0.5 h

GET A QUOTE

Download

View all downloads

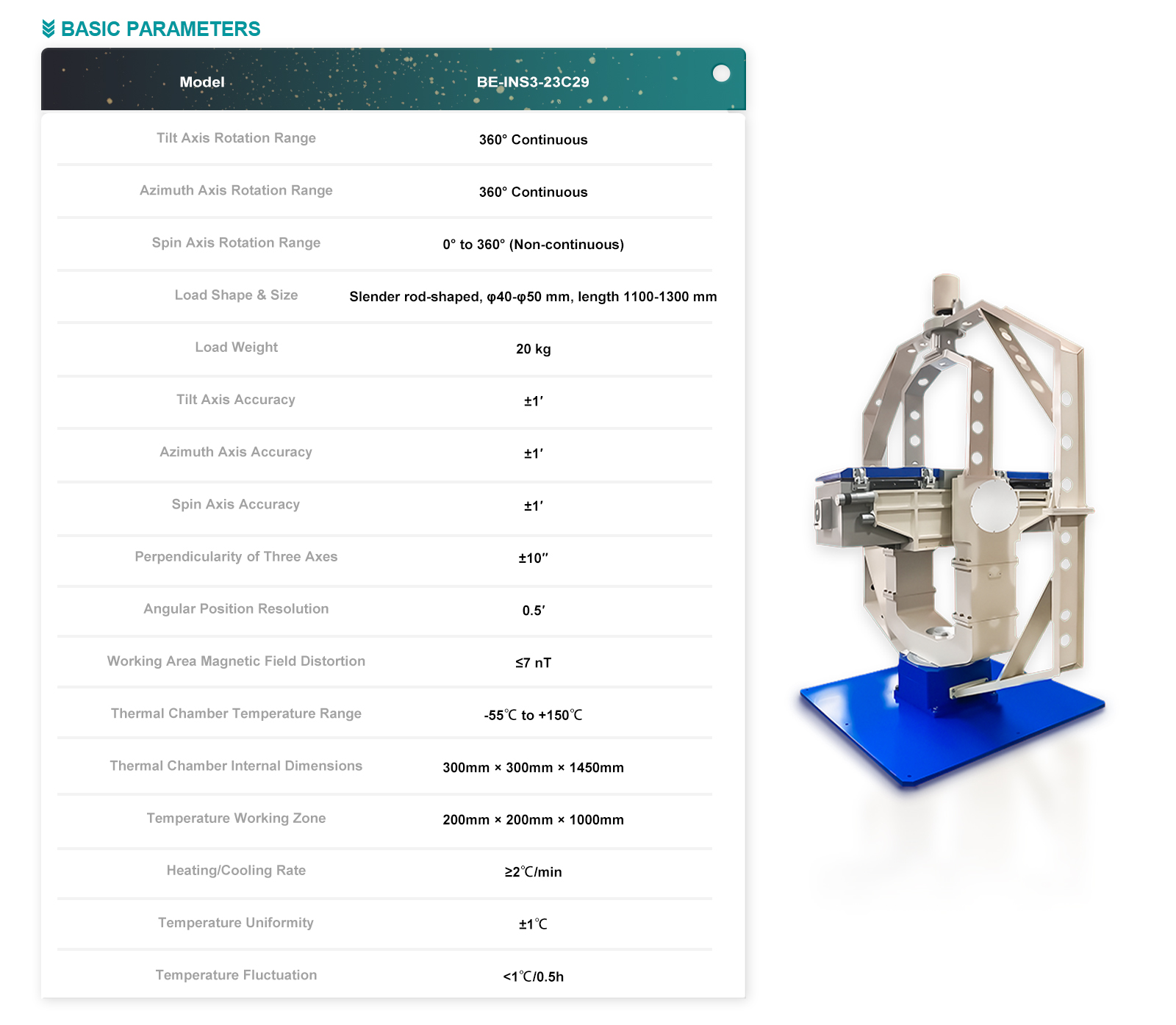

Three-Axis Rotation Platform Technical Parameters and Specifications
Rotation Ranges
Three-axis Rotation Range:	Tilt axis angle range: 360° continuous
	Azimuth axis angle range: 360° continuous
	Rotation axis angle range: 0° ~ 360° (discontinuous)
Load Specifications

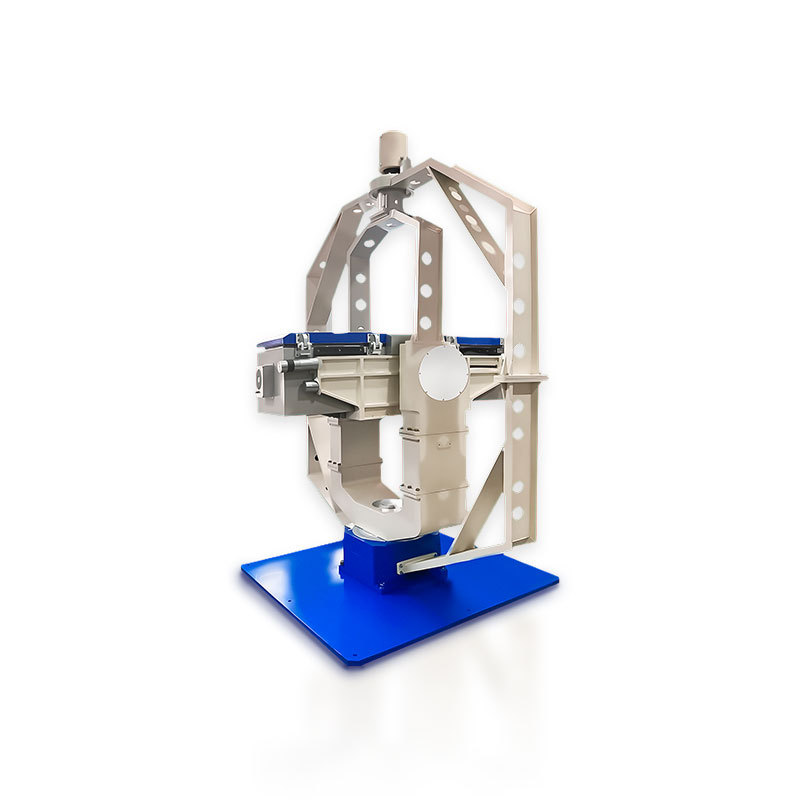

Load Structure:	Slender rod-shaped structure with a diameter of 40 to 50 mm and a length range of 1100 mm to 1300 mm
Load Weight:	20 kg
Accuracy Specifications
Accuracy:	Tilt axis accuracy: ±1′
	Azimuth axis accuracy: ±1′
	Rotation axis accuracy: ±1′
	Mutual perpendicularity of three axes: ±10″
	Angular position resolution: 0.5′
Environmental Conditions
Magnetic Field Distortion:	Magnetic field distortion in the working area ≤ 7 nT
Thermal Chamber Specifications
Thermal Chamber:	Chamber temperature range: -55℃ ~ 150℃
	Internal space of the thermostat: 300 mm × 300 mm × 1450 mm
	Temperature working area: 200 mm × 200 mm × 1000 mm
	Heating and cooling rate: ≥ 2 °C/min
	Temperature uniformity: ±1℃
	Temperature fluctuation: < 1 °C/0.5 h
