Inertial Navigation Test Table for Precision Fiber Optic Gyroscope and IMU Calibration in UAV Aerospace Applications

No.HY-INS3-550CR

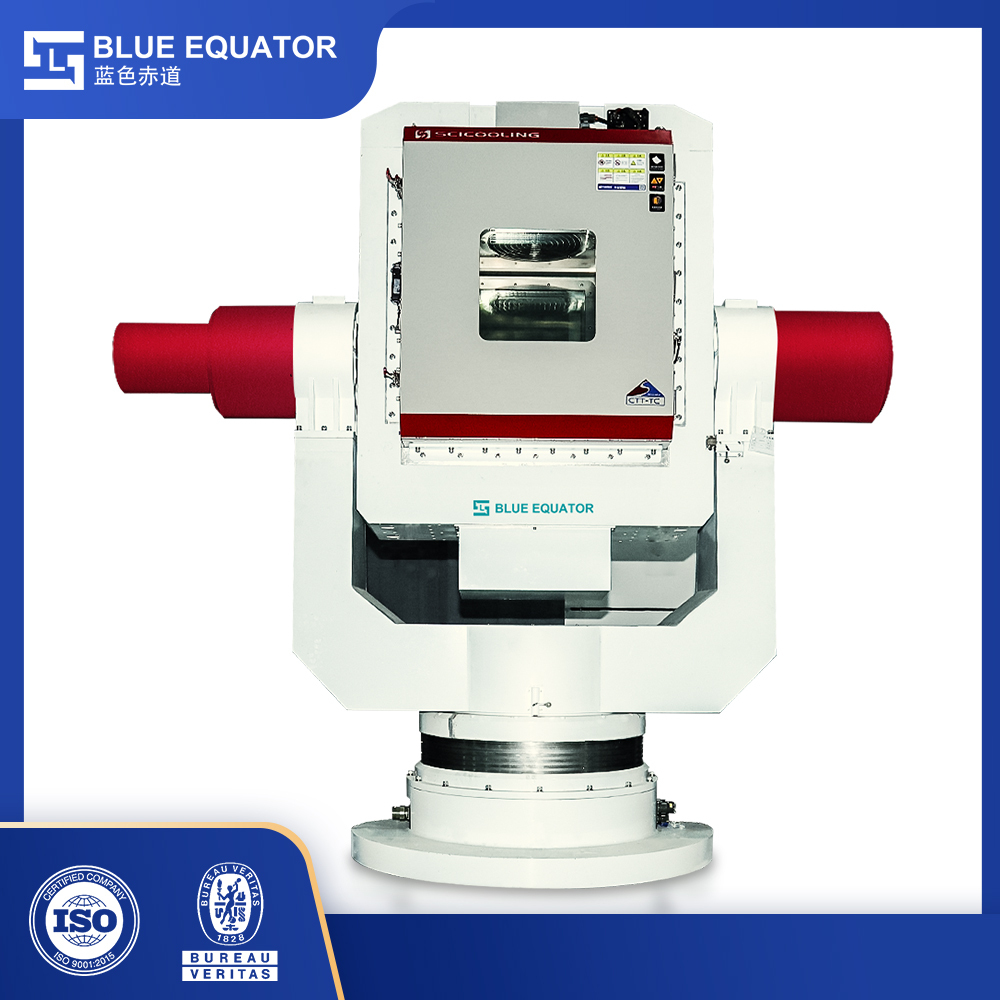

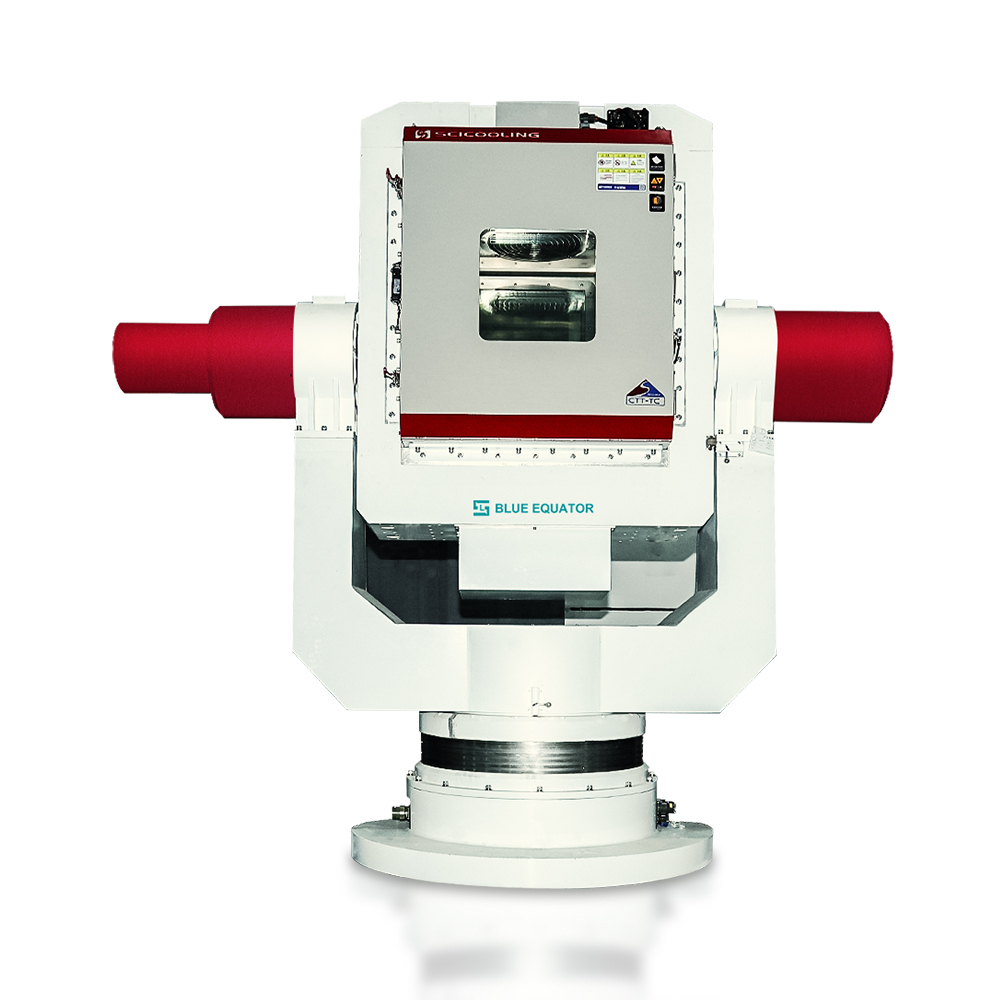

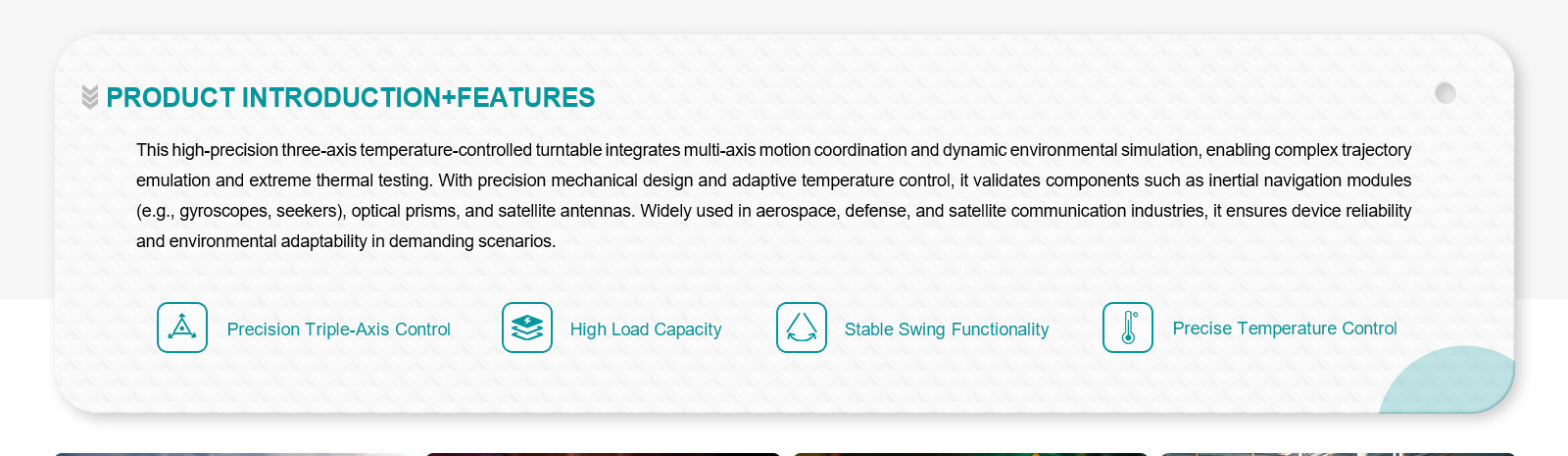

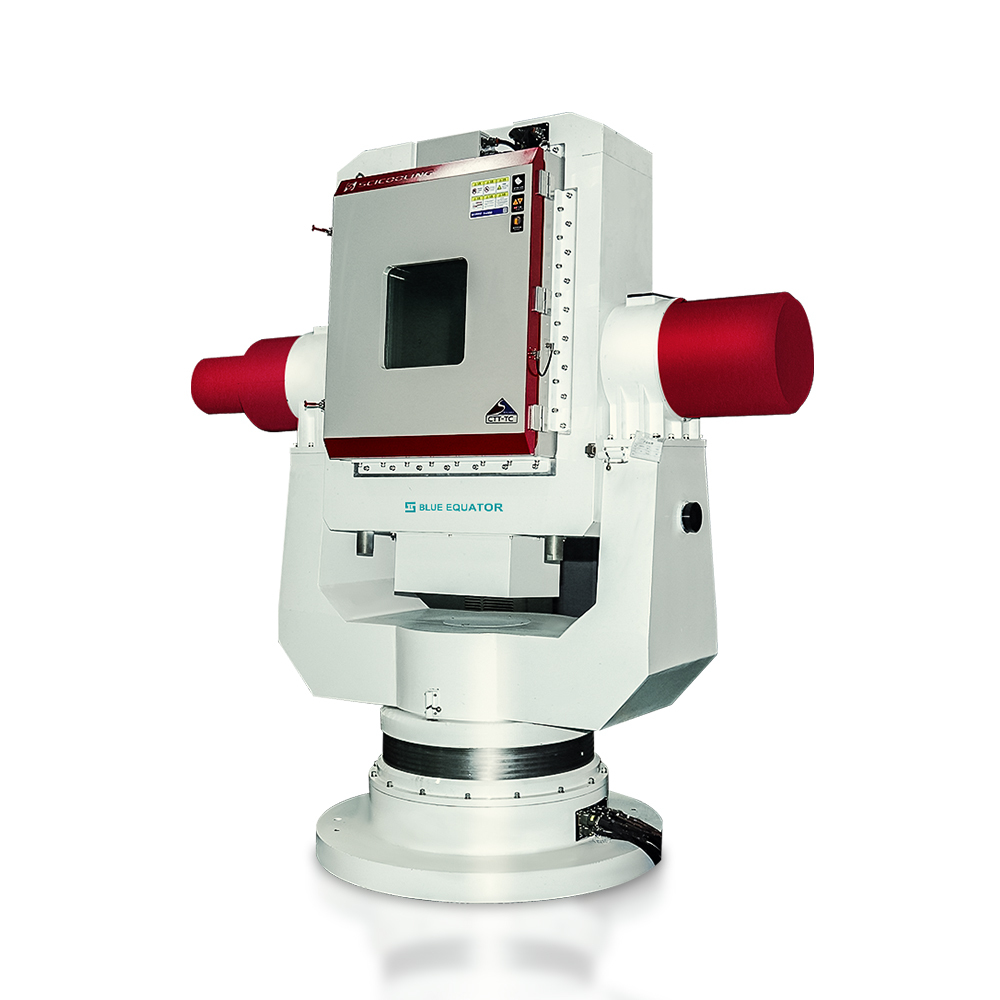

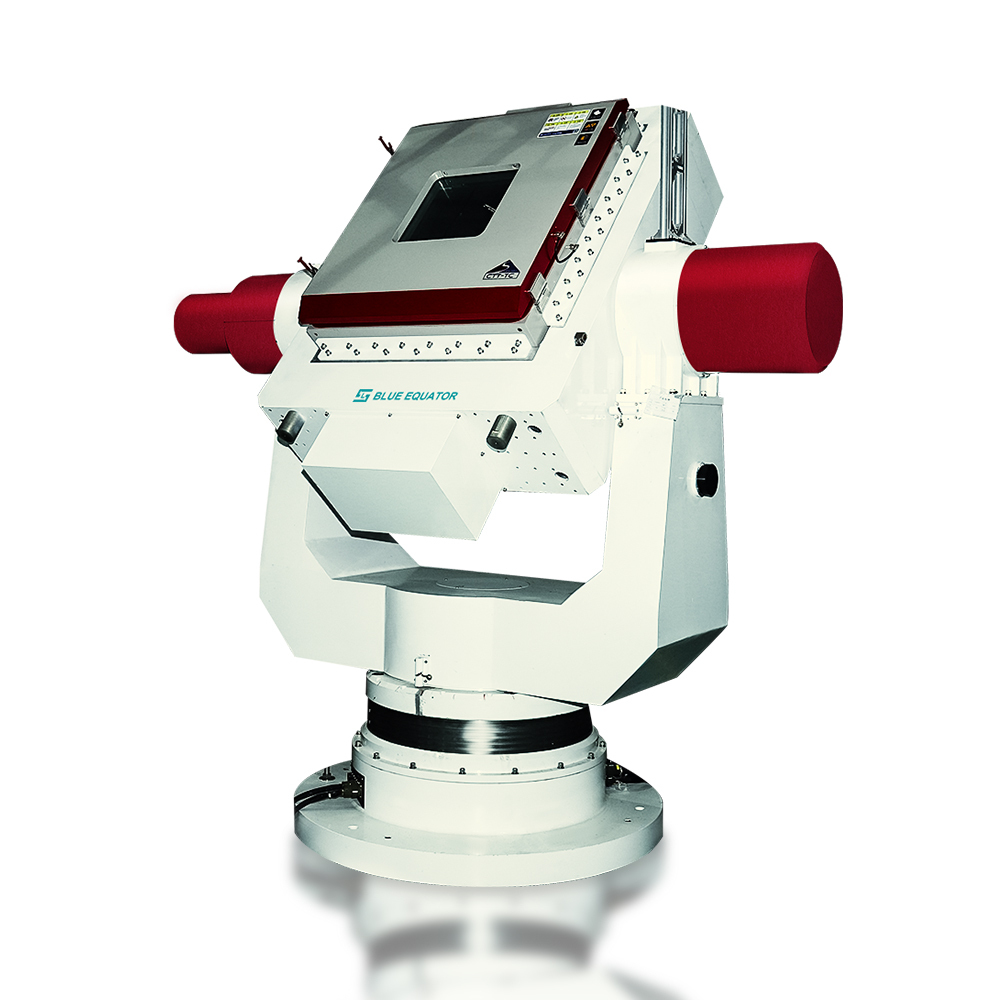

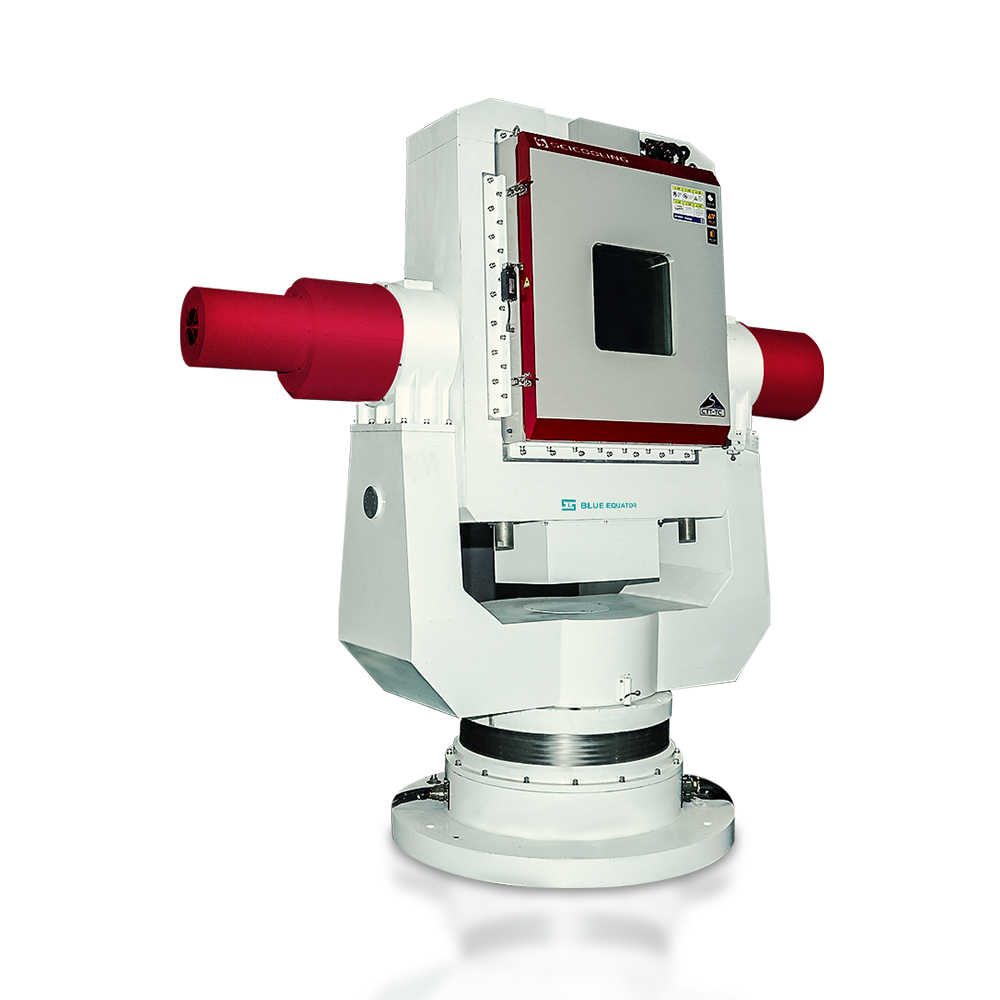

This Inertial Navigation Test Table is a high-precision motion simulator designed for gyroscope testing, MEMS sensor verification, and INS calibration. Offering 3 arc seconds accuracy, 60 kg payload, and three-axis dynamic control, it ensures reliability for aerospace, autonomous vehicles, and industrial R&D. It provides stable solutions for fiber optic gyro evaluation and navigation accuracy validation.

Specifications

Load weight:

60KG

Resolution:

0.0001 deg/sec

Acceleration(with load):

500 deg/sec2

Swing Range:

0°～±45 deg

Repeatability:

<2 arc sec

GET A QUOTE

Download

View all downloads

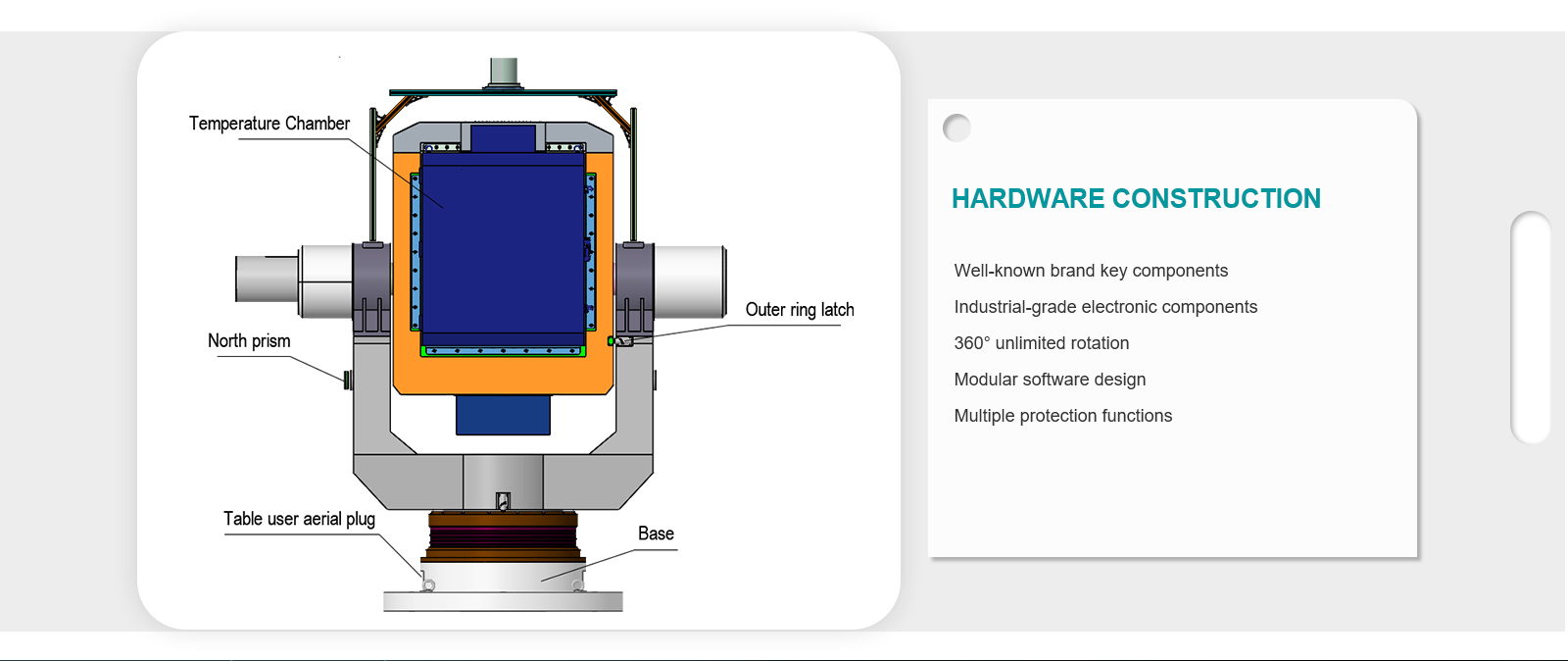

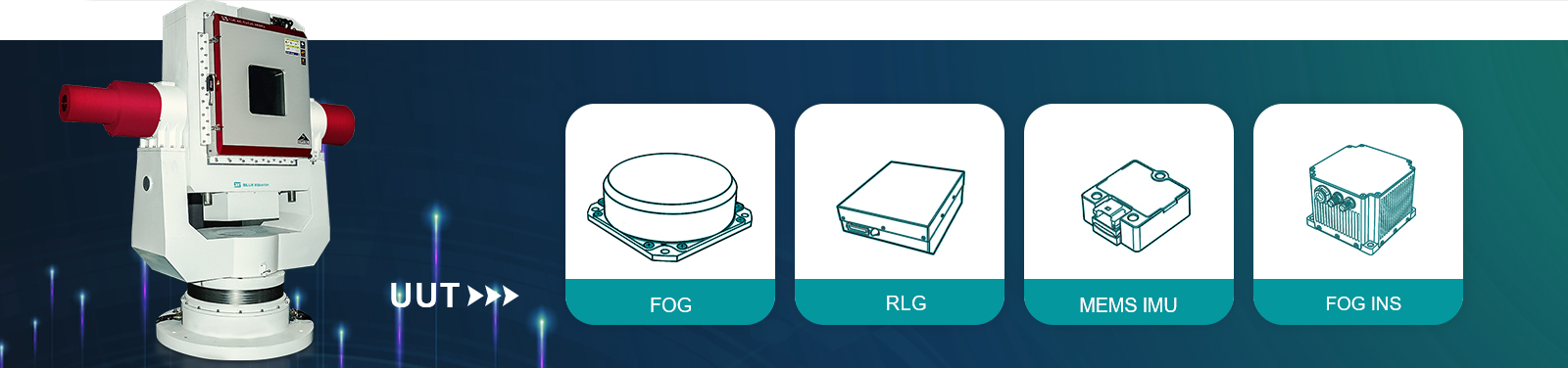

Unit Under Test (UUT)
Load weight	60KG
Load height less than	500mm
Load table size	Φ550mm

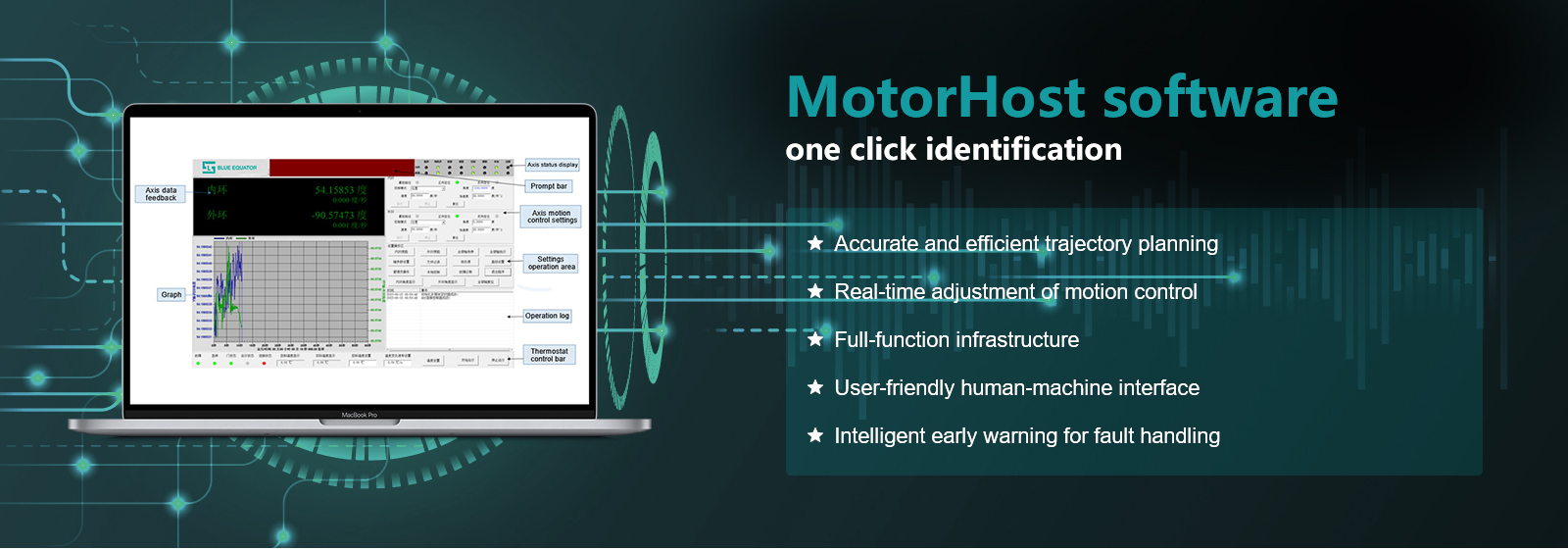

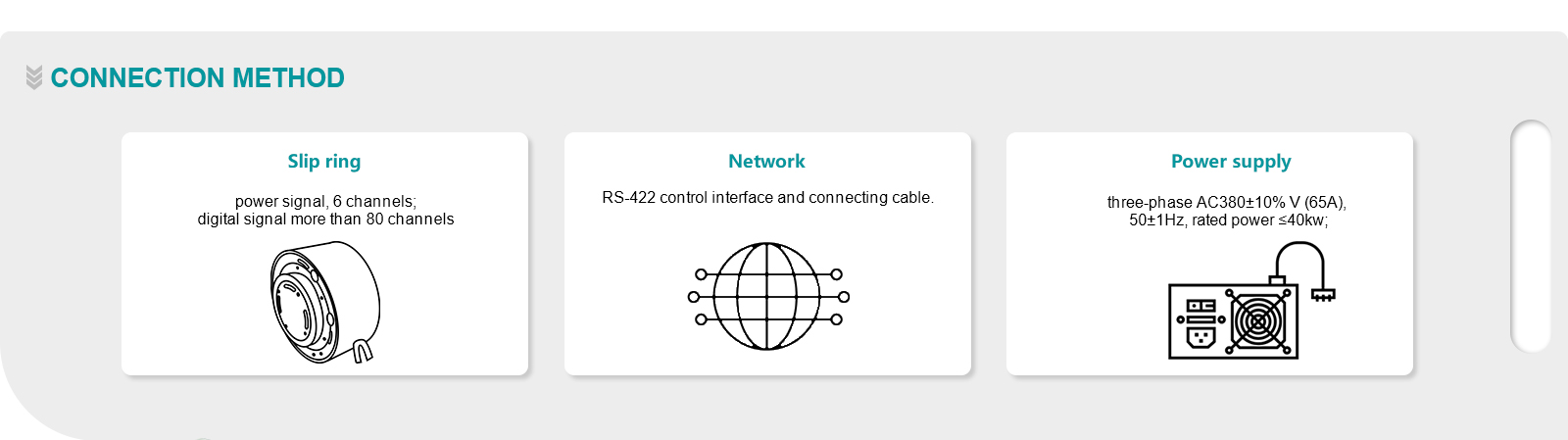

Slip rings to UUT	Signal 80 ways, 3A @ 380VAC/50Hz, 40KW(Max)
	Power 6 ways@220V/10A

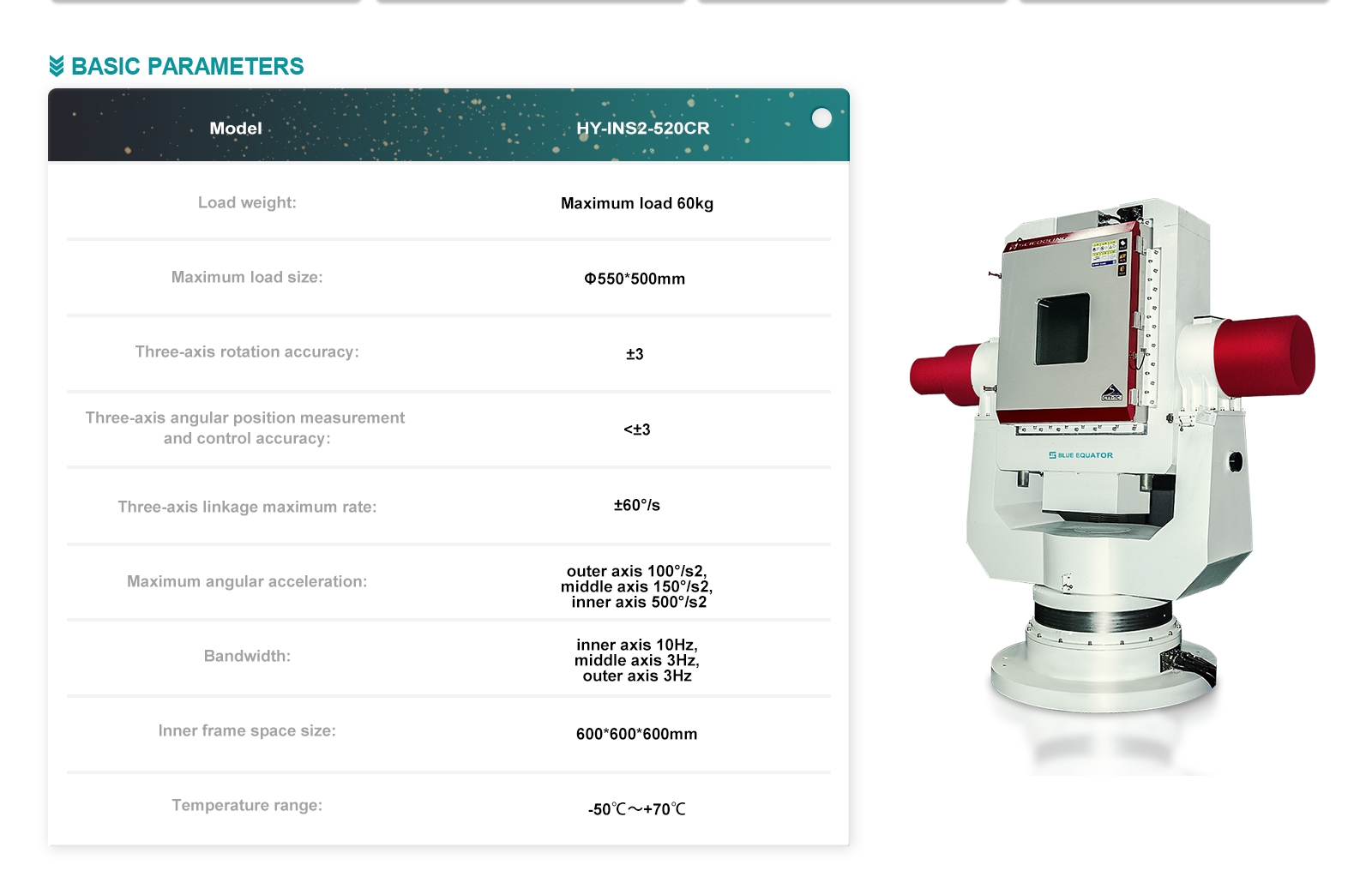

Specifications
	Inner Axis	Middle Axis	Outer Axis
Angular freedom	continuous	continuous	continuous
Position
Accuracy	≤±3 arc sec	≤±3 arc sec	≤±3 arc sec
Resolution	0.36 arc sec	0.36 arc sec	0.36 arc sec
Repeatability	<2 arc sec	<2 arc sec	<2 arc sec
Rate
Range	±0.001～500deg/sec	±0.001～200deg/sec	±0.001～100deg/sec
Maximum speed of three-axis linkage	±60deg/sec
Resolution	0.0001 deg/sec
Accuracy and stability	When θ＜1 deg/sec	≤1×10-3 (1 deg average)
	When 1 deg/sec＜θ＜10 deg/sec	≤1×10-4 (10 deg average);
	When θ≥10 deg/sec	≤1×10-5 (360 deg average)
Dynamic
Acceleration(with load)	500 deg/sec2	150 deg/sec2	100 deg/sec2
Mechanical
Wobble	±3 arc sec	±3 arc sec
Orthogonality	±3 arc sec	±3 arc sec
Swing Range	0°～±45 deg	0°～±45 deg	0°～±45 deg
Swing frequency	0.2deg/10Hz	0.2deg/3Hz	0.2deg/3Hz
Temperature Chamber (TC)
Working volume	600600600mm
Temperature range	≥〔-50℃～+70℃〕
Temperature stability	≤±1℃
Temperature deviation:	≤±1℃
Temperature change rate	≥2℃/min
Temperature gradient:	≤2℃
Dimensions
Machine platform dimensions	275010503110mm
Total weight	3000Kg
