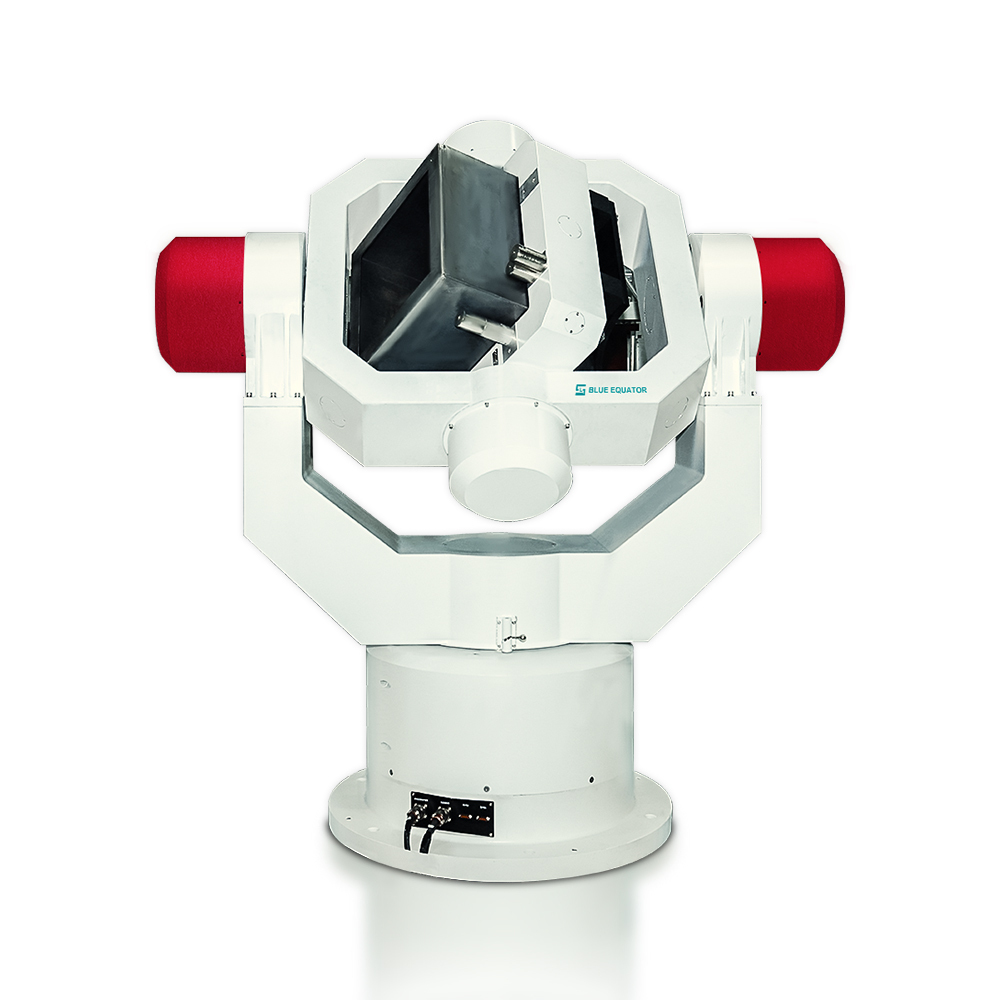

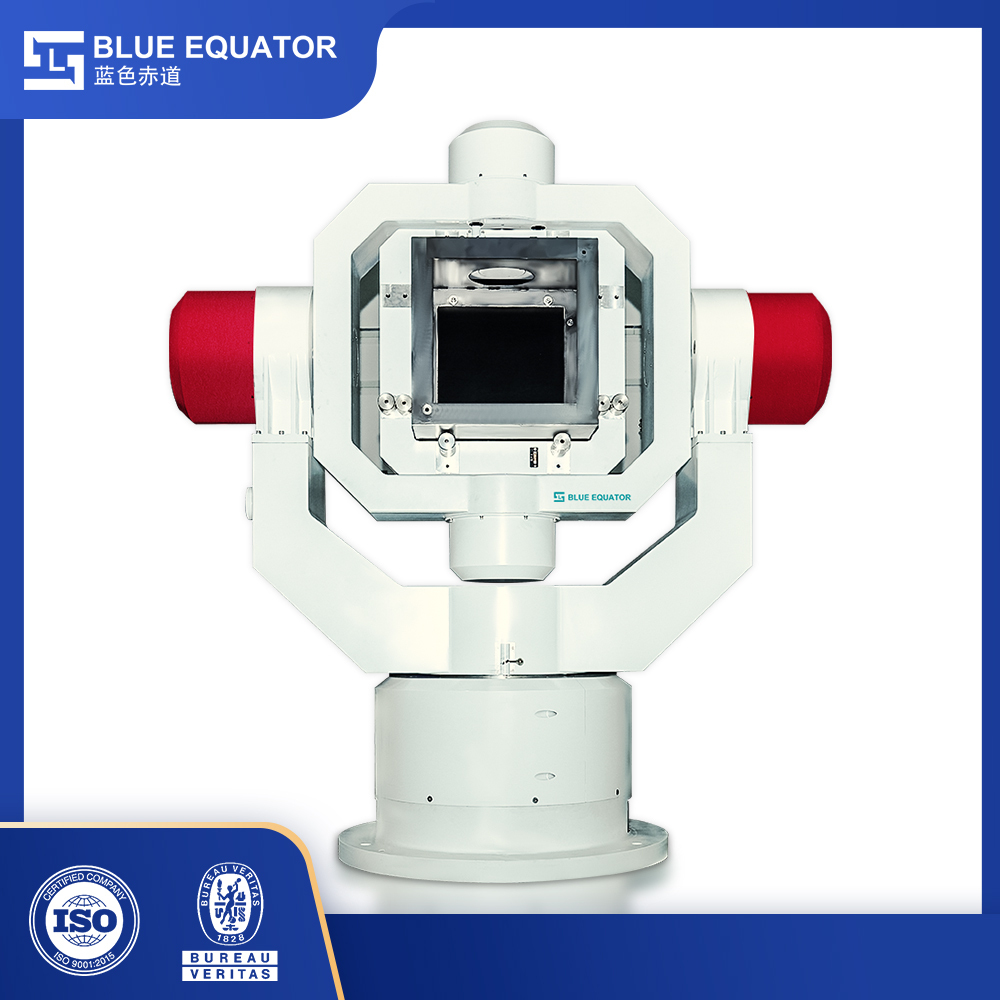

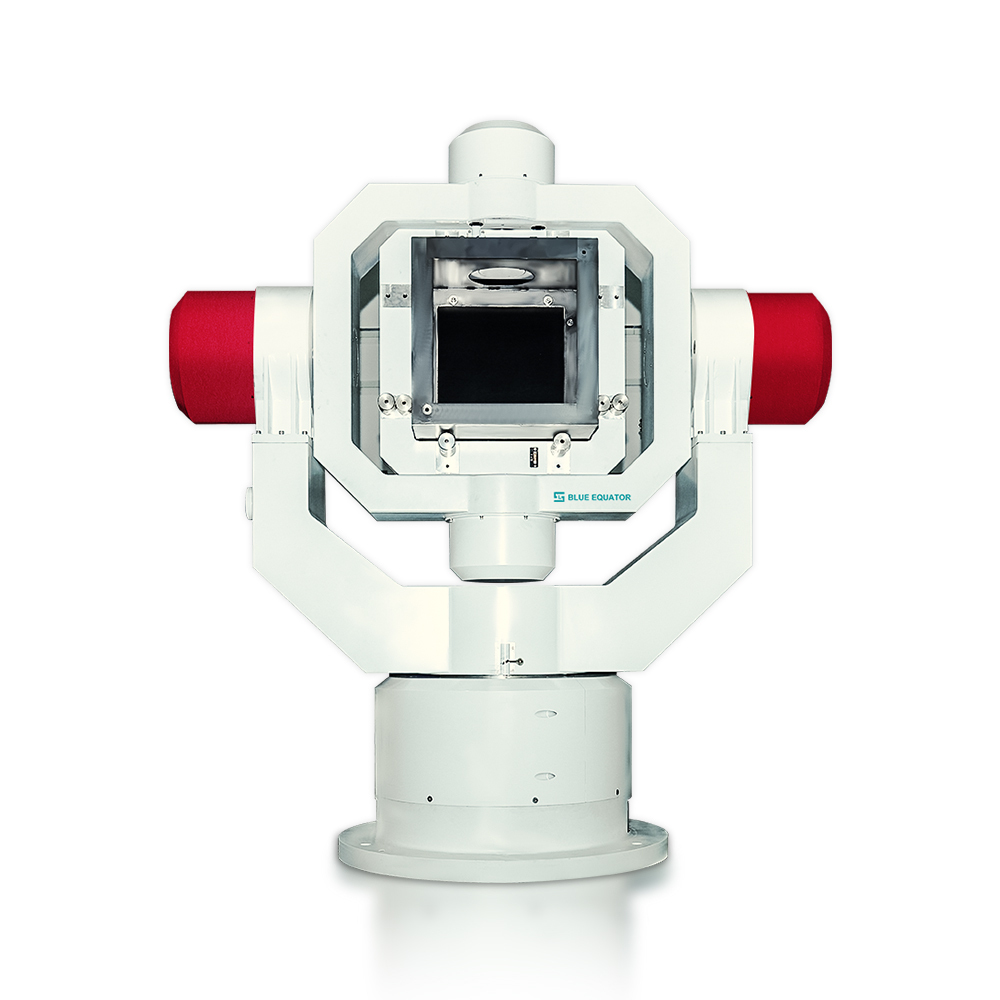

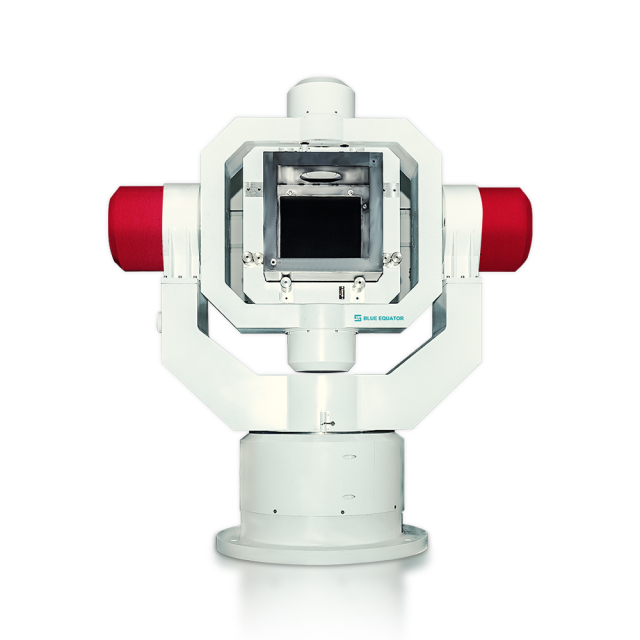

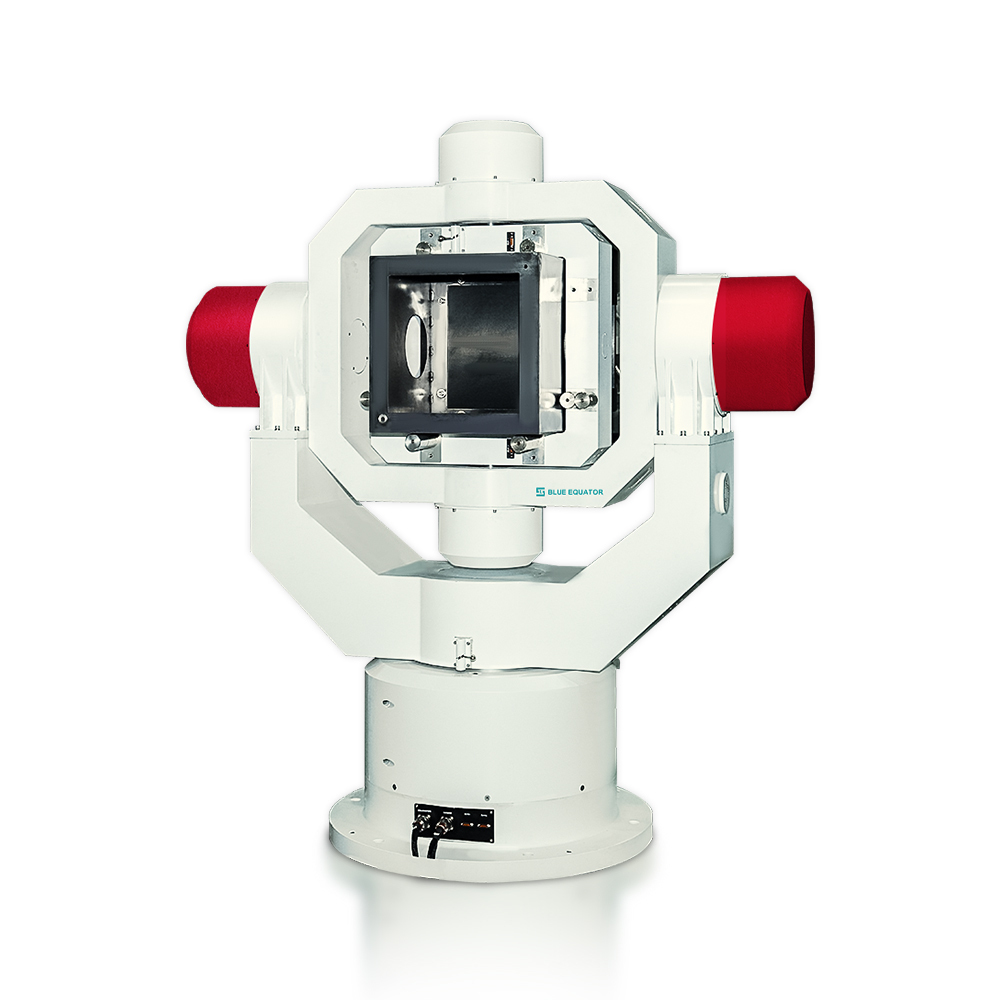

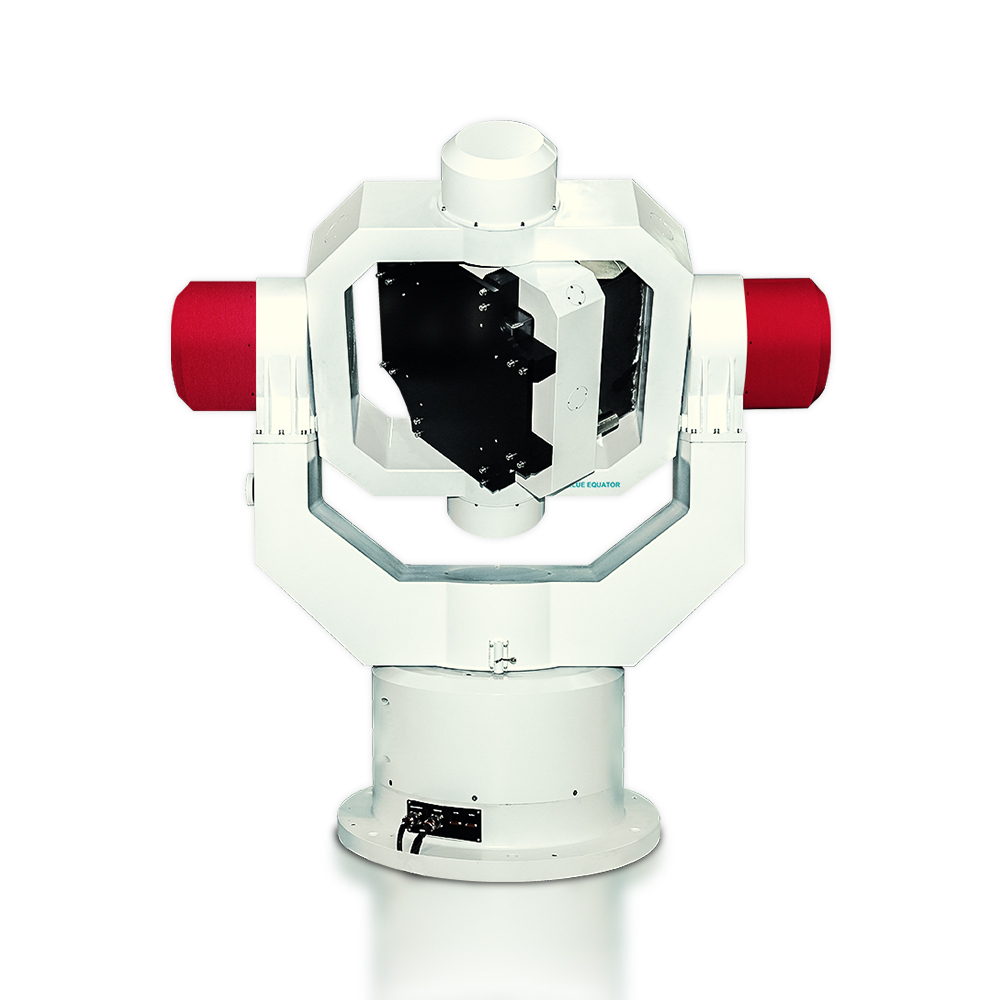

Inertial Navigation Test Table for gyroscope and motion sensor calibration in aerospace and autonomous systems

No.HY-INS3-400R

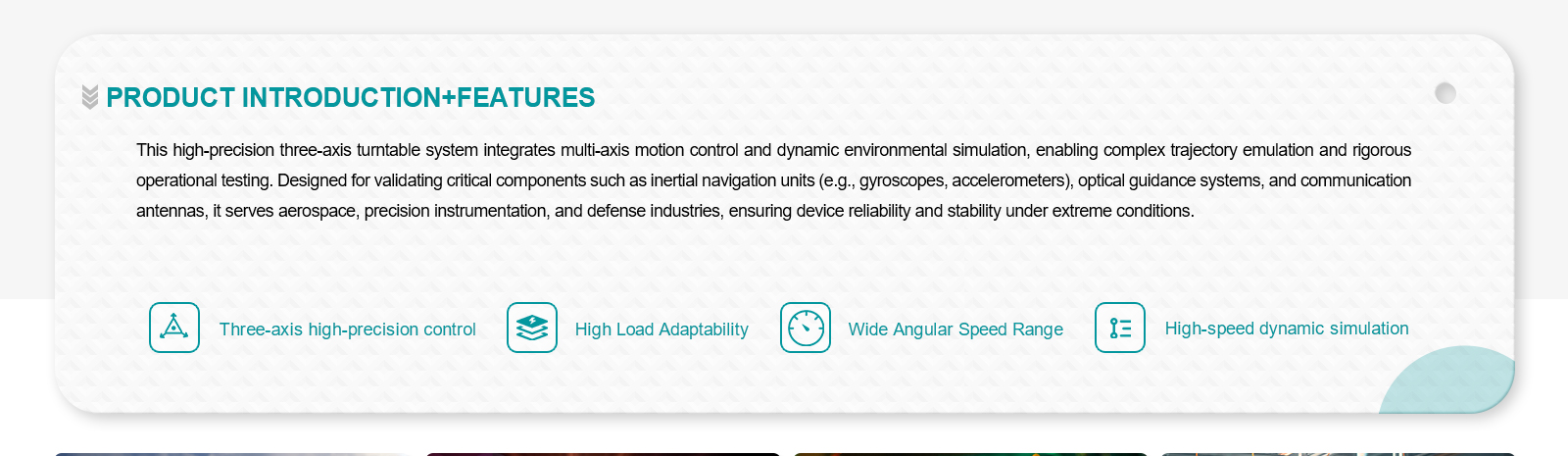

The Inertial Navigation Test Table offers ±0.001° positioning accuracy, supports payloads up to 40kg, and operates within 2 arc sec accuracy. Designed for gyroscope testing, MEMS sensor validation, and INS calibration, it ensures high repeatability, thermal stability, and multi-axis precision across aerospace, autonomous vehicles, and marine navigation applications.

Specifications

Load weight:

40KG

Accuracy:

±2 arc sec

Range:

±0.001～1000deg/sec

Acceleration(with load):

300 deg/sec2

Swing Range:

0°～±45 deg

GET A QUOTE

Download

View all downloads

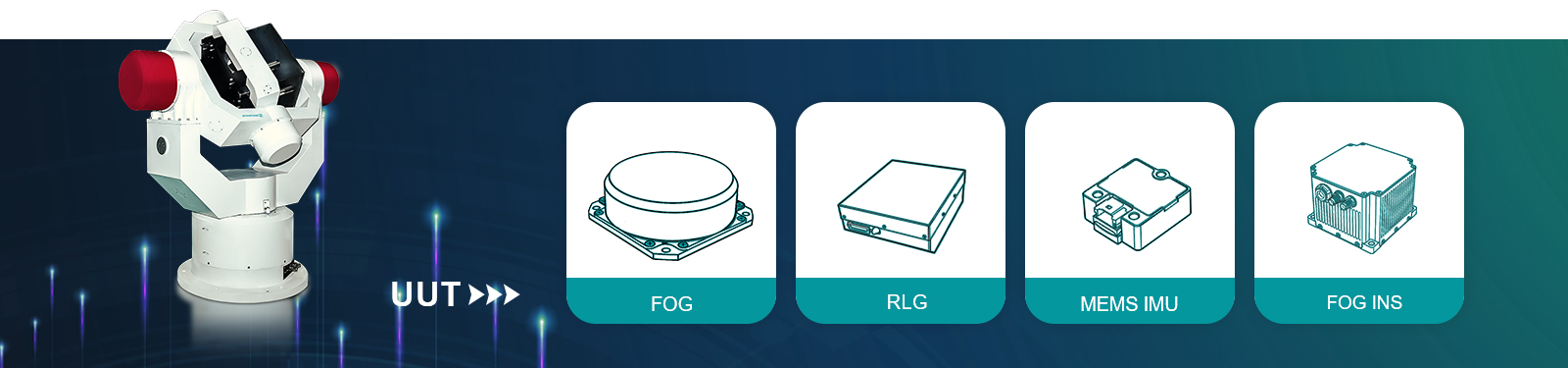

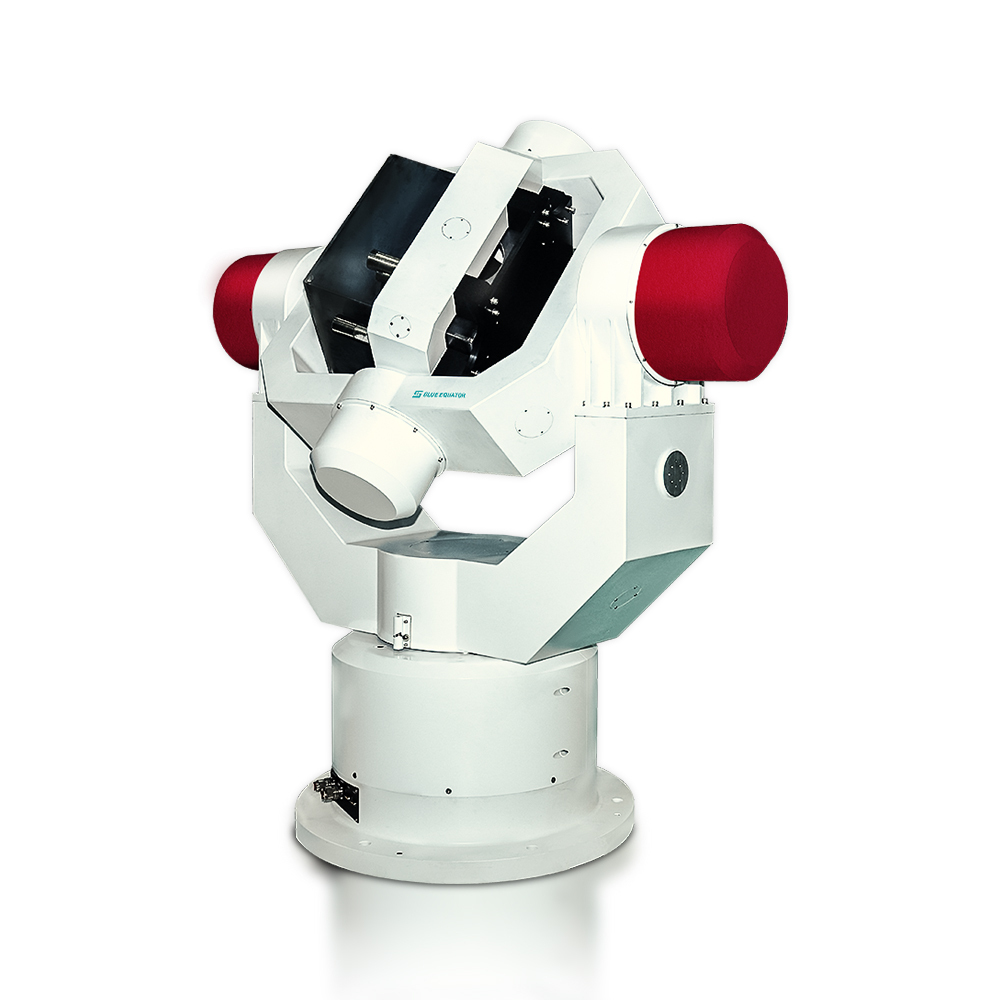

Unit Under Test (UUT)
Load weight	40KG
Load height less than	350mm
Load table size	400*400mm

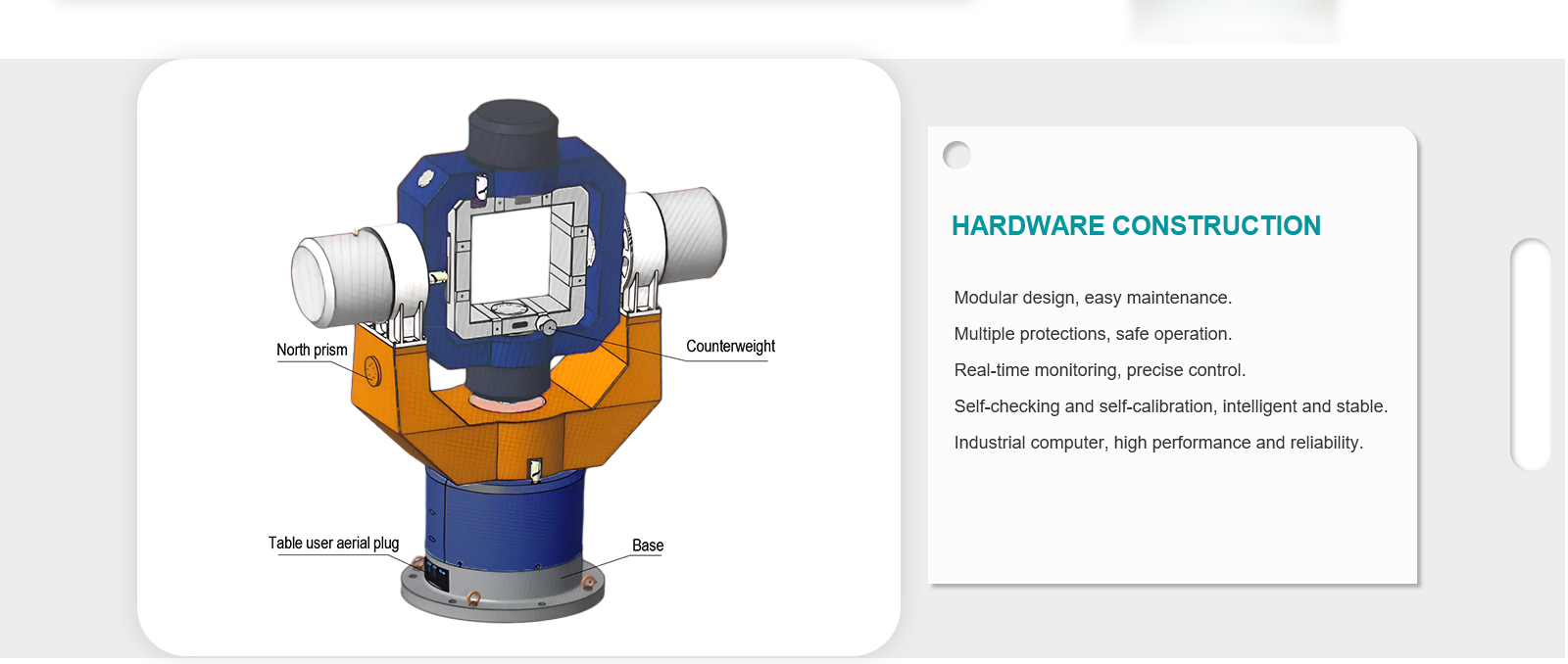

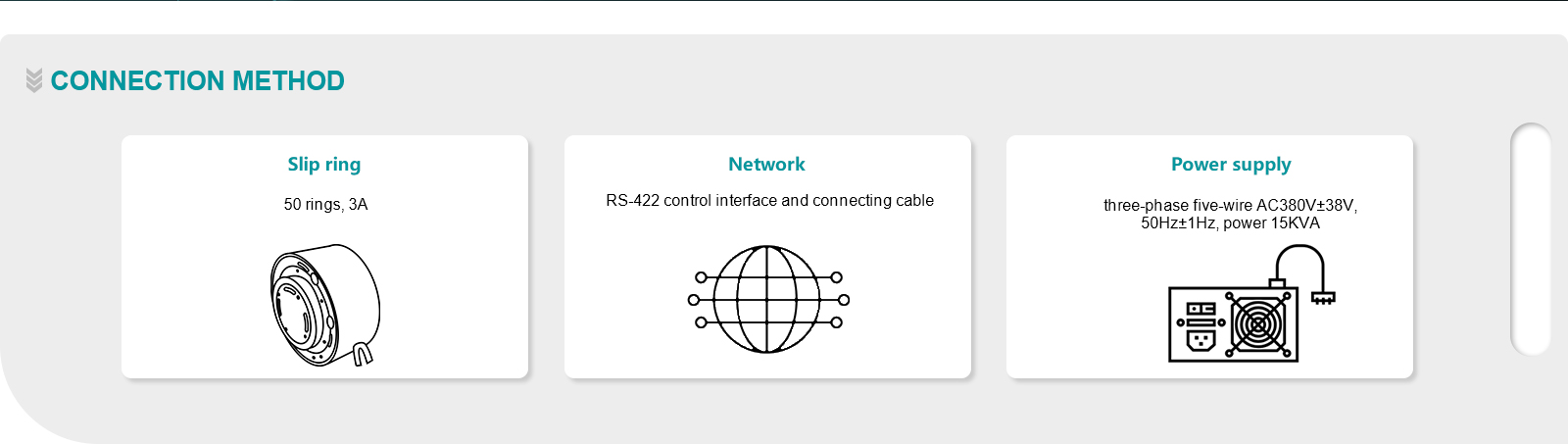

Slip rings to UUT	Signal 50 ways, 3A @ 380VAC/50Hz, 40KW(Max)

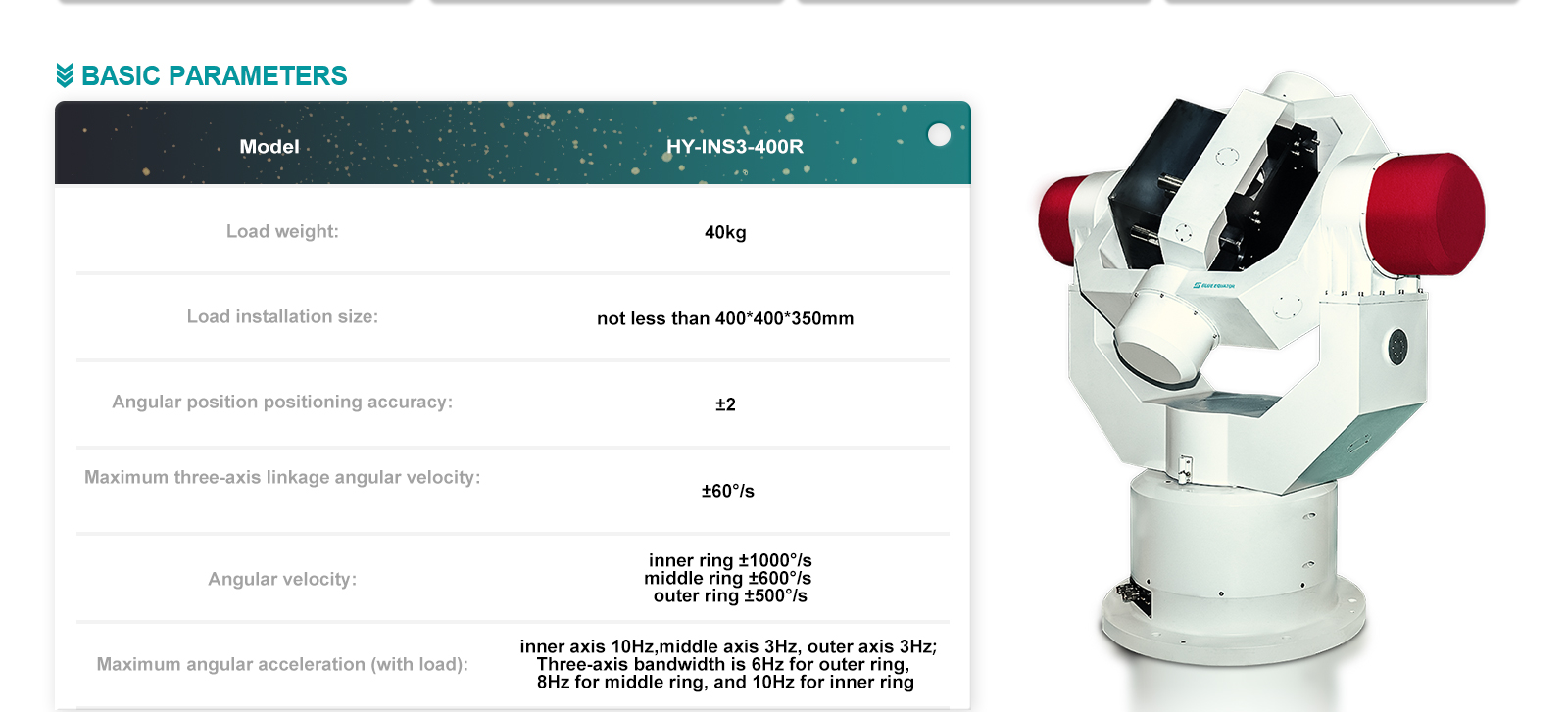

Specifications
	Inner Axis	Middle Axis	Outer Axis
Angular freedom	continuous	continuous	continuous
Position
Accuracy	±2 arc sec	±2 arc sec	±2 arc sec
Resolution	0.36 arc sec	0.36 arc sec	0.36 arc sec
Repeatability	±1 arc sec	±1 arc sec	±1 arc sec
Rate
Range	±0.001～1000deg/sec	±0.001～600deg/sec	±0.001～500deg/sec
Maximum speed of three-axis linkage	±60deg/sec
Resolution	0.0001 deg/sec
Accuracy and stability	When θ＜1 deg/sec	≤1×10-3 (1 deg average)
	When 1 deg/sec＜θ＜10 deg/sec	≤1×10-4 (10 deg average);
	When θ≥10 deg/sec	≤1×10-5 (360 deg average)
Dynamic
Acceleration(with load)	300 deg/sec2	200 deg/sec2	100 deg/sec2
Mechanical
Wobble	±2 arc sec	±2 arc sec
Orthogonality	±2 arc sec	±2 arc sec
Swing Range	0°～±45 deg	0°～±45 deg	0°～±45 deg
Swing frequency	10Hz	8Hz	6Hz
Dimensions
Machine platform dimensions	195012801820mm
Total weight	2000Kg
