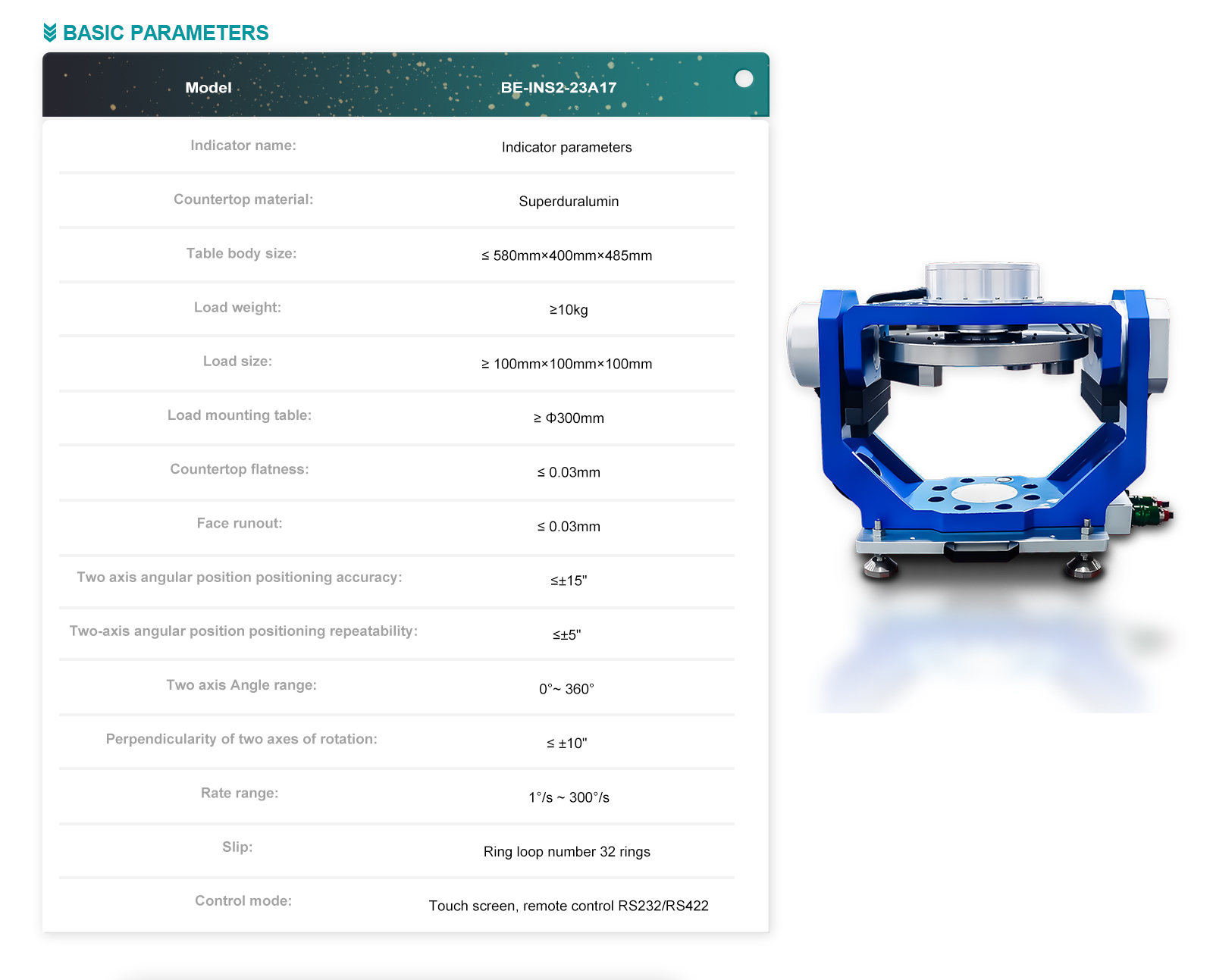

Indicator name |
Indicator parameters |
|

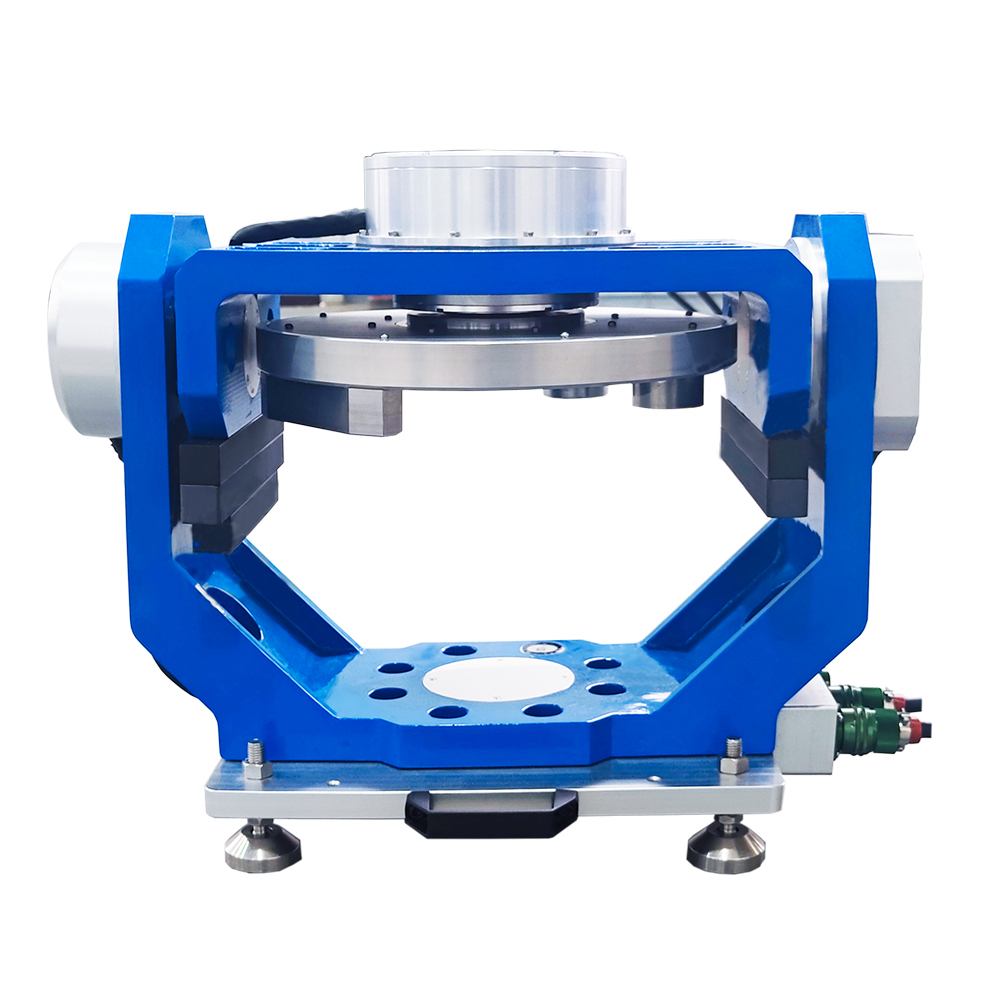

Countertop material |
Superduralumin |
|

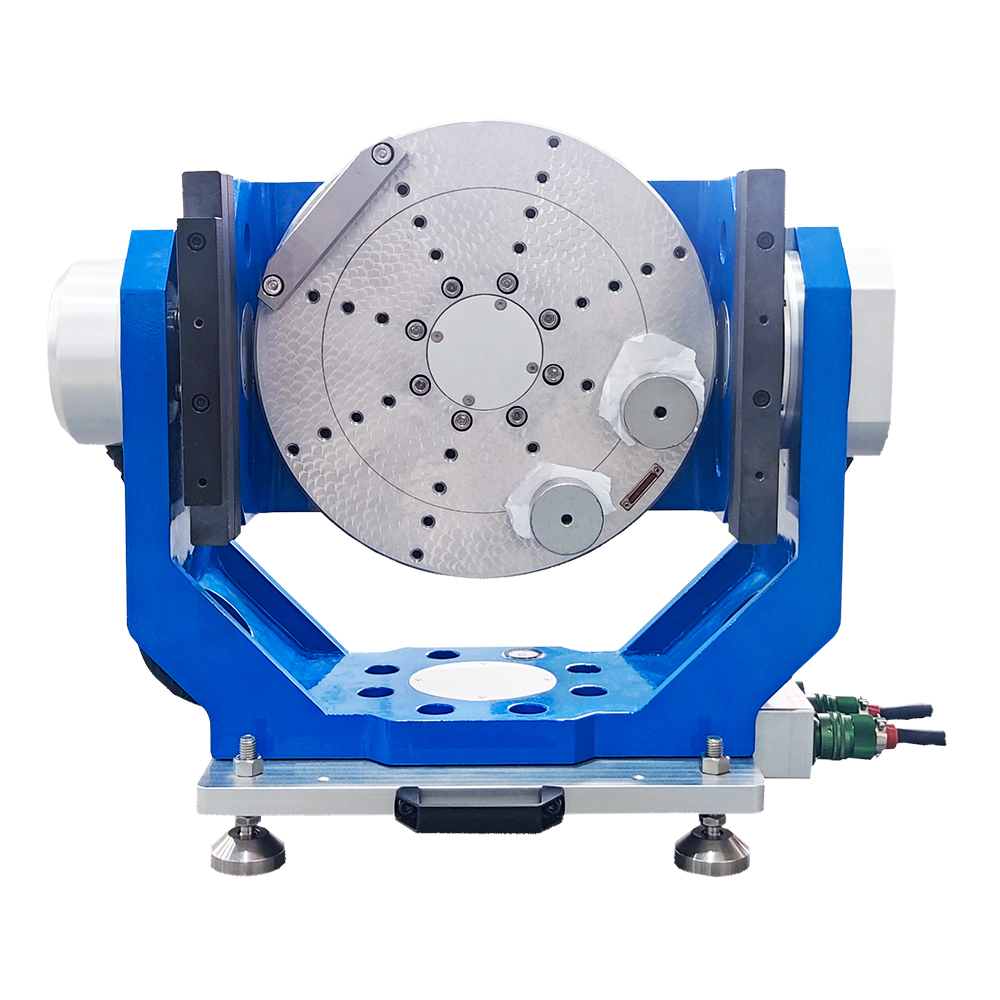

Table body size |
≤ 580mm×400mm×485mm |
|
Load weight |
≥10kg |
|
Load size |
≥ 100mm×100mm×100mm |
|
Load mounting table |
≥ Φ300mm |
|
Countertop flatness |
≤ 0.03mm |
|
Face runout |
≤ 0.03mm |
|

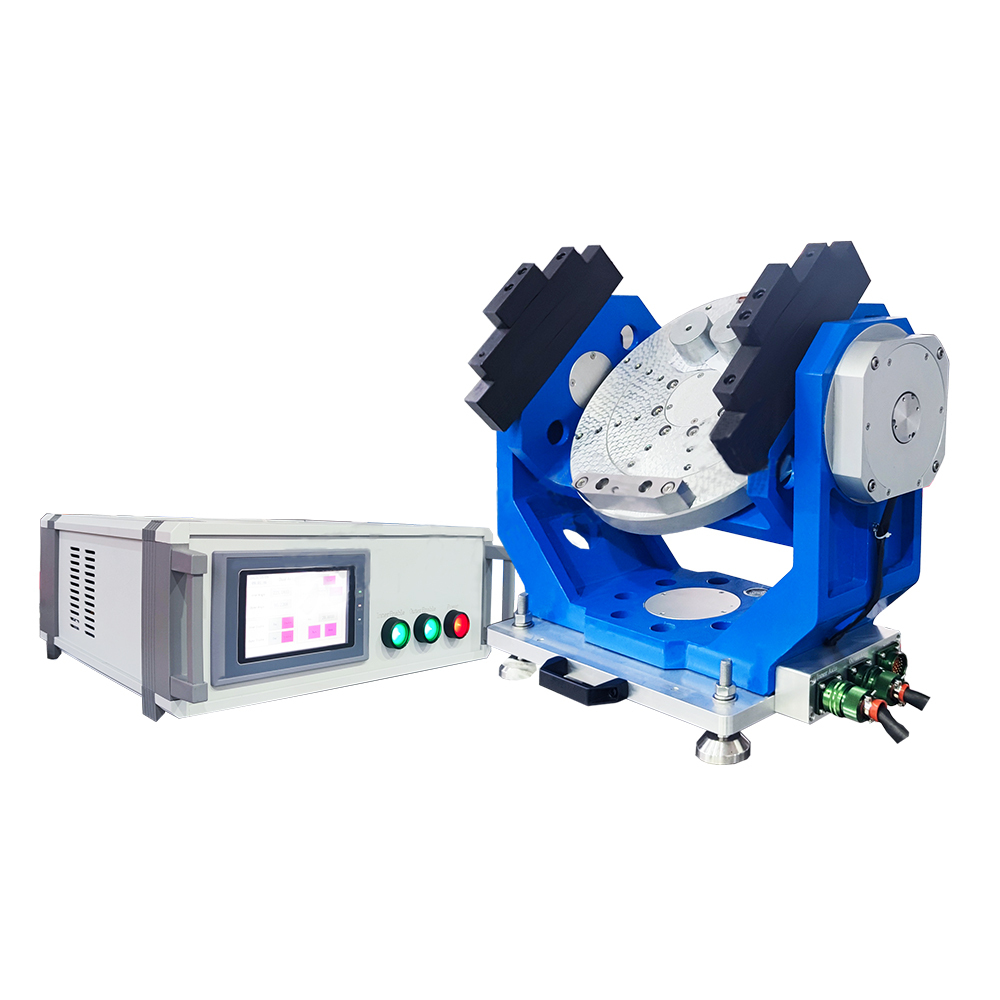

Two axis angular position positioning accuracy |
≤±15" |
|
Two-axis angular position positioning repeatability |
≤±5" |
|
Two axis Angle range |
0°~ 360° |
|
Perpendicularity of two axes of rotation |
≤ ±10" |
|

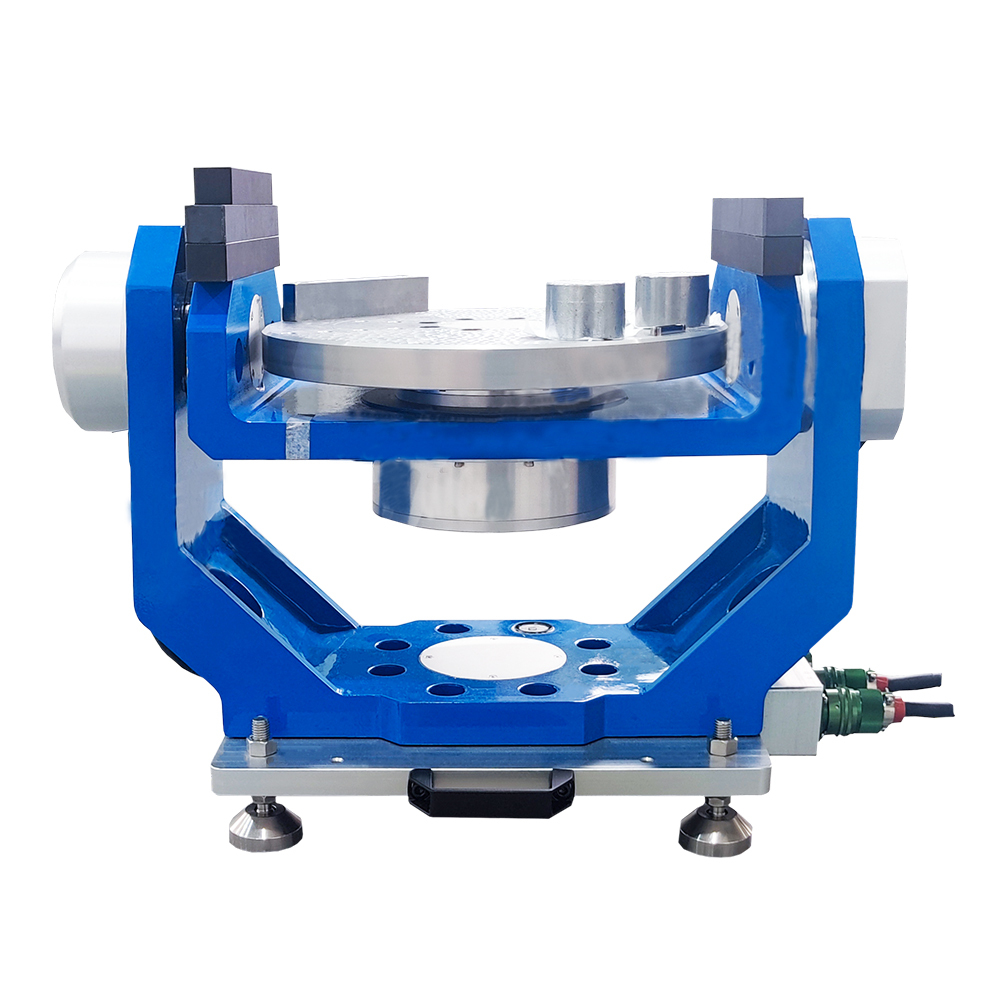

Rate range |
1°/s ~ 300°/s |
|

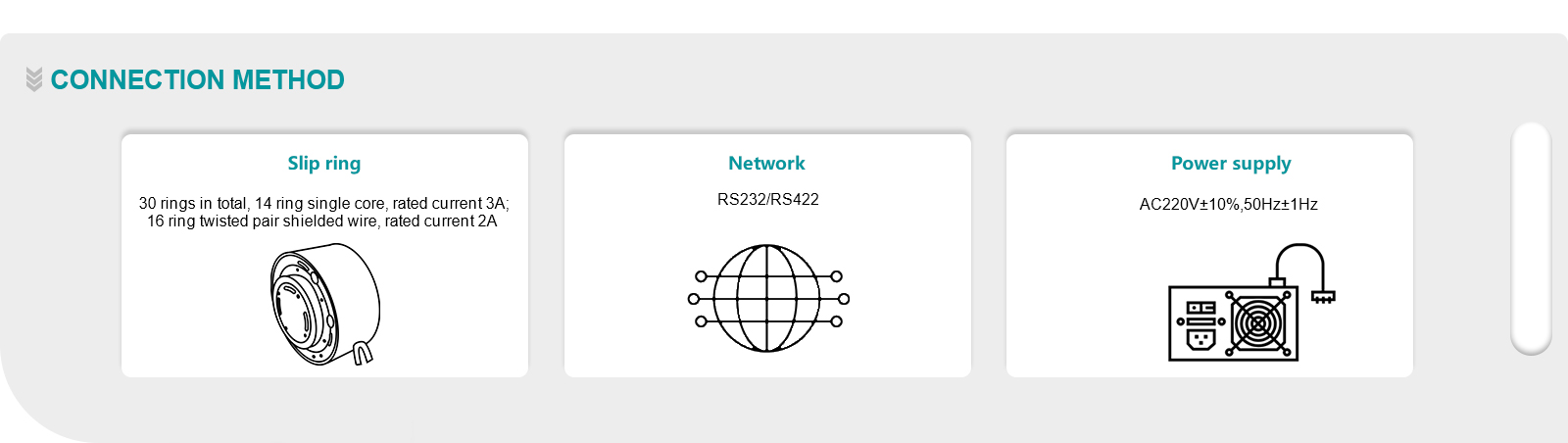

Slip |
Ring loop number 32 rings |
|

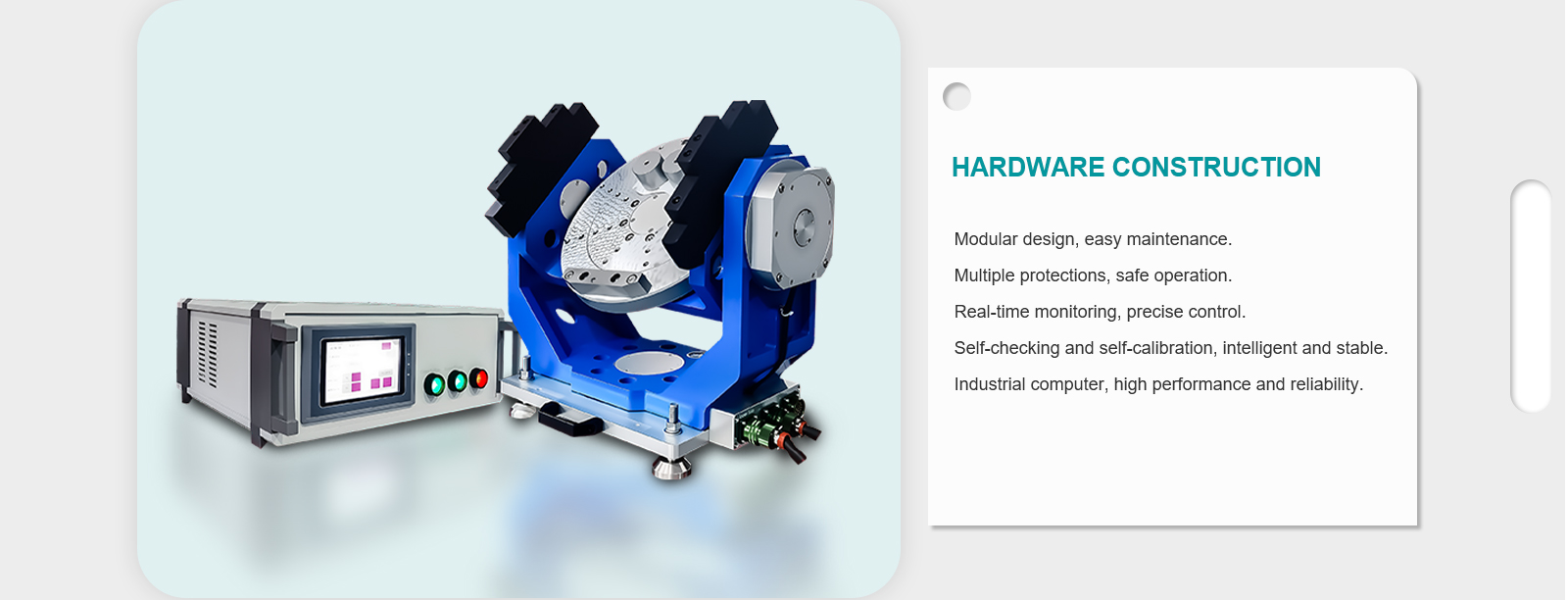

Control mode |
Touch screen, remote control RS232/RS422 |
