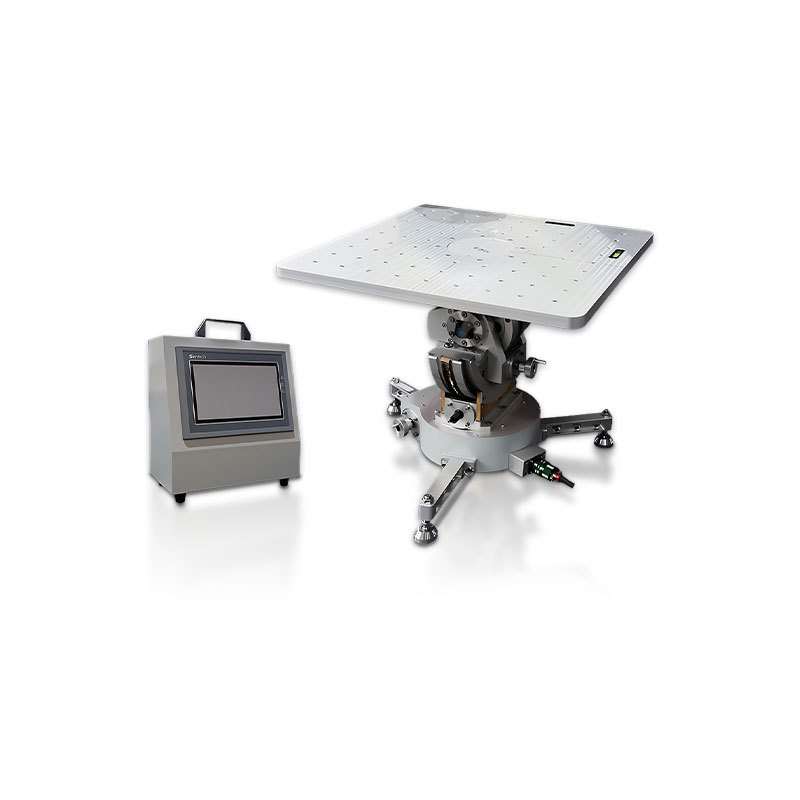

  • White background Inertial Navigation Test Table high precision three axis rotary platform

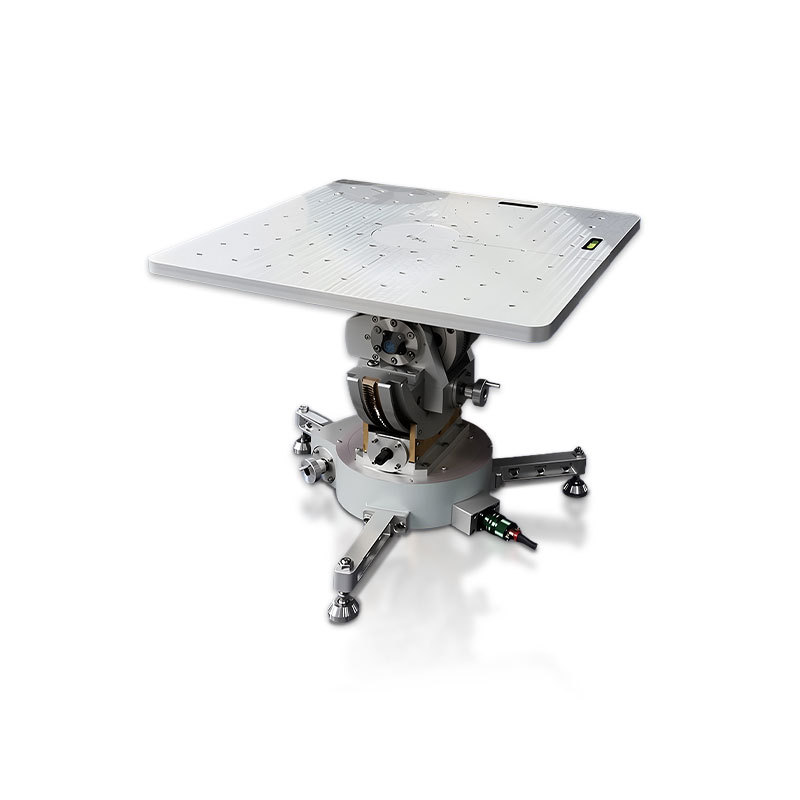

  • Inertial Navigation Test Table three axis motion simulator for aerospace lab testing

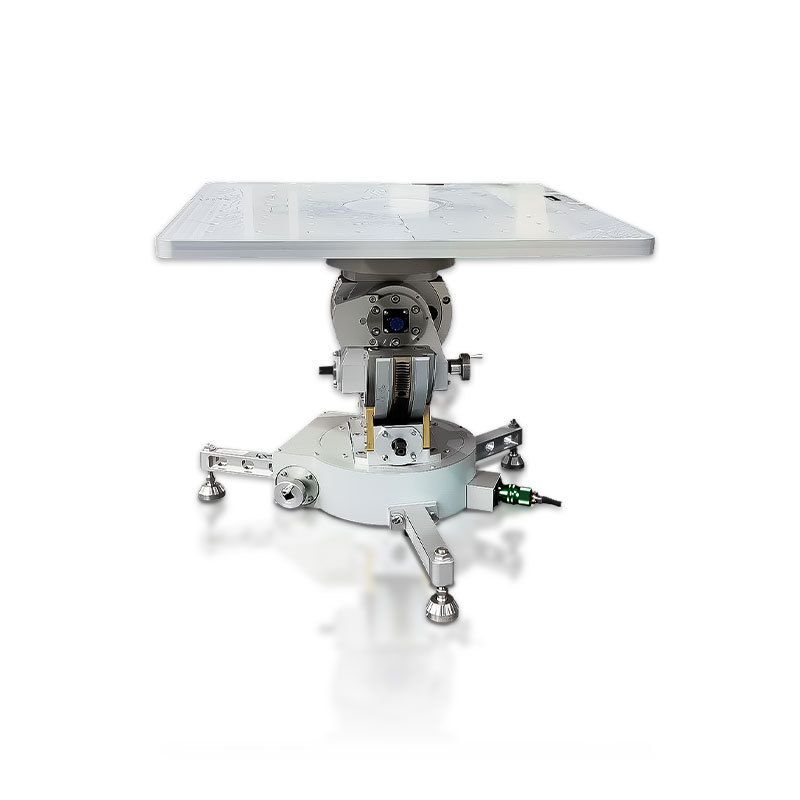

  • Close up of Inertial Navigation Test Table high rigidity slip ring and bearing assembly

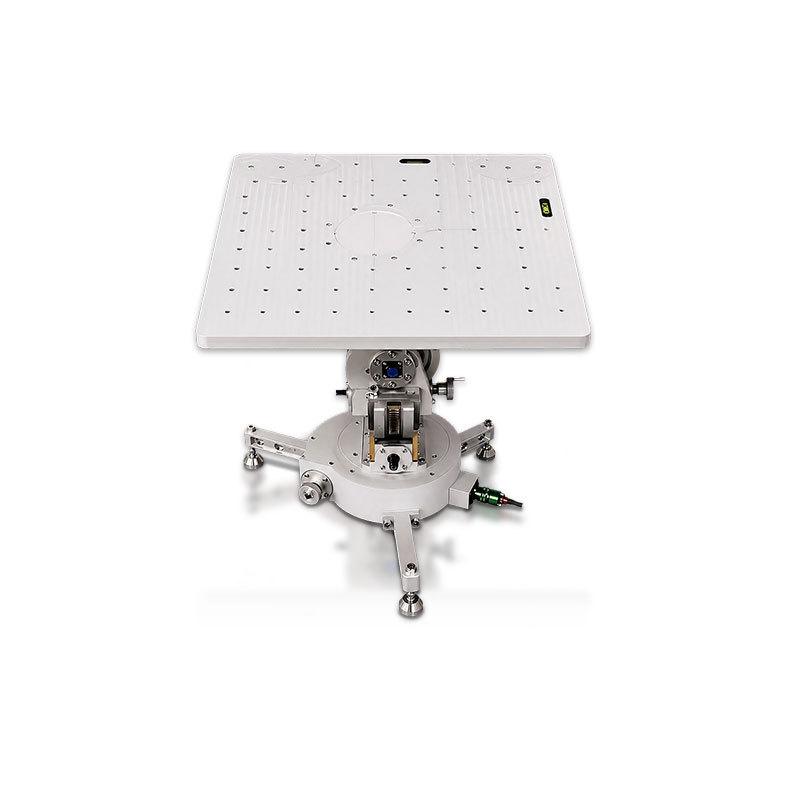

  • Inertial Navigation Test Table testing drone flight control systems in R&D facility
  • Inertial Navigation Test Table compact three axis design compared to industrial equipment

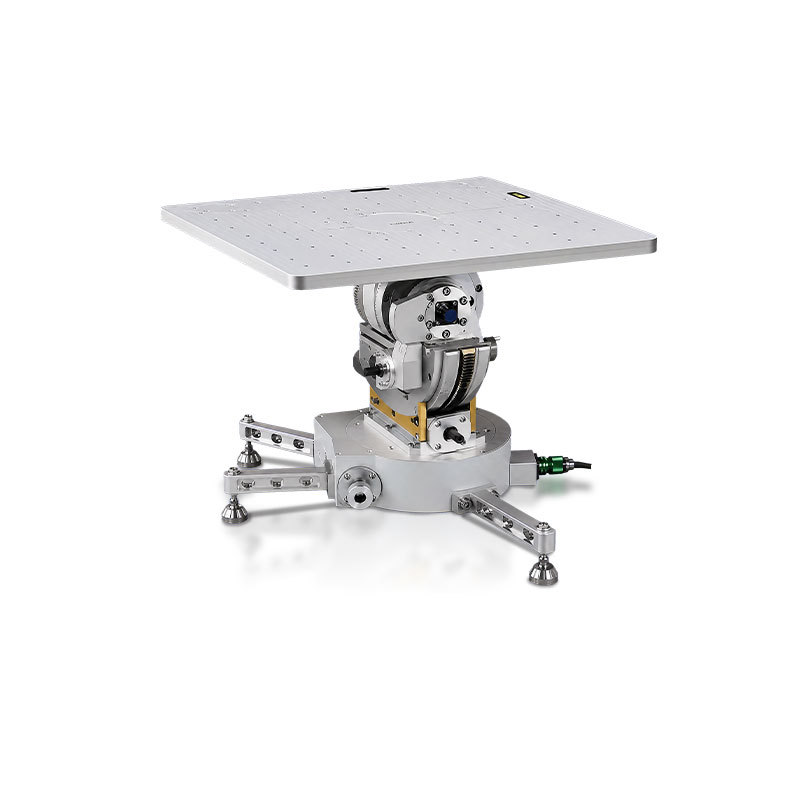

  • Inertial Navigation Test Table performing dynamic rate testing on automotive IMU sensors
  • White background Inertial Navigation Test Table high precision three axis rotary platform
  • Inertial Navigation Test Table three axis motion simulator for aerospace lab testing
  • Close up of Inertial Navigation Test Table high rigidity slip ring and bearing assembly
  • Inertial Navigation Test Table testing drone flight control systems in R&D facility
  • Inertial Navigation Test Table compact three axis design compared to industrial equipment
  • Inertial Navigation Test Table performing dynamic rate testing on automotive IMU sensors

High Precision 3 Axis Inertial Navigation Test Table for Gyroscope and IMU Calibration

No.BE-INS3-22A13
This high precision 3 axis Inertial Navigation Test Table features a 7A04 super duralumin platform and achieves 0.0001 degree angular position accuracy. It supports dynamic motion simulation up to 400 degrees per second and handles payloads of 30kg, making it ideal for fiber optic gyro calibration and MEMS sensor validation. The system provides reliable rate tables for UAV autopilot testing and autonomous driving navigation systems in industrial R&D.

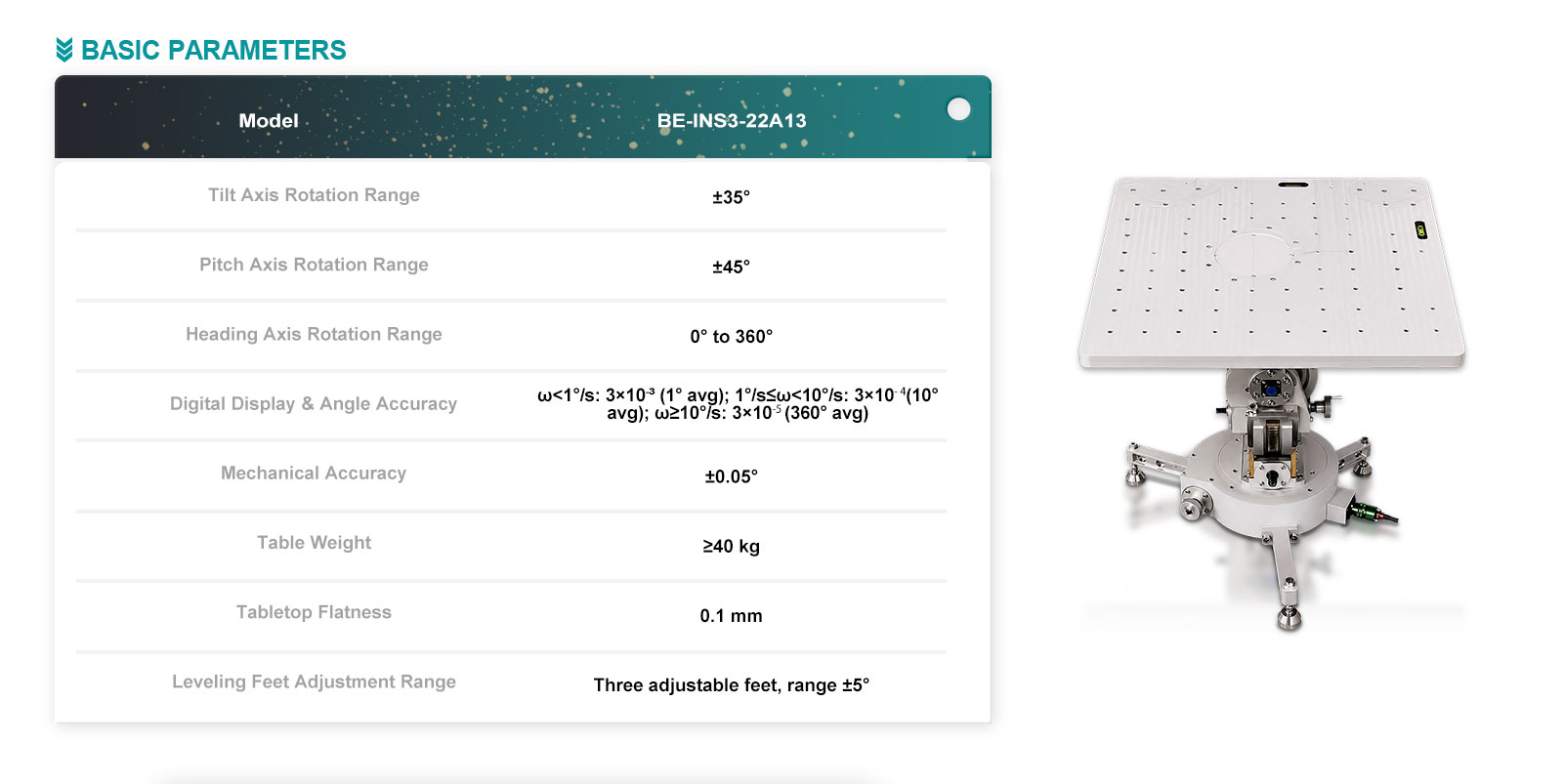

Specifications
Tilt Axis Rotation Range:
±35°
Pitch Axis Rotation Range:
±45°
Mechanical Accuracy:
±0.05°
Table Weight:
≥40 kg
Tabletop Flatness:
0.1 mm
GET A QUOTE
Download
View all downloads
  • White background Inertial Navigation Test Table high precision three axis rotary platform
  • Inertial Navigation Test Table three axis motion simulator for aerospace lab testing
  • Close up of Inertial Navigation Test Table high rigidity slip ring and bearing assembly
  • Inertial Navigation Test Table testing drone flight control systems in R&D facility

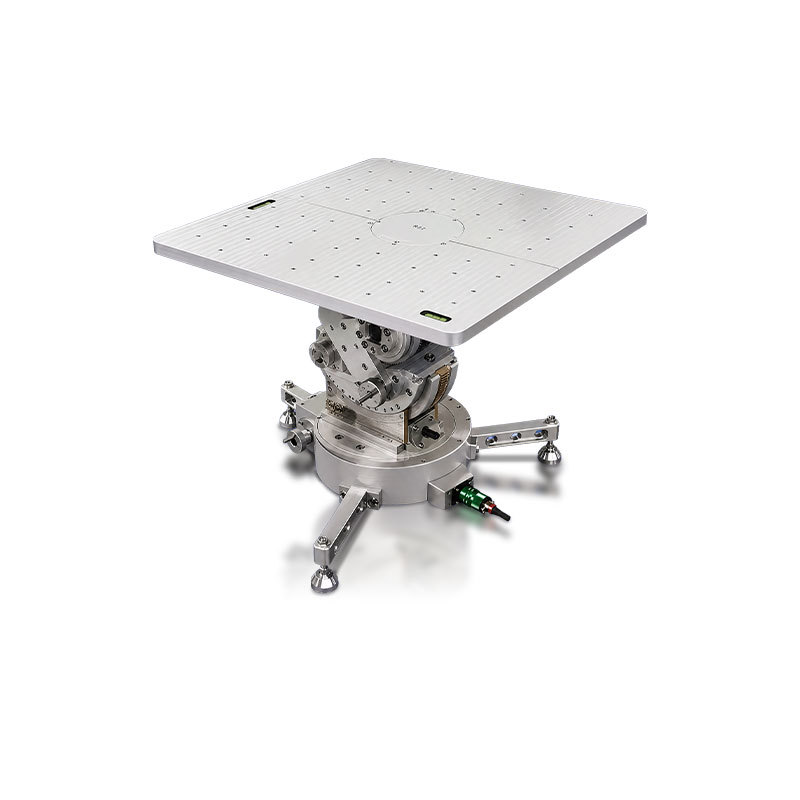

  • Inertial Navigation Test Table compact three axis design compared to industrial equipment
  • Inertial Navigation Test Table performing dynamic rate testing on automotive IMU sensors

Description

——Technical parameter——

Indicator name

Indicator parameters

Countertop material

7A04 superduralumin

Countertop dimensions

600mm x 500mm x 18mm

Maximum load weight

<60kg

3-axis rotation range

Heading ±180°, Tilt 60°, Pitch ±60°

3-axis angle accuracy

Heading axis ±6'; Tilt axis ±6'; Pitch axis ±6'

Countertop flatness

0.1mm

Foot of the turntable

Adjustable level with blisters installed on the table.
