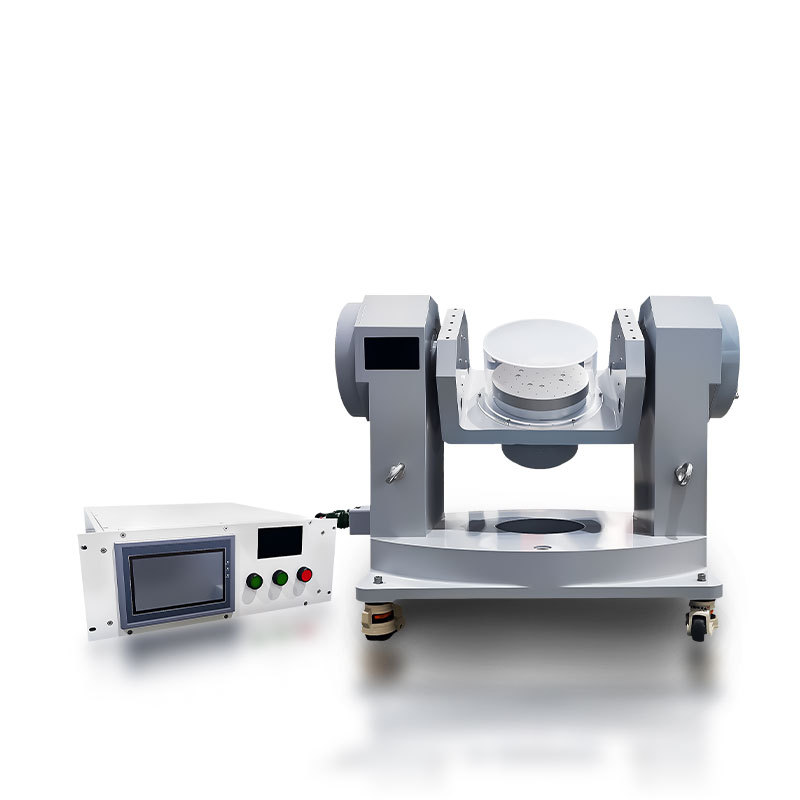

  • High speed dual axis rate table for high dynamic missile seeker testing
  • Rate test stand with 2000 degree per second inner ring rotation capability

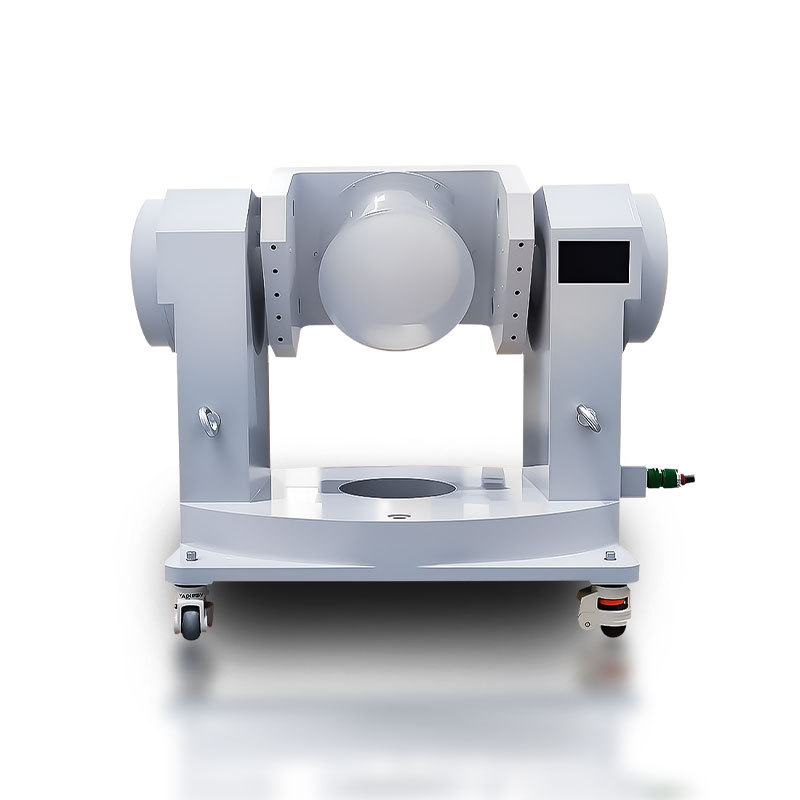

  • Close up of high speed drive system for 0.001 degree per second resolution
  • Rate table performing 2000 degree per second spin for high dynamic sensor validation

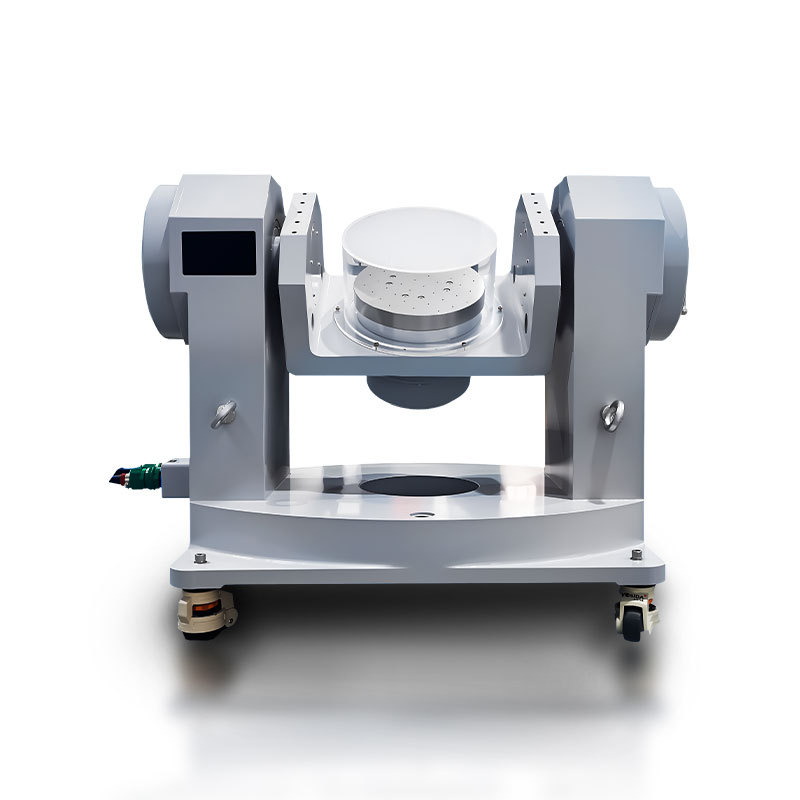

  • Test equipment with 15cm table and 4kg capacity on aerospace workbench
  • Automated interface executing high speed profile for defense navigation test
  • High speed dual axis rate table for high dynamic missile seeker testing

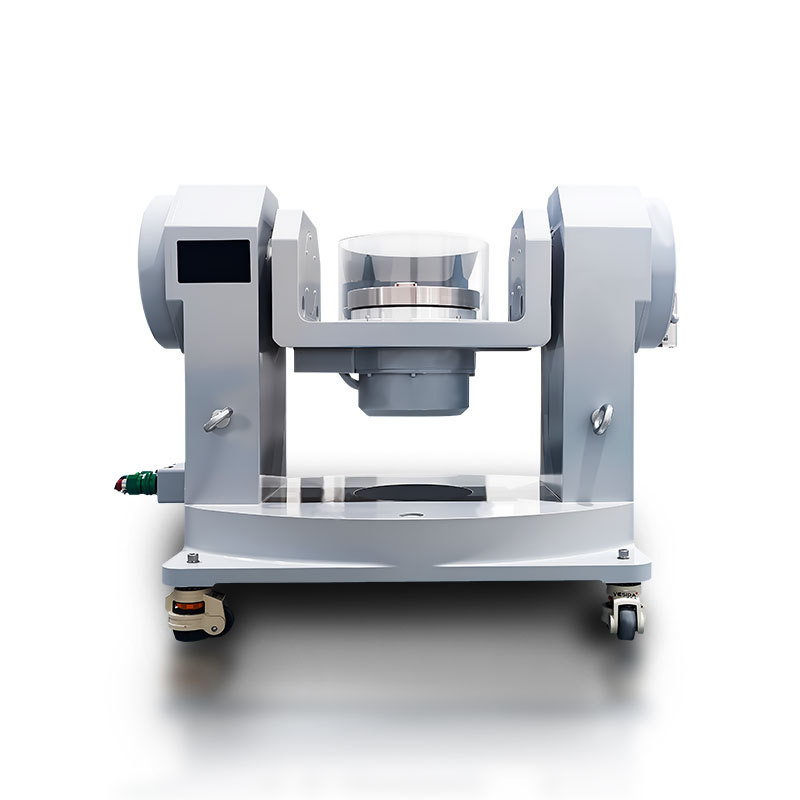

  • Rate test stand with 2000 degree per second inner ring rotation capability
  • Close up of high speed drive system for 0.001 degree per second resolution

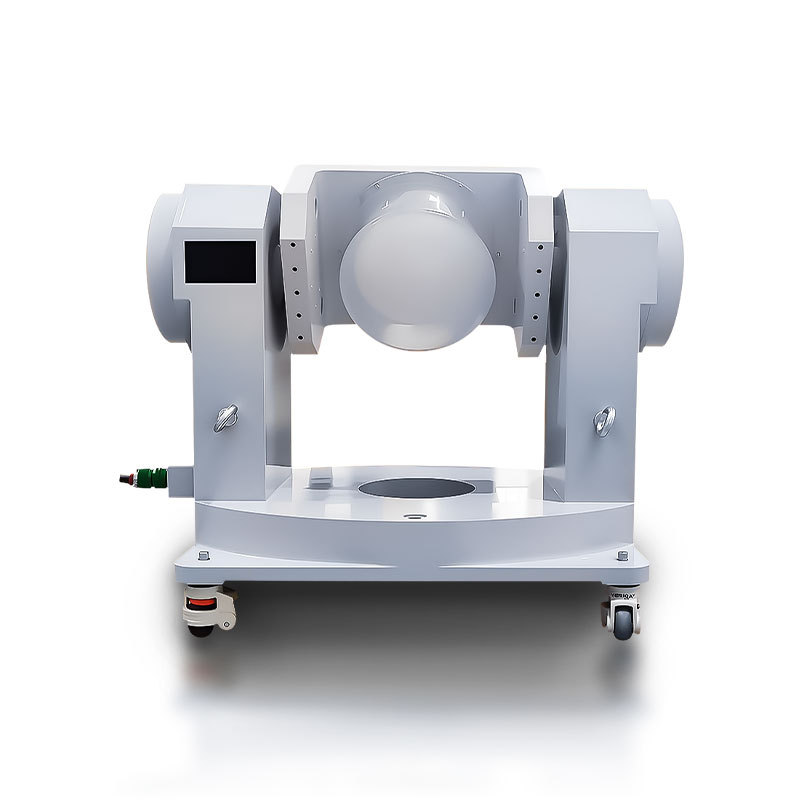

  • Rate table performing 2000 degree per second spin for high dynamic sensor validation
  • Test equipment with 15cm table and 4kg capacity on aerospace workbench

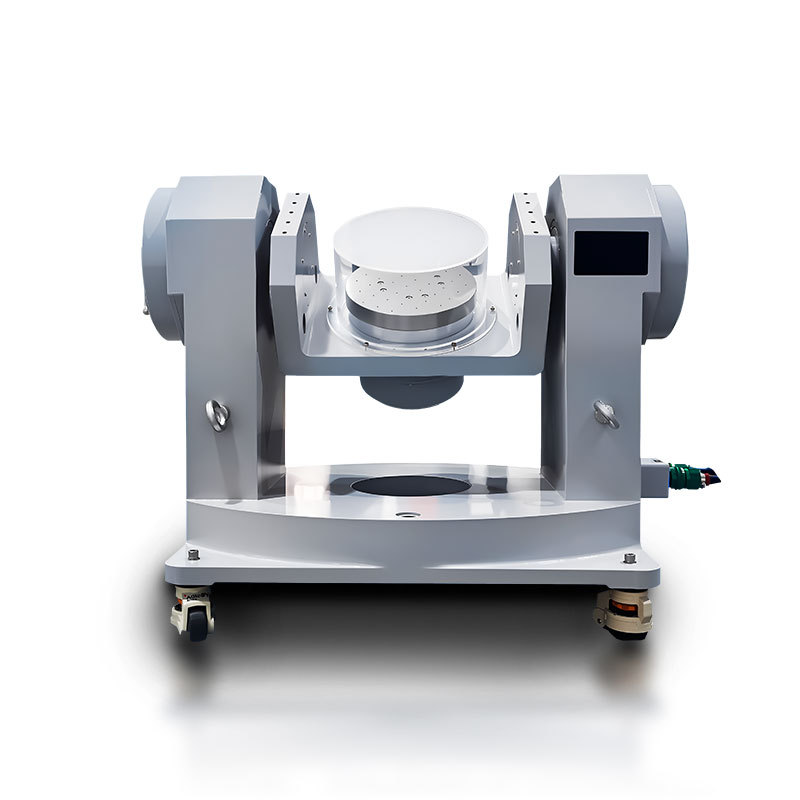

  • Automated interface executing high speed profile for defense navigation test

High Speed Dual Axis Rate Table for High Dynamic Sensor Testing

No.BE-INS2-22D33
This high speed dual axis rate table serves as gyroscope test stand and motion simulator for high dynamic sensor testing. Inner ring reaches 2000°/s for missile seeker and high spin munition validation. Outer ring 500°/s covers UAV and flight control needs. 0.001°/s rate resolution with 5″ accuracy delivers reliable high speed performance. Ideal for aerospace attitude control and defense navigation systems.
Specifications
Table size:
≥15cm
Load weight:
maximum 4kg
Position accuracy:
5″
Position resolution:
0.0001°
GET A QUOTE
Download
View all downloads
  • High speed dual axis rate table for high dynamic missile seeker testing
  • Rate test stand with 2000 degree per second inner ring rotation capability
  • Close up of high speed drive system for 0.001 degree per second resolution
  • Rate table performing 2000 degree per second spin for high dynamic sensor validation
  • Test equipment with 15cm table and 4kg capacity on aerospace workbench
  • Automated interface executing high speed profile for defense navigation test

Description

Technical Parameter
Table size ≥15cm
Load weight maximum 4kg
Speed inner ring ≥2000°/s, outer ring ≥500°/s
Position resolution 0.0001°
Position accuracy 5"
Position repeatability 5"
Angular velocity resolution 0.001°/s
Inner ring angular position error at constant speed 100dps, 200dps, 300dps, 400dps, 500dps±0.0015°; 1000dps±0.002°; 2000 dps±0.0023°;
