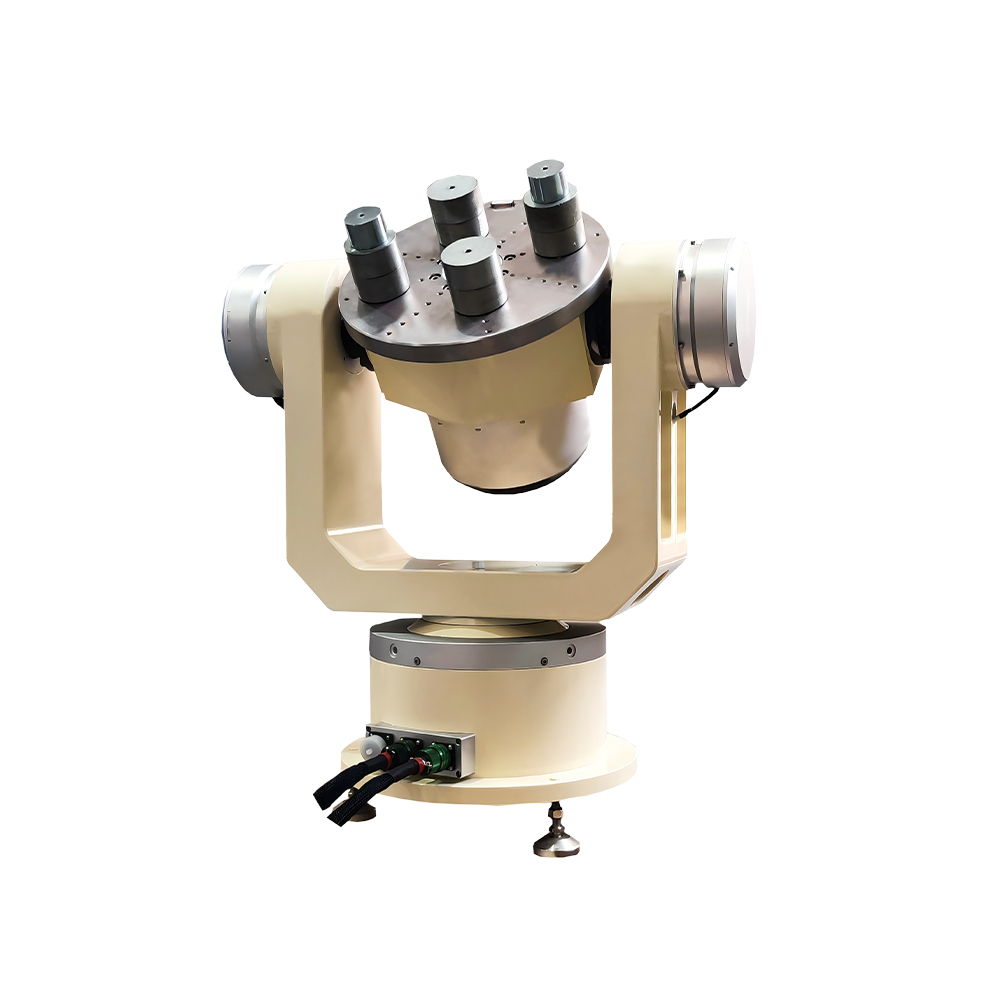

• White background High Precision Three Axis Position Rate Table for inertial navigation system calibration.

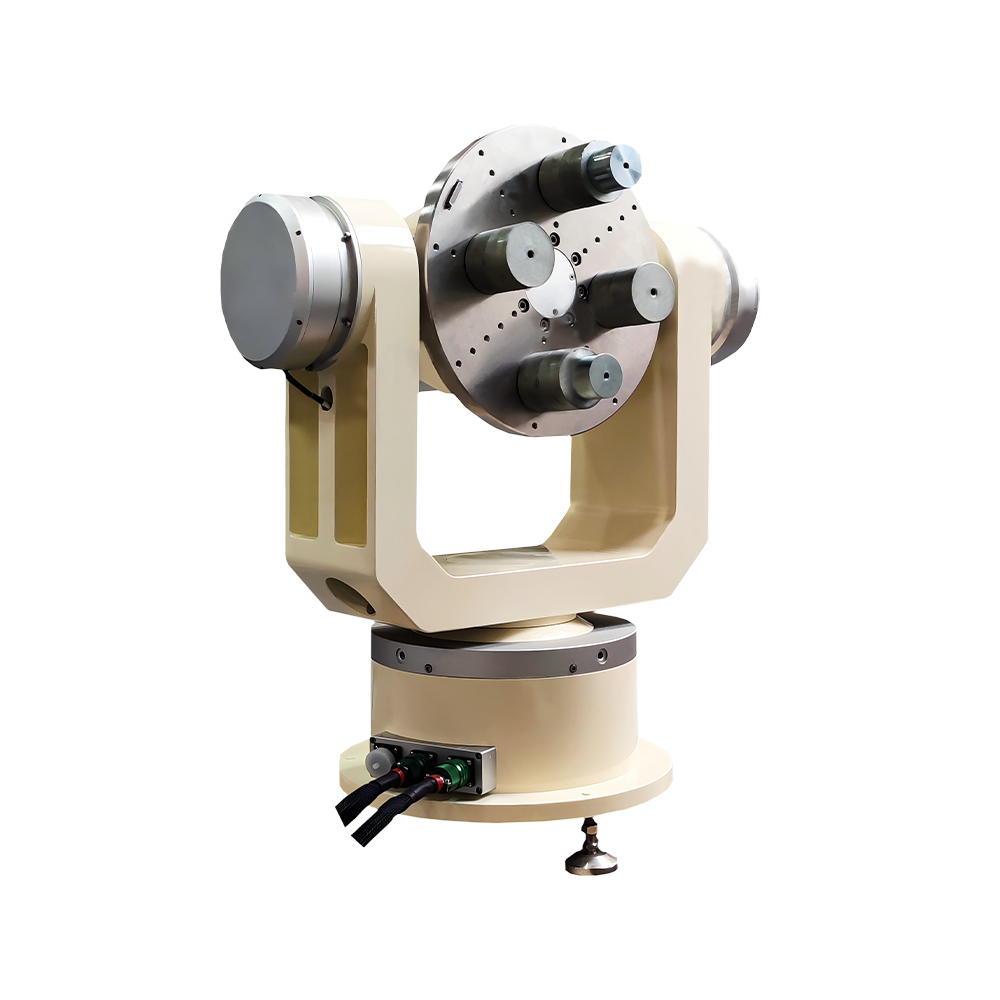

  • High Precision Three Axis Position Rate Table installed in aerospace defense laboratory.

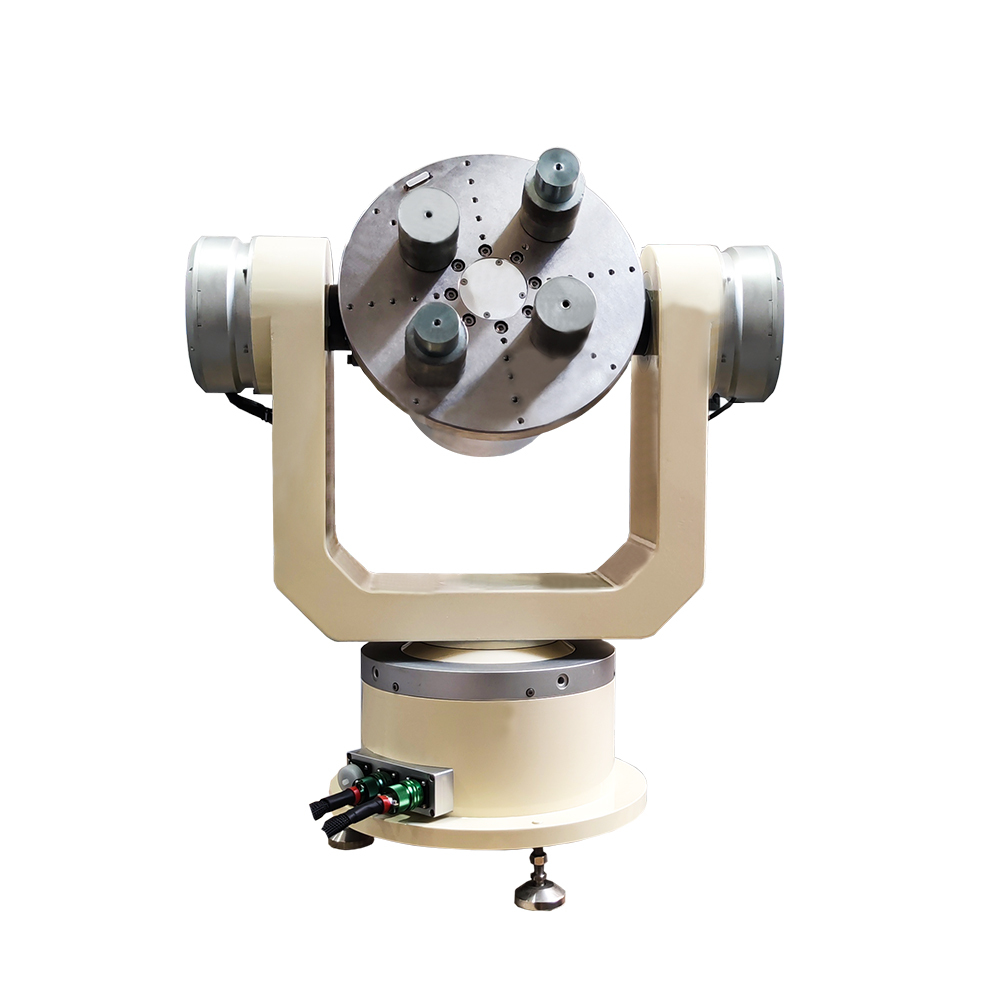

  • Close-up of High Precision Three Axis Position Rate Table precision bearing assembly.

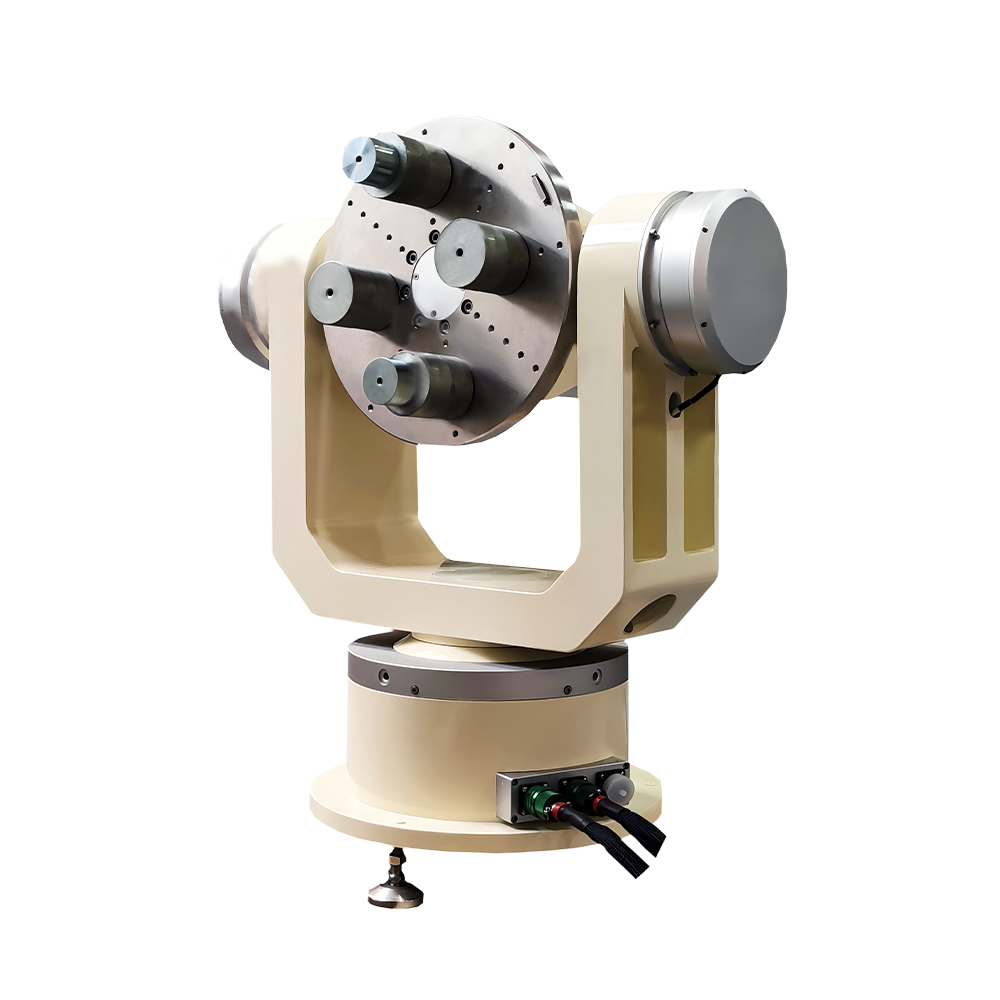

  • High Precision Three Axis Position Rate Table testing defense navigation sensors.

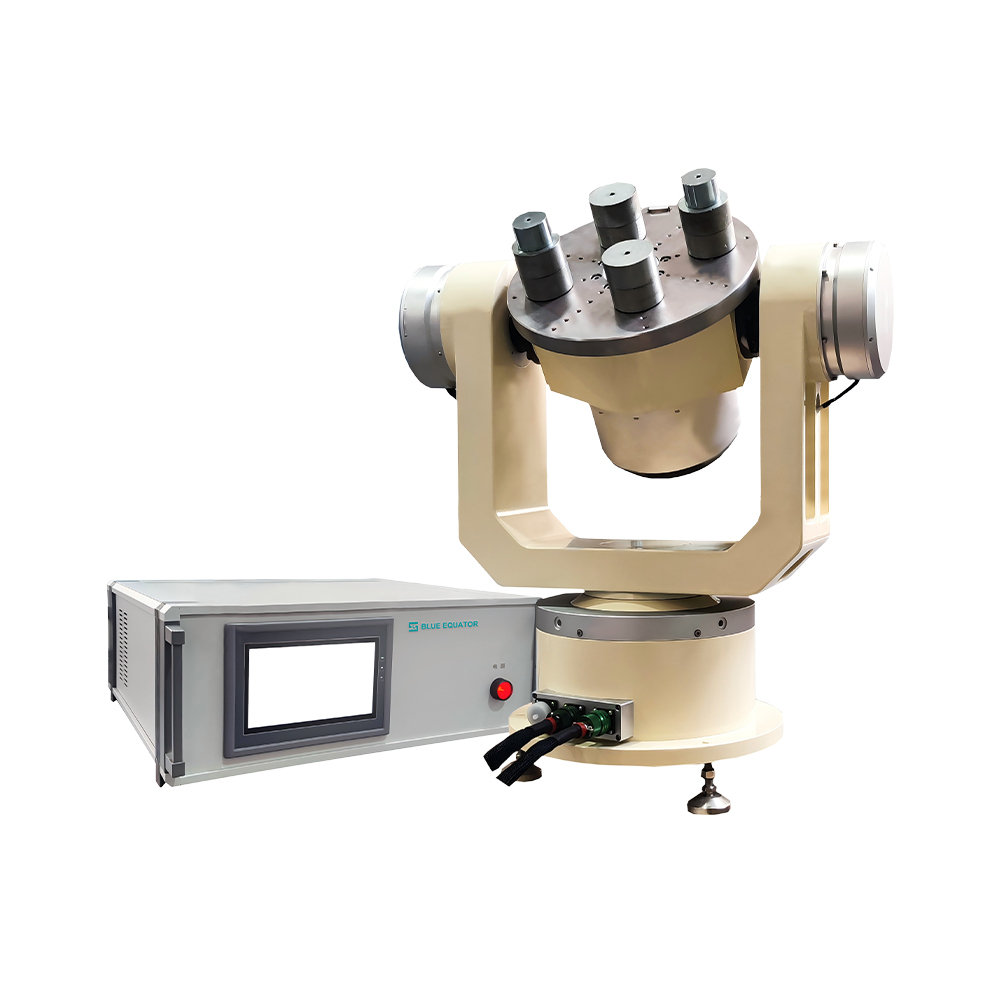

  • High Precision Three Axis Position Rate Table size comparison width 900mm.

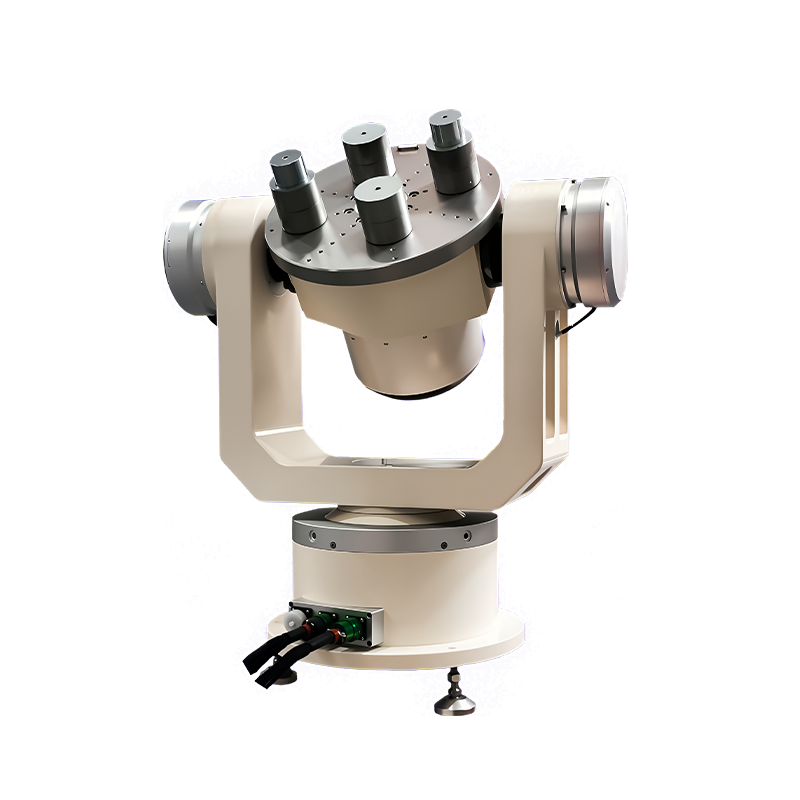

  • High Precision Three Axis Position Rate Table performing position and rate tests.
  • White background High Precision Three Axis Position Rate Table for inertial navigation system calibration.
  • High Precision Three Axis Position Rate Table installed in aerospace defense laboratory.
  • Close-up of High Precision Three Axis Position Rate Table precision bearing assembly.
  • High Precision Three Axis Position Rate Table testing defense navigation sensors.
  • High Precision Three Axis Position Rate Table size comparison width 900mm.
  • High Precision Three Axis Position Rate Table performing position and rate tests.

High Precision Three Axis Position Rate Table for inertial navigation system calibration and gyroscope testing in aerospace, defense, and precision manufacturing applications.

No.BE-INS3-24B26
The High Precision Three Axis Position Rate Table delivers 5 arc seconds angular positioning accuracy, supports up to 20kg payload, and offers programmable position and rate control. Designed for inertial navigation system calibration, fiber optic gyroscope testing, and MEMS sensor validation, it ensures precise motion control, stable performance, and high repeatability for aerospace, defense, and precision manufacturing industries.
Specifications
Rated load weight:
20kg
Table flatness:
≤0.02mm
Table mounting screw holes:
M6, spacing 25mm
angular position accuracy:
≤±5″
Maximum angular velocity:
±500°/s
Download
View all downloads
  • White background High Precision Three Axis Position Rate Table for inertial navigation system calibration.
  • High Precision Three Axis Position Rate Table installed in aerospace defense laboratory.
  • Close-up of High Precision Three Axis Position Rate Table precision bearing assembly.
  • High Precision Three Axis Position Rate Table testing defense navigation sensors.
  • High Precision Three Axis Position Rate Table size comparison width 900mm.
  • High Precision Three Axis Position Rate Table performing position and rate tests.

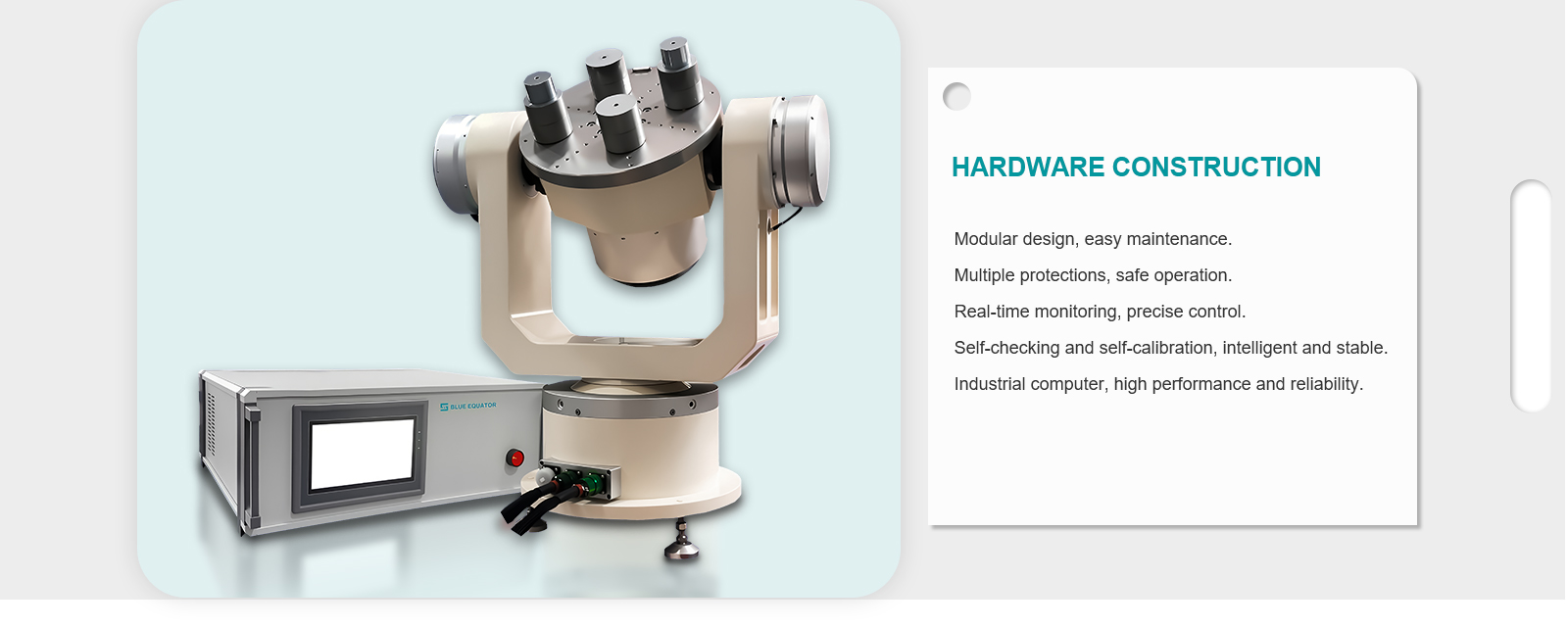

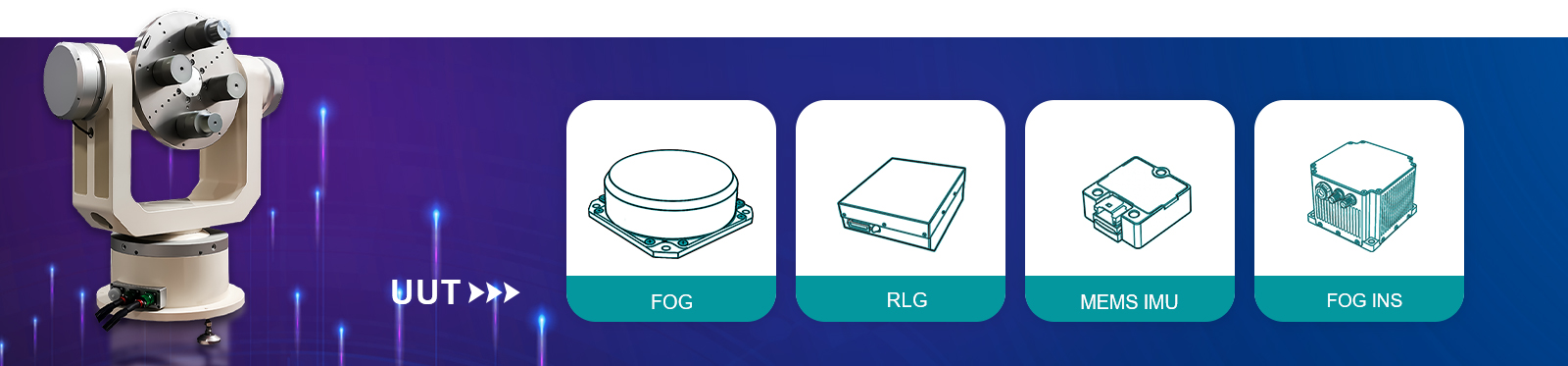

Description

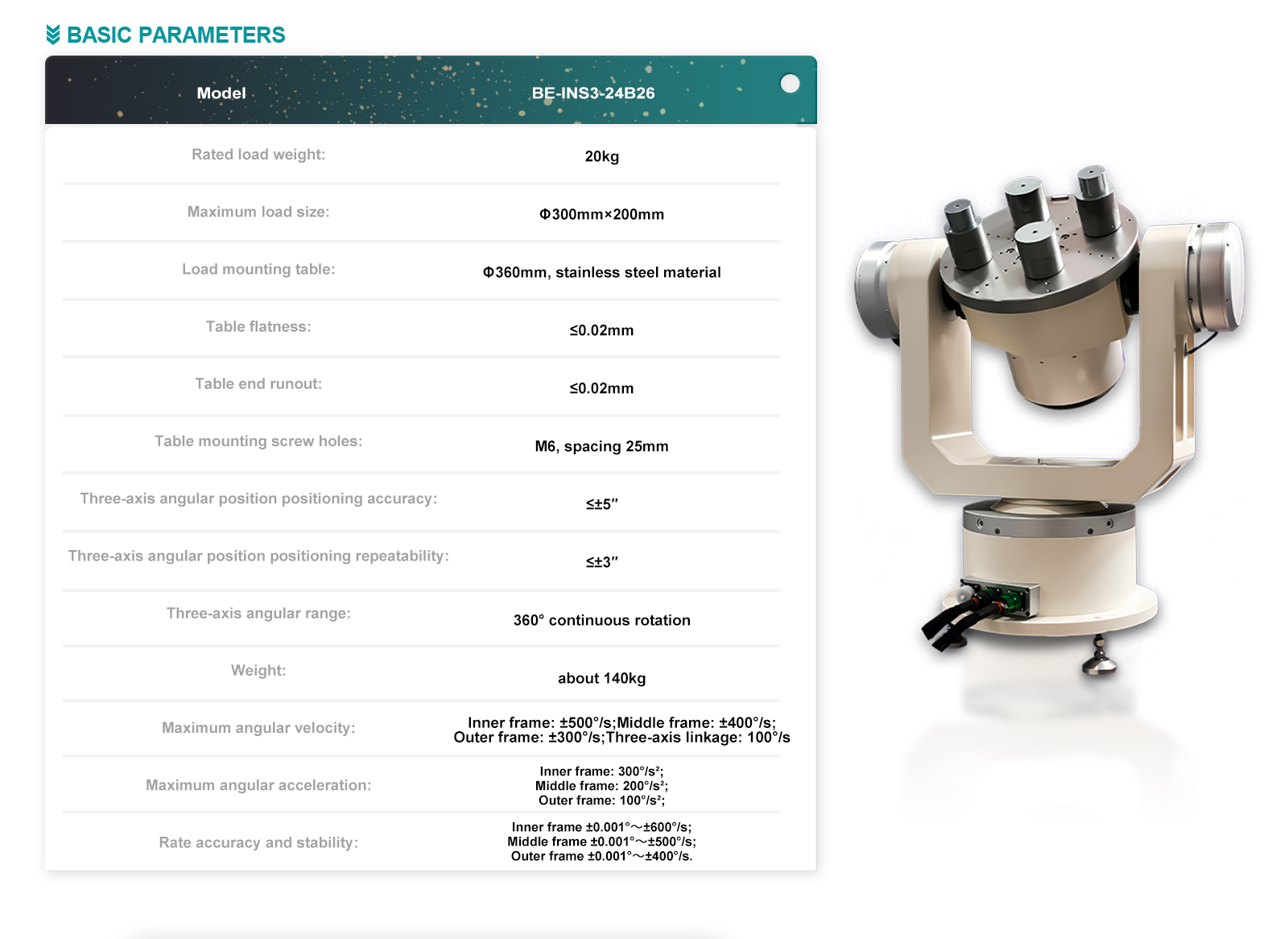

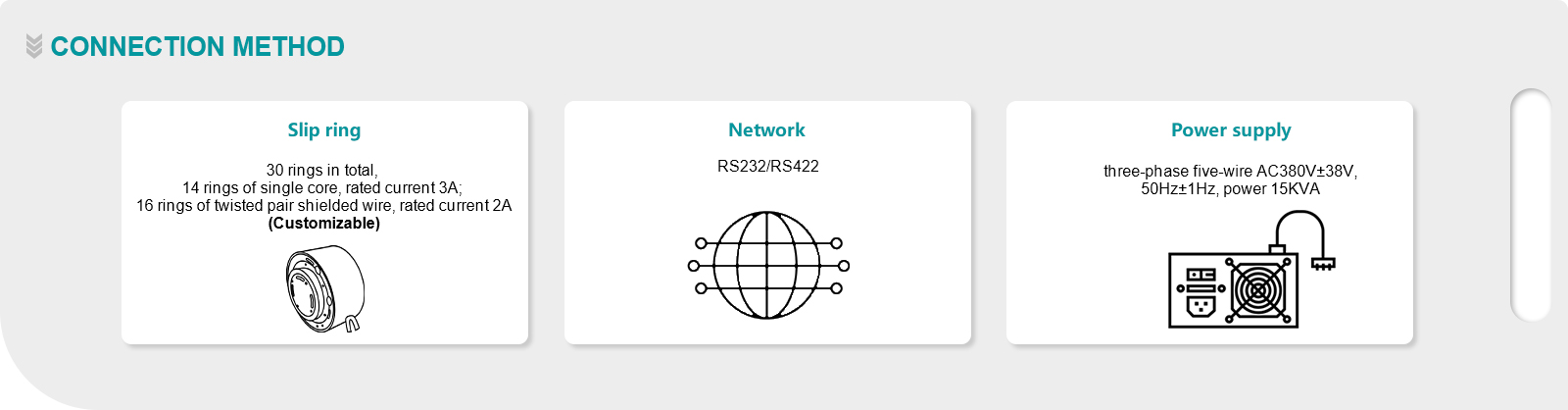

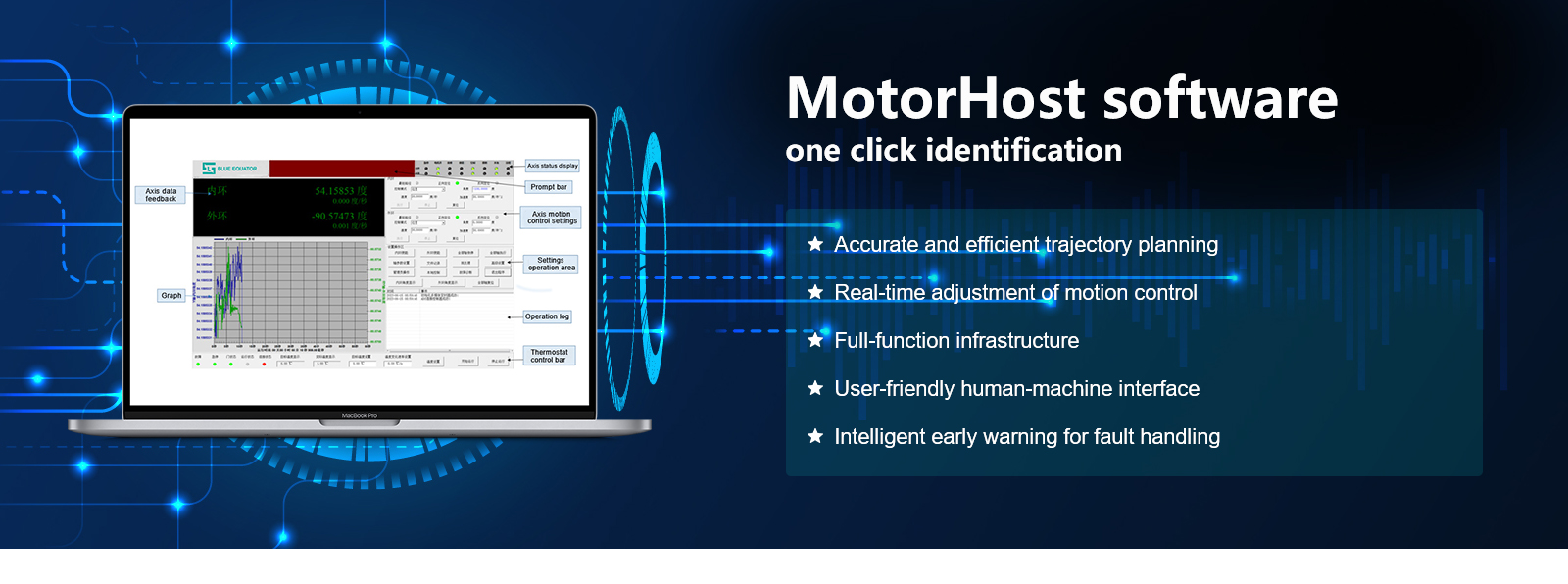

Technical Parameters
Rated load weight: 20kg
Maximum load size: Φ300mm×200mm
Load mounting table: Φ360mm, stainless steel material
Table flatness: ≤0.02mm
Table end runout: ≤0.02mm
 Table mounting screw holes: M6, spacing 25mm
Three-axis angular position positioning accuracy: ≤±5″
Three-axis angular position positioning repeatability: ≤±3″
Three-axis angular range: 360° continuous rotation
Weight: about 140kg
Maximum angular velocity: Inner frame: ±500°/s;
Middle frame: ±400°/s;
Outer frame: ±300°/s;
Three-axis linkage: 100°/s
Maximum angular acceleration: Inner frame: 300°/s²;
Middle frame: 200°/s²;
Outer frame: 100°/s²;
Rate accuracy and stability: 5×10^-5 (360° average);
5×10^-4 (10° average);
5×10^-3 (1° average).
