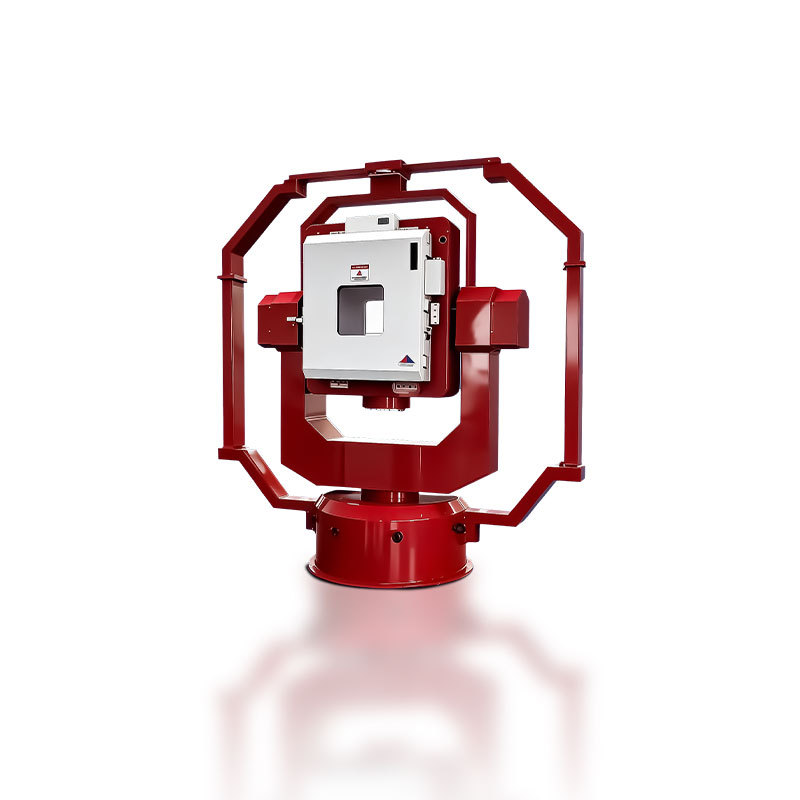

• White background three axis inertial navigation test table high capacity precision motion simulator

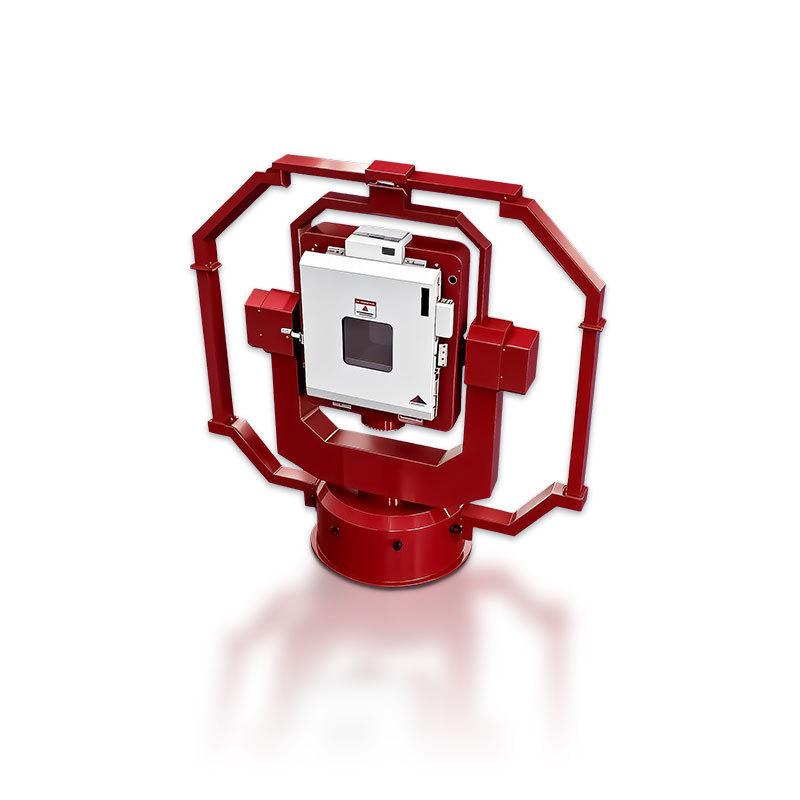

  • Vertical U O T inertial navigation test table showcasing robust red outer frame and precision components
  • Close up of precision inertial navigation test table inner drive showing excellent angular acceleration performance

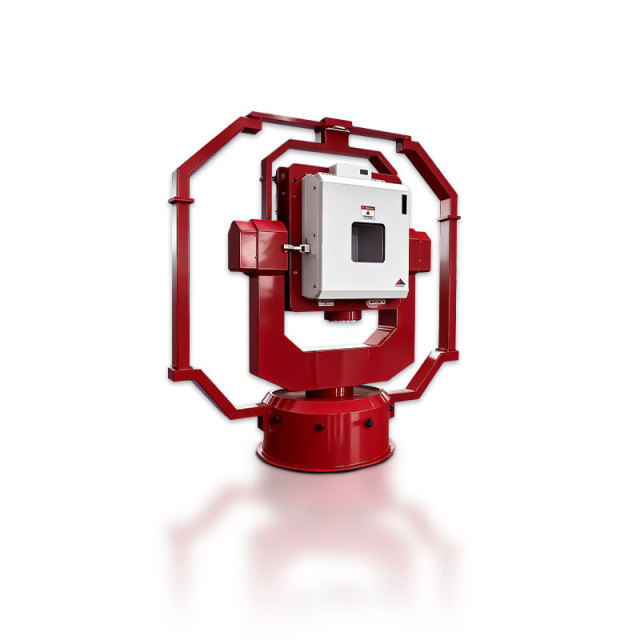

  • Inertial navigation test table placed in thermal lab environment for commercial aerospace extreme temperature testing
  • Inertial navigation test table with dimension scale showing compact footprint and compatible large tabletop
  • Inertial navigation test table demonstrating thermal cycling function with high precision motion simulation system
  • White background three axis inertial navigation test table high capacity precision motion simulator
  • Vertical U O T inertial navigation test table showcasing robust red outer frame and precision components
  • Close up of precision inertial navigation test table inner drive showing excellent angular acceleration performance
  • Inertial navigation test table placed in thermal lab environment for commercial aerospace extreme temperature testing
  • Inertial navigation test table with dimension scale showing compact footprint and compatible large tabletop
  • Inertial navigation test table demonstrating thermal cycling function with high precision motion simulation system

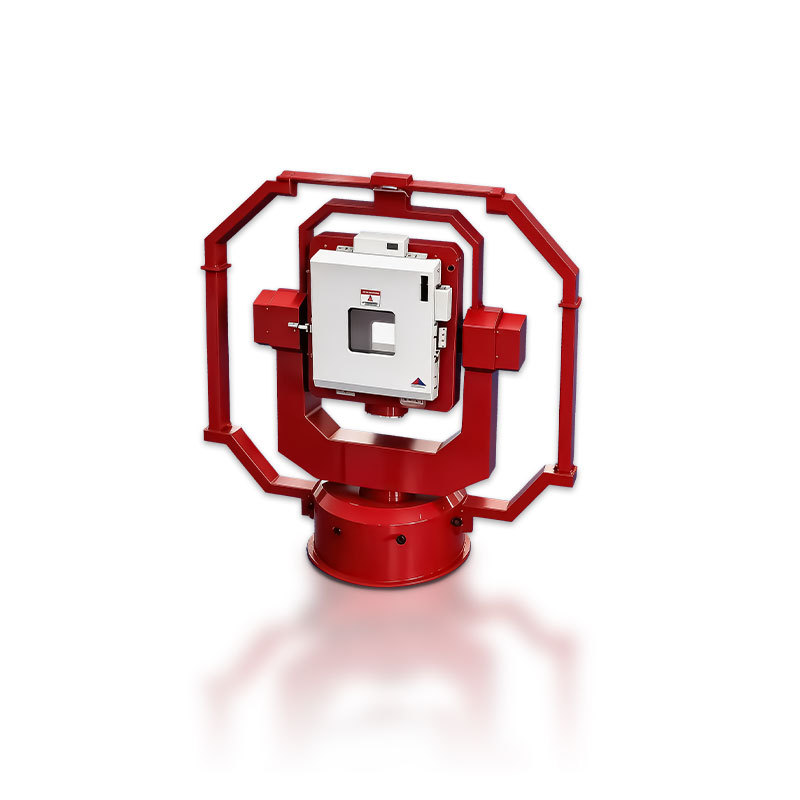

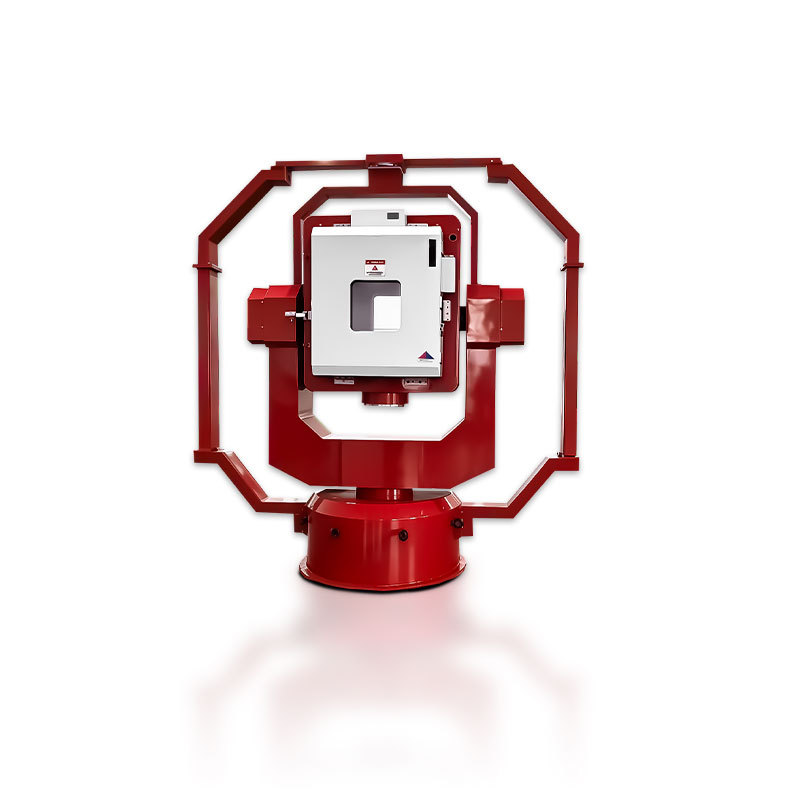

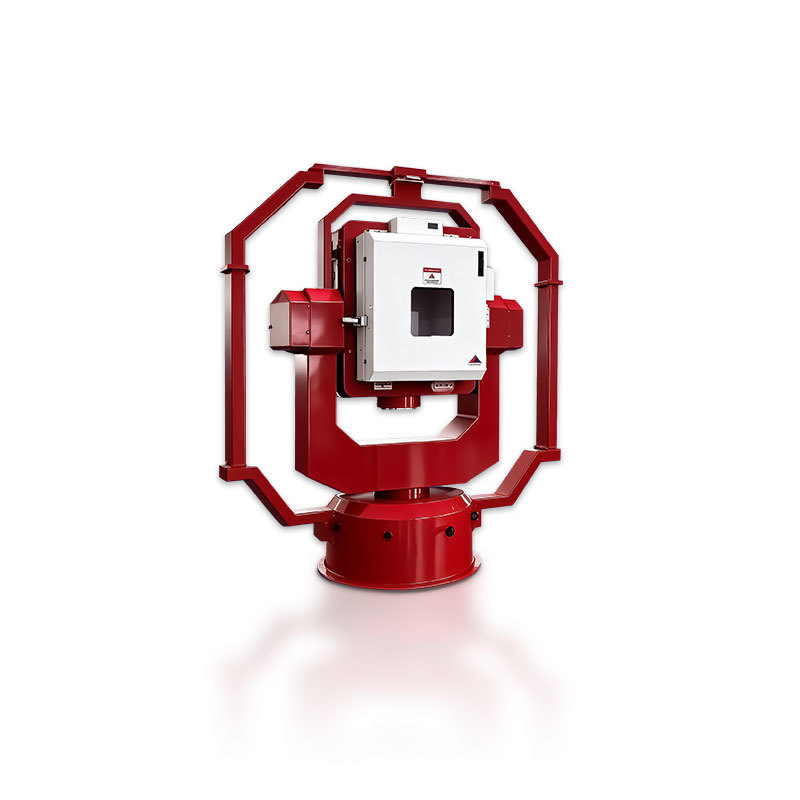

High Precision Three Axis Inertial Navigation Test Table for Extreme Thermal Motion Simulation

No.BE-INS3-26A01
Engineered for commercial aerospace autonomous driving and advanced robotics this system features a robust vertical U O T structure operating seamlessly between extreme temperatures. It offers exceptional payload capacity for rigorous dynamic simulations and sensor calibrations. With superb angular acceleration and outstanding rate smoothness it delivers an ultra reliable testing solution in complex environments empowering next generation R and D innovations.
Download
View all downloads
  • White background three axis inertial navigation test table high capacity precision motion simulator
  • Vertical U O T inertial navigation test table showcasing robust red outer frame and precision components
  • Close up of precision inertial navigation test table inner drive showing excellent angular acceleration performance
  • Inertial navigation test table placed in thermal lab environment for commercial aerospace extreme temperature testing
  • Inertial navigation test table with dimension scale showing compact footprint and compatible large tabletop
  • Inertial navigation test table demonstrating thermal cycling function with high precision motion simulation system

Description

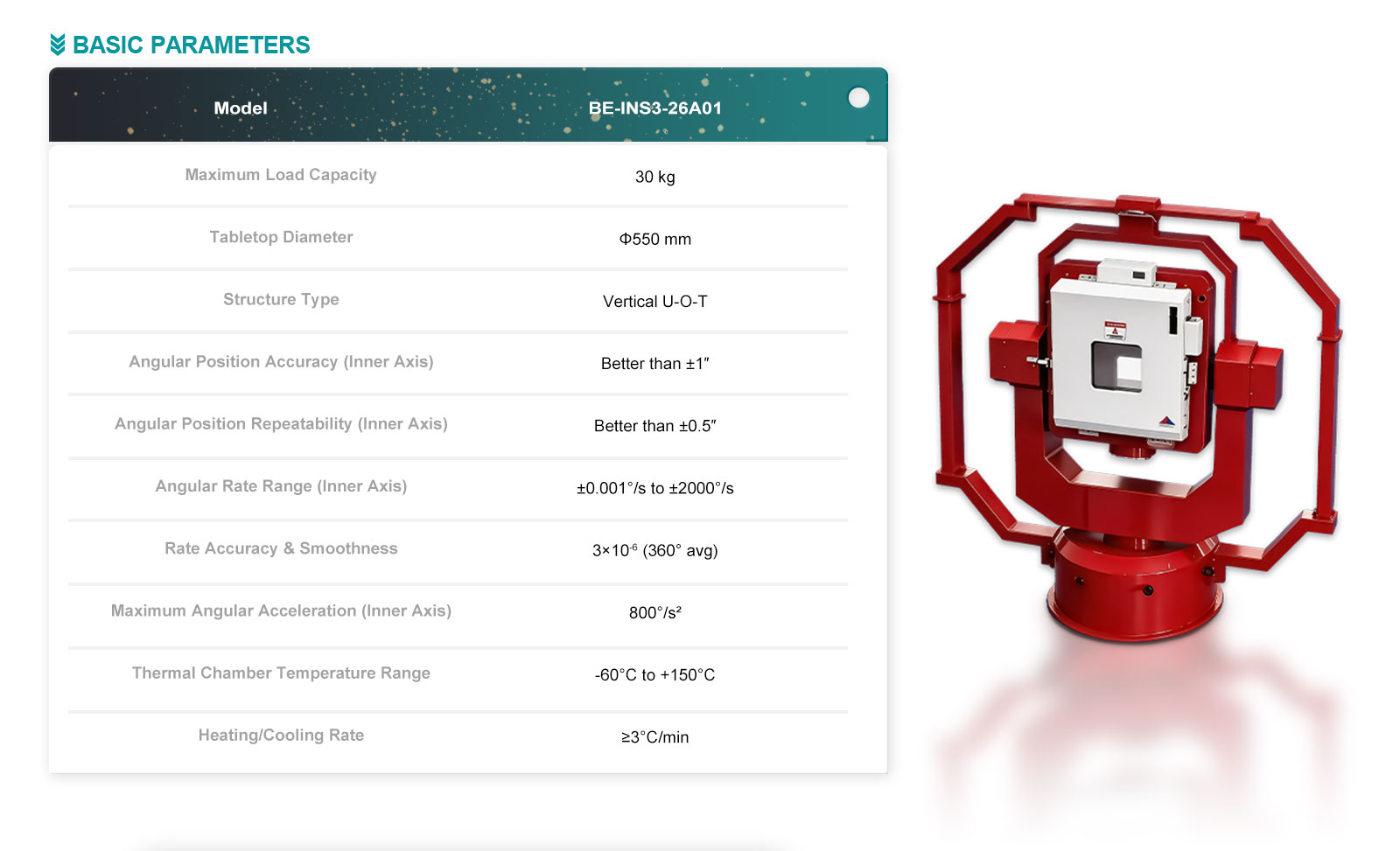

Basic Parameters Technical Specifications
Model BE INS3 26A01
Maximum Load Capacity 30 kg
Tabletop Diameter 550 mm
Structure Type Vertical U O T
Angular Position Accuracy Inner Axis Better than 1 arcsec
Angular Position Repeatability Inner Axis Better than 0.5 arcsec
Angular Rate Range Inner Axis 0.001 deg s to 2000 deg s
Rate Accuracy and Smoothness 3 10 6 360 deg avg
Maximum Angular Acceleration Inner Axis 800 deg s2
Thermal Chamber Temperature Range 60 C to 150 C
Heating Cooling Rate 3 C min
