High-dynamic precision triaxial testing turntable: Dynamic positioning solutions for automation and scientific research.

No.BE-INS3-24A33-N

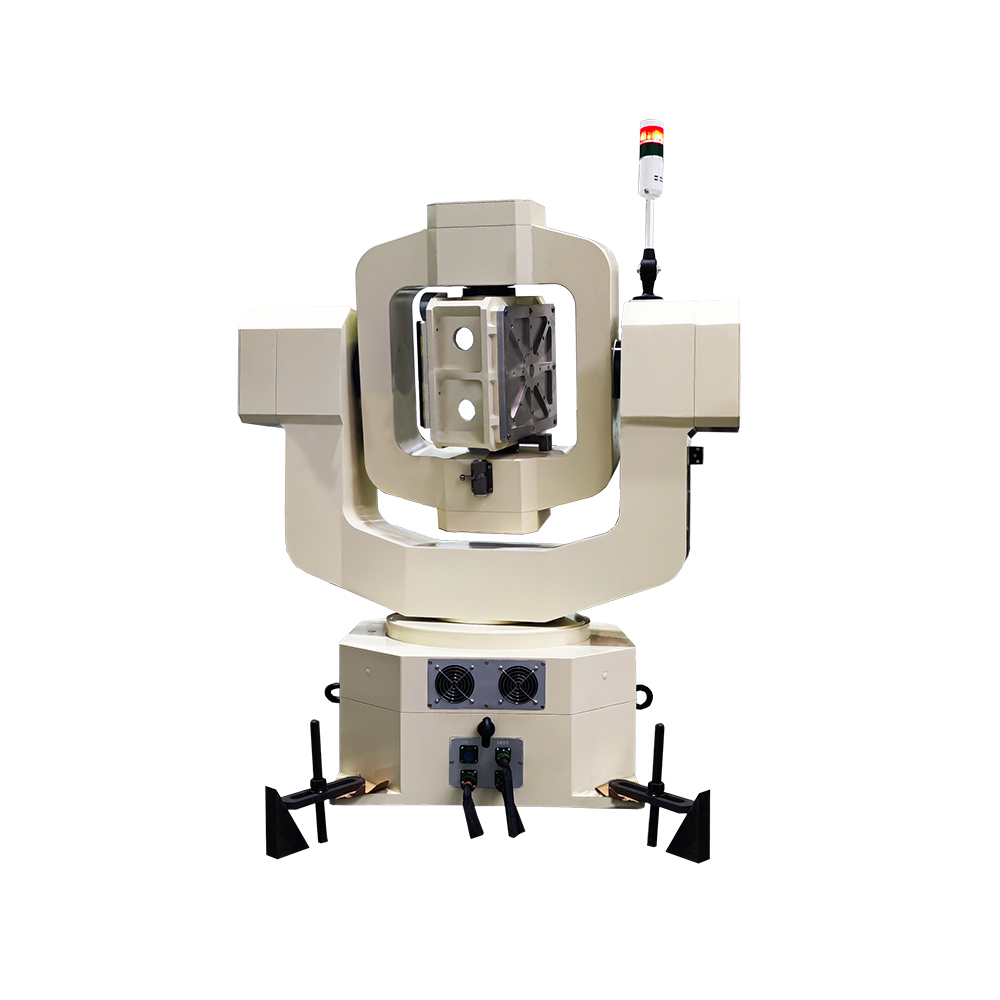

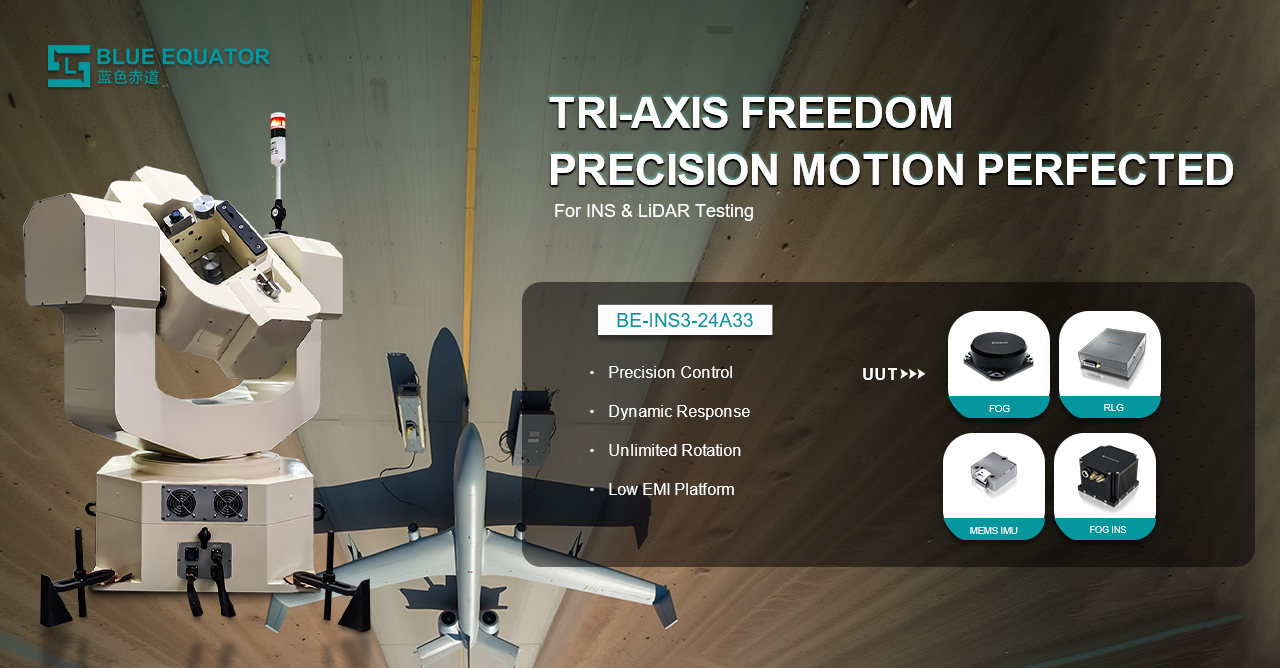

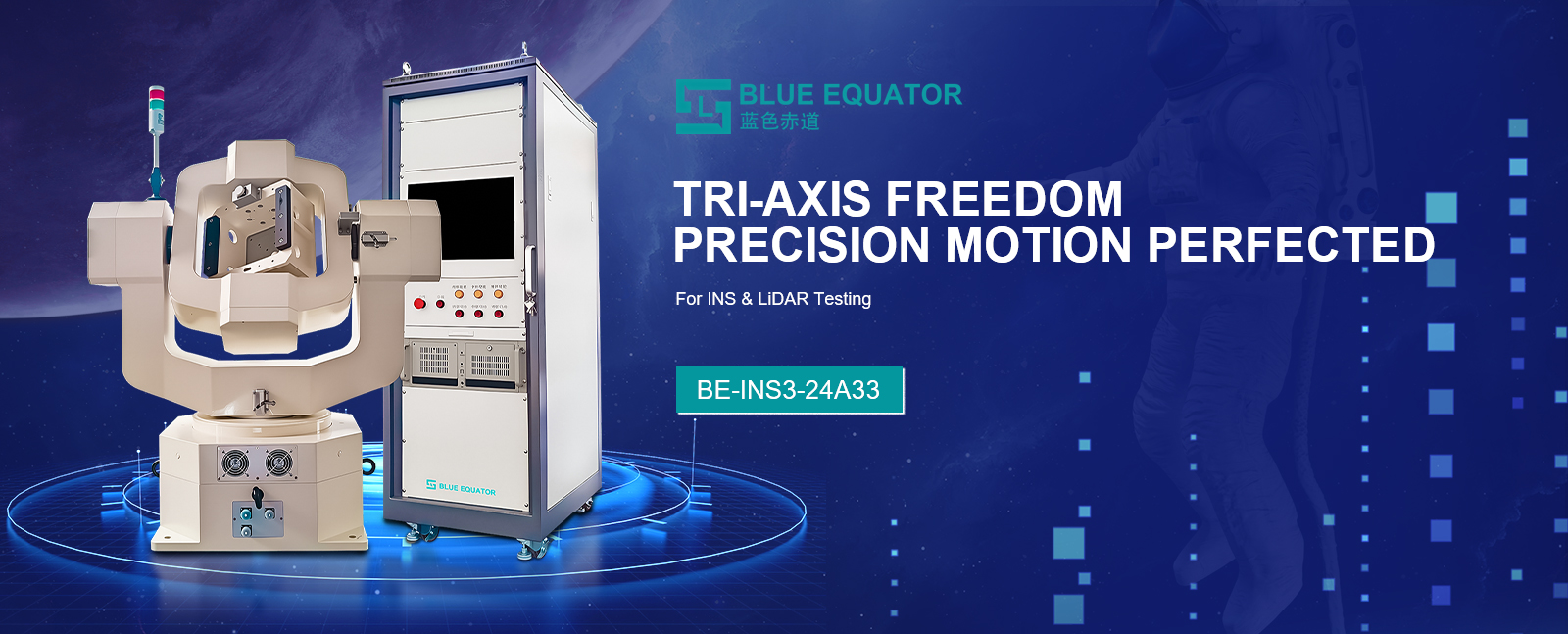

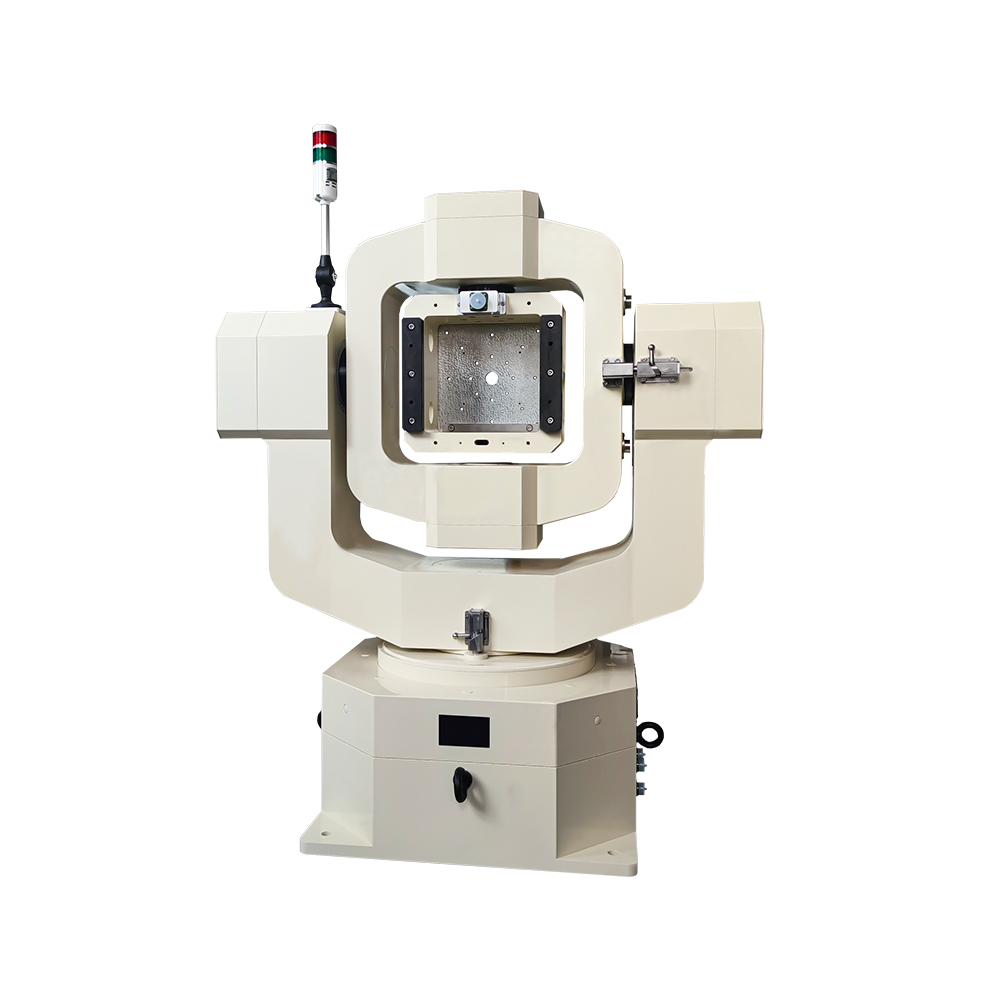

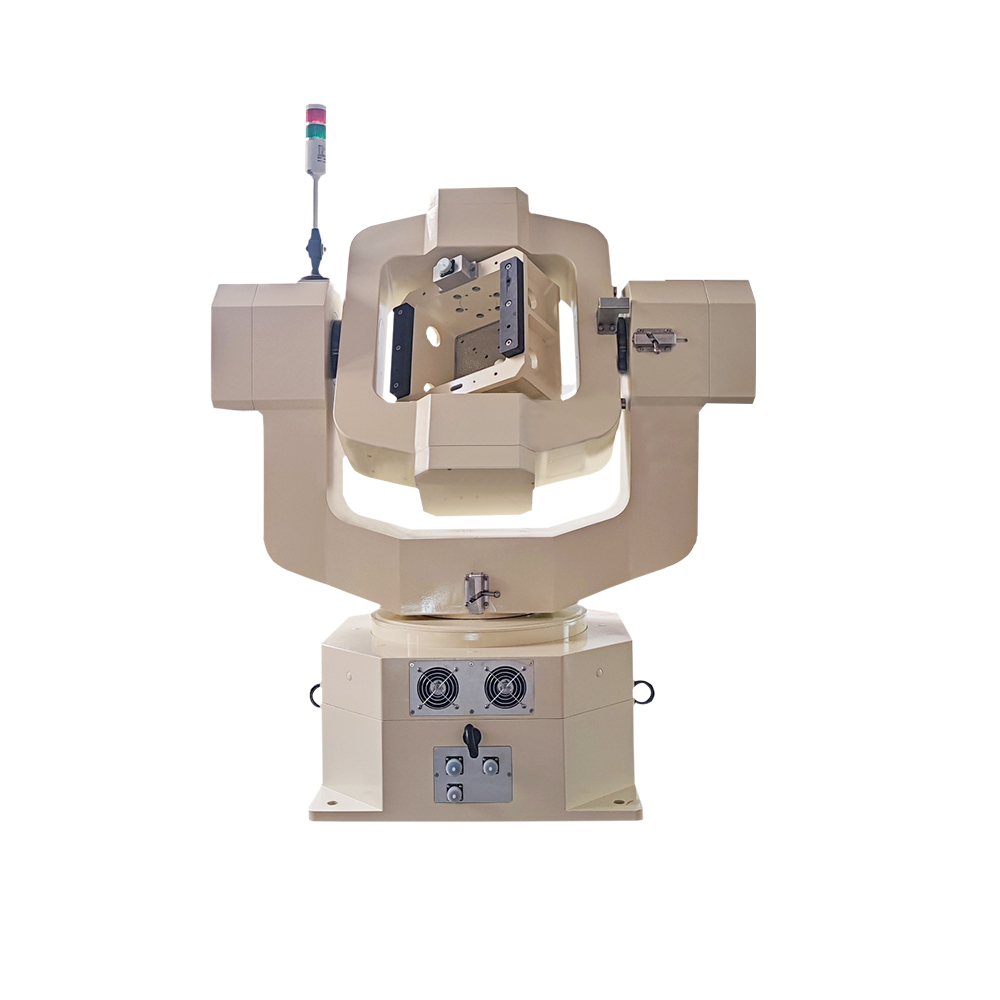

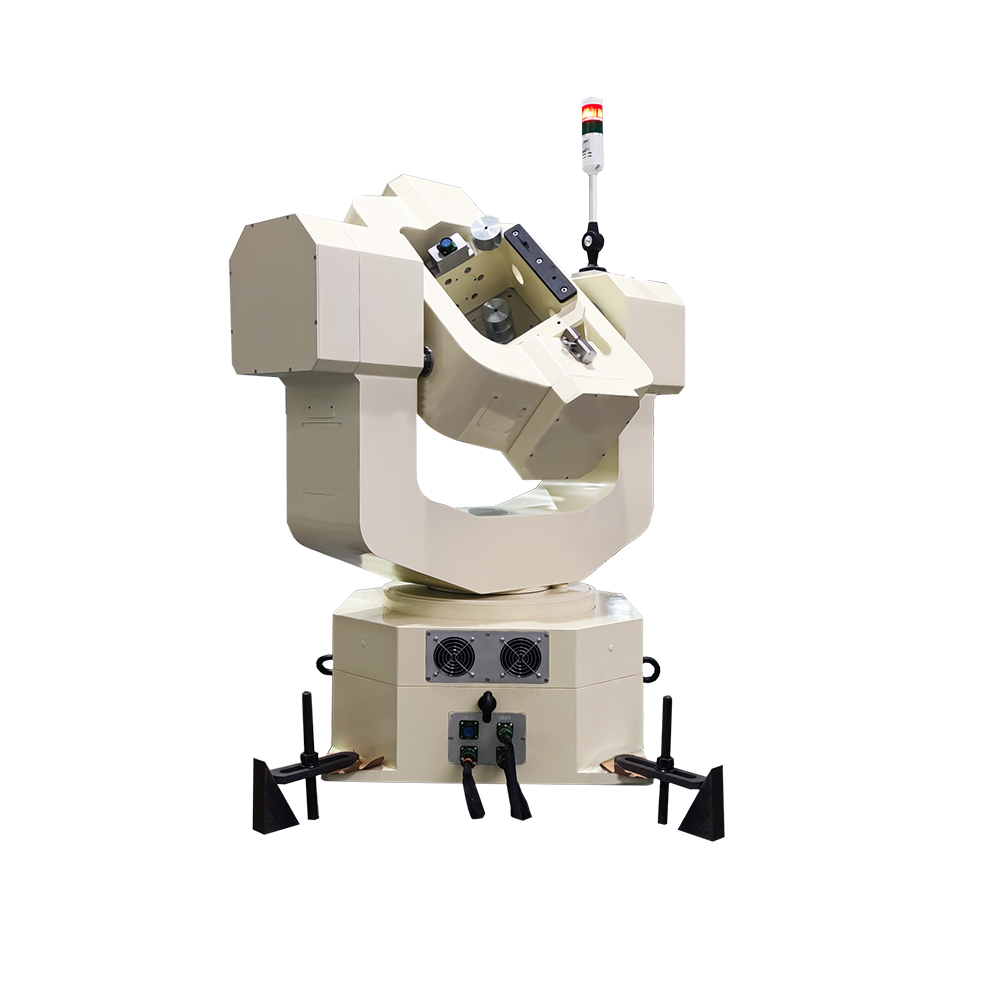

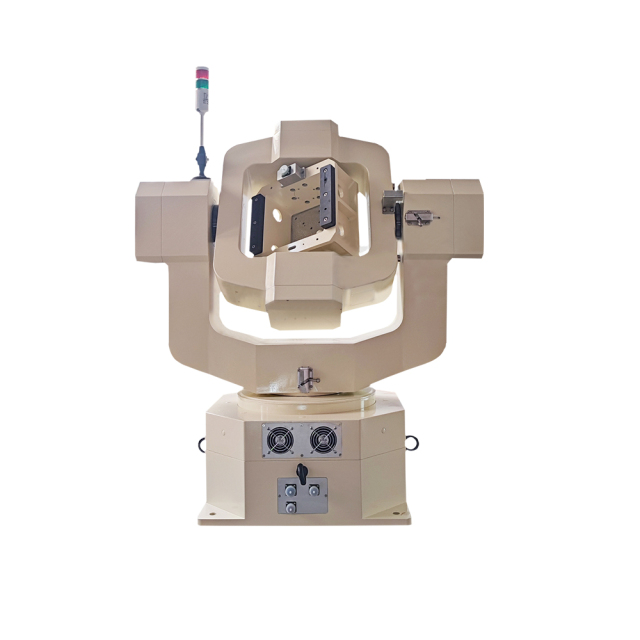

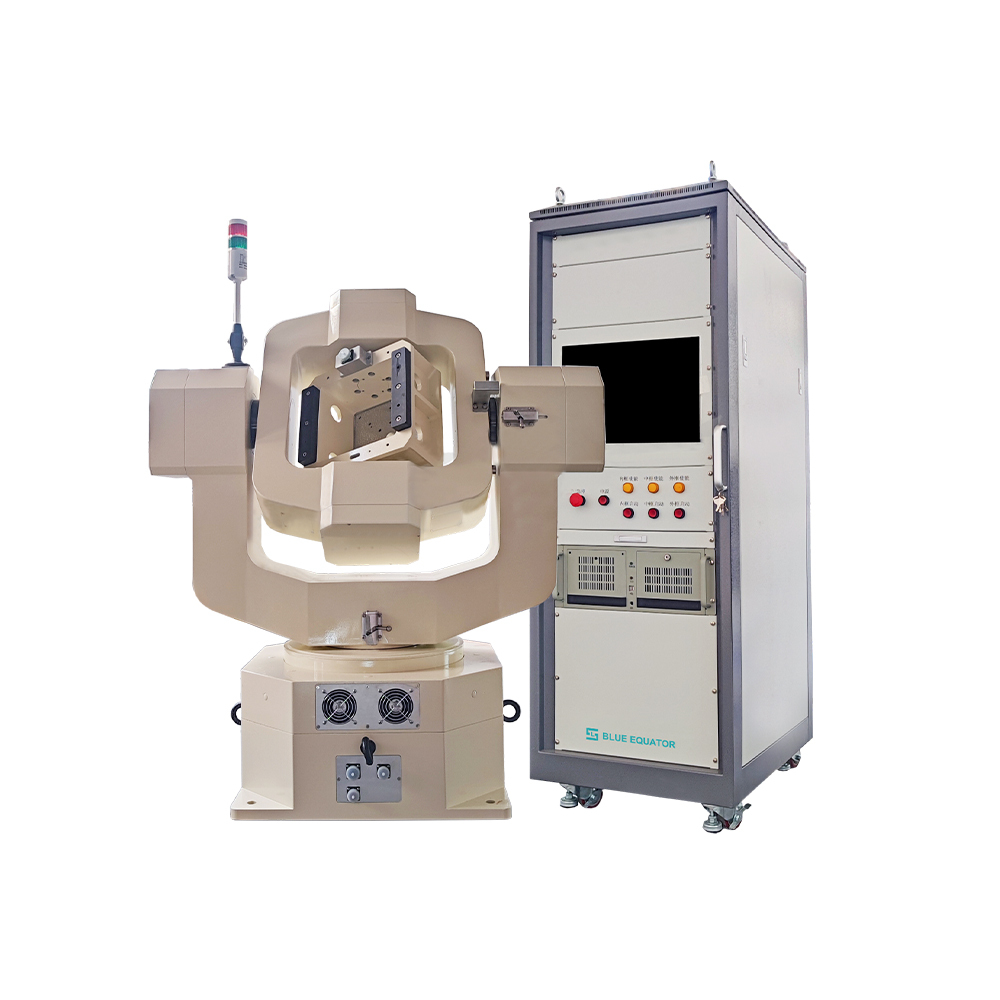

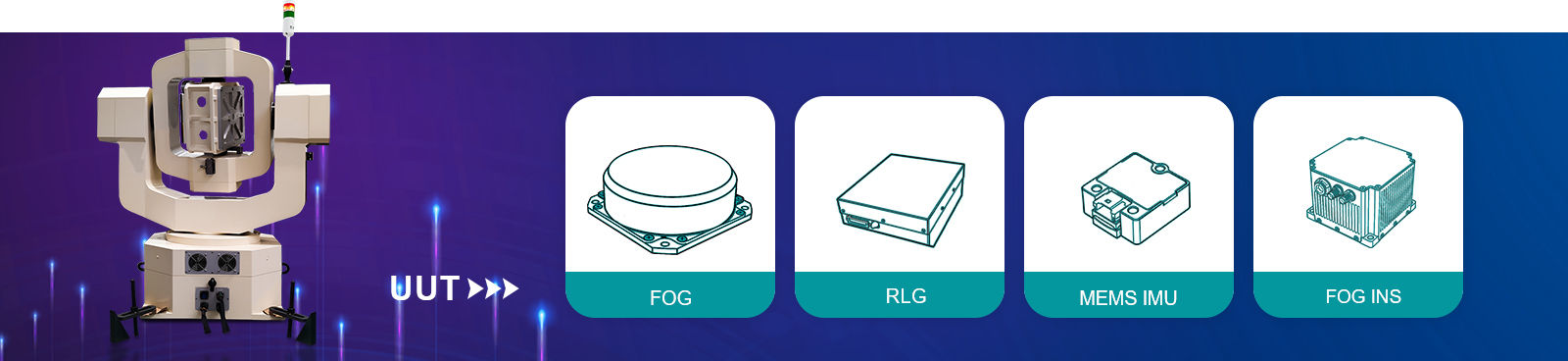

The Inertial Navigation Test Table offers 5 arc sec positioning accuracy, supports payloads up to 10kg. Designed for optical calibration, gyroscope testing, and MEMS sensor validation, it ensures high repeatability, thermal stability, and multi-axis precision for aerospace, UAV, and industrial automation applications.

Specifications

Rated load::

10.5kg

Load size::

⌀200×200×200mm

Inclination rotation accuracy::

Inner frame: ≤±5";

Minimum rate of three axes:

0.01°/s;

GET A QUOTE

Download

View all downloads

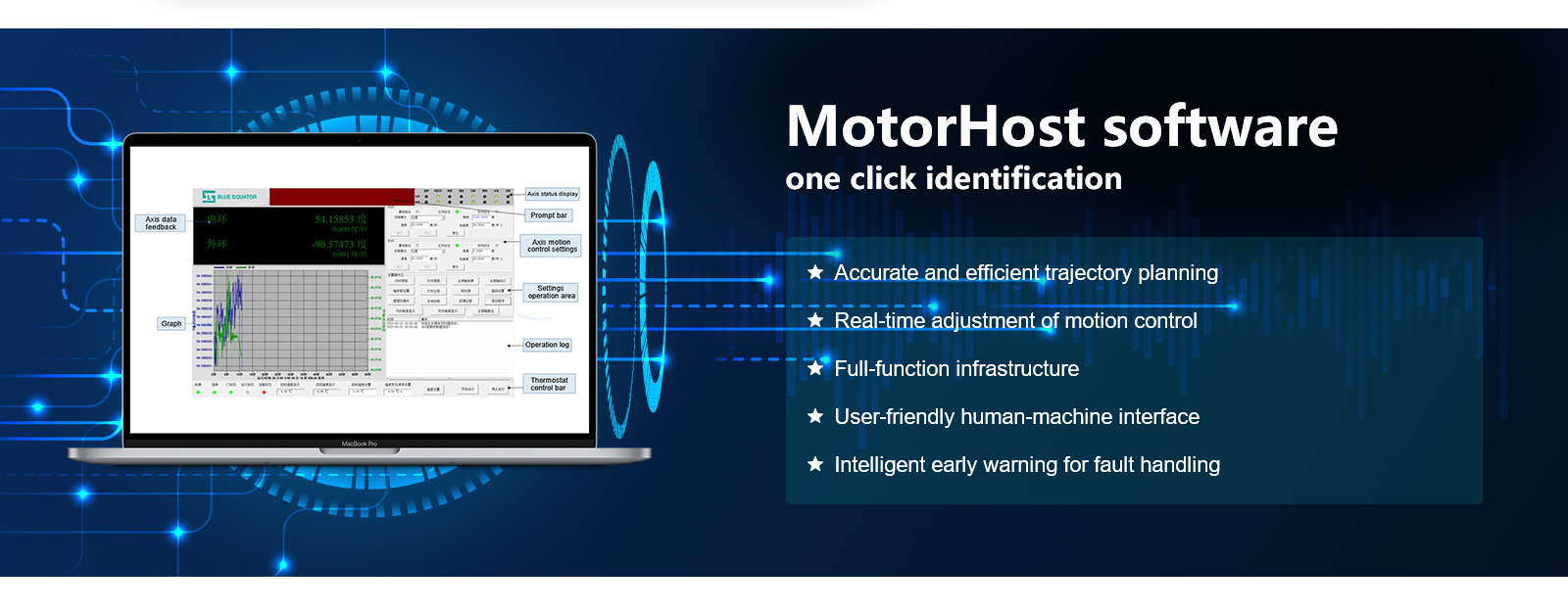

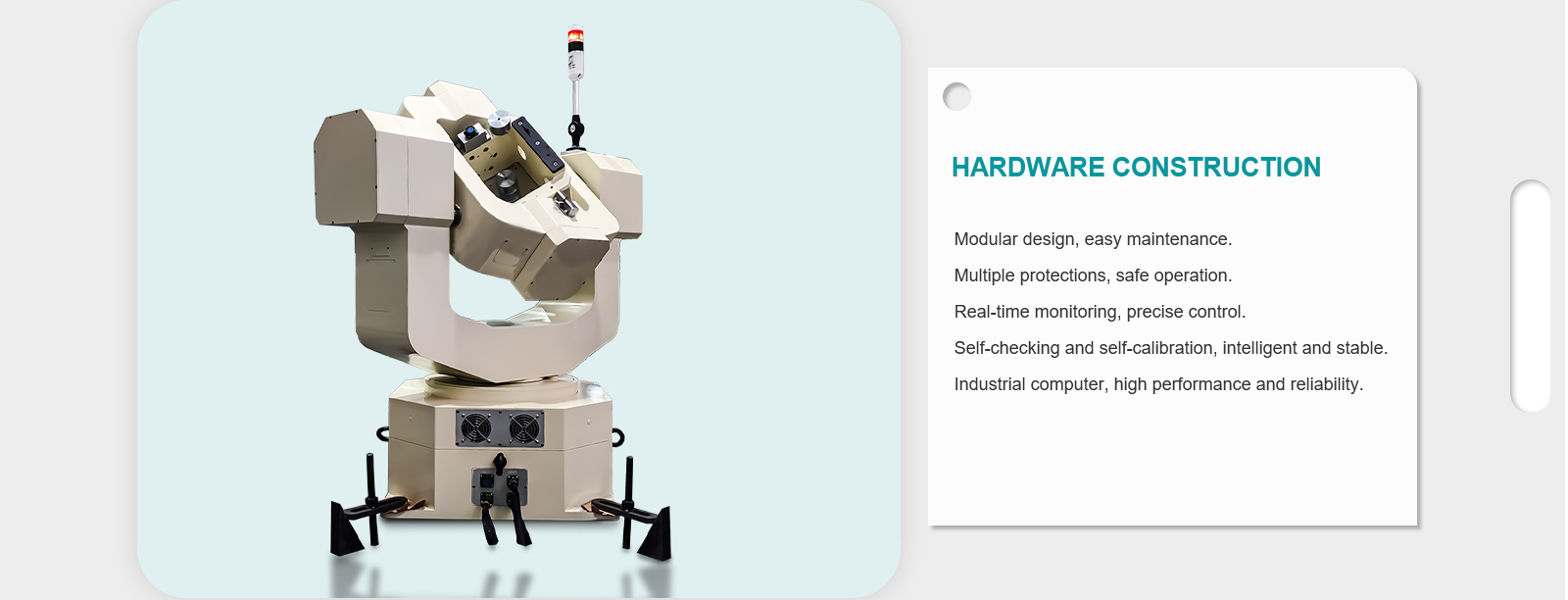

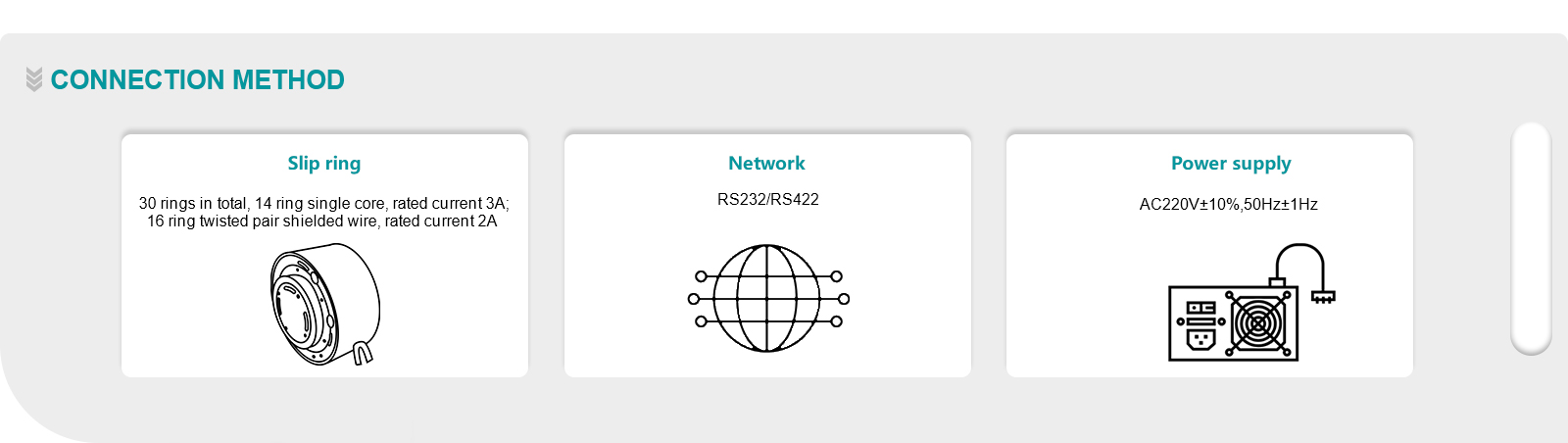

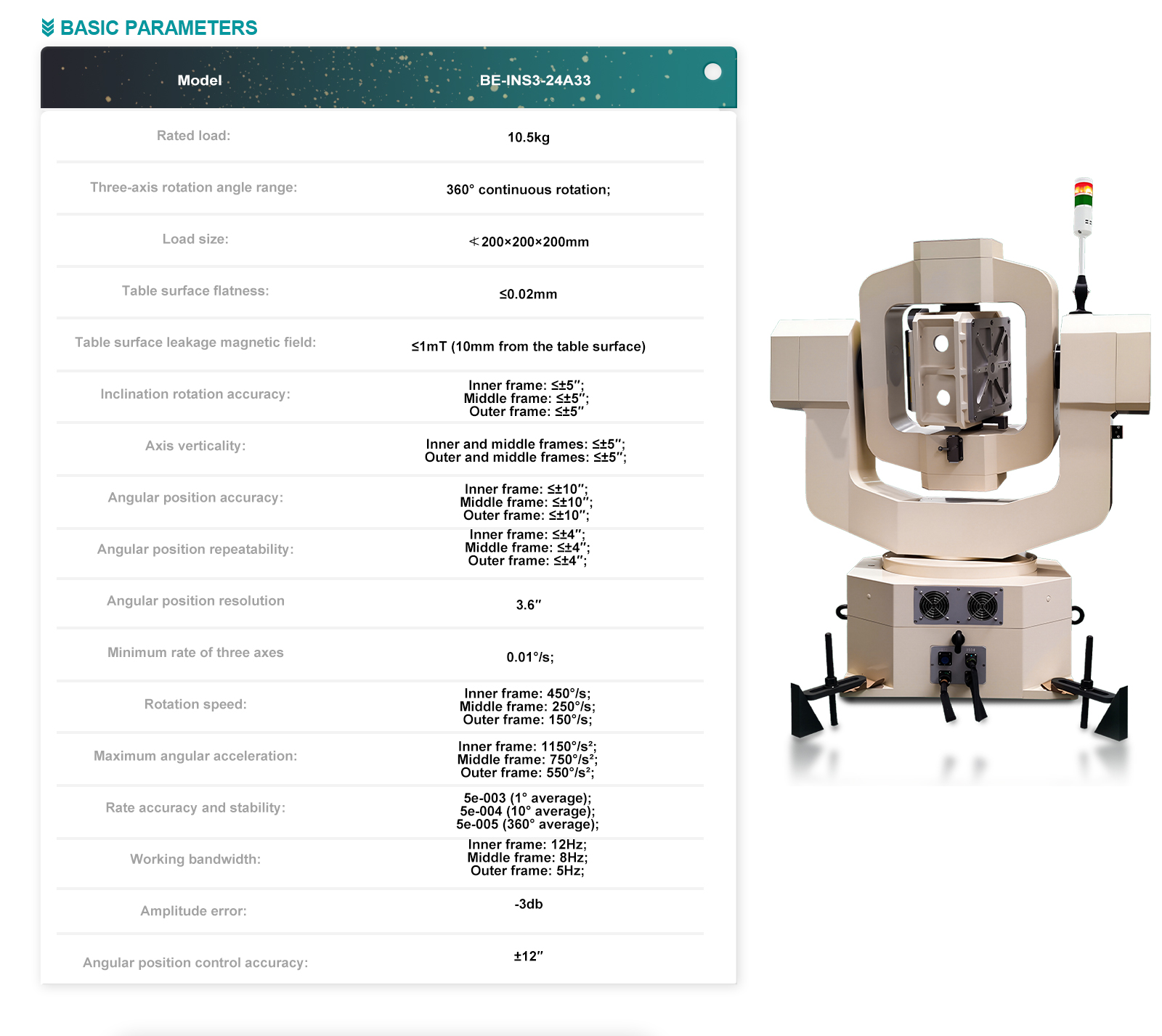

Technical parameter
Rated load:	10.5kg
Three-axis rotation angle range:	360° continuous rotation;
Load size:	⌀200×200×200mm
Table surface flatness:	≤0.02mm
Table surface leakage magnetic field:	≤1mT (10mm from the table surface)
Inclination rotation accuracy:	Inner frame: ≤±5";
	Middle frame: ≤±5";
	Outer frame: ≤±5"
Axis verticality:	Inner and middle frames: ≤±5";
Axis verticality:	Outer and middle frames: ≤±5"
Angular position accuracy:	Inner frame: ≤±10";
	Middle frame: ≤±10";
	Outer frame: ≤±10"
Angular position repeatability:	Inner frame: ≤±4";
	Middle frame: ≤±4";
	Outer frame: ≤±4"
Angular position resolution	3.6"
Minimum rate of three axes	0.01°/s;
Rotation speed:	Inner frame: 450°/s;
	Middle frame: 250°/s;
	Outer frame: 150°/s
Maximum angular acceleration:	Inner frame: 1150°/s²;
	Middle frame: 750°/s²;
	Outer frame: 550°/s²
Rate accuracy and stability:	5e-003 (1° average);
	5e-004 (10° average);
	5e-005 (360° average)
Working bandwidth:	Inner frame: 12Hz;
	Middle frame: 8Hz;
	Outer frame: 5Hz
Amplitude error:	-3db
Angular position control accuracy:	±12"
