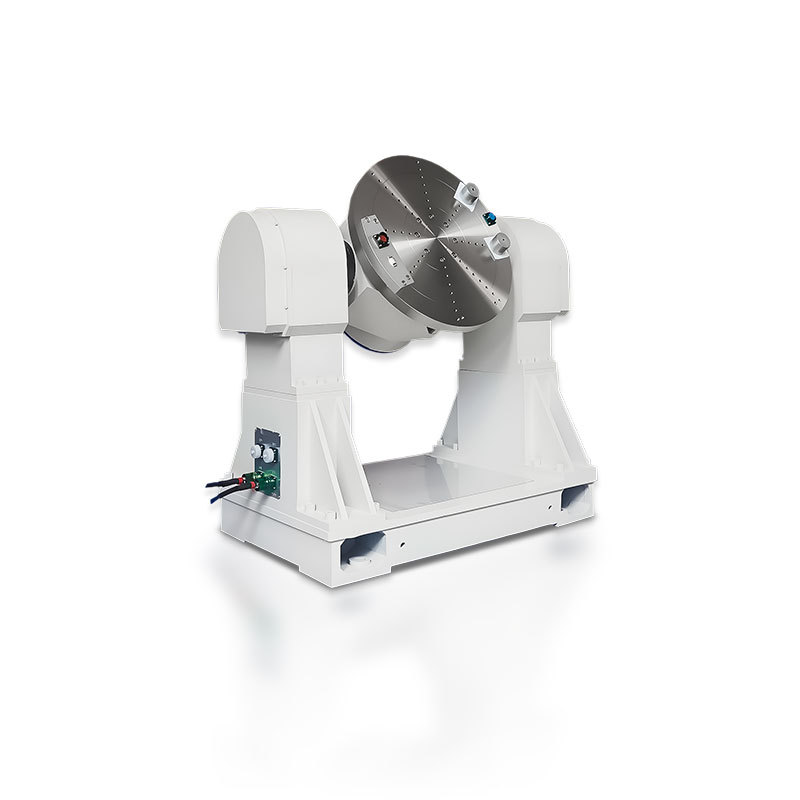

• High precision dual axis rate table for INS and spacecraft attitude test on white background
  • Rate test stand with precision encoder for ±3 arcsec positioning accuracy

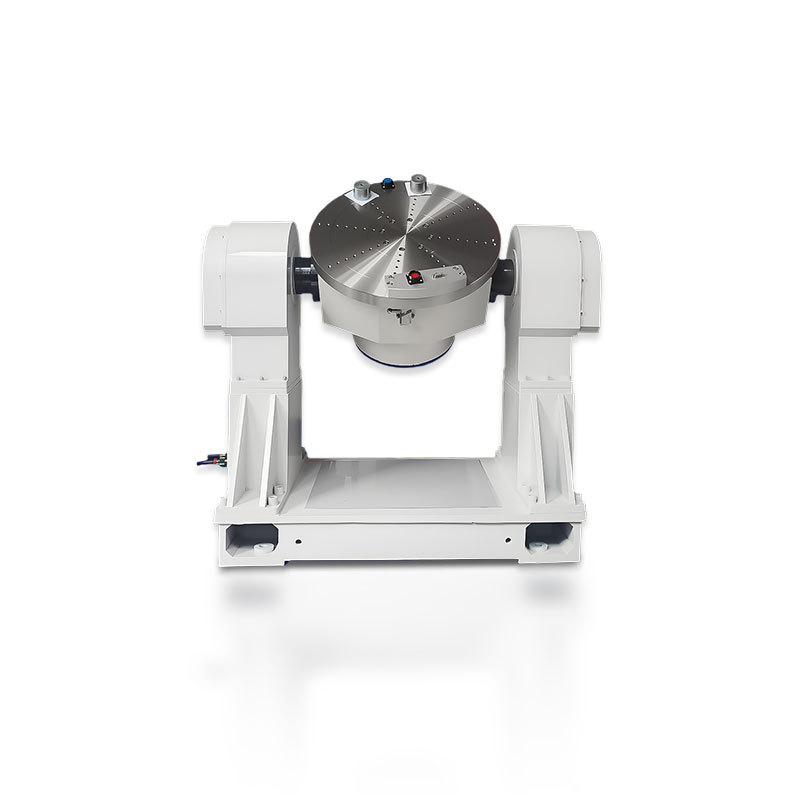

  • Close up of high resolution angle sensor for 0.36 arcsec measurement resolution

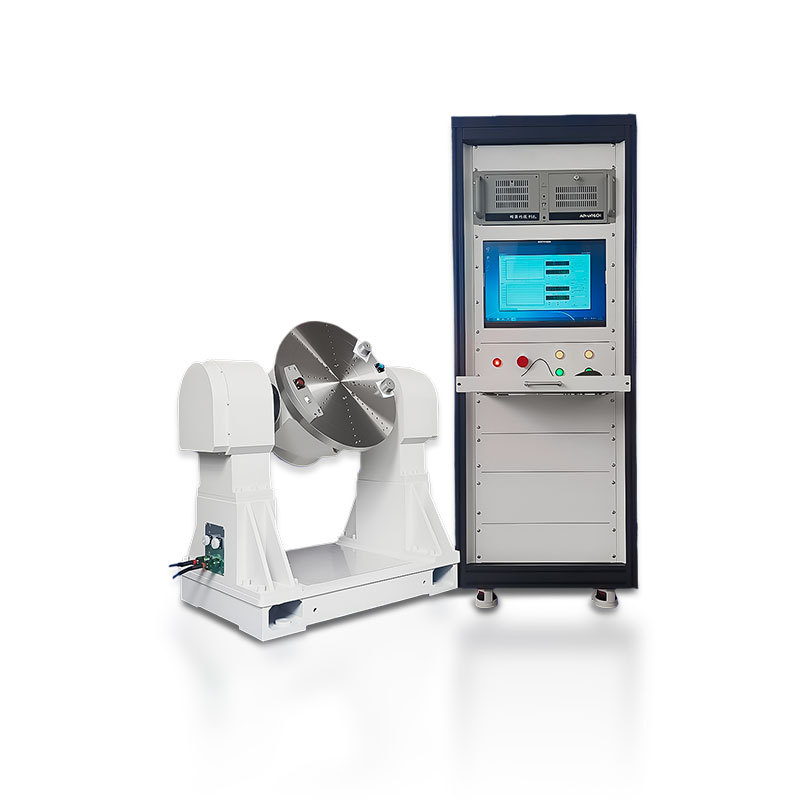

  • Rate table performing dynamic rate test for satellite attitude control ground validation
  • Test equipment dimensions on aerospace workbench with control interface
  • Automated control interface executing INS calibration and data acquisition sequence
  • High precision dual axis rate table for INS and spacecraft attitude test on white background
  • Rate test stand with precision encoder for ±3 arcsec positioning accuracy
  • Close up of high resolution angle sensor for 0.36 arcsec measurement resolution
  • Rate table performing dynamic rate test for satellite attitude control ground validation
  • Test equipment dimensions on aerospace workbench with control interface
  • Automated control interface executing INS calibration and data acquisition sequence

High Precision Dual Axis Rate Table for INS and Spacecraft Attitude Test

No.BE-INS2-24B21

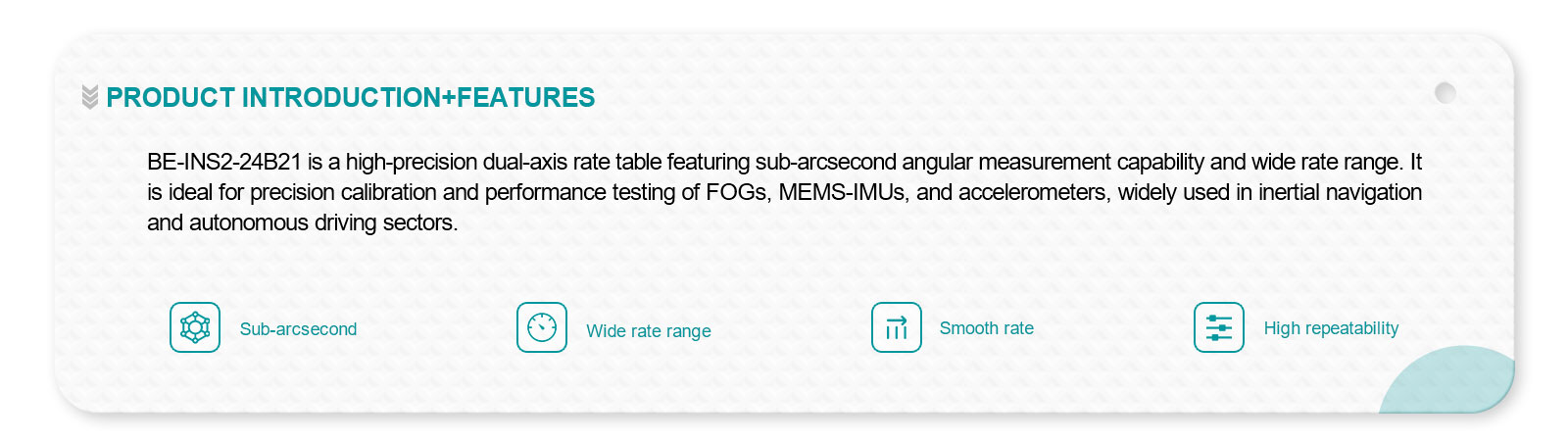

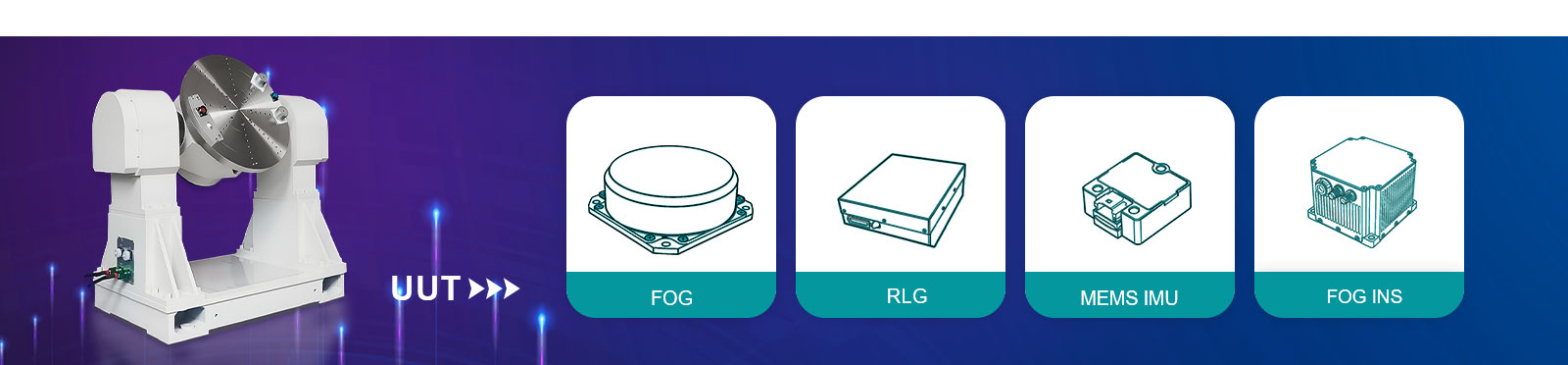

High precision dual axis rate table for INS calibration and spacecraft attitude control. Arc-second accuracy with high resolution ensures reliable gyroscope and accelerometer testing. Wide rate range with fine resolution supports low-speed drift and high-dynamic response. Exceptional rate stability across the full speed range. Designed for satellite ground testing, flight navigation calibration, and aerospace sensor validation.
Specifications
Position accuracy:
±3″
Position repeatability:
±3″
Rate range:
±0.001°/s~±350°/s
Rate resolution:
0.0001°/s
Angular position measurement resolution:
0.36″
Download
View all downloads
  • High precision dual axis rate table for INS and spacecraft attitude test on white background
  • Rate test stand with precision encoder for ±3 arcsec positioning accuracy
  • Close up of high resolution angle sensor for 0.36 arcsec measurement resolution
  • Rate table performing dynamic rate test for satellite attitude control ground validation
  • Test equipment dimensions on aerospace workbench with control interface
  • Automated control interface executing INS calibration and data acquisition sequence

Description

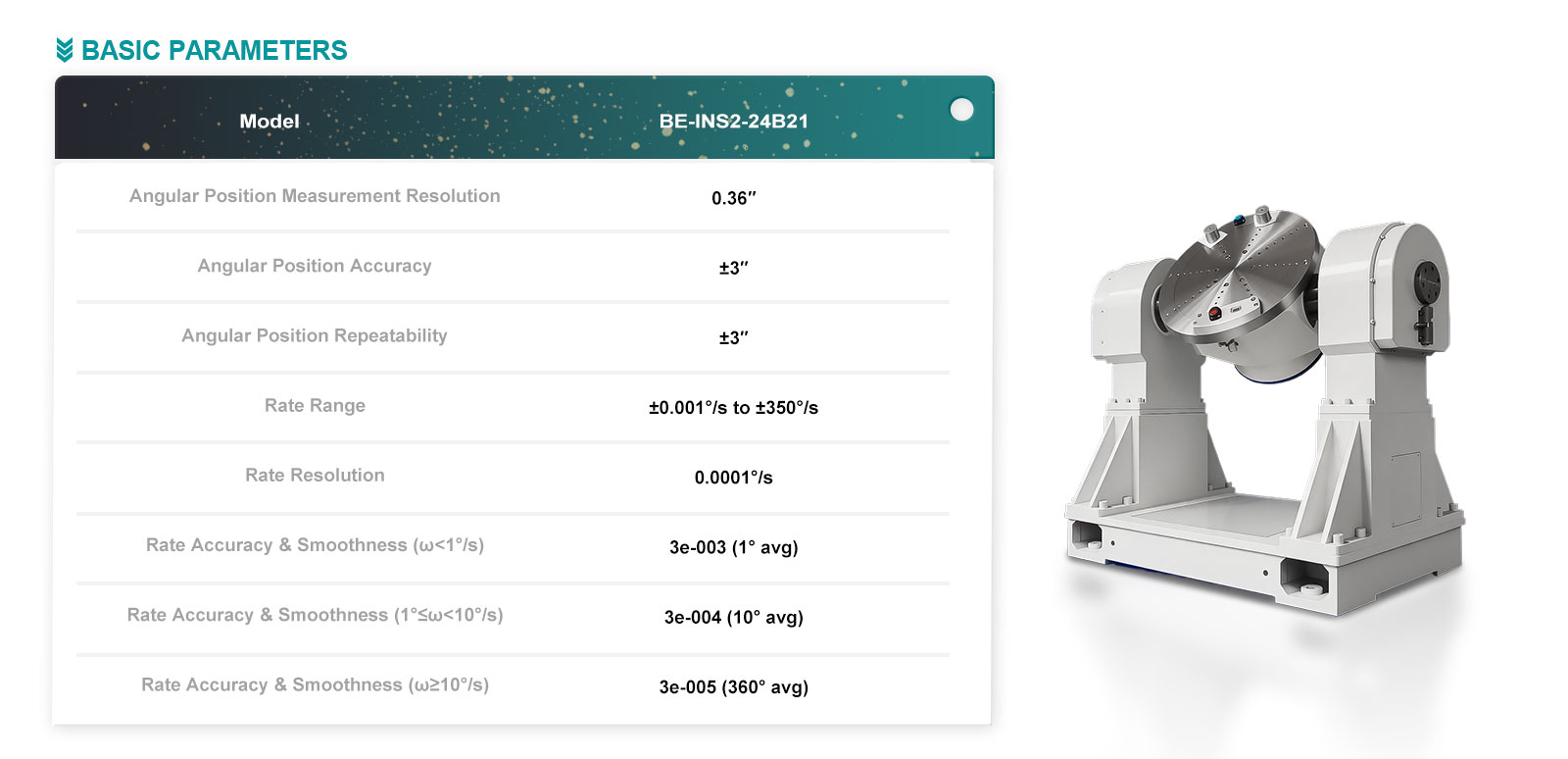

Technical Specifications – Consolidated Table

Angular position measurement resolution:

0.36″

Angular position positioning accuracy:

±3″

Angular position positioning repeatability:

±3″

Rate range:

±0.001°/s~±350°/s

Rate resolution:

0.0001°/s

Rate accuracy and stability:



ω<1°/s, 3e-003 (1° average);

1°≤ω<10°/s, 3e-004 (10° average);

10°/s≤ω, 3e-005 (360° average).
