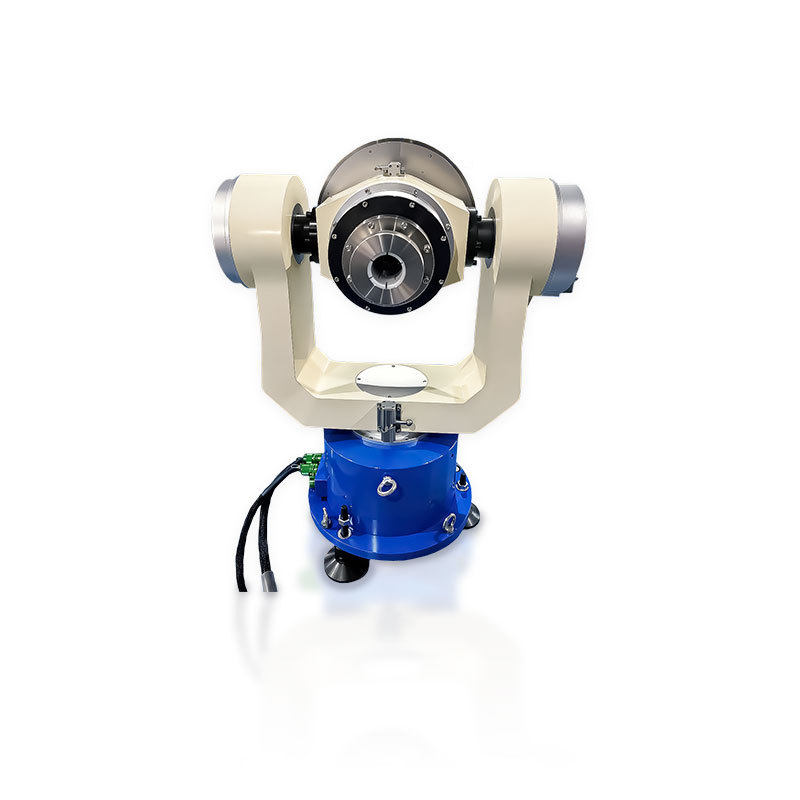

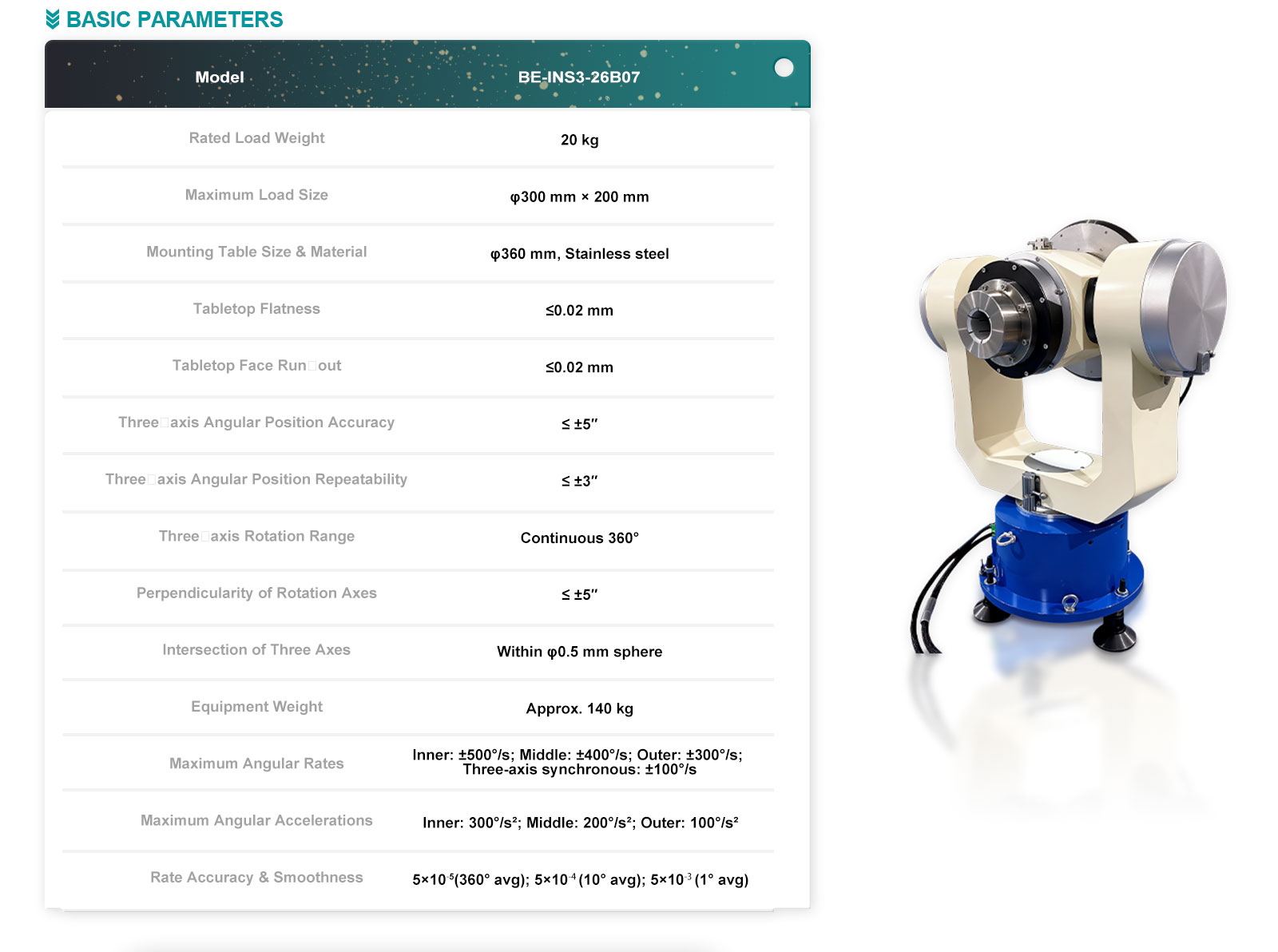

| Rated load capacity |
20 kg |
| Maximum load dimensions |
⌀300 mm × 200 mm (height) |

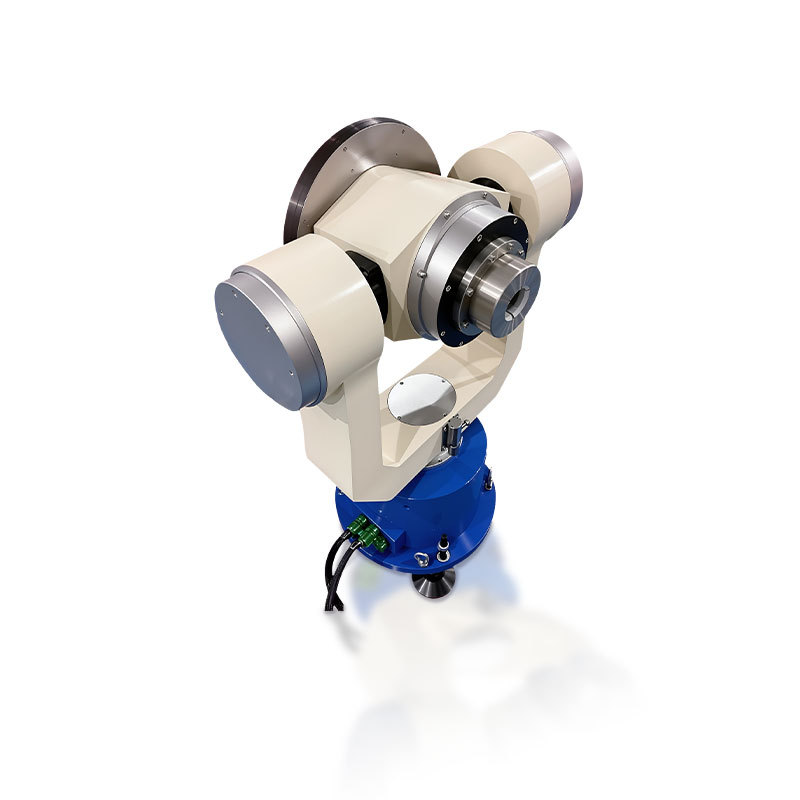

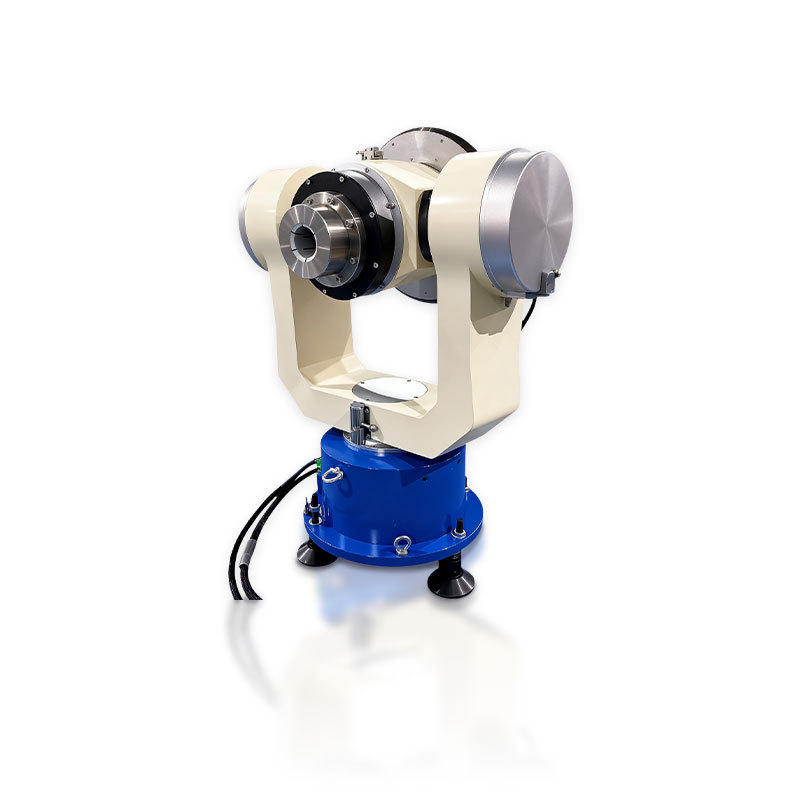

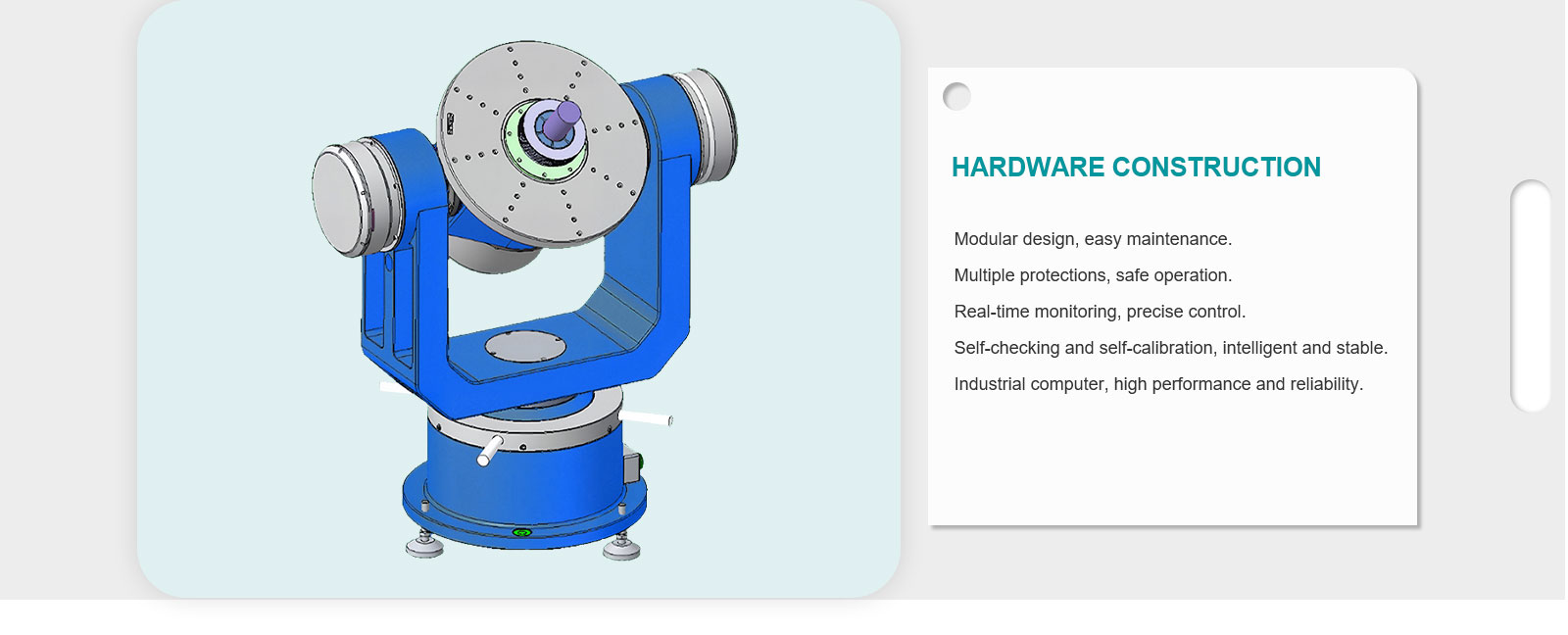

| Load mounting table diameter |
⌀360 mm, stainless steel material |
| Table flatness |
≤ 0.02 mm |
| Table end face runout (axial) |
≤ 0.02 mm |
| Mounting screw holes pattern |
M6 threaded holes, spacing 25 mm (grid pattern) |

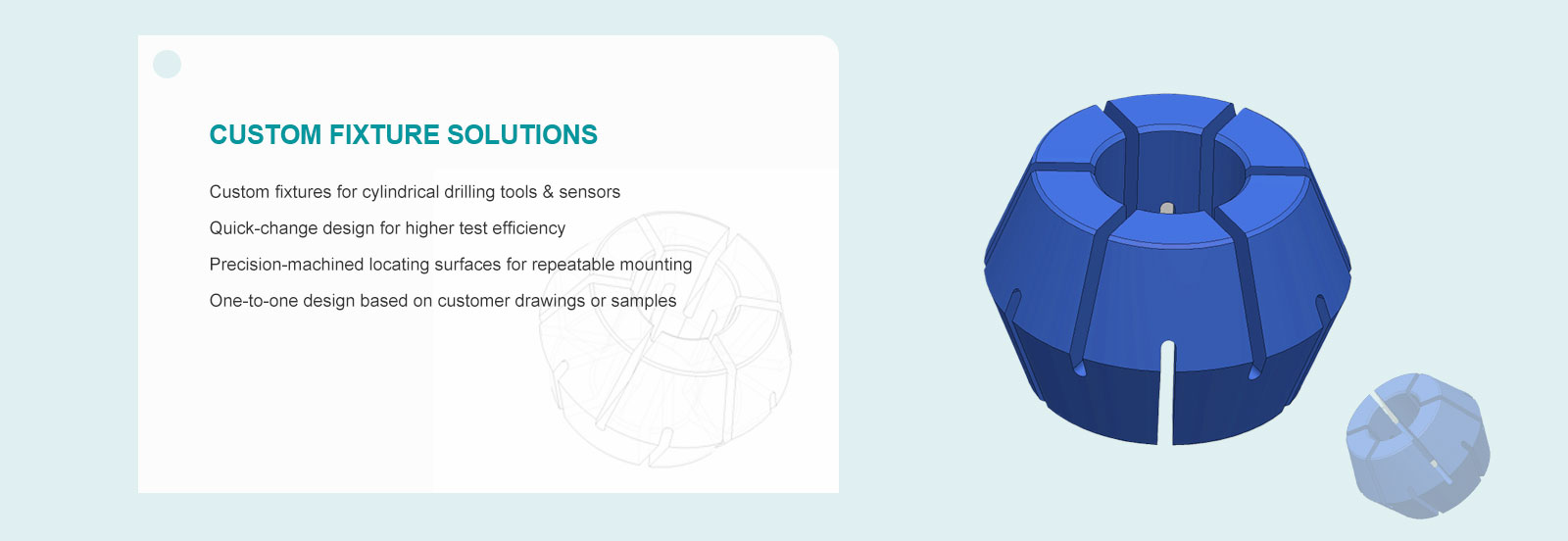

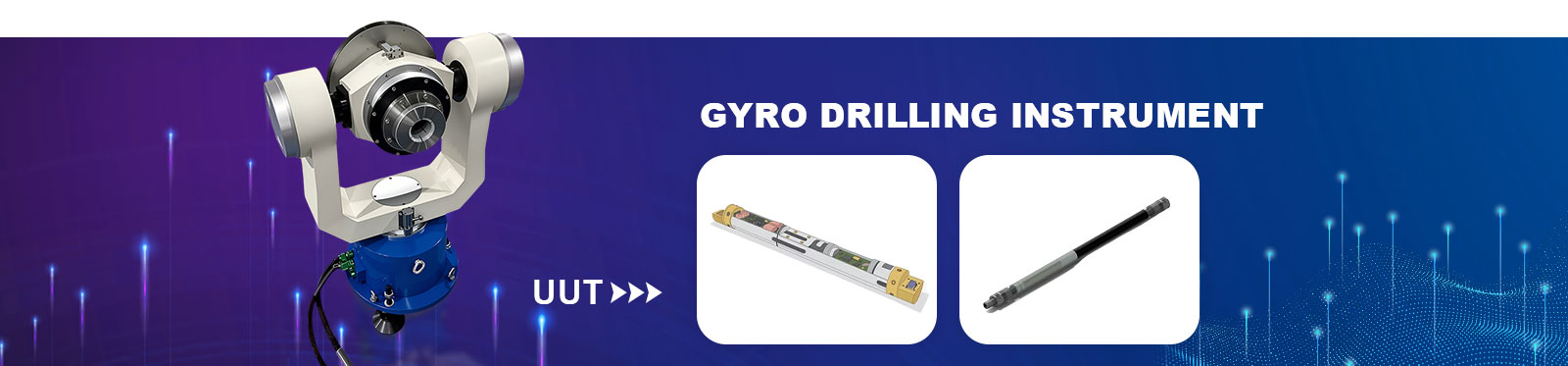

| Customizable test fixture size |
⌀33 mm (customizable upon request) |

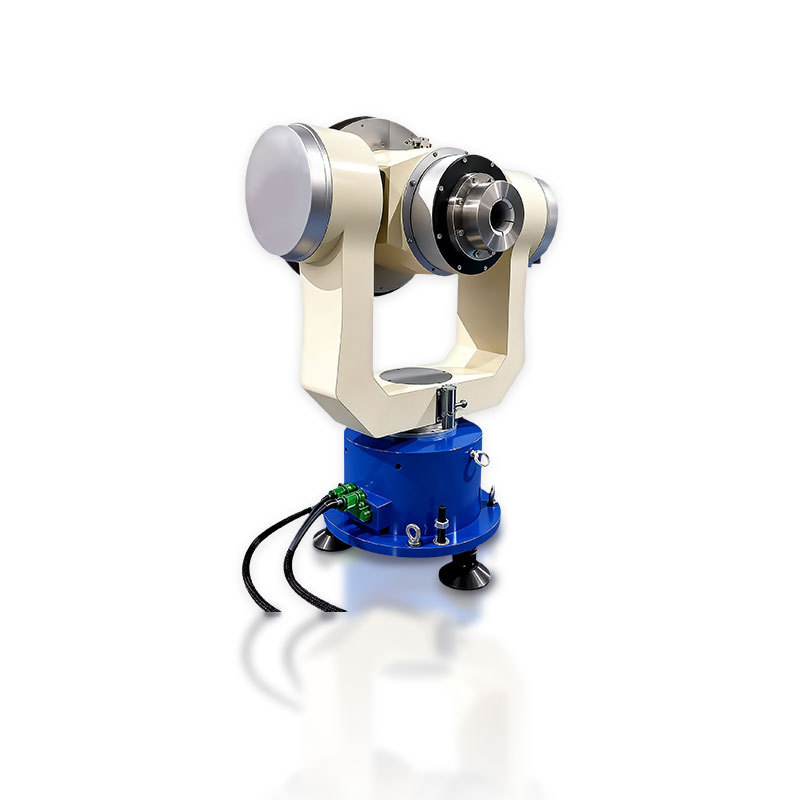

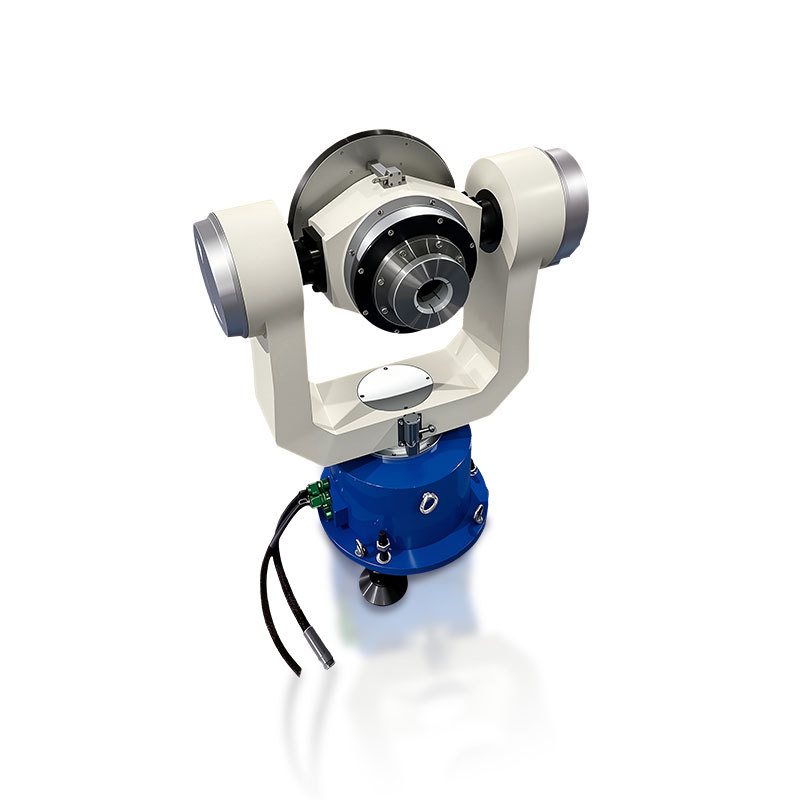

| Angular positioning accuracy (three axes) |
≤ ±5 arcsec (″) |
| Angular positioning repeatability (three axes) |
≤ ±3 arcsec (″) |
| Angular travel range (each axis) |
360° continuous rotation |
| Orthogonality between rotational axes |
≤ ±5 arcsec (″) |
| Intersection accuracy of three axes (concurrency) |
Within ⌀0.5 mm sphere |
| Equipment weight (approximate) |
~140 kg |
| Maximum angular rate (per axis & coupled) |
| Inner frame (roll / axis 1) |
±500 °/s |
| Middle frame (pitch / axis 2) |
±400 °/s |
| Outer frame (azimuth / axis 3) |
±300 °/s |
| Three-axis synchronized rate (coordinated) |
±100 °/s |
| Maximum angular acceleration |
| Inner frame |
300 °/s² |
| Middle frame |
200 °/s² |
| Outer frame |
100 °/s² |
| Rate accuracy & rate smoothness (steady-state) |
| Average over 360° |
5 × 10⁻⁵ |
| Average over 10° |
5 × 10⁻⁴ |
| Average over 1° |
5 × 10⁻³ |

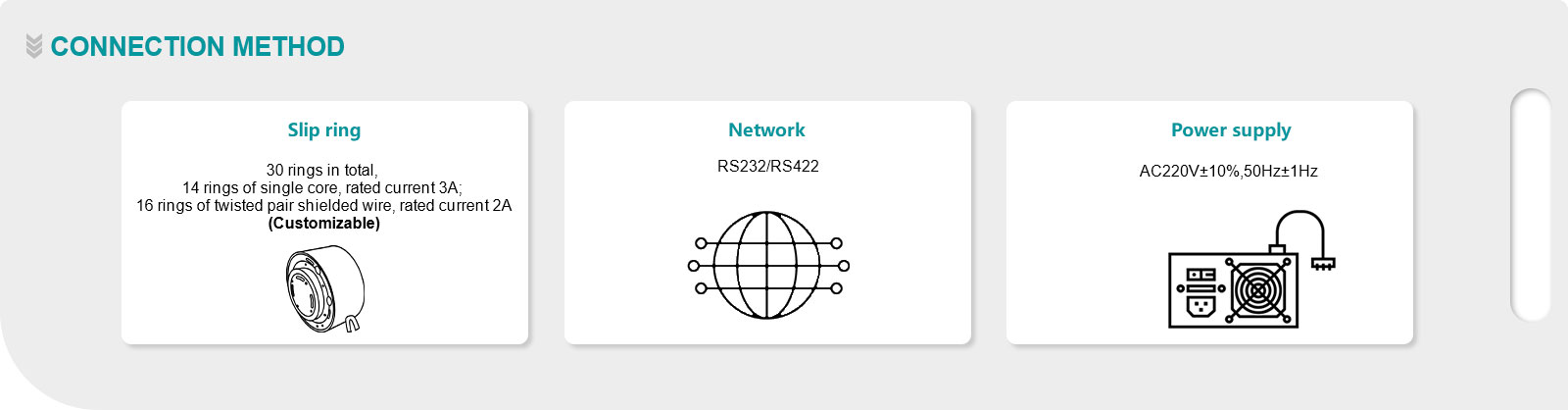

| Total number of channels |
30 channels |
| Detailed channel configuration |
- 14 single-core channels — rated current: 3 A each
- 16 twisted-pair shielded channels — rated current: 2 A each
|

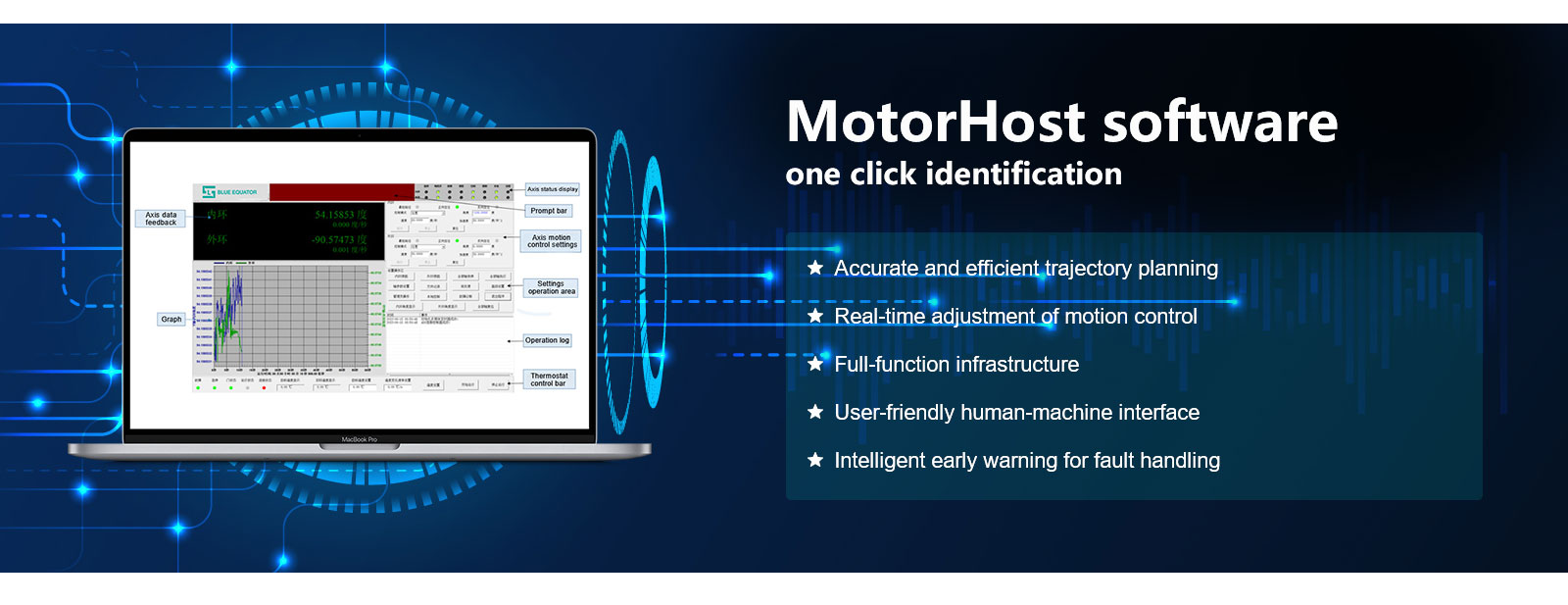

| Main software functions |
Automatic computer-based status control, real-time data acquisition, processing and graphical display |

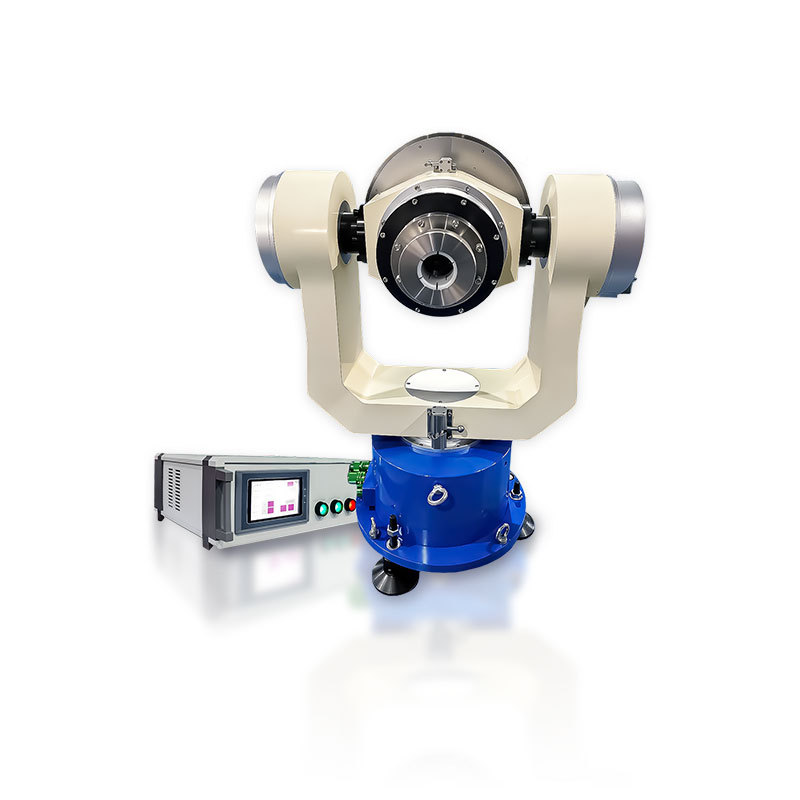

| Communication interface |
RS-232 (standard serial port) |
