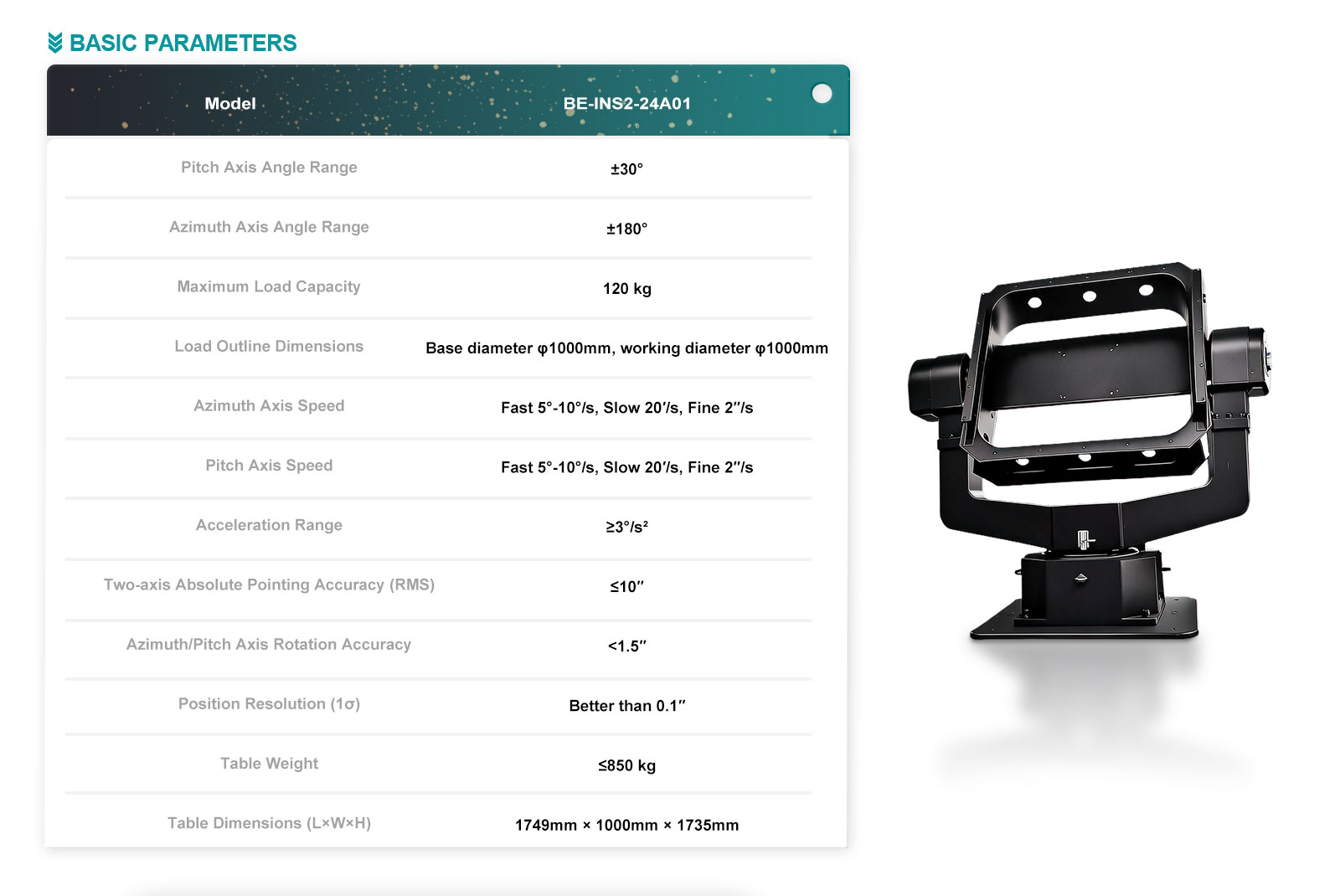

Technical Specifications
|
Parameter |
Specification |
|
Pitch axis angle range |
±30° |
|
Azimuth axis angle range |
±180° |
|
Maximum load weight |
120kg |
|
Load dimensions |
base diameter φ1000mm, working range diameter φ1000mm |
|
Azimuth axis speed |
fast motion 5°～10°/s, slow motion 20′/s, micro motion 2″/s |
|
Pitch axis speed |
fast motion 5°～10°/s, slow motion 20′/s, micro motion 2″/s |
|
Acceleration range |
≥3°/s² |
|
Comprehensive absolute pointing accuracy (two axes) |
≤10″ (RMS) |
|
Azimuth axis / pitch axis rotation accuracy |
<1.5″ |
|
Position resolution |
better than 0.1″ (1σ) |
|
Mechanical platform weight |
≤850kg |
|
Mechanical platform dimensions |
1749mm × 1000mm × 1735mm |
