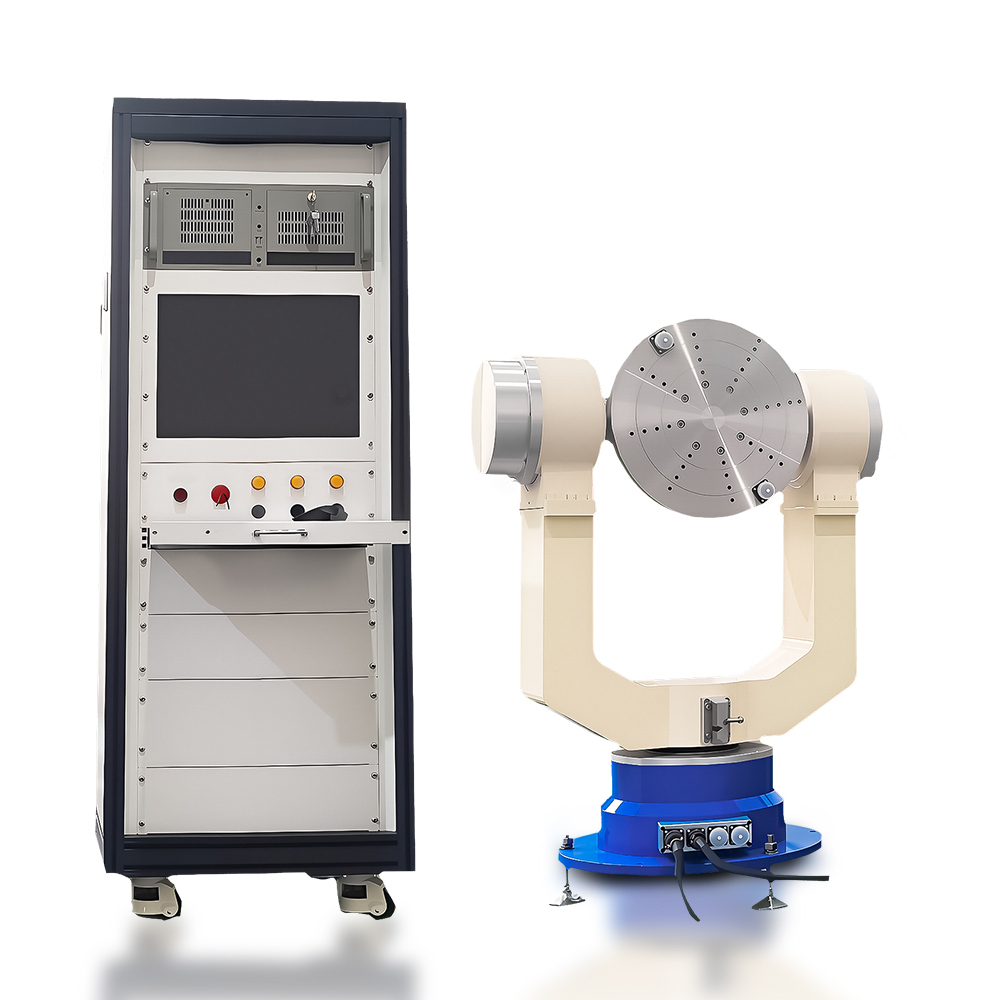

  • White background inertial navigation test table with three axis motion capability for aerospace calibration

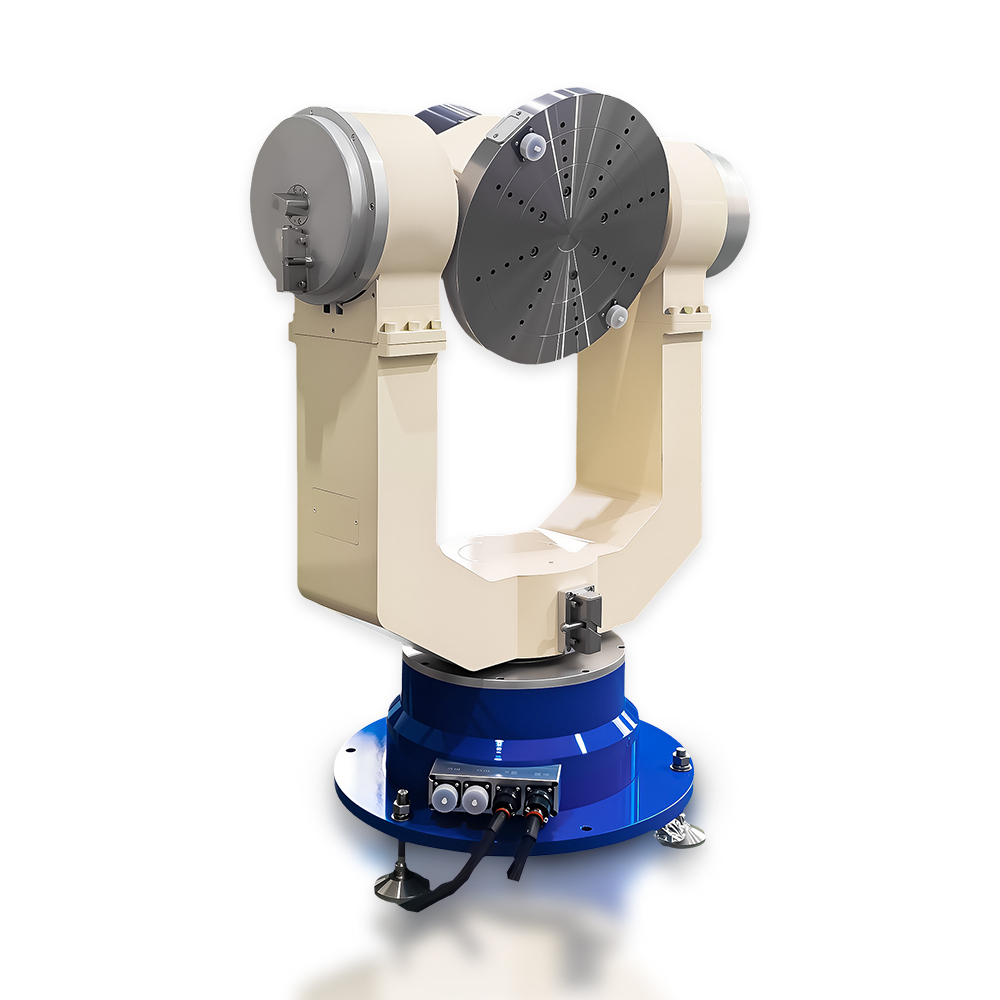

  • Three axis inertial navigation test table in industrial lab setup for gyroscope and sensor validation

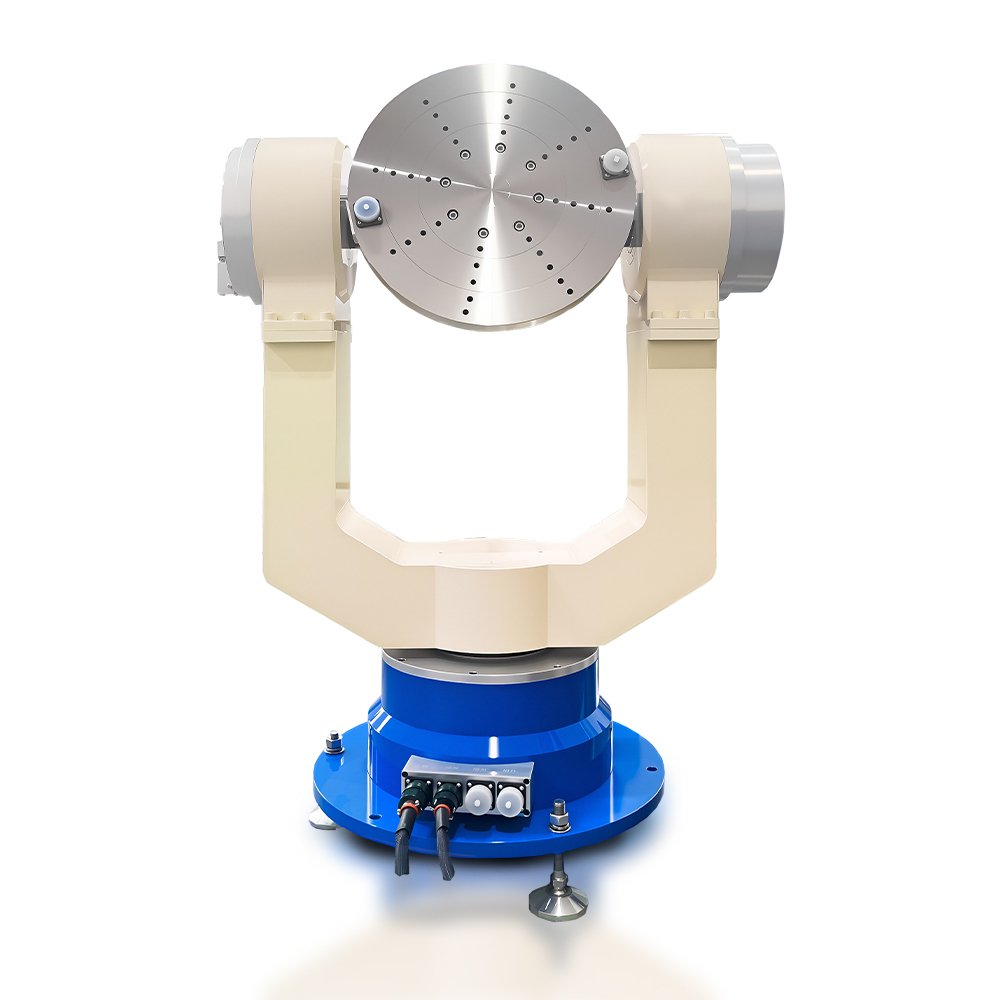

  • Close-up of precision rotary bearing on inertial navigation test table ensuring smooth motion control

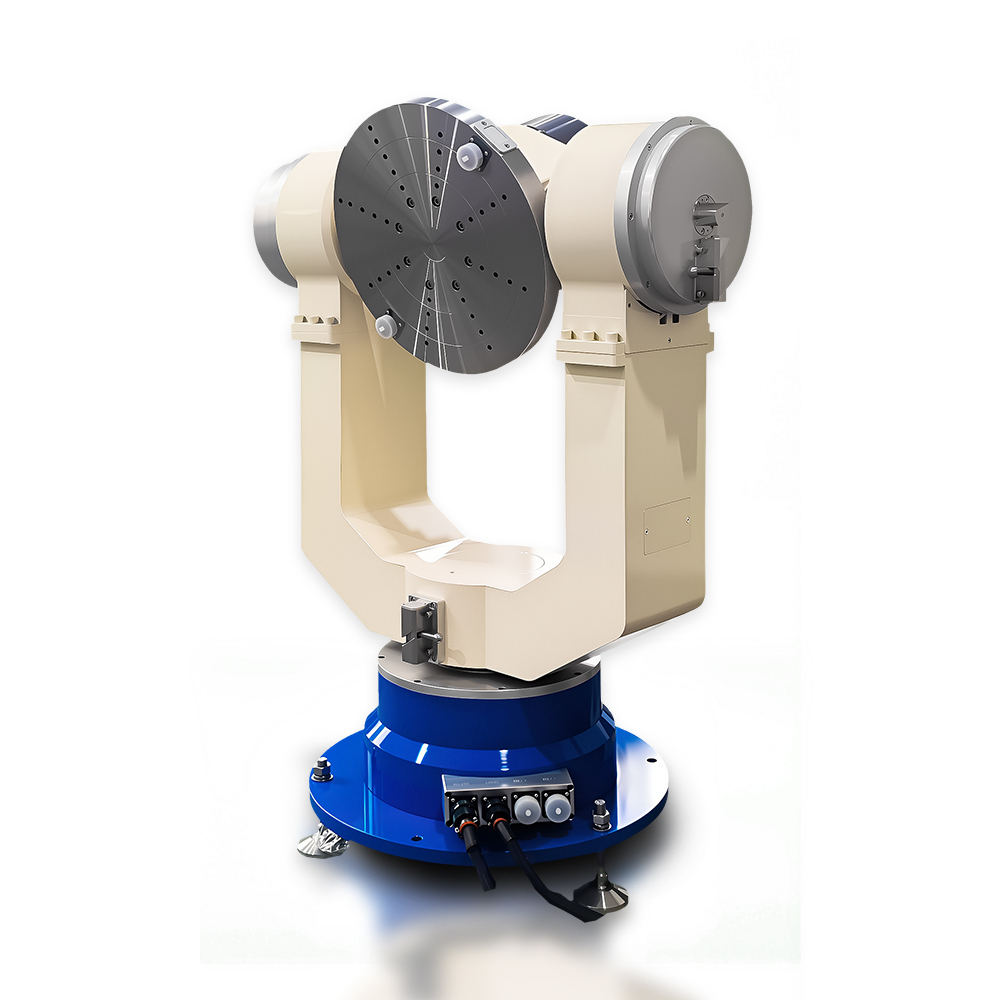

  • Inertial navigation test table operating in UAV development laboratory with flight simulation equipment

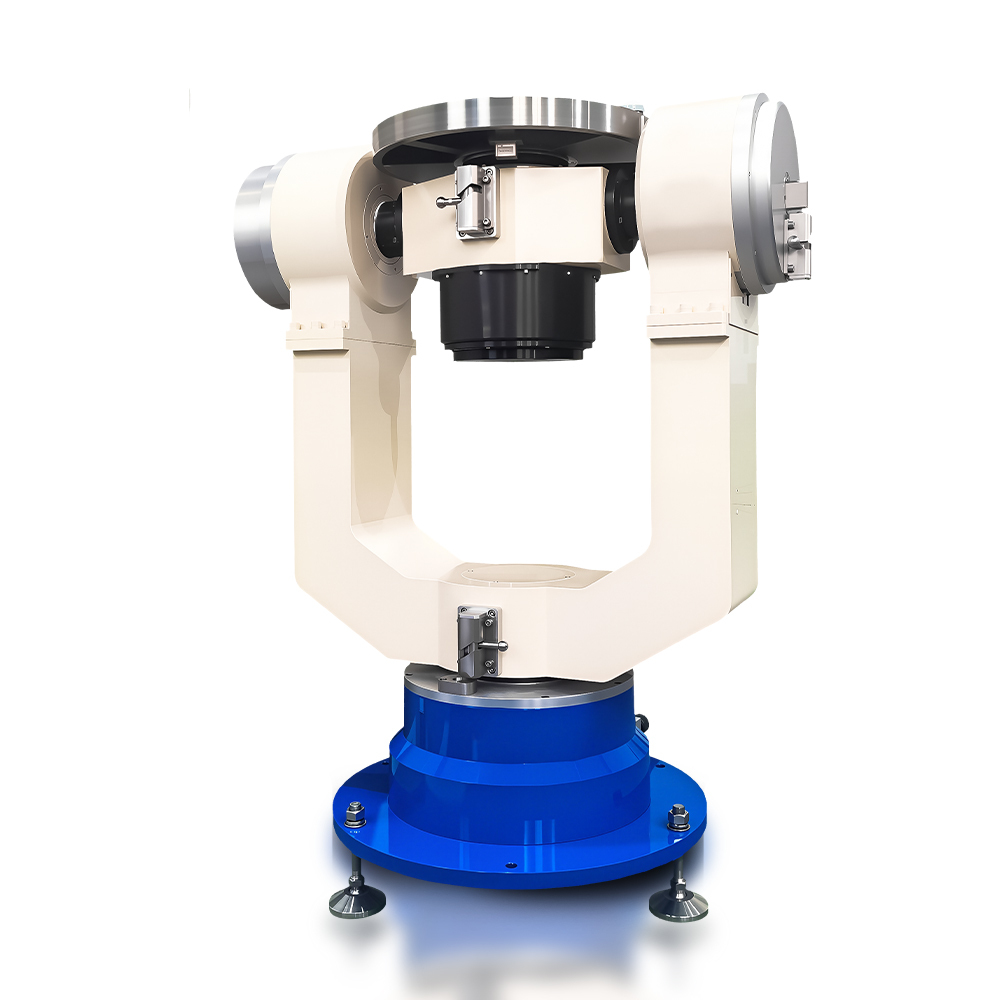

  • Compact inertial navigation test table with 50 cm platform diameter for space-constrained testing setups
  • White background inertial navigation test table with three axis motion capability for aerospace calibration
  • Three axis inertial navigation test table in industrial lab setup for gyroscope and sensor validation
  • Close-up of precision rotary bearing on inertial navigation test table ensuring smooth motion control
  • Inertial navigation test table operating in UAV development laboratory with flight simulation equipment
  • Compact inertial navigation test table with 50 cm platform diameter for space-constrained testing setups

High Speed Stability Three Axis Inertial Navigation Test Table for Aerospace and Defense Applications

No.BE-INS3-23C23

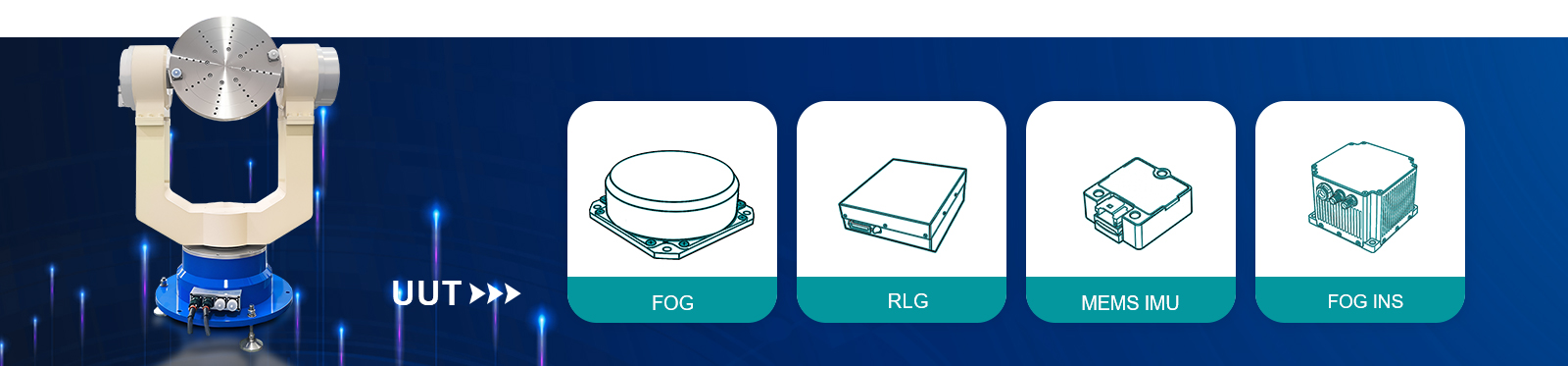

The three axis inertial navigation test table offers angular accuracy up to ±1 arc second, speed stability of 0.001°/s, and 30 kg payload. Ideal for gyroscope calibration, MEMS sensor verification, and INS alignment in aerospace, defense, UAV, and autonomous vehicle testing.
Specifications
Turntable Load:
30kg
Angular Positioning Accuracy:
≤ ±5 arcseconds
Rate Range:
±0.001°/s ~ ±800°/s
Maximum Angular Acceleration:
300°/s²
Speed Accuracy & Rate Stability:
5×10⁻³ (average over 1°)
GET A QUOTE
Download
View all downloads
  • White background inertial navigation test table with three axis motion capability for aerospace calibration
  • Three axis inertial navigation test table in industrial lab setup for gyroscope and sensor validation
  • Close-up of precision rotary bearing on inertial navigation test table ensuring smooth motion control
  • Inertial navigation test table operating in UAV development laboratory with flight simulation equipment
  • Compact inertial navigation test table with 50 cm platform diameter for space-constrained testing setups

Description

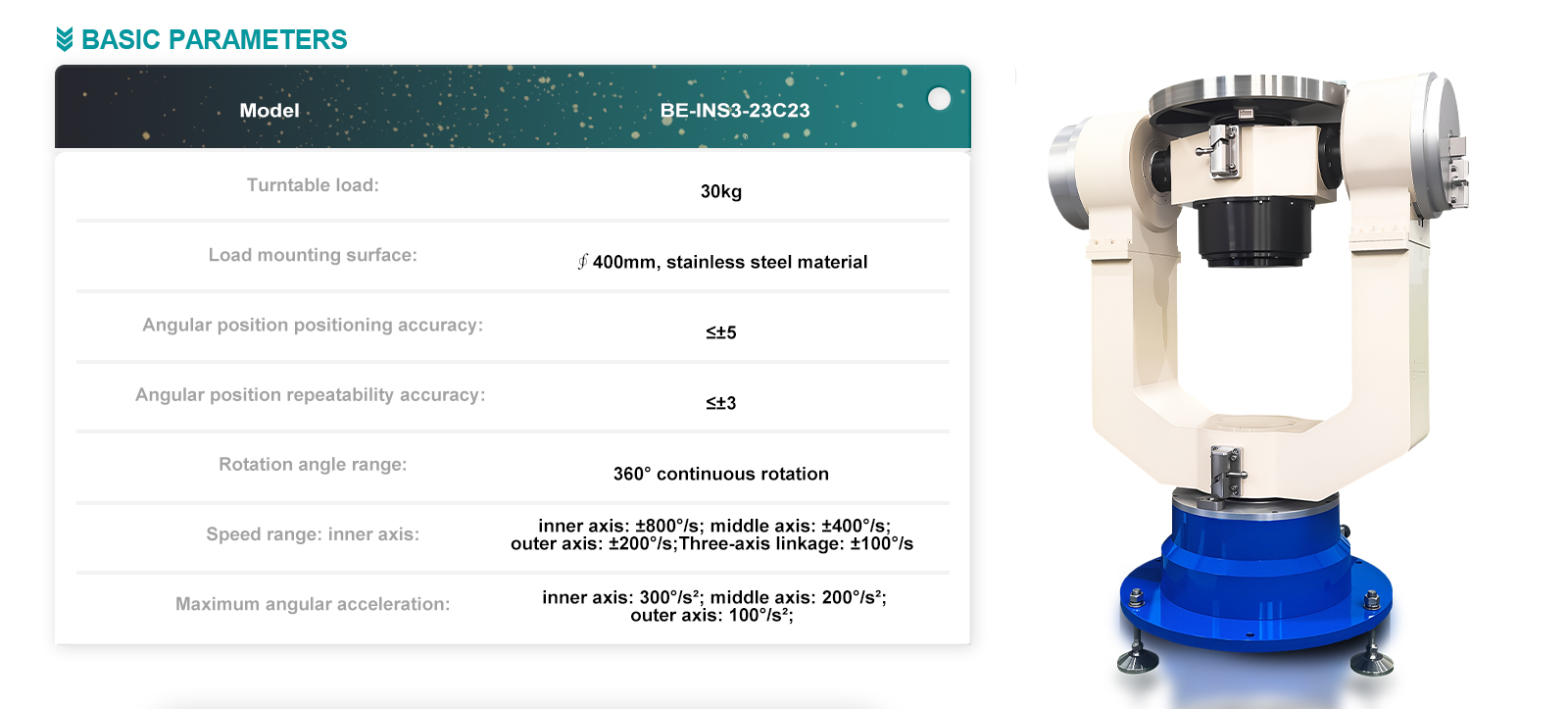

Item Specifications
Turntable Load 30kg
Load Mounting Surface φ400mm, stainless steel
Angular Positioning Accuracy ≤ ±5 arcseconds
Angular Position Repeatability ≤ ±3 arcseconds
Rotation Range 360° continuous rotation
Device Weight Approx. 200kg
Overall Dimensions 814mm × 520mm × 1031mm
Rate Range Inner frame: ±0.001°/s ~ ±800°/s
Middle frame: ±0.001°/s ~ ±400°/s
Outer frame: ±0.001°/s ~ ±200°/s
Three-axis linkage: ±100°/s
Maximum Angular Acceleration Inner frame: 300°/s²
Middle frame: 200°/s²
Outer frame: 100°/s²
Speed Accuracy & Rate Stability 5×10⁻⁵ (average over 360°)
5×10⁻⁴ (average over 10°)
5×10⁻³ (average over 1°)
