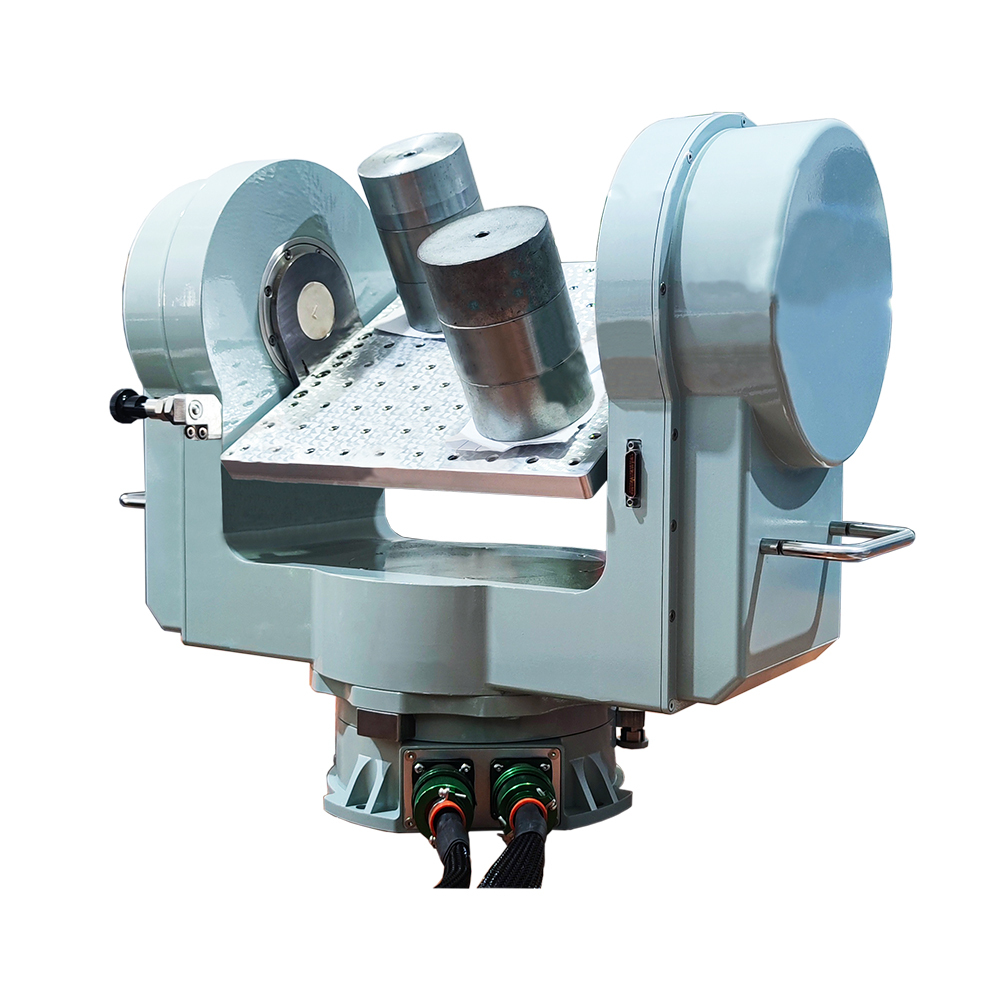

  • High precision dual axis PTZ white background for UAV sensor calibration testing

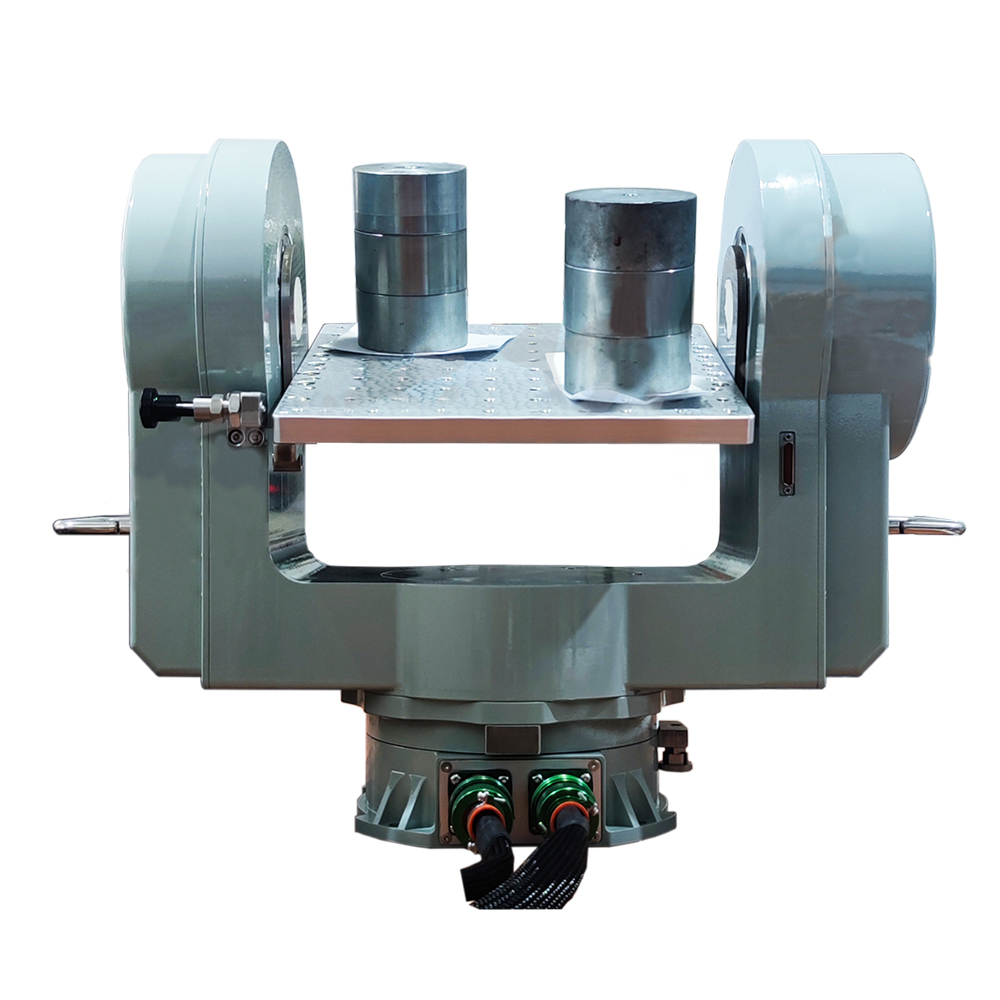

  • Motion rate table with 400mm square base and 360 degree horizontal rotation marking

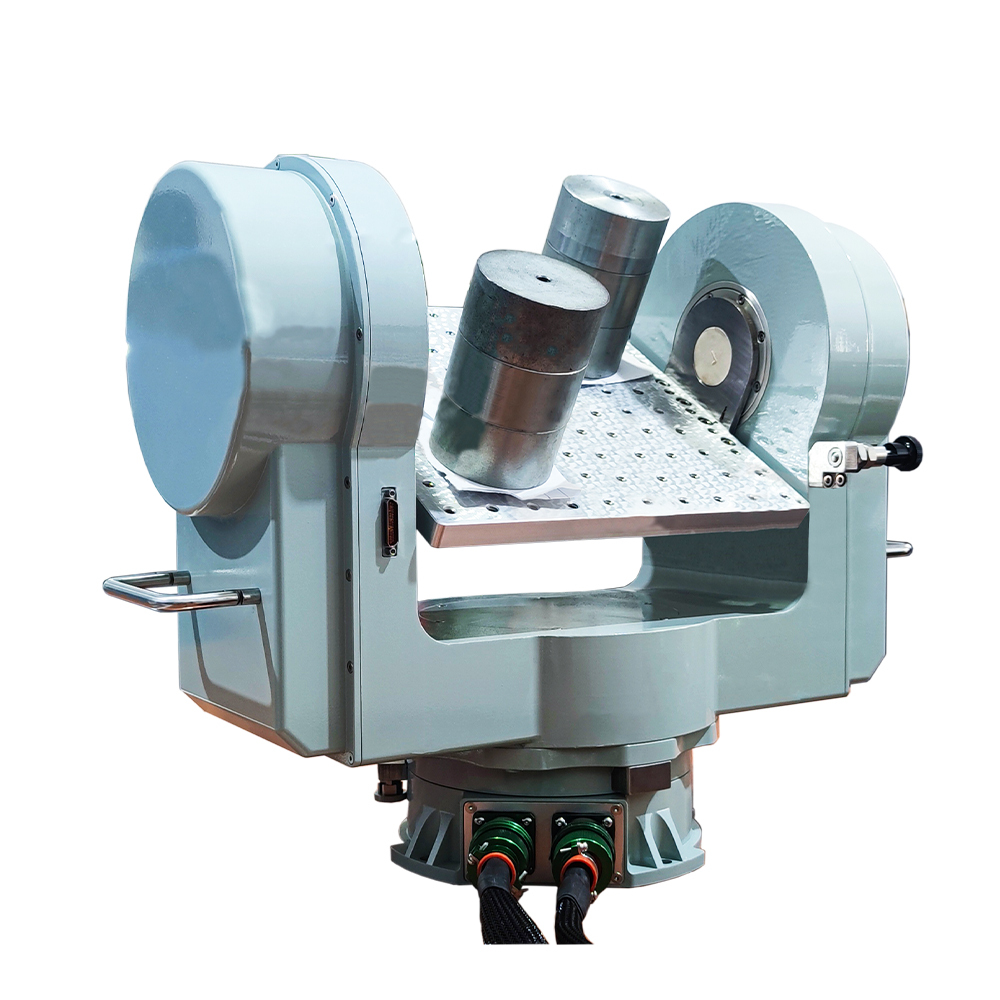

  • Close up of precision drive mechanism for ±0.01 degree positioning accuracy

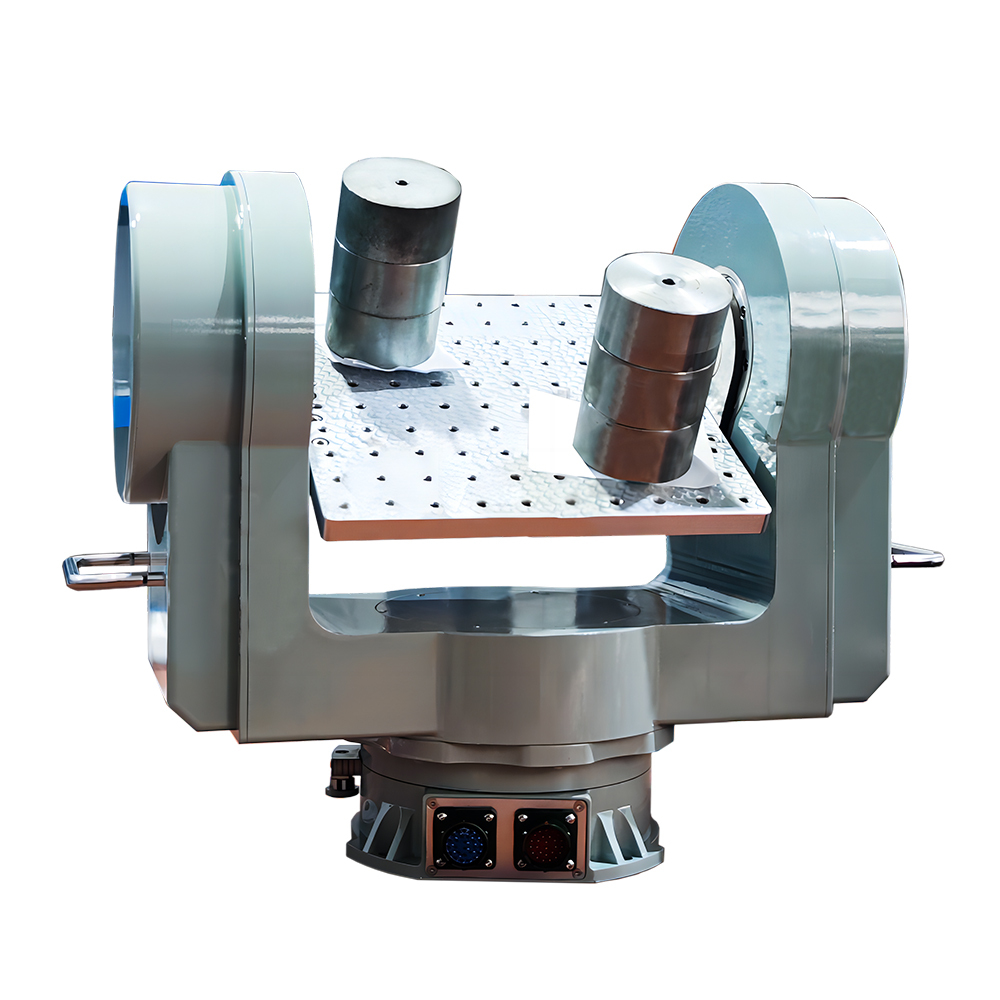

  • PTZ performing tilt range test for drone flight controller gyroscope verification

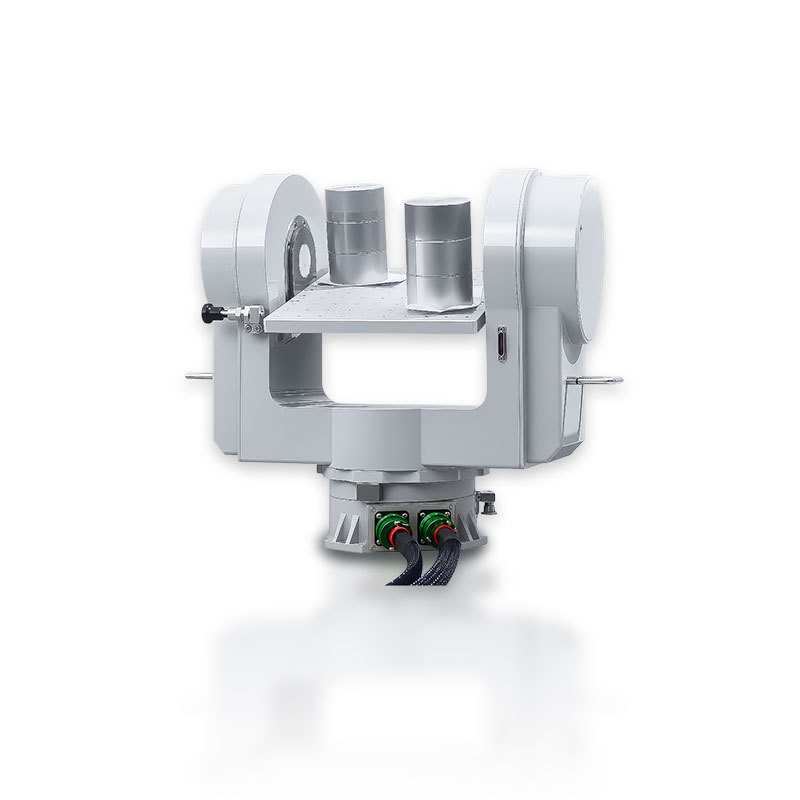

  • Test equipment dimensions with 400mm width and 300mm height on laboratory bench

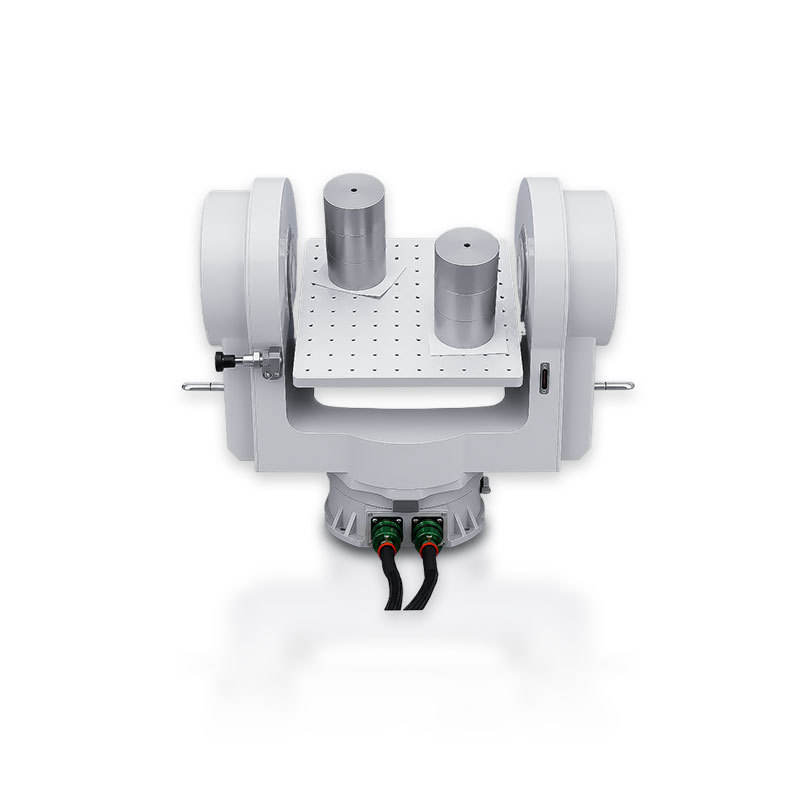

  • Remote automated interface executing calibration sequence for aerospace MEMS sensor
  • High precision dual axis PTZ white background for UAV sensor calibration testing
  • Motion rate table with 400mm square base and 360 degree horizontal rotation marking
  • Close up of precision drive mechanism for ±0.01 degree positioning accuracy
  • PTZ performing tilt range test for drone flight controller gyroscope verification
  • Test equipment dimensions with 400mm width and 300mm height on laboratory bench
  • Remote automated interface executing calibration sequence for aerospace MEMS sensor

High Precision Dual Axis PTZ Motion Rate Table for UAV Sensor Calibration

No.BE-INS2-23D03
This high precision dual axis PTZ motion rate table serves as gyro calibration fixture and motion simulator for UAV sensor testing. 4kg payload capacity supports various flight control sensors, ±0.01° angular accuracy ensures repeatable calibration results, and adjustable speed from 0.1°/s to 100°/s covers diverse test conditions. -100° to +100° tilt with 360° continuous rotation. Ideal for drone gyroscope verification, aerospace MEMS sensor validation,and unmanned system navigation calibration.
Specifications
Load weight:
4kg
Load size:
250mm×250mm×100mm
Position accuracy:
≤ ±0.01°
Pan‑tilt dimensions:
400 mm × 400 mm × 300 mm
GET A QUOTE
Download
View all downloads
  • High precision dual axis PTZ white background for UAV sensor calibration testing
  • Motion rate table with 400mm square base and 360 degree horizontal rotation marking
  • Close up of precision drive mechanism for ±0.01 degree positioning accuracy
  • PTZ performing tilt range test for drone flight controller gyroscope verification
  • Test equipment dimensions with 400mm width and 300mm height on laboratory bench
  • Remote automated interface executing calibration sequence for aerospace MEMS sensor

Description

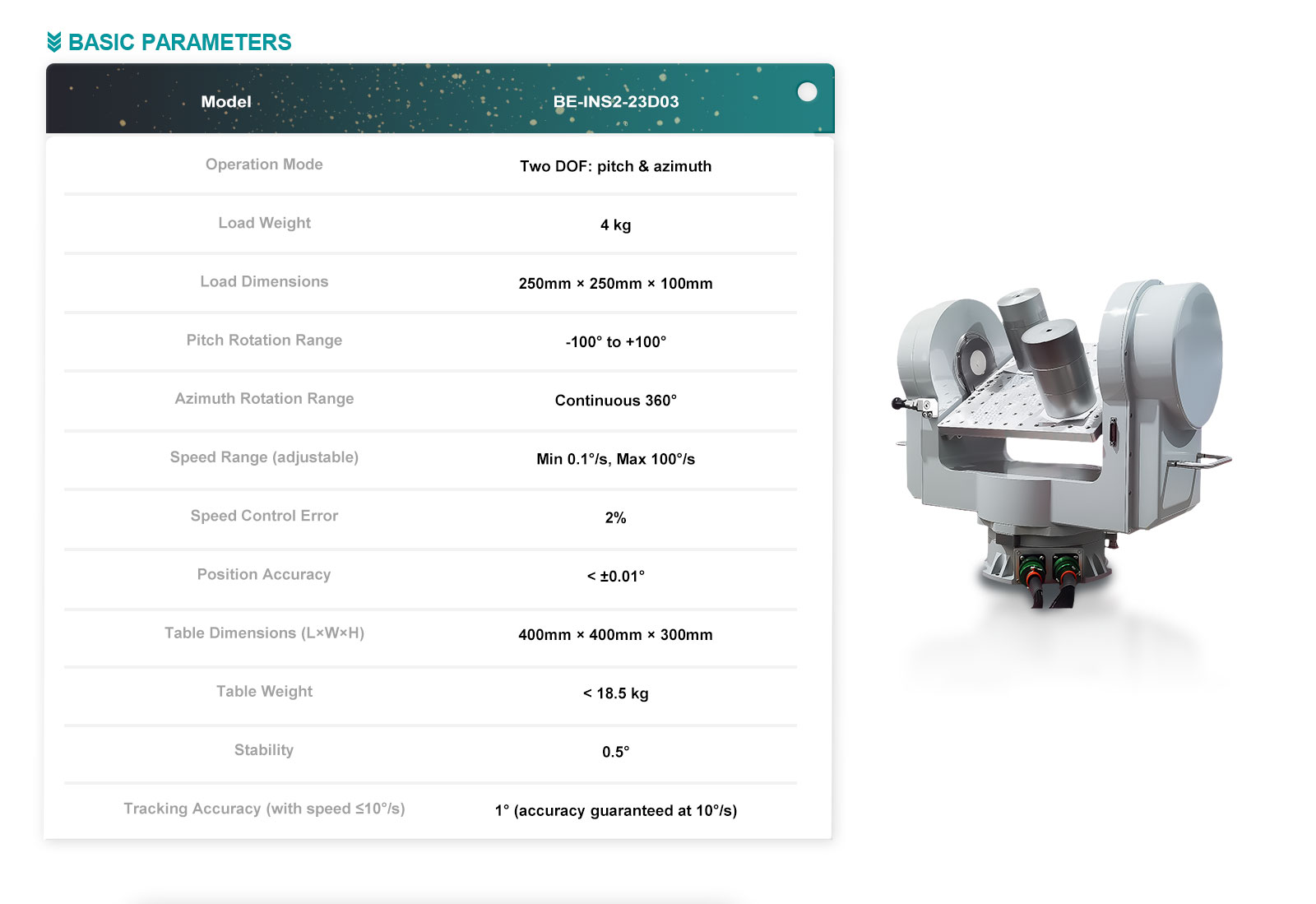

Pan‑Tilt Unit – Technical Specifications
Operation mode Two degrees of freedom: up‑down rotation (tilt) and horizontal rotation (pan)
Load weight 4 kg
Load dimensions (L × W × H) 250 mm × 250 mm × 100 mm
Rotation angle range – tilt (up/down) –100° … +100°
Horizontal rotation range 360° continuous
Speed range & control Minimum uniform speed 0.1 °/s
Maximum speed 100 °/s
rotation speed can be set (adjustable)
Speed control error 2 %
Position accuracy ≤ ±0.01°
Pan‑tilt dimensions (L × W × H) 400 mm × 400 mm × 300 mm
Weight ≤ 18.5 kg
Stability 0.5°
Tracking accuracy 1°
Precision‑preserving duration (hold time) 10⁹ s ≈ 31.7 years
