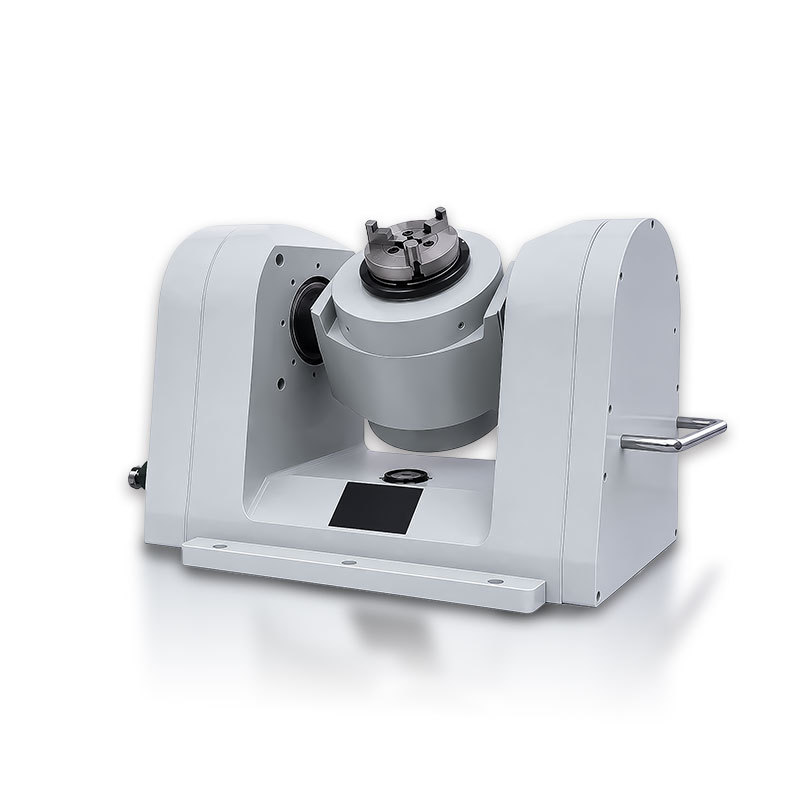

  • Compact dual axis motion simulator white background for miniature UAV sensor calibration
  • Motion rate table with U-T structure and 115mm diameter mounting platform in lab
  • Close up of miniature three-claws interface for quick fixture changes on inner ring
  • Motion simulator performing 360 degree inner rotation for drone flight controller validation
  • Test stand dimensions with 432mm length and 225mm width on laboratory workbench
  • Remote control interface executing gyro verification sequence for micro inertial sensor
  • Compact dual axis motion simulator white background for miniature UAV sensor calibration
  • Motion rate table with U-T structure and 115mm diameter mounting platform in lab
  • Close up of miniature three-claws interface for quick fixture changes on inner ring
  • Motion simulator performing 360 degree inner rotation for drone flight controller validation
  • Test stand dimensions with 432mm length and 225mm width on laboratory workbench
  • Remote control interface executing gyro verification sequence for micro inertial sensor

Compact Dual Axis Motion Simulator for Miniature UAV Sensor Calibration

No.BE-INS2-23A04
This compact dual axis motion simulator serves as gyroscope test stand and rotary test stand for miniature UAV sensor calibration. Three advantages: U-T structure ensures stable 360° inner rotation, versatile miniature three-claws mounting interface simplifies fixture changes, and ±10″ positioning accuracy supports precise MEMS validation. Ideal for drone flight controller gyro verification, micro inertial sensor testing, and small UAV navigation component calibration.
Specifications
Position accuracy of two-axis indexing mechanism:
±10″
Table diameter:
≤115mm
Carrying capacity:
≥ 5kg
Overall dimensions:
432×225×215 (mm)
GET A QUOTE
Download
View all downloads
  • Compact dual axis motion simulator white background for miniature UAV sensor calibration

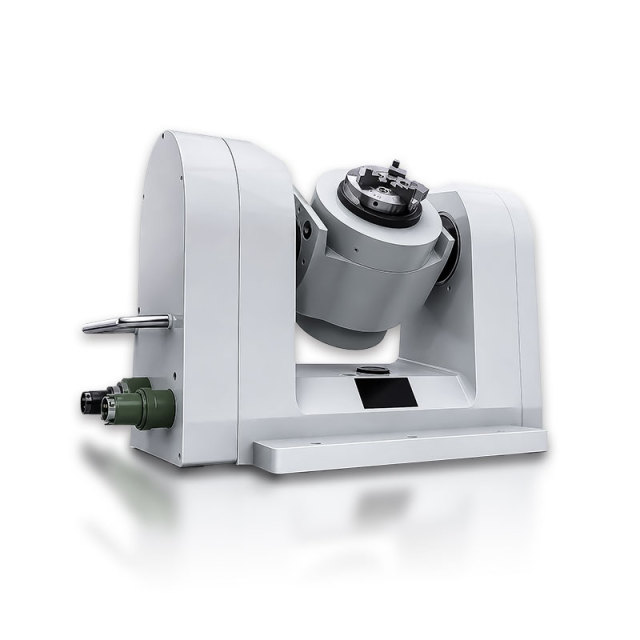

  • Motion rate table with U-T structure and 115mm diameter mounting platform in lab

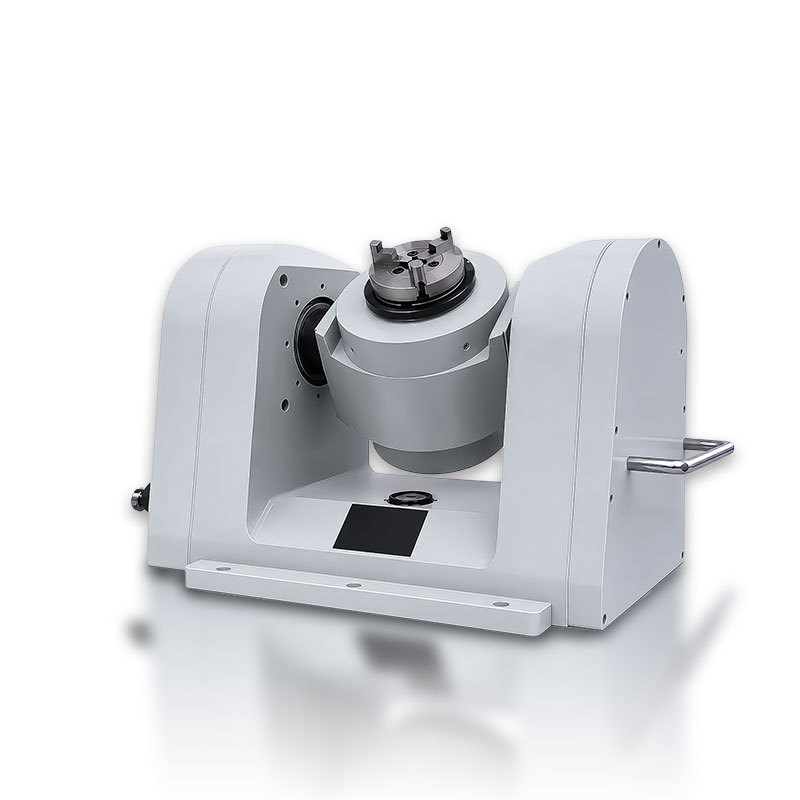

  • Close up of miniature three-claws interface for quick fixture changes on inner ring

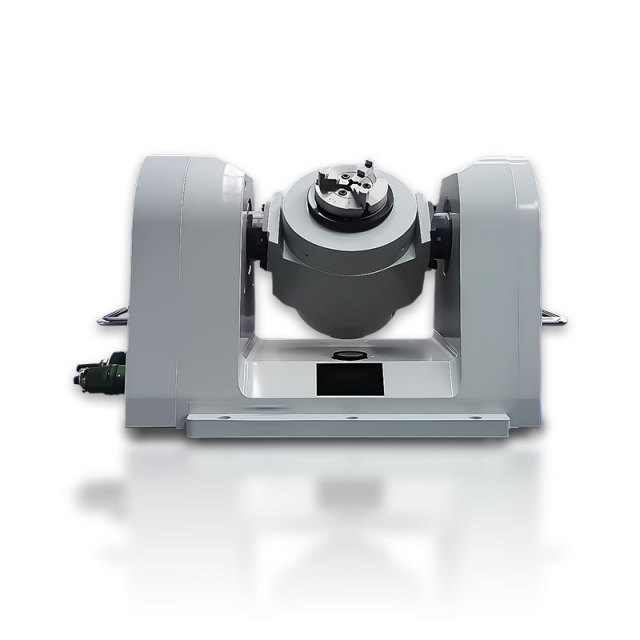

  • Motion simulator performing 360 degree inner rotation for drone flight controller validation

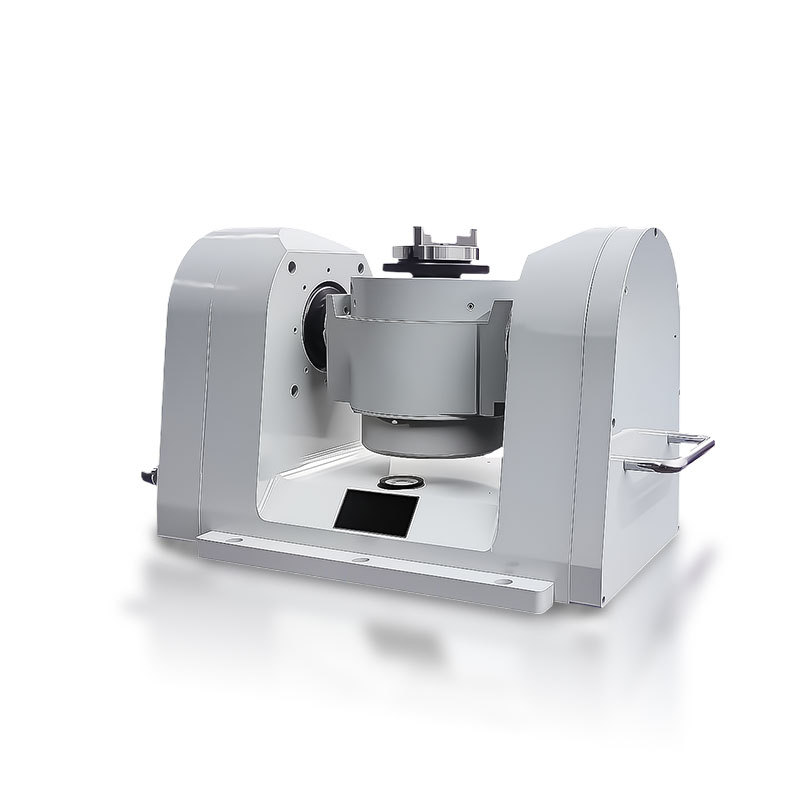

  • Test stand dimensions with 432mm length and 225mm width on laboratory workbench

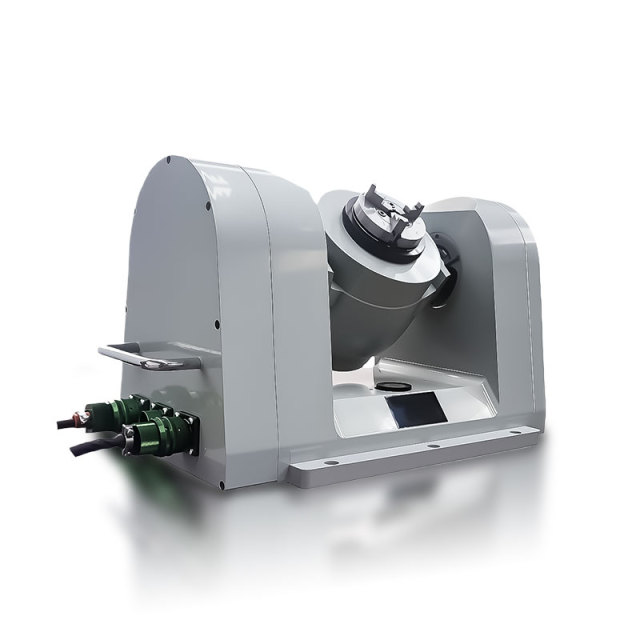

  • Remote control interface executing gyro verification sequence for micro inertial sensor

Description

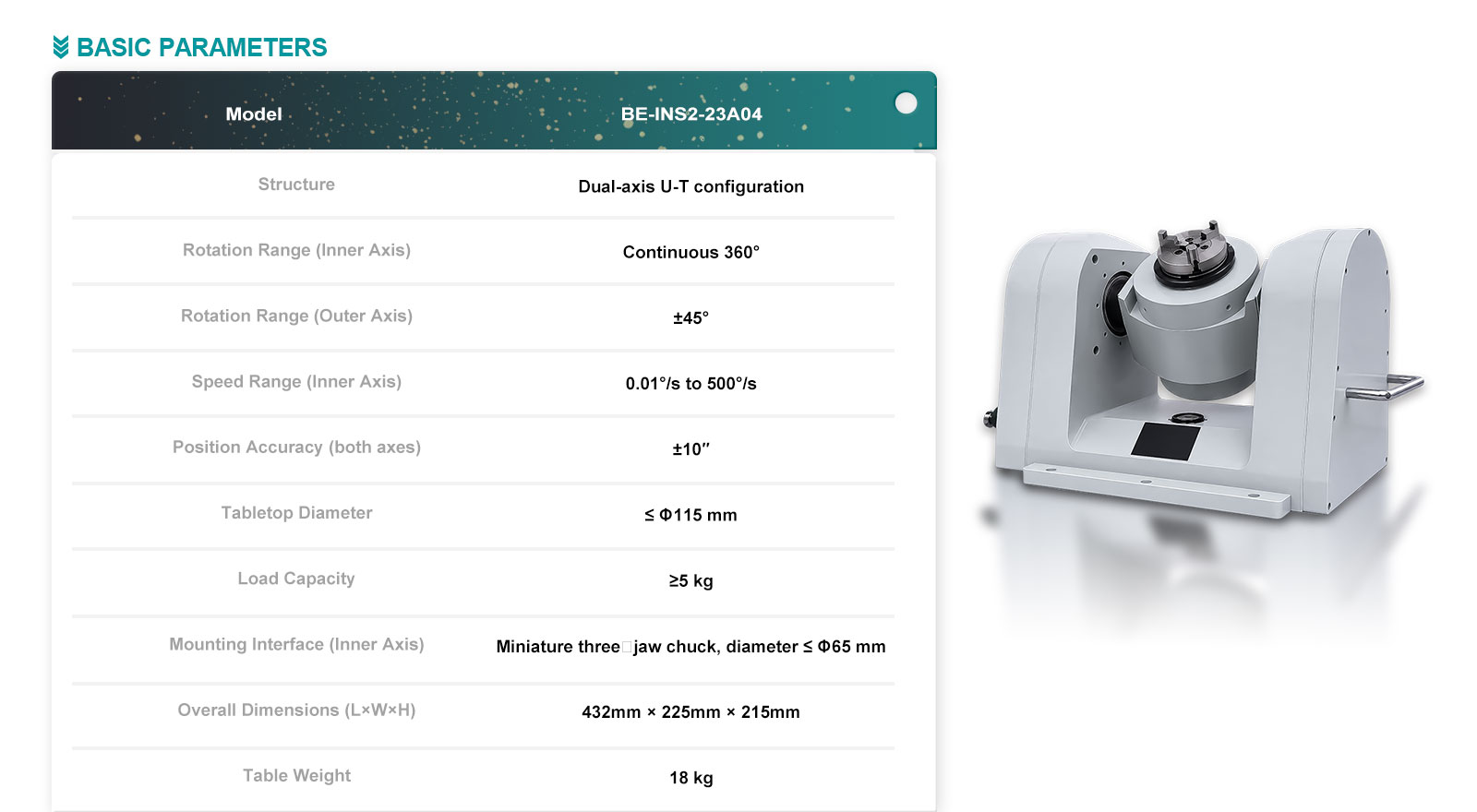

Technical parameter

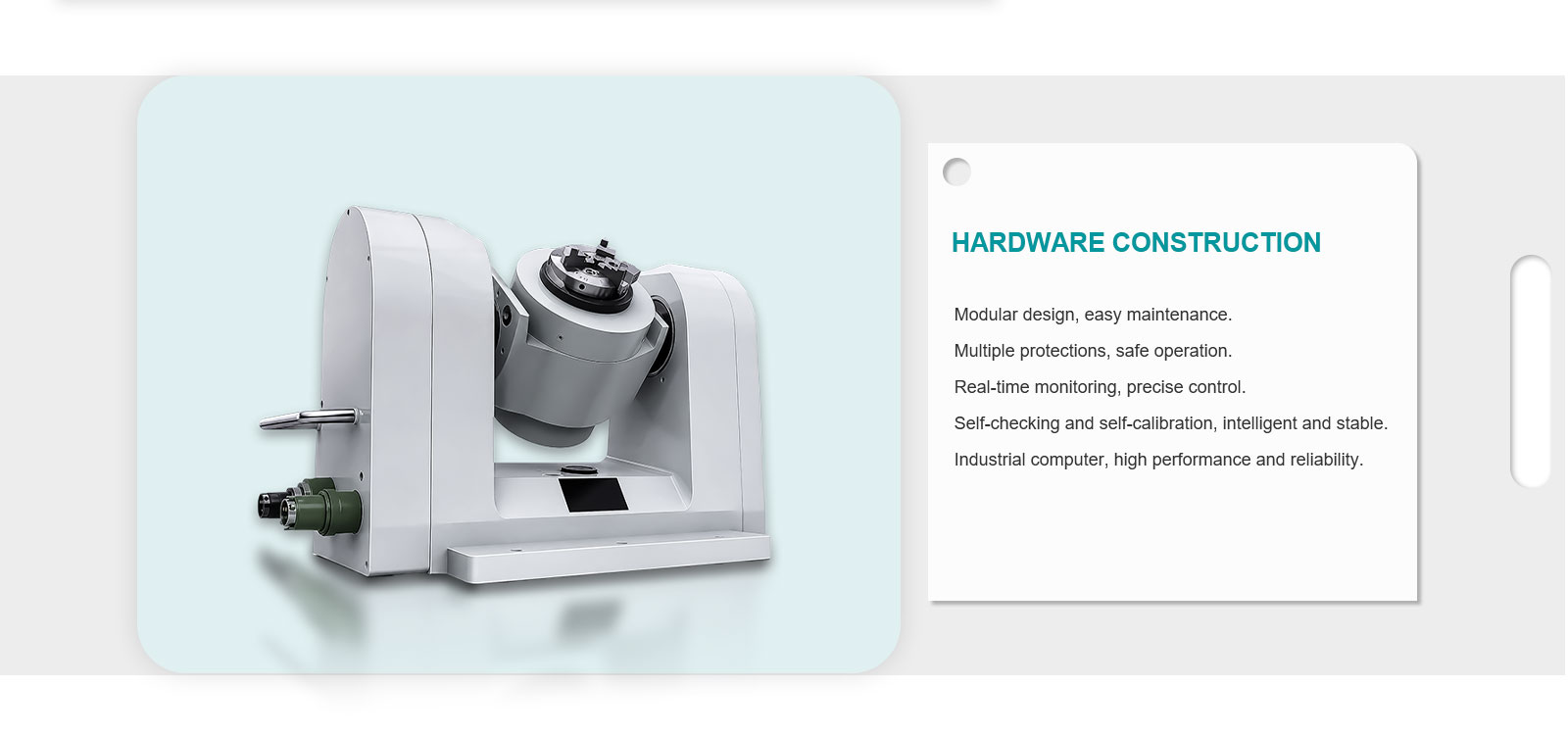

Product structure: The double shaft is U-T structure
Rotation angle range: 360° continuous rotation of the inner ring, ±45° of the outer ring
Speed range: inner ring: 0.01°/s～500°/s
Position accuracy of two-axis indexing mechanism: ±10″
Table diameter: ≤115mm
Carrying capacity: ≥ 5kg
Installation interface: The inner ring table can be installed with miniature three-claws, and the diameter of the three-claws is not larger than 65mm
Overall dimensions: 432×225×215 (mm)
Turntable weight: 18kg
