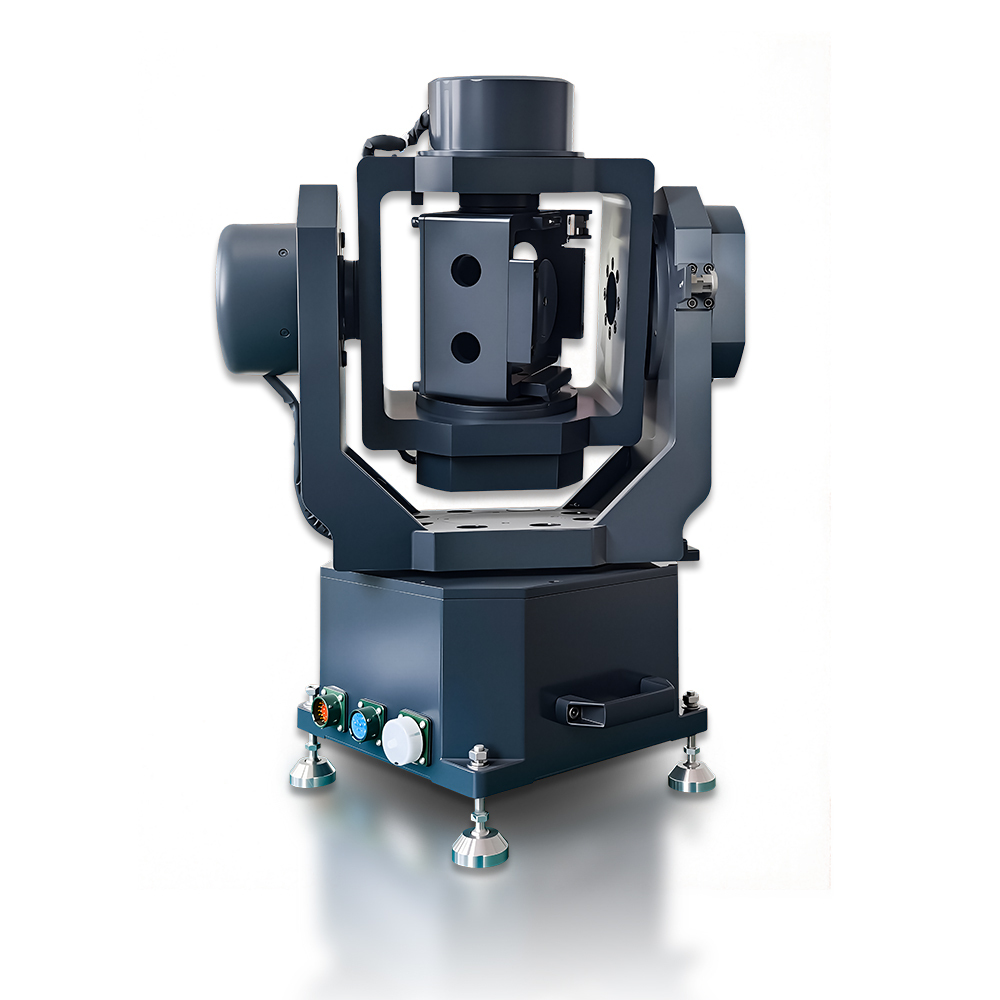

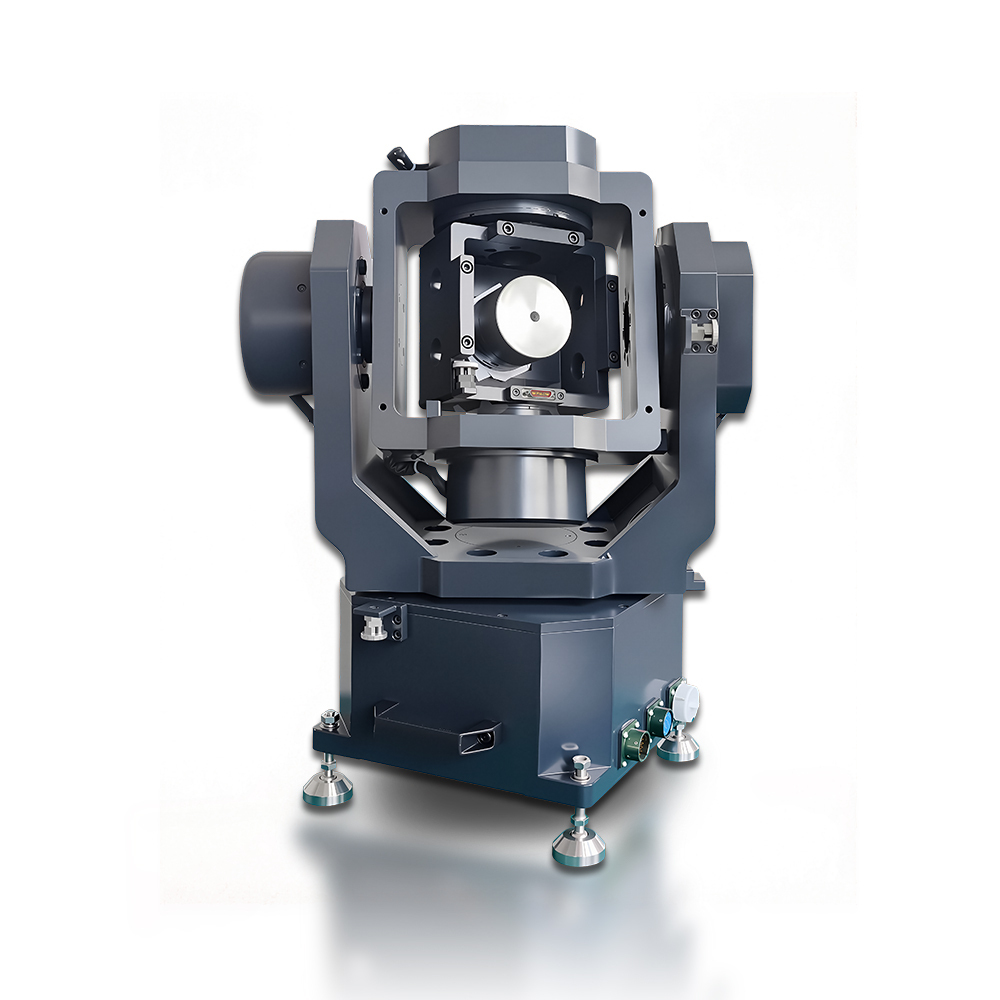

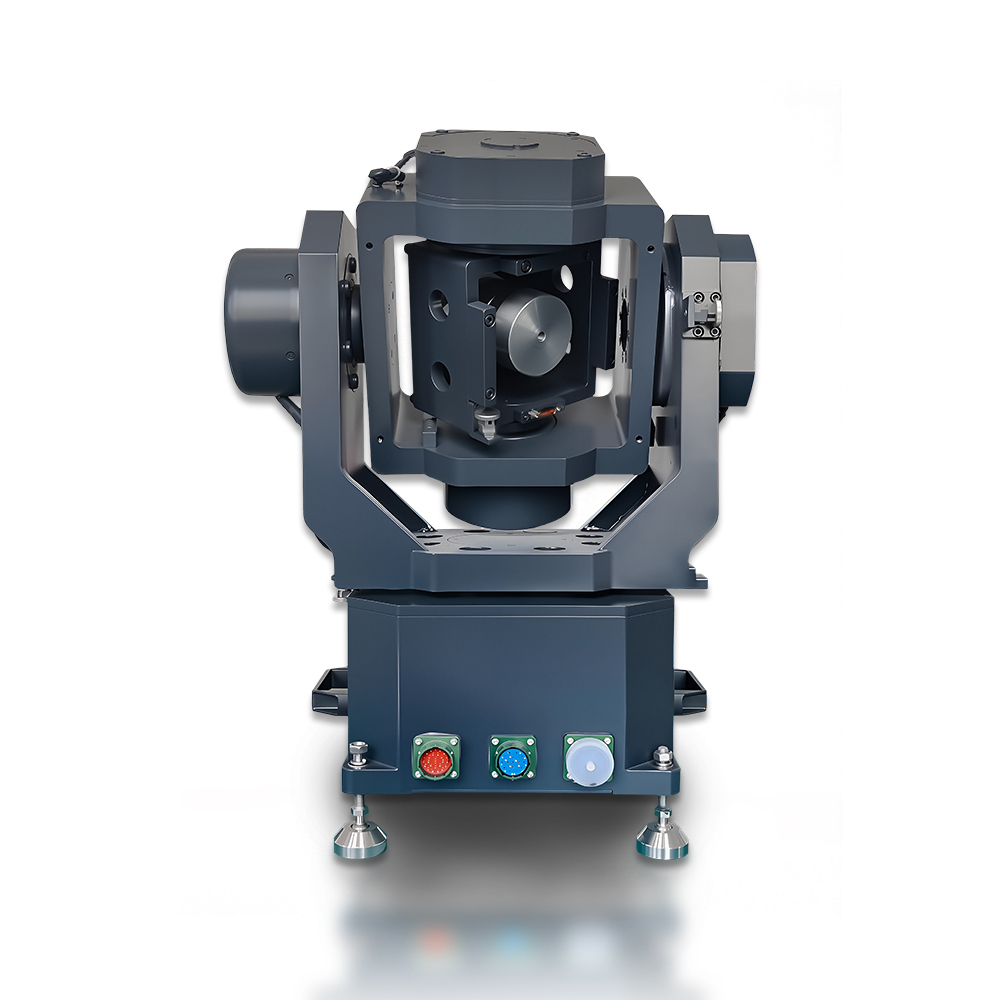

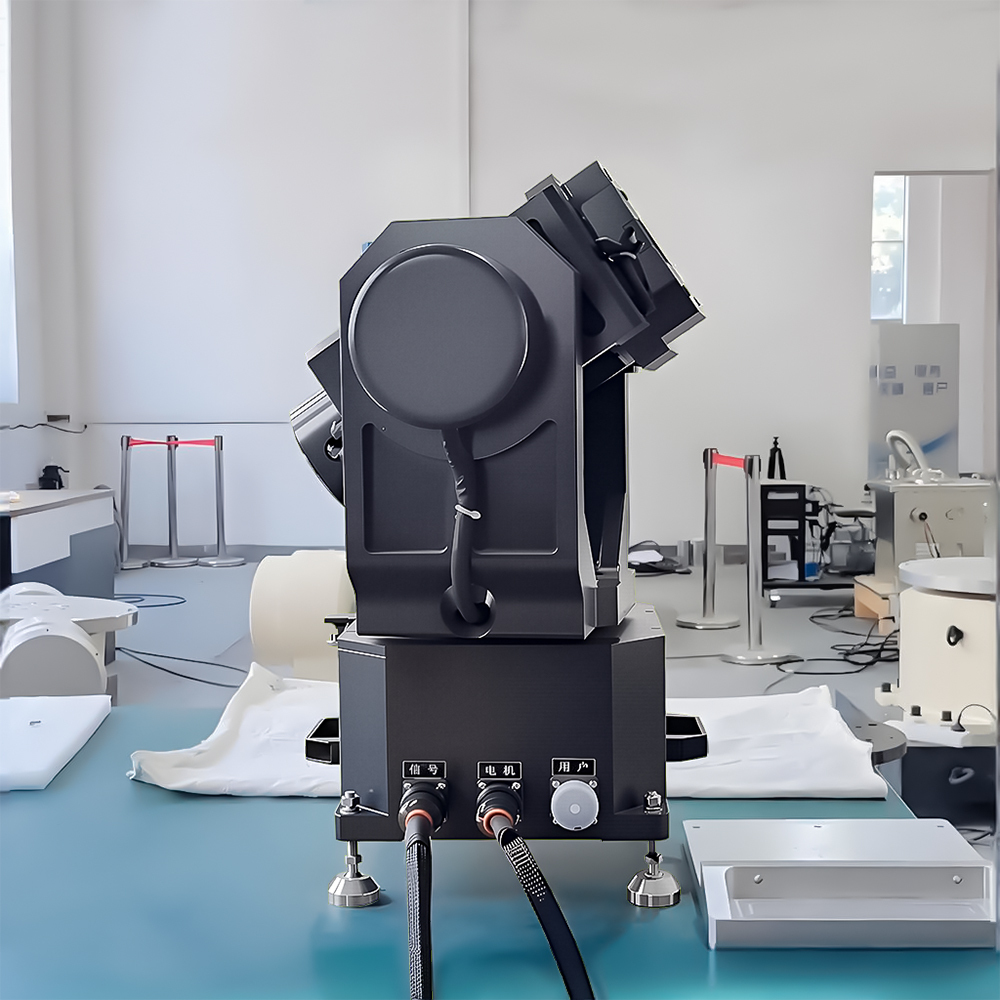

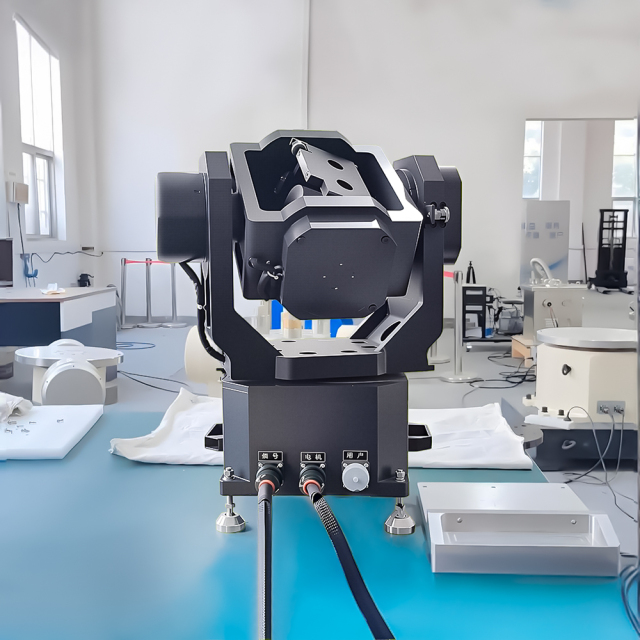

High Precision Omnidirectional Three Axis Rate Table for Inertial Navigation System Calibration Short Description

No.BE-INS3-23A14

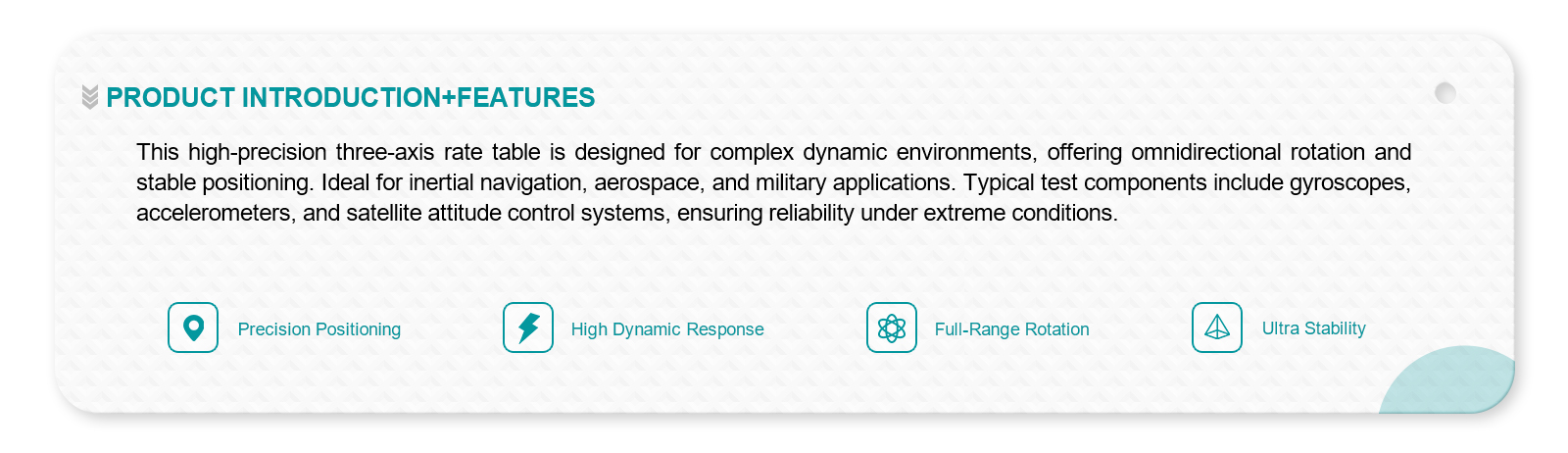

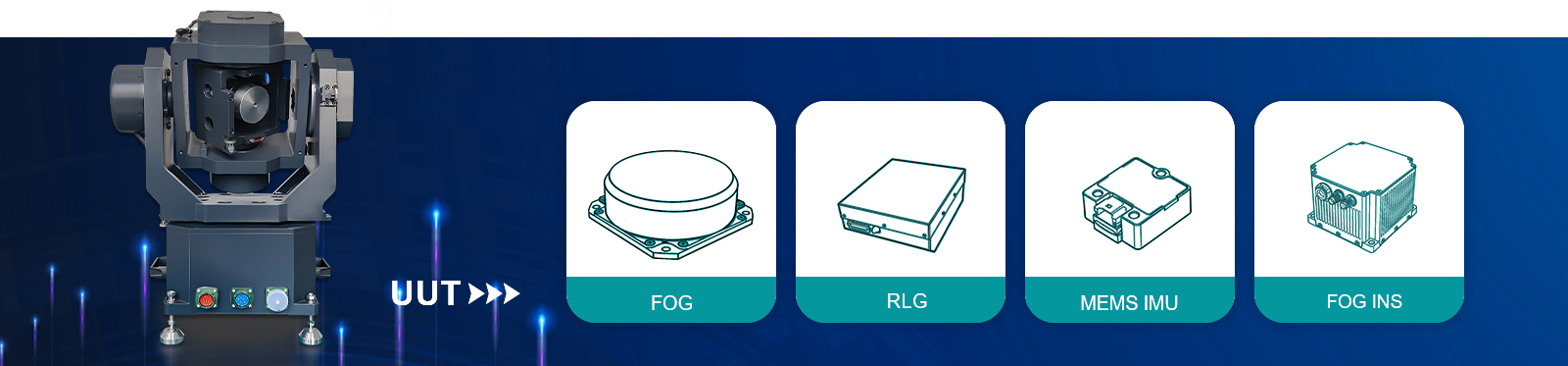

The High Precision Omnidirectional Three Axis Rate Table is designed for inertial navigation systems, gyroscopes, and MEMS sensor validation, offering ±0.001° accuracy, 0.001–400°/s angular rate, ideal for aerospace research, satellite payload calibration, and aircraft navigation testing.

Specifications

Angular velocity range:

±150 °/s

Maximum angular acceleration:

>100 °/s²

Speed stability:

±0.001 °/s ~ 1 °/s: better than 5×10⁻³

Position accuracy:

≤0.01 °

Position resolution:

≤0.005 °

GET A QUOTE

Download

View all downloads

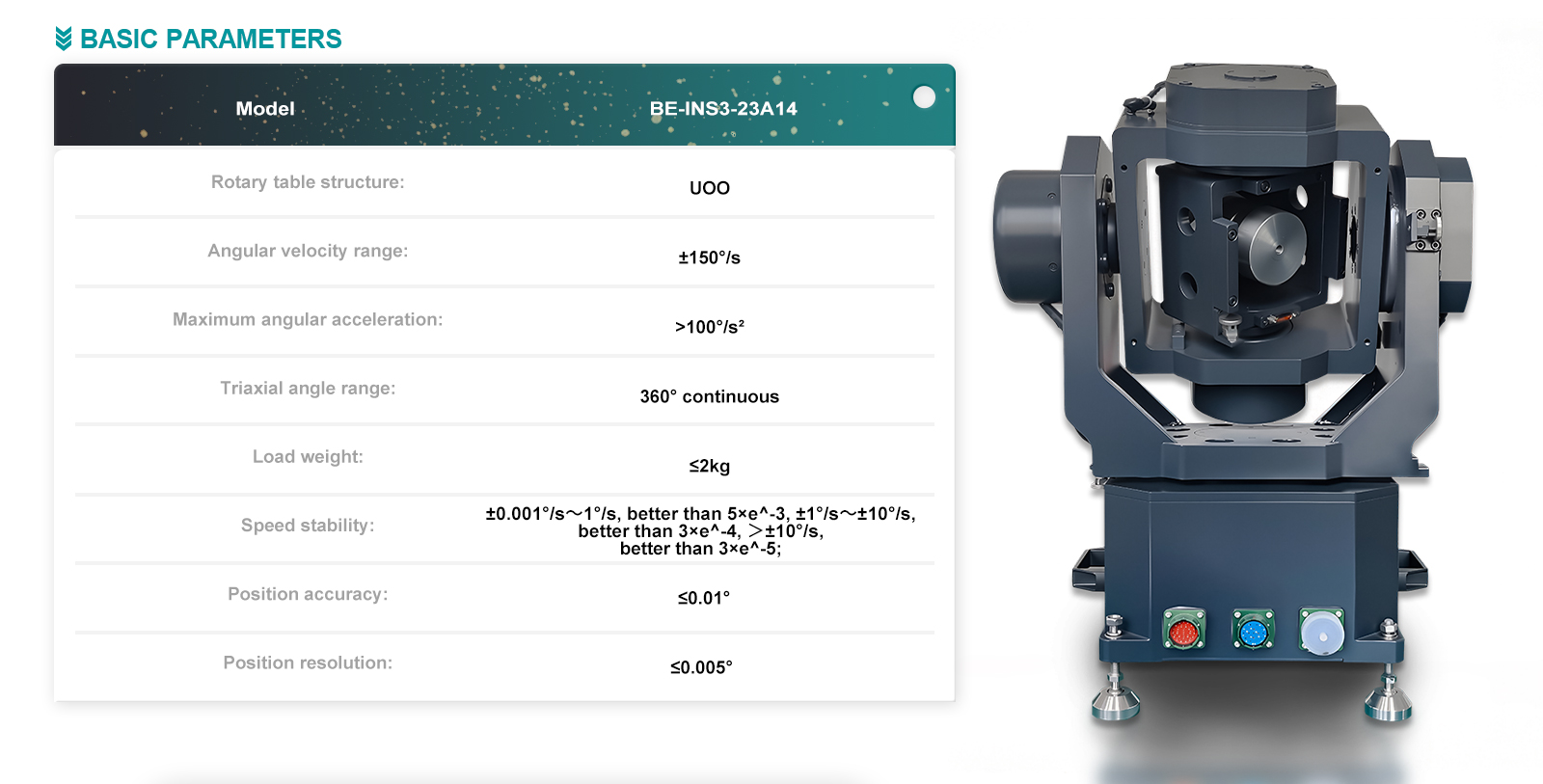

Technical Parameters - Turntable Specifications
Technical Parameter	Specification

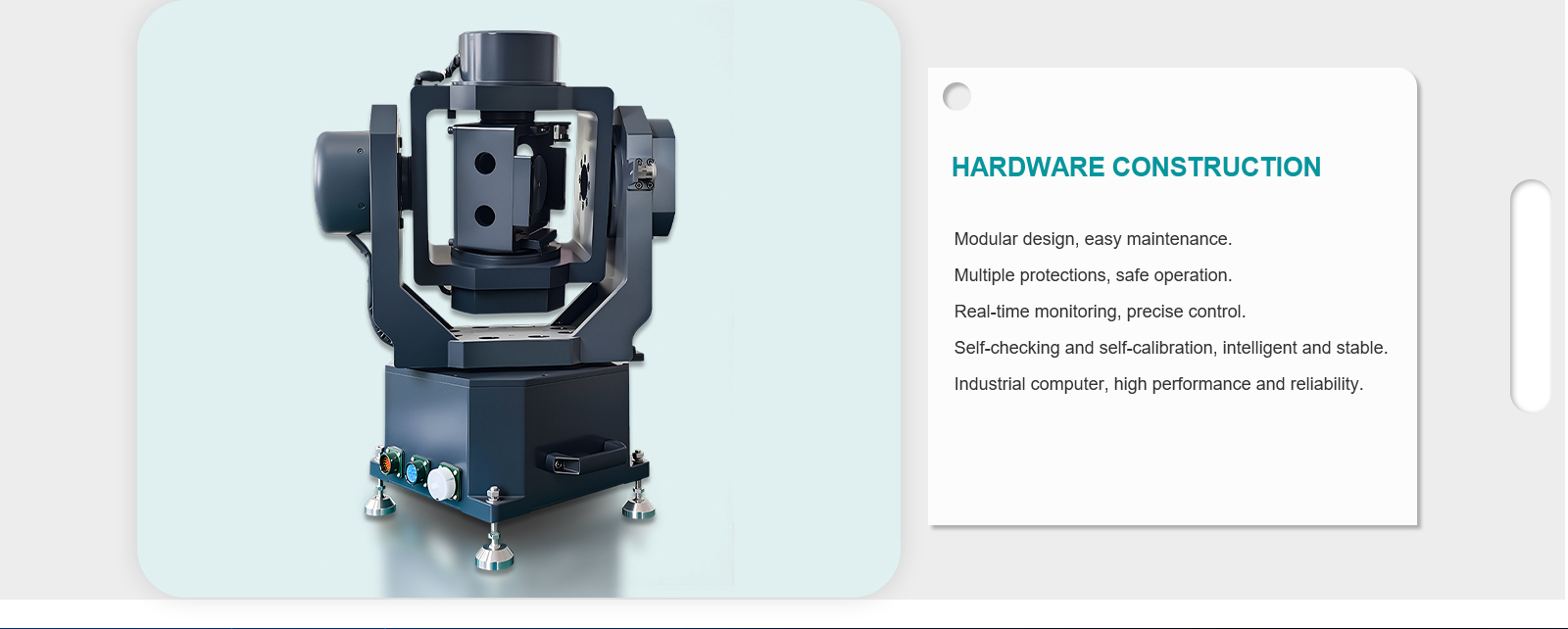

Turntable structure	U-O-O
Angular velocity range	±150 °/s
Maximum angular acceleration	>100 °/s²
Three-axis angular range	360° continuous
Load-bearing weight	≤2 kg
Speed stability	±0.001 °/s ~ 1 °/s: better than 5×10⁻³
	±1 °/s ~ ±10 °/s: better than 3×10⁻⁴
	>±10 °/s: better than 3×10⁻⁵
Position accuracy	≤0.01 °
Position resolution	≤0.005 °
