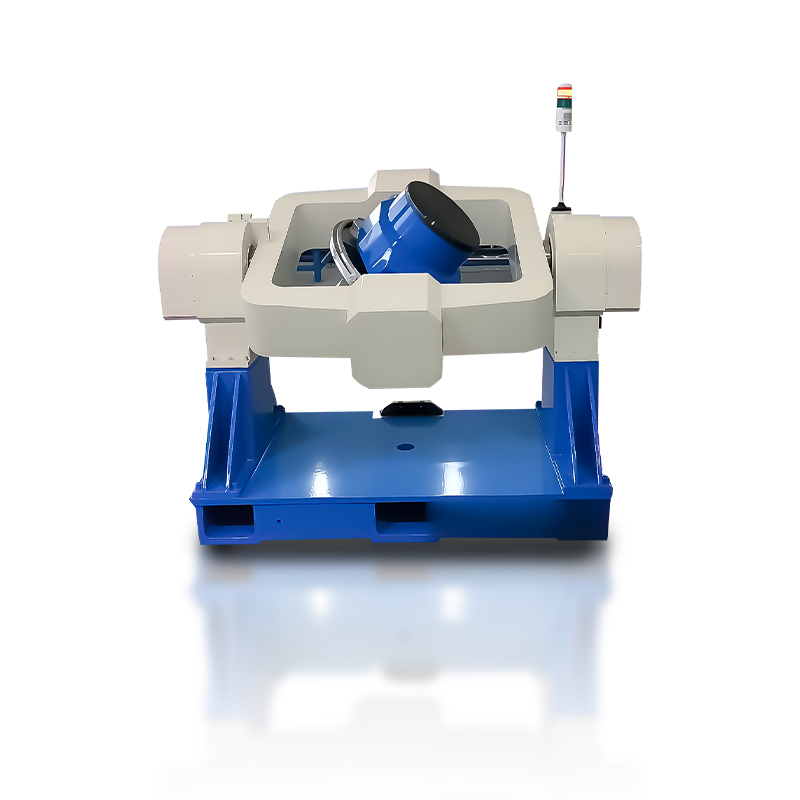

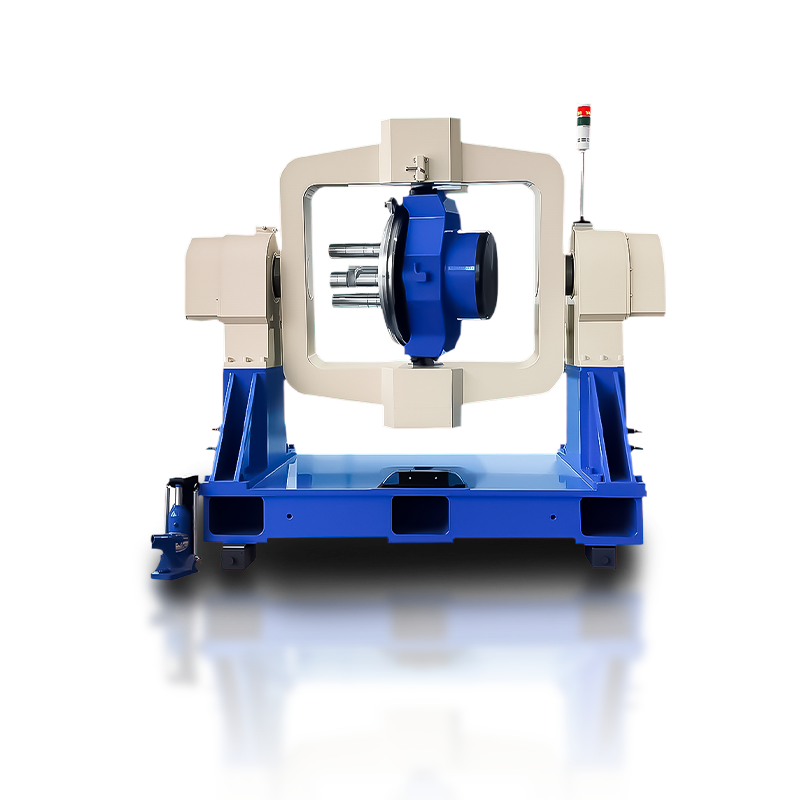

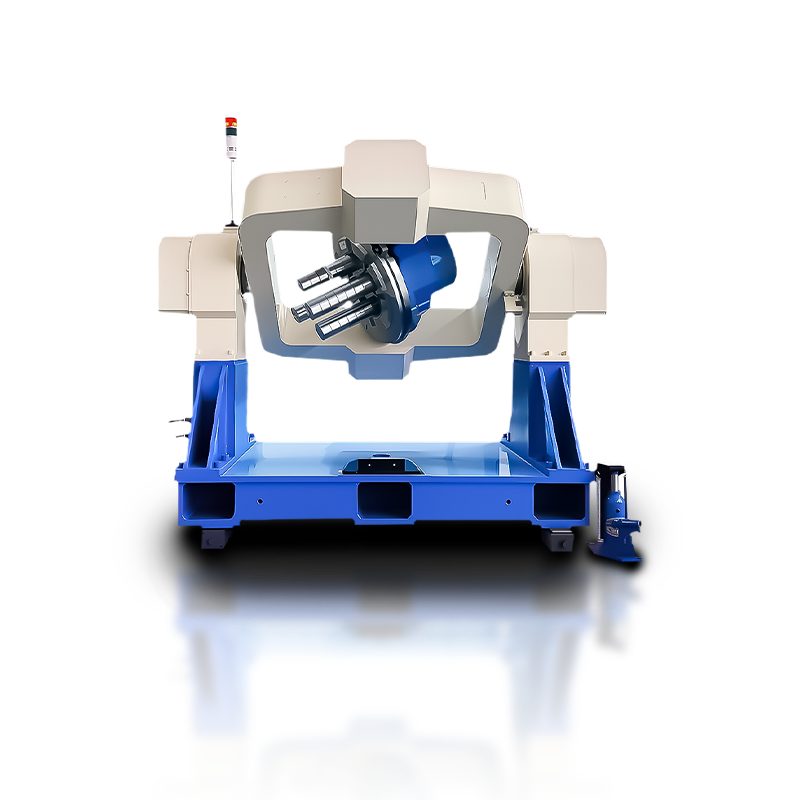

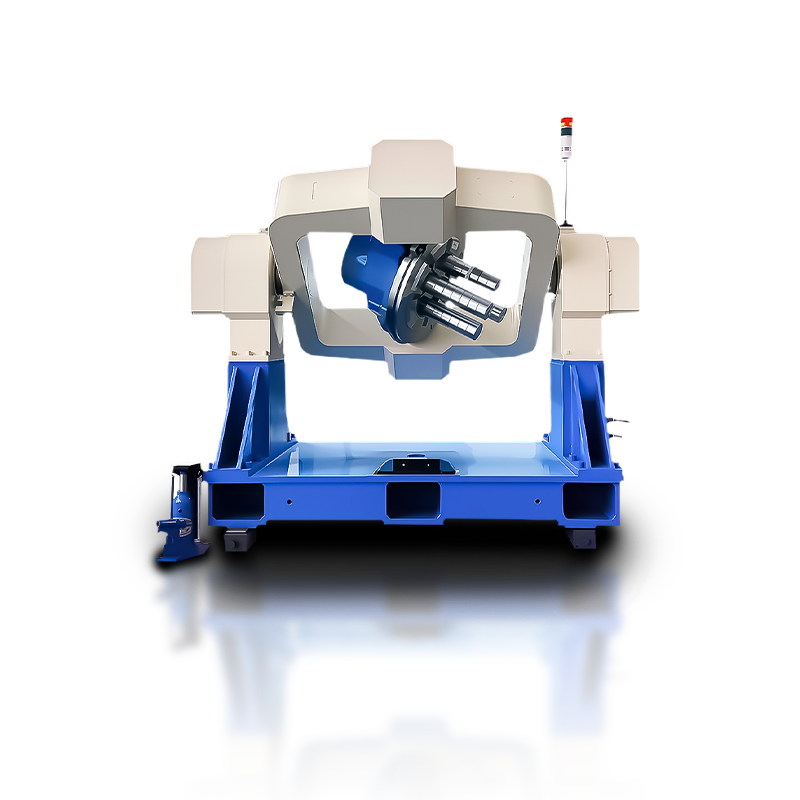

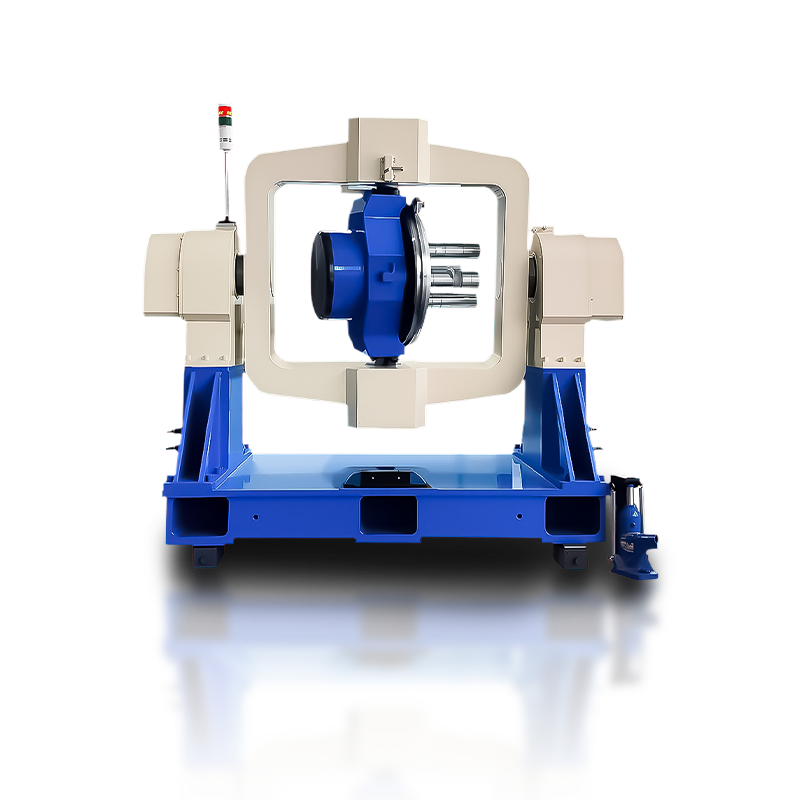

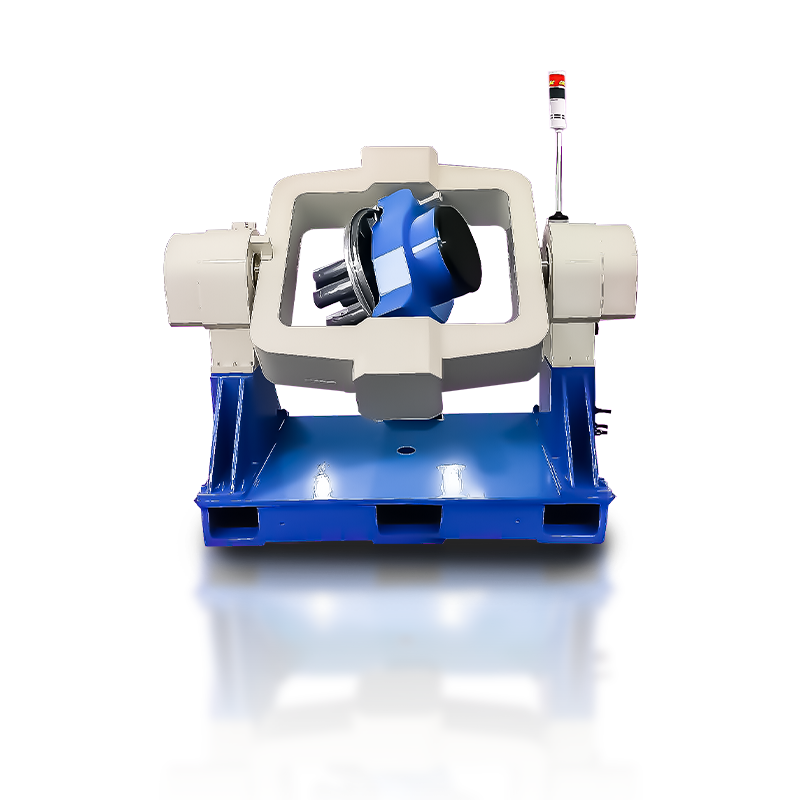

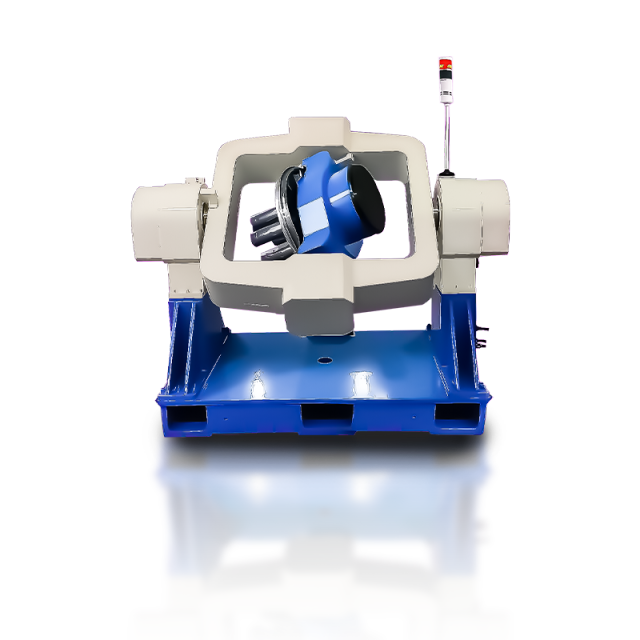

Inertial Navigation Test Table for gyroscope and inertial navigation system calibration in aerospace, UAV, and autonomous vehicle testing applications.

No.BE-INS3-500

The Inertial Navigation Test Table delivers ±0.001° accuracy, supports up to 50kg payload, and offers three-axis motion simulation. Ideal for gyroscope testing, MEMS sensor validation, and INS calibration, it ensures high repeatability, stable performance, and precise angular rate control for aerospace, marine, and industrial R&D projects.

Specifications

Triaxial rate resolution:

0.0001°/S

Triaxial angular position resolution:

0.0001 °

Angular position accuracy:

Azimuth ±5"; Luffing ±5"; Roll ±5"

Turning accuracy:

Azimuth ±3", Pitch earth 3", Roll 3"

Acceleration:

Azimuth: 100°; Pitch: 150°/; Roll: 200°

Load weight:

40kg

GET A QUOTE

Download

View all downloads

Description

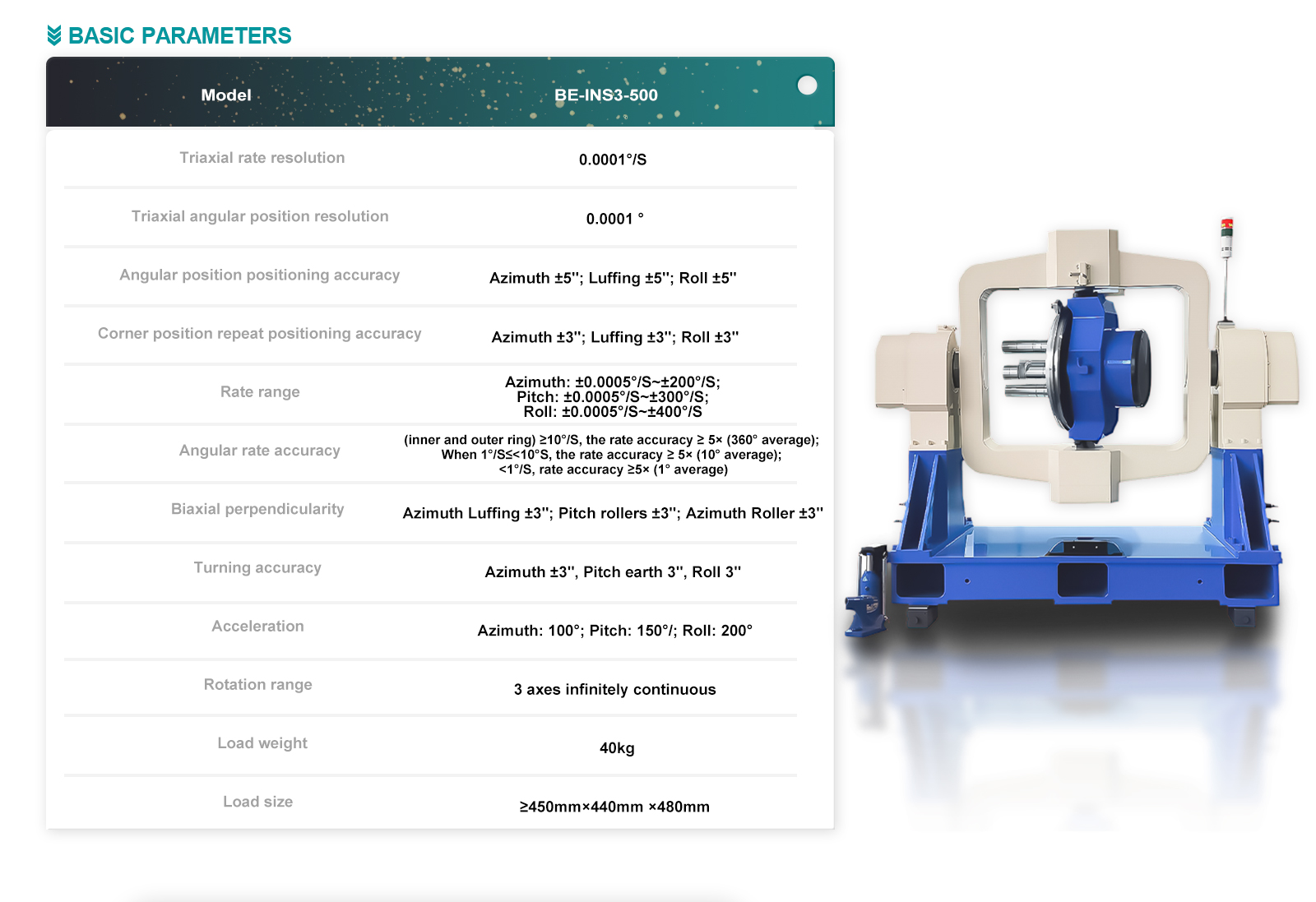

——Technical parameter——

Index name	Indicator parameters
Triaxial rate resolution	0.0001°/S
Triaxial angular position resolution	0.0001 °
Angular position positioning accuracy	Azimuth ±5"; Luffing ±5"; Roll ±5"
Corner position repeat positioning accuracy	Azimuth ±3"; Luffing ±3"; Roll ±3"
Rate range	Azimuth: ±0.0005°/S~±200°/S; Pitch: ±0.0005°/S~±300°/S; Roll: ±0.0005°/S~±400°/S
Angular rate accuracy	(inner and outer ring) ≥10°/S, the rate accuracy ≥ 5× (360° average); When 1°/S≤<10°S, the rate accuracy ≥ 5× (10° average); <1°/S, rate accuracy ≥5× (1° average)
Biaxial perpendicularity	Azimuth Luffing ±3"; Pitch rollers ±3"; Azimuth Roller ±3"
Turning accuracy	Azimuth ±3", Pitch earth 3", Roll 3"
Acceleration	Azimuth: 100°; Pitch: 150°/; Roll: 200°
Rotation range	3 axes infinitely continuous
Load weight	40kg
Load size	≥450mm×440mm ×480mm
