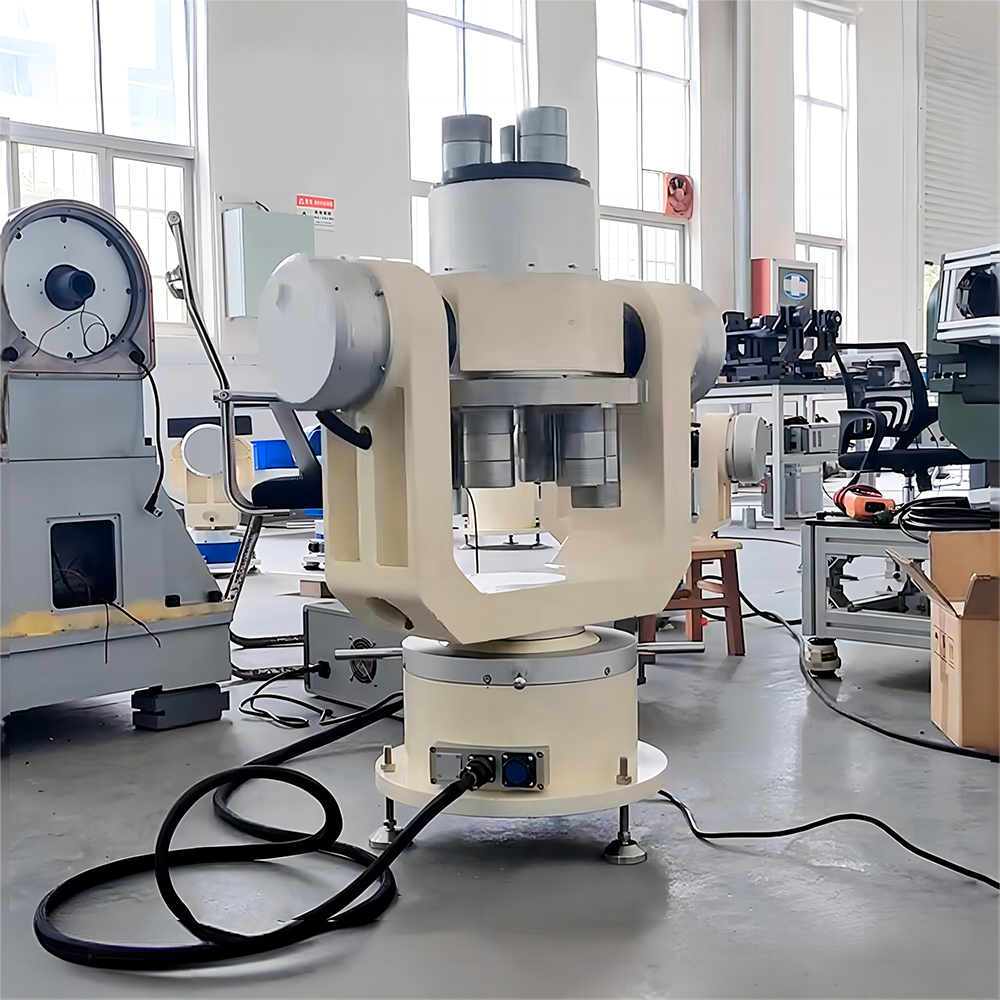

The quietest motions are often the most revealing—especially when testing sensors that listen to magnetic fields.
◆ Accuracy That Leaves No Room for Doubt
Three-axis positioning holds within ±5 arc-seconds, ensuring that every angular command translates into exact physical orientation. Whether calibrating navigation-grade gyroscopes or verifying optical alignment, this level of fidelity turns test data into trusted results.
◆ A Magnetic Whisper Instead of a Roar
At just ≤0.1 mT measured 10 mm above the table, this turntable speaks softly in magnetic terms. For devices that detect Earth's subtle magnetic field or rely on fluxgate technology, this clean environment separates sensor performance from test-stand contamination—revealing what the device truly does, not what the fixture imposes.
◆ From Creep to Sprint—One Platform Covers the Spectrum
The inner frame spans 0.001°/s to 500°/s, the middle frame reaches 400°/s, and the outer frame delivers 300°/s, with coordinated three-axis motion at 100°/s. Rate stability graduates from 5e-003 (1° averaging) through 5e-004 (10° averaging) to 5e-005 (360° averaging). This means the same platform handles leisurely drift characterization and aggressive dynamic sweeps with equal composure.
◆ Acceleration That Matches Real-World Demands
Inner frame thrusts at 300°/s², middle at 200°/s², outer at 100°/s²—enough to simulate rapid attitude corrections, target acquisition snaps, or stabilization loop disturbances without exceeding payload limits.
◆ Built for What You Bring to the Table
A ⌀360 mm work surface supports 20 kg of test articles, accommodating everything from compact MEMS to bulkier optoelectronic assemblies. The integrated mounting grid simplifies fixture attachment, reducing setup friction and accelerating test campaigns.
◆ Where This Turntable Shines
Gyroscope calibration—fiber optic, ring laser, and MEMS varieties. Magnetometer and fluxgate sensor validation. Inertial measurement unit characterization. Optoelectronic boresight maintenance. Any application where angular truth and magnetic silence are non-negotiable.
◆ More Than a Test Stand—A Trusted Reference
By fusing high-precision multi-axis motion with an ultra-low magnetic footprint, this turntable becomes more than equipment—it becomes the common reference against which sensitive sensors prove their worth. For engineers navigating the intersection of motion and magnetism, it offers a rare combination: uncompromised performance, quietly delivered.
