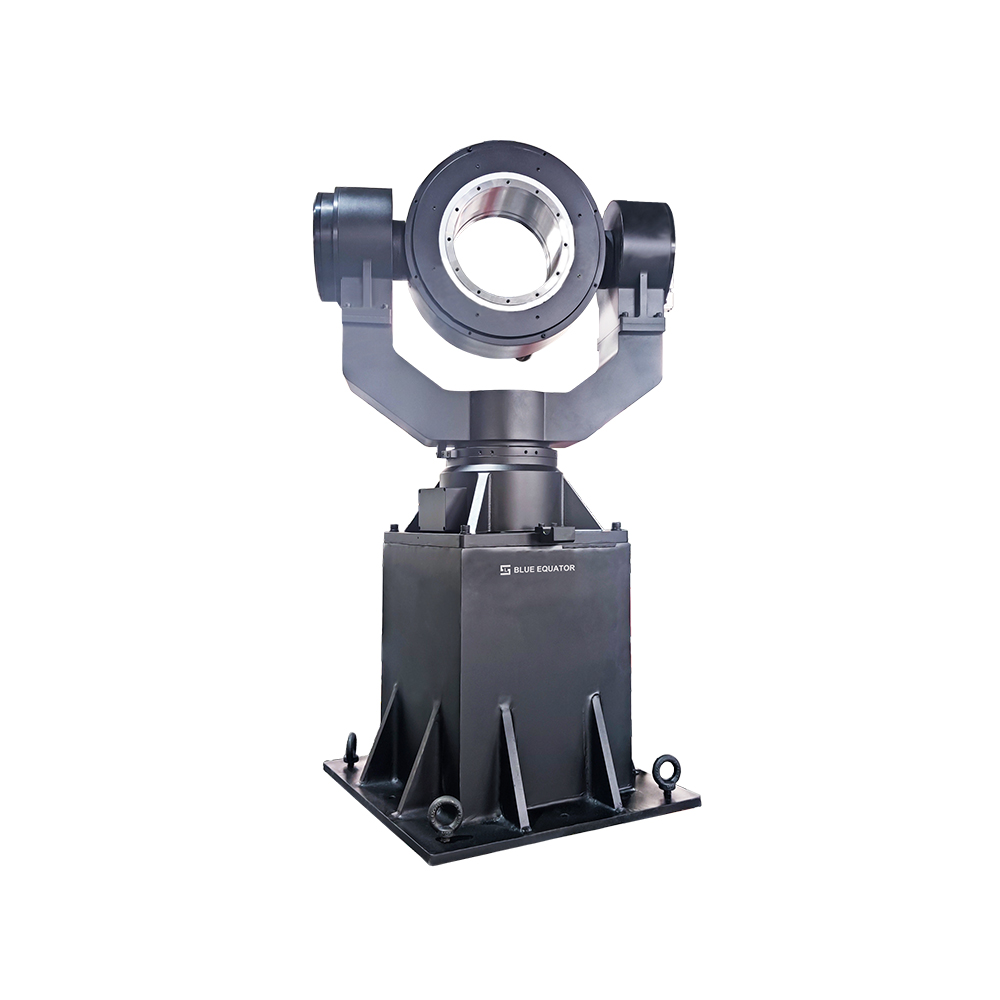

Precision motion testing for heavy payloads demands robust construction, multi-axis coordination, and reliable accuracy. This three-axis O-O-U turntable delivers all three.
◆ Sturdy O-O-U Structure
Roll and pitch axes feature O-type configuration with heading on U-type, providing optimal stiffness and stability for demanding test applications.
◆ Wide Angular Range
±120° rotation range on all three axes enables comprehensive attitude simulation for inertial navigation and sensor characterization.
◆ Reliable Positioning Accuracy
±30 arc-second position accuracy across all axes ensures consistent, repeatable data for calibration and verification tasks.
◆ Versatile Speed Performance
Angular velocity from 0.01 to 120°/s on each axis accommodates both slow drift characterization and dynamic maneuver simulation.
◆ High Dynamic Response
Maximum accelerations reach 300°/s² on roll, 200°/s² on pitch, and 200°/s² on heading, enabling realistic attitude changes under load.
◆ Heavy Payload Capacity
Supporting loads up to 45 kg with a hollow bore of at least 6230 mm, the system accommodates large test articles including complete sensor assemblies and guidance components.
◆ Compact Footprint
At 287 kg and 600×785.5×1410 mm dimensions, this system offers robust performance in a space-efficient package.
◆ Applications
Inertial navigation calibration, aerospace sensor validation, heavy payload attitude testing, and precision guidance system characterization.
◆ A Robust Solution for Heavy-Duty Testing
By combining O-O-U structural rigidity, wide dynamic range, and substantial payload capacity, this turntable delivers the performance engineers need for demanding sensor development and production validation.
