Model 580 dual-axis rate table features a 580mm stainless steel platform with 50kg max load, ultra-low flatness and runout error, star-shaped mounting holes. It delivers unlimited main-axis rotation, wide swing frequency & angle range, arc-second level positioning precision, broad rate range and dual-axis linkage. Multi communication interfaces support remote control for inertial navigation component calibration.

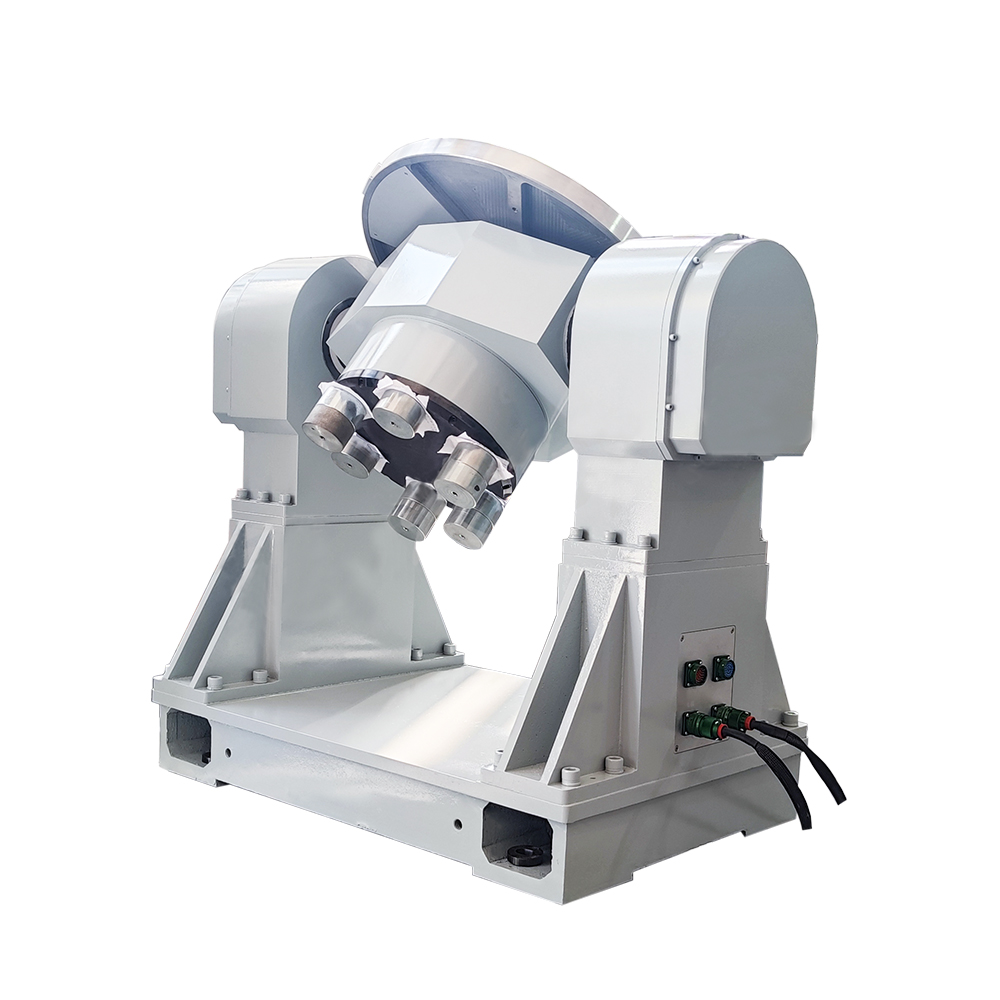

Engineers and labs face velocity drift and poor repeatability during inertial navigation component testing. This U-frame dual-axis rate table integrates position, velocity and swing control to deliver stable, high-efficiency precision calibration.
◆ Corrosion-resistant stainless steel large platform with flexible fixture layout. The 580mm stainless steel tabletop boasts 0.02mm flatness and 0.03mm end runout. Star-distributed mounting holes fit various inertial sensors, and 50kg load capacity meets most medium-sized component testing demands.
◆ Full-range dual-axis motion for comprehensive dynamic simulation. The main axis enables unlimited continuous rotation, while main and pitch axes swing ±30° and ±20° separately with wide frequency bands. Dual-axis linkage reaches 60°/s, with high top speed and angular acceleration to reproduce diverse motion conditions.
◆ Arc-second ultra-precision for consistent test data. It achieves ±2″ rotation accuracy, ±5″ positioning accuracy and ±2″ repeatability with tiny axis perpendicularity error. Excellent rate accuracy and smoothness across all speed ranges minimize calibration drift and stabilize cyclic test results.
◆ Multi-interface remote operation cuts test time. Equipped with serial and parallel ports for automatic remote control, it reduces setup time by 30%. Integrated touch control terminal enables intuitive operation for long-term batch sensor calibration in labs.
