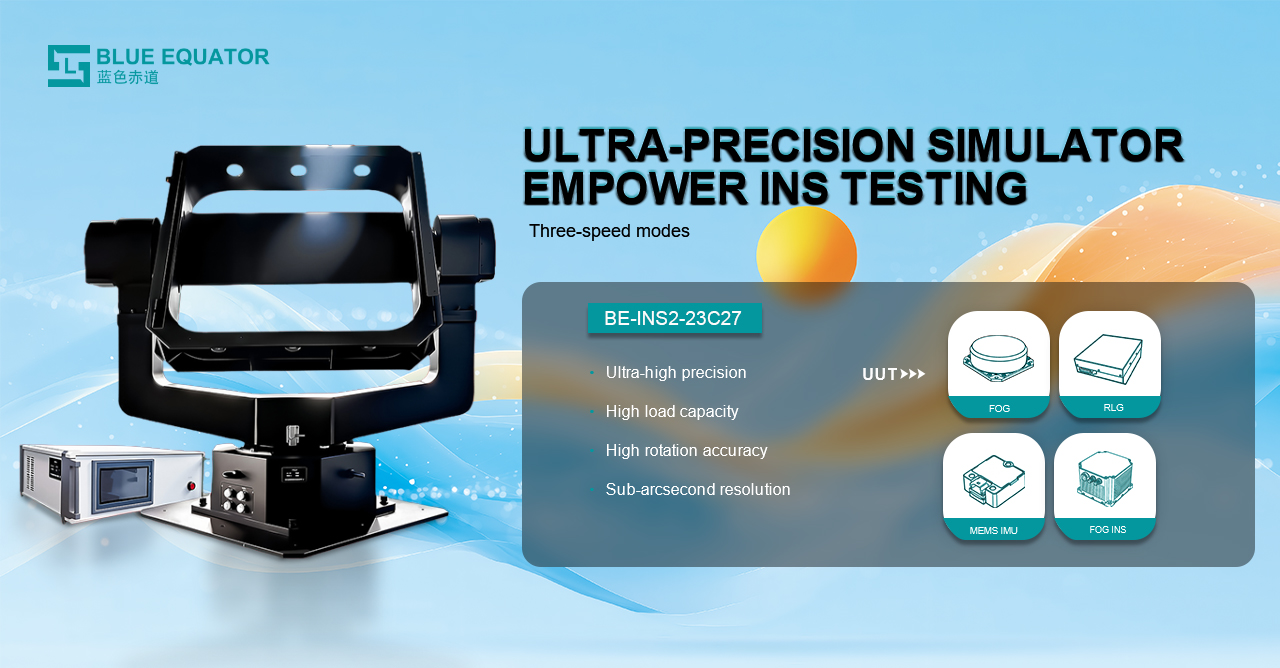

High-Load Precision Positioning System with 120kg Capacity and Sub-Arcsecond Resolution Redefines Satellite Tracking and Astronomical Observation

From Coarse Pointing to Sub-Arcsecond Precision

Conventional positioning systems typically rely on single-speed adjustment mechanisms, failing to deliver the fine motion control required for high-precision target acquisition across diverse operational scenarios. The BE-INS2-23C27 integrates a wide speed range from micro-motion at 2″/s to rapid positioning at 5°～10°/s, enabling seamless transition from coarse acquisition to fine pointing within a single platform. Rather than a simple positioning device, this process generates a dedicated pointing error signature for each application, providing high-fidelity raw data for system-level calibration and compensation algorithms.

Arc-Second Reference to Combat Pointing Drift in Demanding Environments

In satellite ground station operations, where antenna pointing accuracy directly impacts signal strength and data throughput, a deviation of merely a few arc-seconds can result in significant communication degradation. The combination of ≤10″ RMS comprehensive pointing accuracy and better than 0.1″ position resolution enables faithful emulation of both slow celestial tracking and rapid target acquisition scenarios. Notably, the independent dual-axis drives with ±180° azimuth and ±30° pitch ranges support advanced positioning trajectories, effectively separating mechanical errors, encoder nonlinearity, and thermal drift at their source — fundamentally suppressing pointing drift.

120kg Load Capacity with Structural Integrity

At elevated payload weights and extended duty cycles, structural stability becomes paramount. This system employs a robust mechanical platform weighing ≤850kg with a φ1000mm load base, maintaining rotational accuracy below 1.5″ across demanding operational sequences — ensuring that positioning errors reflect only the system's intrinsic behavior, not equipment variation. This attribute is indispensable for operators requiring high-integrity pointing for large antennas, heavy optics, and radar systems.

Enabling Automated Calibration Pipelines for Global Operational Efficiency

In response to the industry-wide drive for operational efficiency, the BE-INS2-23C27 offers a comprehensive remote-control interface that seamlessly integrates with existing automated test frameworks. Whether for rapid pre-deployment screening of large antenna systems or customized calibration based on specific mission profiles, the system executes unattended positioning sequences via script-driven automation. This transition elevates precision pointing system calibration from experience-based craftsmanship to a data-driven, auditable, and fully traceable quality foundation — empowering global aerospace and astronomy operations with quantifiable confidence.
