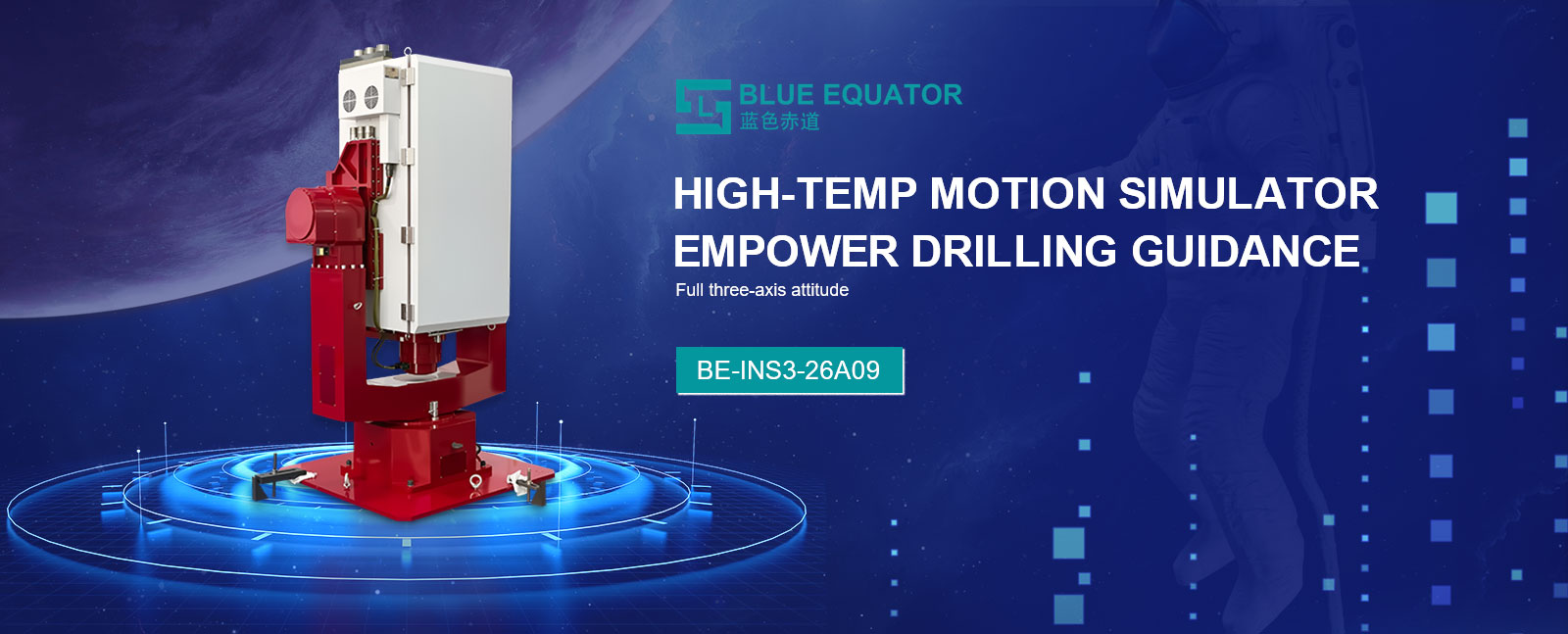

Combining ±20″ precision, 0.02°/s resolution, and AI-driven automated sequencing, the BE-INS3-26A09 triaxial thermal test stand builds full-life thermal models for MWD IMUs, ensuring borehole trajectory integrity under extreme thermal shocks.
【Wuhan, July 23, 2026】—— As the global energy industry pivots to ultra-deepwater and unconventional reservoirs, the reliability of downhole attitude measurement under extreme thermal stress has evolved from a performance metric to an operational safety imperative. Today, we are proud to unveil a new application paradigm for the BE-INS3-26A09 Triaxial Thermal Test Stand — not merely a high-precision positioner, but a digital twin calibration platform tailored for intelligent drilling inertial sensor suites.
From Spot-Check to Full-Lifecycle Thermal Profiling
Conventional calibration routines typically rely on single-temperature snapshots, failing to capture the nonlinear drift behavior of sensors during dynamic downhole thermal transients such as tripping, circulation, and pump shutdowns. The BE-INS3-26A09 integrates a programmable ambient-to-200°C thermal chamber with endless triaxial rotation, enabling composite sequences including stepped ramping, soak dwells, rate sweeps, and multi-position tumbling within a single fixturing. Rather than a simple pass/fail gate, this process generates a dedicated thermal-mechanical-magnetic coupling error fingerprint for each accelerometer, magnetometer, and gyroscope, providing high-SNR raw data for surface AI-based compensation algorithms.
Arc-Second Quasi-Static Reference to Combat Azimuth Walk in Extended-Reach Wells
In extended-reach drilling with lateral displacements exceeding 5,000 meters, an azimuth accumulation error of merely 0.1° may necessitate a costly sidetrack operation. The combination of ±20 arc-second absolute position accuracy and 0.02°/s rate resolution across all frames enables faithful emulation from vertical deadband to near-horizontal attitudes (with outer-frame rate output maintained outside the ±5° vertical zone). Notably, the independent, mechanically unlimited three-axis drives support advanced calibration trajectories such as bi-directional rate step-tests and conical motions, effectively separating gyro bias, scale-factor asymmetry, and misalignment angles at their source — fundamentally suppressing azimuth walk.
Magnetic-Clean Environment & Thermal Uniformity — Preserving Magnetometer Fidelity
At elevated temperatures, the thermal coefficient of magnetometers often deteriorates sharply, while stray fields from the stand's own motors and ferromagnetic structures can introduce systematic offsets. This system strictly confines the working magnetic field to ≤3 Gauss (Gs) — less than one-tenth of the Earth's field — complemented by a multi-zone thermocouple-regulated thermal chamber to ensure that magnetometer output changes under 200°C stress reflect only the sensor's intrinsic behavior, not environmental artifacts. This attribute is indispensable for operators relying on fluxgate-based high-integrity borehole azimuth referencing.
Enabling Automated Calibration Pipelines for Global Cost Efficiency
In response to the industry-wide drive for operational efficiency, the BE-INS3-26A09 offers a full SCPI (Standard Commands for Programmable Instruments) remote control set, seamlessly integrating into existing Automated Test Markup Language (ATML) frameworks. Whether for rapid pre-delivery screening of large tool batches or customized thermal compensation based on real-time bottom-hole temperature profiles, the system executes unattended calibration sequences via script-driven automation. This transition elevates downhole inertial sensor calibration from experience-based craftsmanship to a data-driven, auditable, and fully traceable quality foundation, empowering global drilling risk management with quantifiable confidence.
