Dual-Axis Thermal Rate Table with ±5″ Accuracy and Wide-Temperature Thermal Cycling Redefines Precision Positioning for Semiconductor and Optical Testing

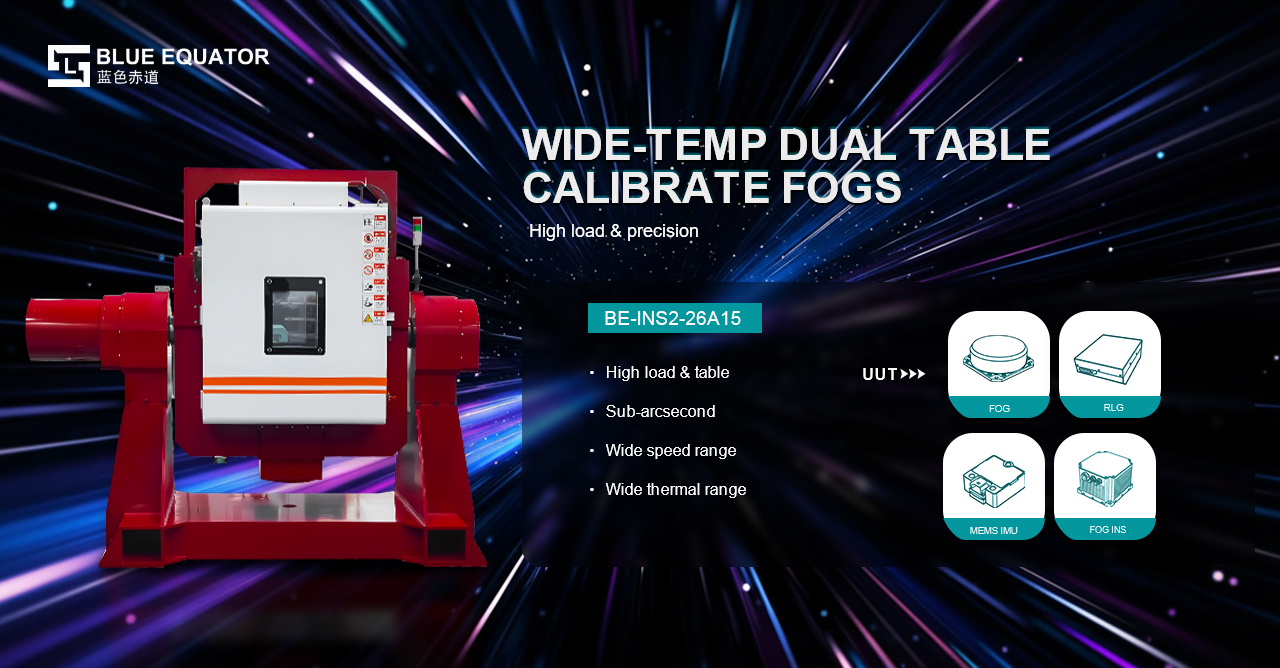

 —As semiconductor lithography nodes shrink below 3nm and optical metrology demands sub-micron alignment precision, the positioning accuracy of test and manufacturing equipment has become a critical yield driver. Today, we are proud to announce a new application paradigm for the BE-INS2-26A15 dual-axis thermal rate table — not merely a positioning turntable, but a comprehensive precision motion platform tailored for semiconductor wafer inspection, optical component characterization, and inertial sensor calibration.

From Arc-Minute to Arc-Second: The Precision Imperative in Semiconductor Manufacturing

Conventional rotary tables used in semiconductor inspection and optical testing typically offer arc-minute level accuracy, failing to meet the stringent alignment requirements of advanced lithography and metrology tools. The BE-INS2-26A15 delivers ±5″ angular positioning accuracy with ±2″ repeatability and 0.0001°/s velocity resolution, enabling precise wafer alignment, reticle positioning, and optical component orientation. Rather than serving as a simple positioning device, this system generates a dedicated motion-error signature for each test sequence, providing high-fidelity positioning data for process optimization and quality assurance.

Wide-Range Thermal Cycling for Full-Temperature Device Characterization

In semiconductor manufacturing, device performance must be validated across operating temperature ranges to ensure reliability. The BE-INS2-26A15 integrates a -55°C to +120°C thermal cycling capability with precision dual-axis motion, enabling comprehensive full-temperature characterization of MEMS sensors, inertial devices, and optical components within a single fixturing. This eliminates the need for separate thermal chambers and motion platforms, streamlining test workflows and reducing setup complexity.

Heavy Payload Capacity Without Compromising Precision

Optical metrology systems and semiconductor inspection tools often involve substantial fixture weights. The BE-INS2-26A15 addresses this with a 580mm stainless steel platform supporting a 40kg maximum load, maintaining ±5″ positioning accuracy even under full load. The 0.02mm platform flatness and 0.03mm end runout ensure stable, repeatable positioning essential for high-precision optical alignment and wafer inspection.

Enabling Automated Test Pipelines for High-Throughput Semiconductor Manufacturing

In response to the semiconductor industry's drive for operational efficiency, the BE-INS2-26A15 offers comprehensive remote control interfaces, seamlessly integrating into existing automated test frameworks. Whether for high-volume wafer inspection or R&D-level optical component characterization, the system executes unattended positioning sequences via script-driven automation. This transition elevates precision positioning from manual adjustment to a data-driven, auditable, and fully traceable quality foundation — empowering semiconductor manufacturers with quantifiable confidence in their test and metrology processes.
