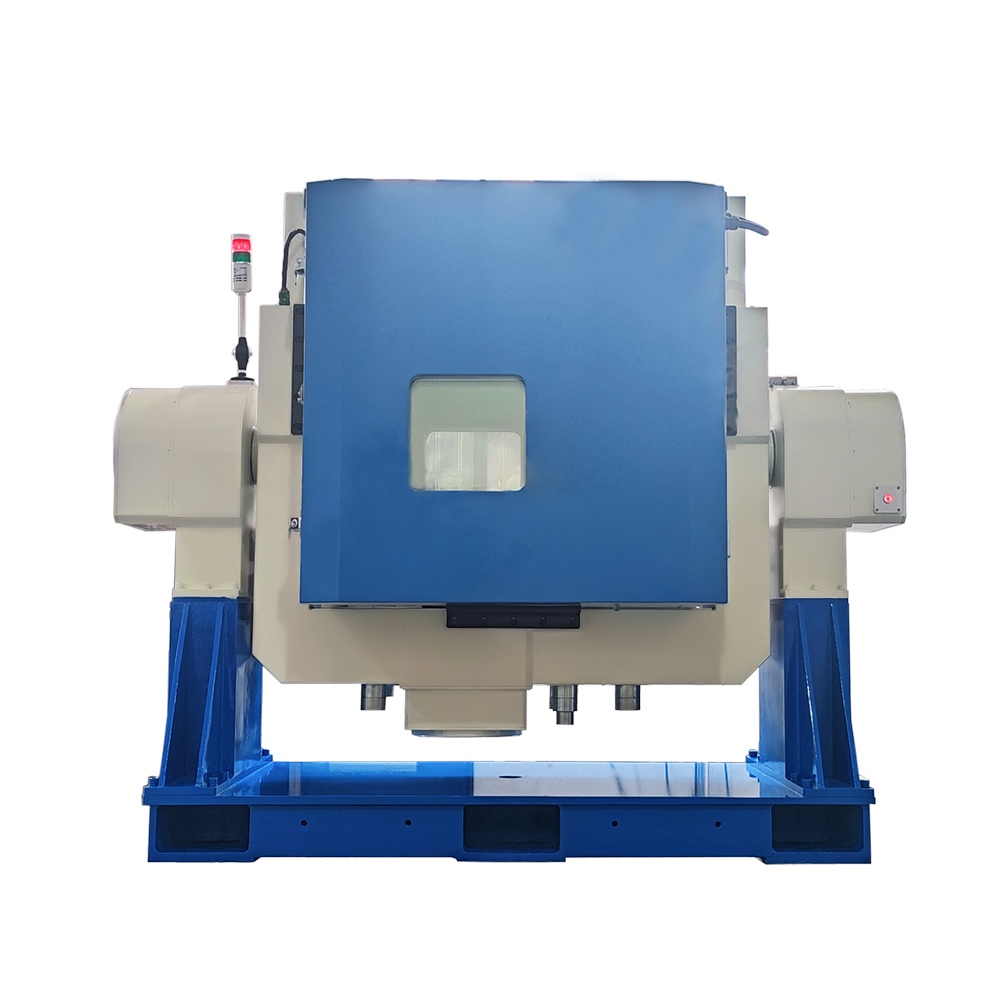

Full-temperature testing demands more than motion control. It demands stability, repeatability, and environmental fidelity—all in one platform.
◆ Accuracy That Withstands the Extremes
±5″ positioning accuracy with ±3″ repeatability and 0.36″ resolution on both axes. Inner frame shaft rotation accuracy holds at ±2″, outer frame at ±5″. For inertial navigation performance validation, this level of precision ensures data you can trust.
◆ Speed That Adapts to Every Scenario
Inner axis spans ±0.001°/s to ±500°/s with 300°/s² acceleration; outer axis spans ±0.001°/s to ±200°/s with 100°/s² acceleration. Rate stability scales intelligently: 3×10⁻³ over 1° average, 3×10⁻⁴ over 10° average, and 3×10⁻⁵ over 360° average—clean motion across the entire speed envelope.
◆ Boundless Rotation for Comprehensive Testing
360° continuous rotation on both axes eliminates mechanical constraints, enabling uninterrupted multi-turn testing for full-temperature dynamic and static performance analysis.
◆ Precision Mechanical Foundation
Φ580 mm stainless steel table maintains 0.02 mm flatness and 0.03 mm end runout. Two-axis perpendicularity within ±5″, intersection within Φ0.25 mm sphere. Table leakage kept below 0.2 mT for magnetically sensitive devices.
◆ Generous Payload Capacity
Supporting 50 kg loads with load dimensions up to Φ450 mm × 400 mm, the system accommodates complete IMU assemblies, inertial navigation systems, and large optoelectronic payloads.
◆ High-Capacity Signal Transmission
60 to 120 user slip ring channels, each rated at no less than 3A, ensure uninterrupted power and data transfer throughout continuous rotation. RS232/RS422 communication interfaces enable seamless integration.
◆ Engineered for Full-Temperature Testing
Purpose-built for thermal-controlled environmental testing, this turntable enables accurate characterization of micro inertial systems across extreme temperature conditions, eliminating the uncertainties of cross-platform transfers.
◆ Applications
Inertial navigation system validation. Micro IMU full-temperature characterization. Precision instrument calibration. Aerospace sensor testing. Industrial precision measurement.
◆ The Complete Full-Temperature Test Platform
By unifying dual-axis precision positioning, high-capacity signal transmission, and thermal chamber compatibility, this turntable delivers the performance engineers need for rigorous inertial navigation testing. For professionals who must validate sensor performance across temperature extremes, it provides the reliability and repeatability that quality assurance demands—from development through production.
