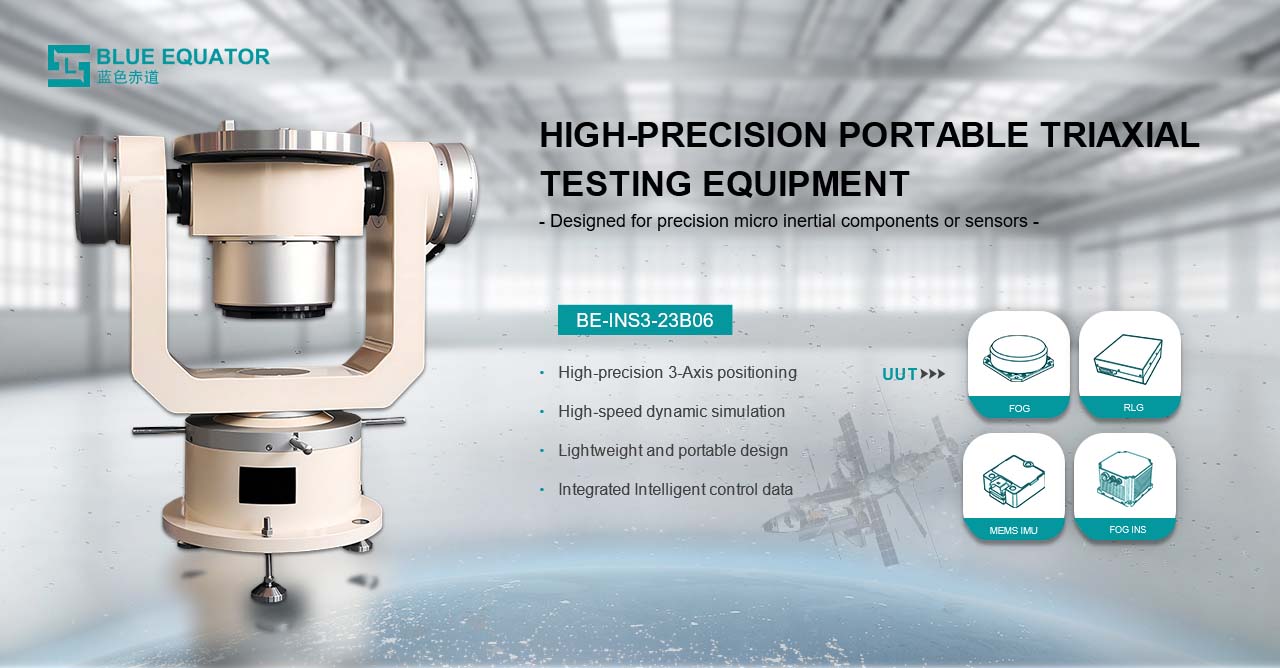

High-Precision Triaxial Motion Simulation Rate Table with ±5″ Accuracy and 20kg Payload Redefines INS and Gyroscope Calibration

 —— As the global aerospace and autonomous systems industries pivot to higher precision navigation and more complex dynamic environments, the reliability of inertial sensors and gyroscopes under extreme conditions has evolved from a performance metric to an operational safety imperative. Today, we are proud to announce a new application paradigm for the BE-INS3-23B06 high-precision triaxial motion simulation rate table — not merely a positioning turntable, but a comprehensive motion simulation platform tailored for INS calibration, gyroscope testing, and high-dynamic sensor validation.

From Single-Axis Verification to Triaxial Motion Simulation

Conventional test stands typically rely on single-axis or dual-axis configurations, failing to capture the coupled dynamic response of inertial sensors during complex multi-axis maneuvers. The BE-INS3-23B06 integrates independent three-axis control with 360° continuous rotation, enabling composite test sequences including rate sweeps, multi-position tumbling, and coordinated triaxial motion within a single fixturing. Rather than a simple pass/fail gate, this process generates a dedicated dynamic error signature for each gyroscope and accelerometer, providing high-fidelity calibration data for navigation system optimization.

Arc-Second Precision for High-Integrity Sensor Calibration

In inertial navigation system calibration, where positioning accuracy directly impacts long-term navigation stability, a deviation of mere arc-seconds can propagate into significant drift over extended operations. The combination of ≤±5″ three-axis positioning accuracy and ≤±3″ repeatability enables precise separation of gyro bias, scale-factor asymmetry, and axis misalignment angles. The system's rate accuracy and stability — maintained at 5×10⁻³ over 1° averages — ensures reliable characterization of gyroscope performance across the full dynamic spectrum.

20kg Payload Capacity with Stainless Steel Platform for Diverse Test Configurations

The BE-INS3-23B06 features a Φ360mm stainless steel mounting platform supporting 20kg rated load and Φ300mm×200mm maximum load dimensions. With platform flatness and face runout both maintained below 0.02mm, the system provides a stable, precision foundation for flight control sensors, navigation components, and radar servo systems. The equipment weight of approximately 120kg ensures structural stability across extended test sequences, minimizing vibration and mechanical interference that could compromise measurement integrity.

Enabling Automated Calibration Pipelines for Production Efficiency

In response to the industry-wide drive for operational efficiency, the BE-INS3-23B06 offers computer-automated status control, data acquisition, processing, and display capabilities with RS232/RS422 communication interfaces, seamlessly integrating into existing automated test frameworks. Whether for high-volume sensor screening or R&D-grade system characterization, the system executes unattended calibration sequences via script-driven automation. This transition elevates inertial sensor calibration from experience-based craftsmanship to a data-driven, auditable, and fully traceable quality foundation — empowering global aerospace manufacturers and navigation system developers with quantifiable confidence in their components.
