From Arc-Minute to Arc-Second: The Precision Imperative in Inertial Testing

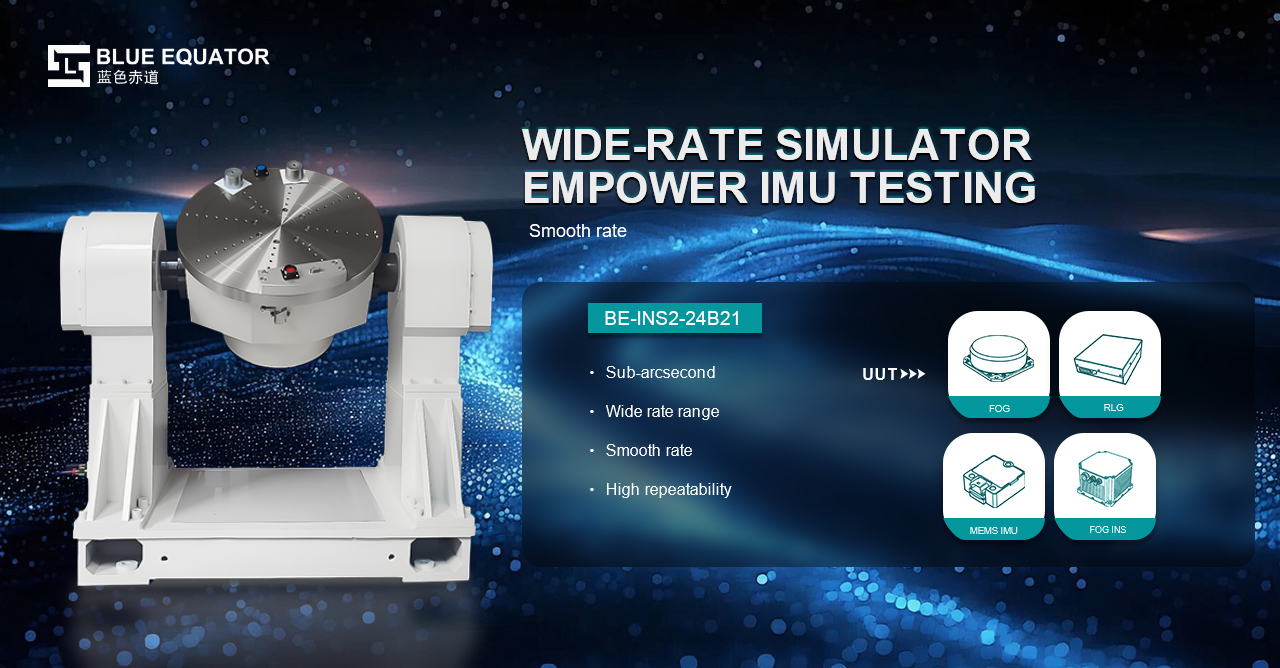

Conventional rate tables often struggle to deliver the combination of arc-second accuracy and fine rate resolution required for modern inertial sensors—where even minor calibration errors can propagate into significant navigation drift over extended missions. The BE-INS2-24B21 delivers ±3″ angular positioning accuracy with ±3″ repeatability and 0.36″ angular position measurement resolution, enabling precise gyroscope and accelerometer characterization. Rather than a simple positioning device, this system generates a dedicated calibration signature for each sensor under test, providing high-fidelity data for navigation system optimization and quality assurance.
Wide Dynamic Range for Comprehensive Sensor Characterization
The BE-INS2-24B21 features a broad rate range from ±0.001°/s to ±350°/s with 0.0001°/s rate resolution, supporting comprehensive characterization of gyroscope bias, scale-factor linearity, and rate response across the full operational spectrum. The system's exceptional rate stability—maintained across the entire speed range—ensures consistent, repeatable test conditions essential for reliable sensor validation. This capability is particularly critical for spacecraft attitude control systems, where sensor performance must be verified from station-keeping precision to rapid attitude maneuvers.
Sub-Arcsecond Measurement for High-Integrity Sensor Validation
The BE-INS2-24B21 achieves sub-arcsecond angular measurement capability, enabling detection of subtle sensor characteristics that might otherwise remain hidden in conventional test setups. This precision is indispensable for validating FOGs (fiber optic gyroscopes), MEMS-IMUs, and accelerometers used in satellite navigation, autonomous driving, and aerospace guidance applications. The system's high repeatability ensures that calibration results reflect only the sensor's intrinsic behavior—not equipment variation—providing engineers with data they can trust for critical design decisions.
Enabling Automated Calibration Pipelines for Production Efficiency
In response to the growing demand for operational efficiency in sensor manufacturing and validation, the BE-INS2-24B21 offers comprehensive remote control interfaces, seamlessly integrating into existing automated test frameworks. Whether for high-volume INS sensor screening or R&D-grade spacecraft component characterization, the system executes unattended calibration sequences via script-driven automation. This transition elevates inertial sensor calibration from manual craftsmanship to a data-driven, auditable, and fully traceable quality foundation—empowering aerospace manufacturers and navigation system developers with quantifiable confidence in their components.
